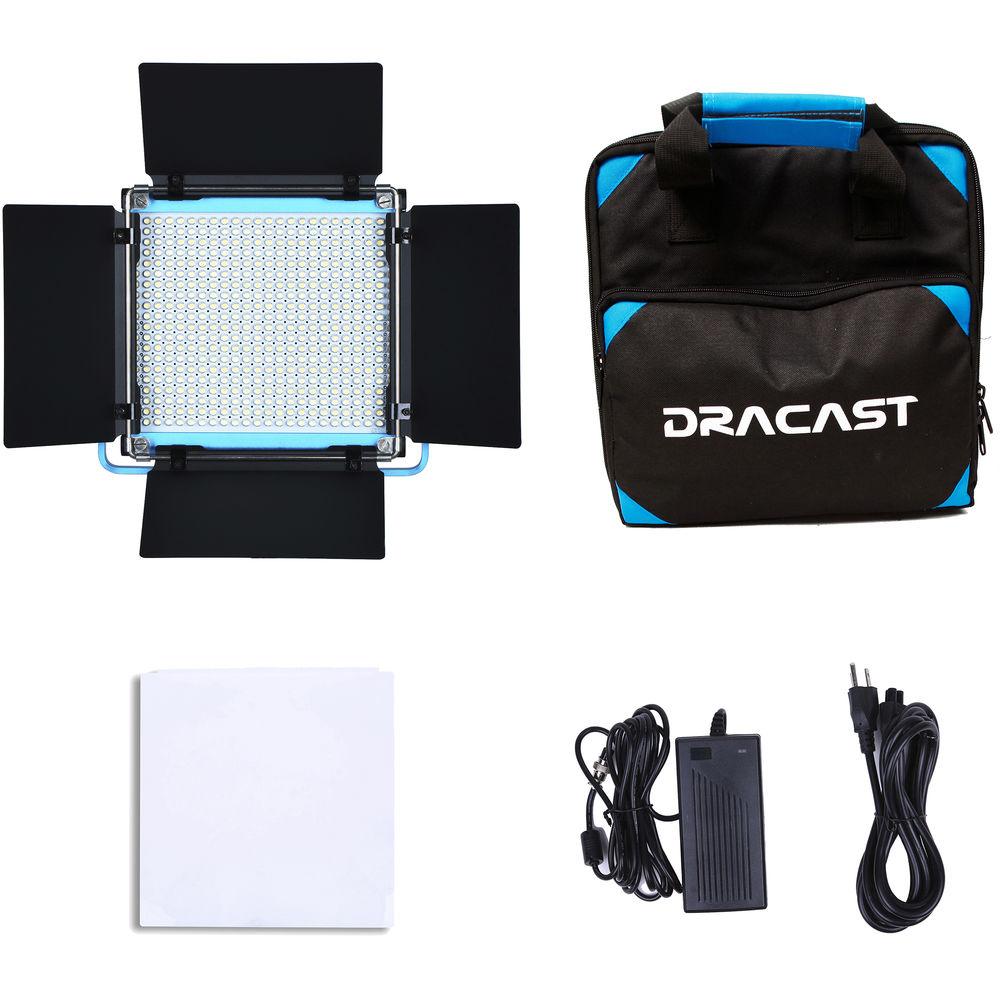

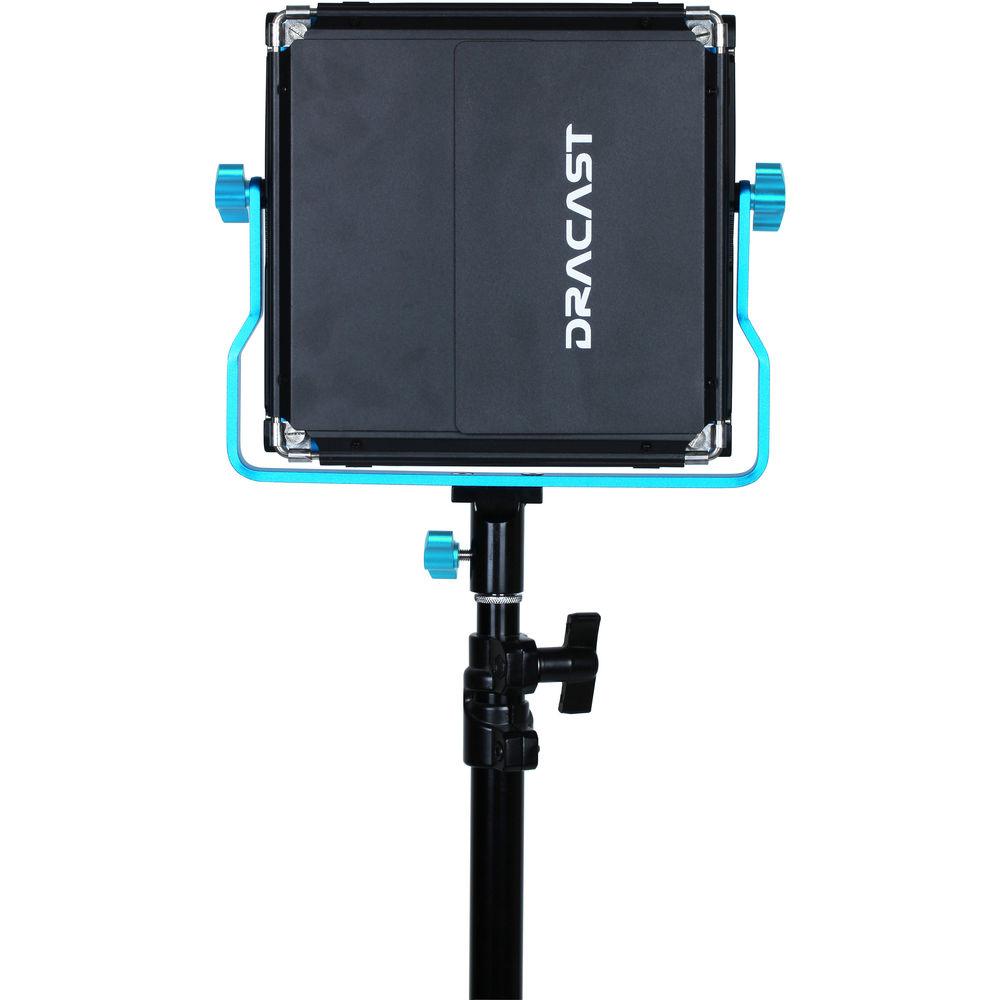

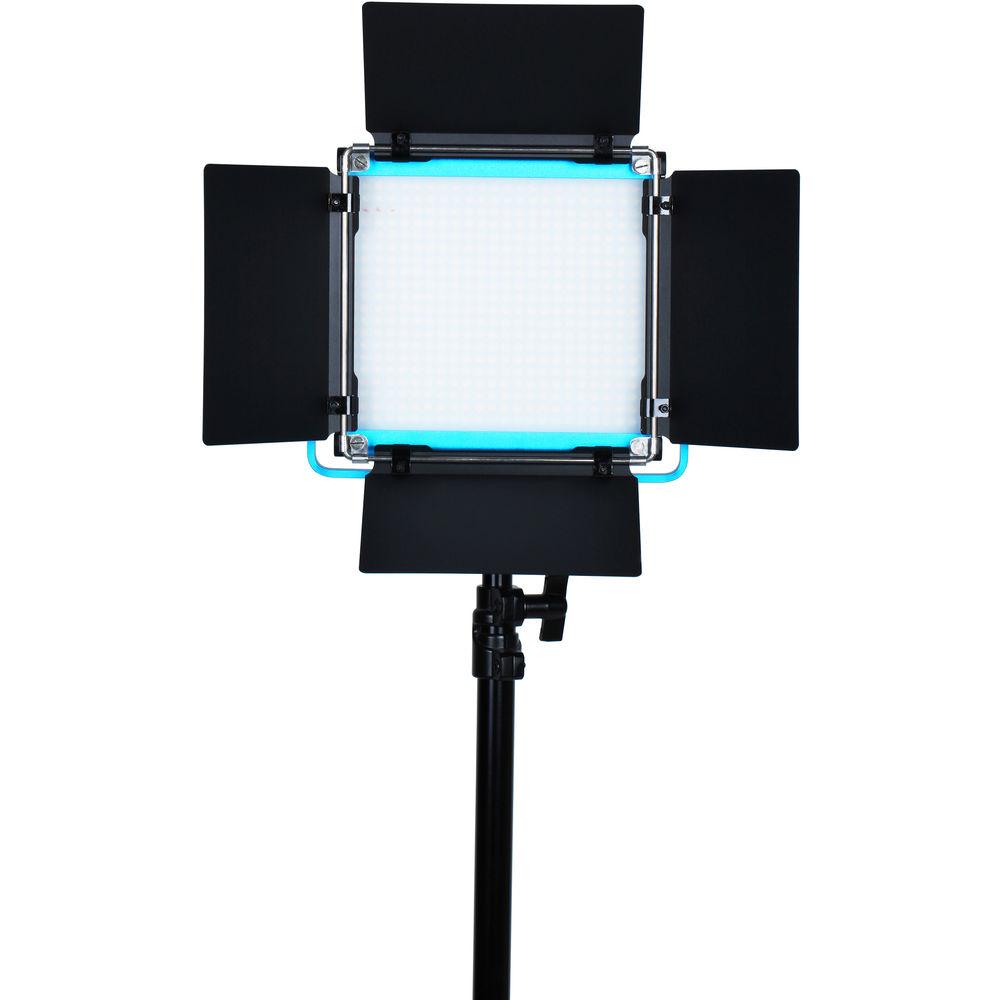

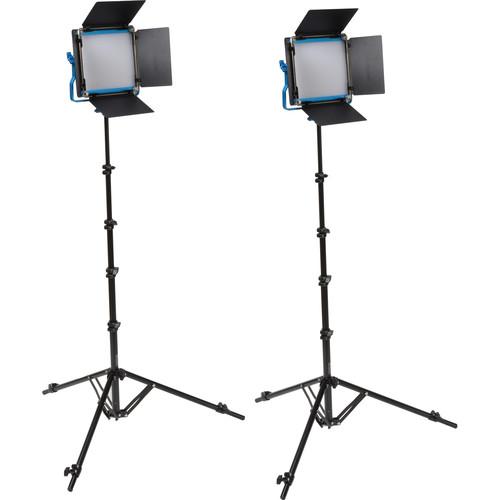

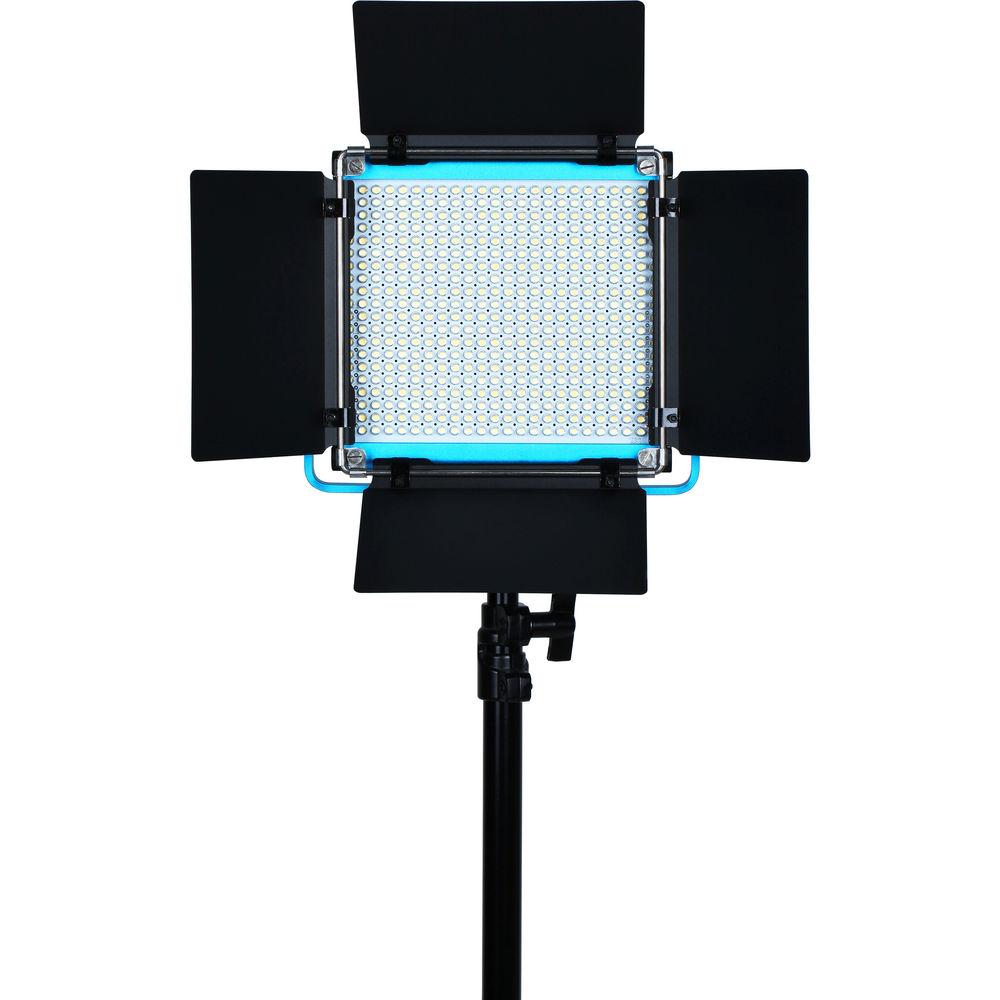

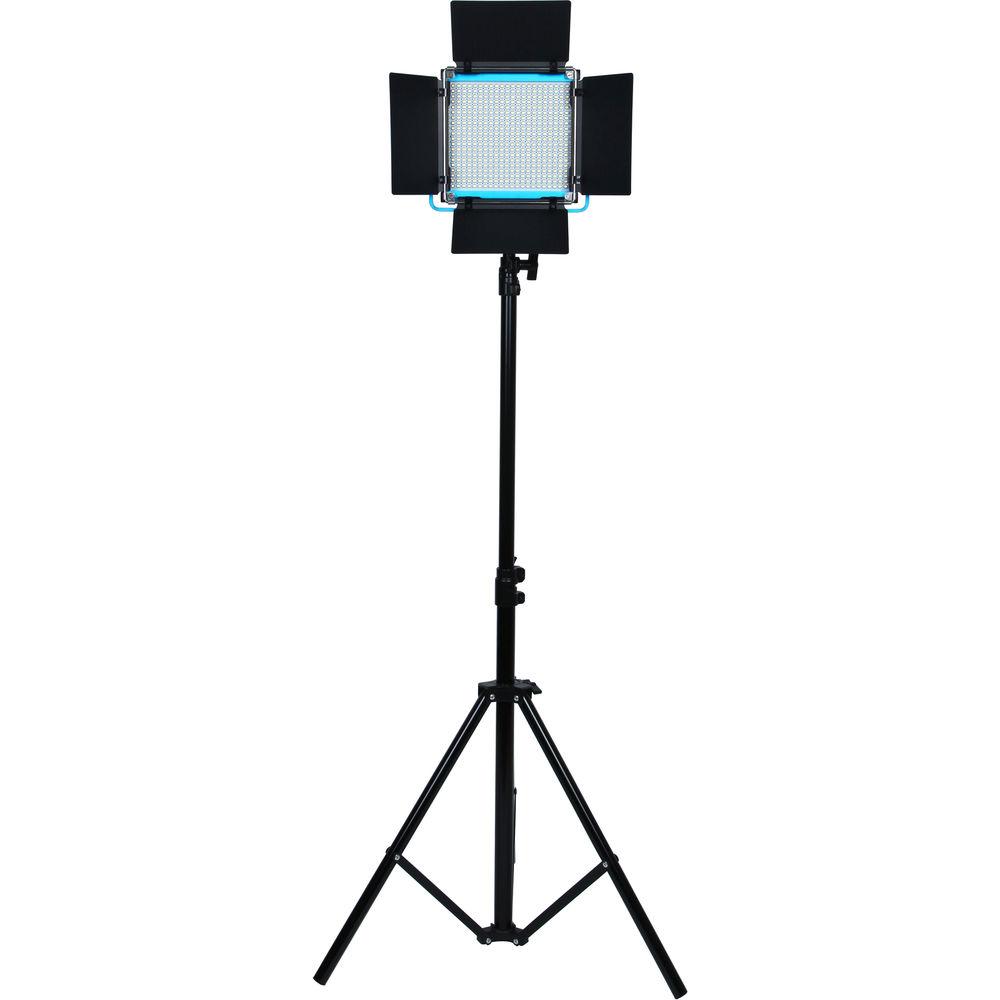

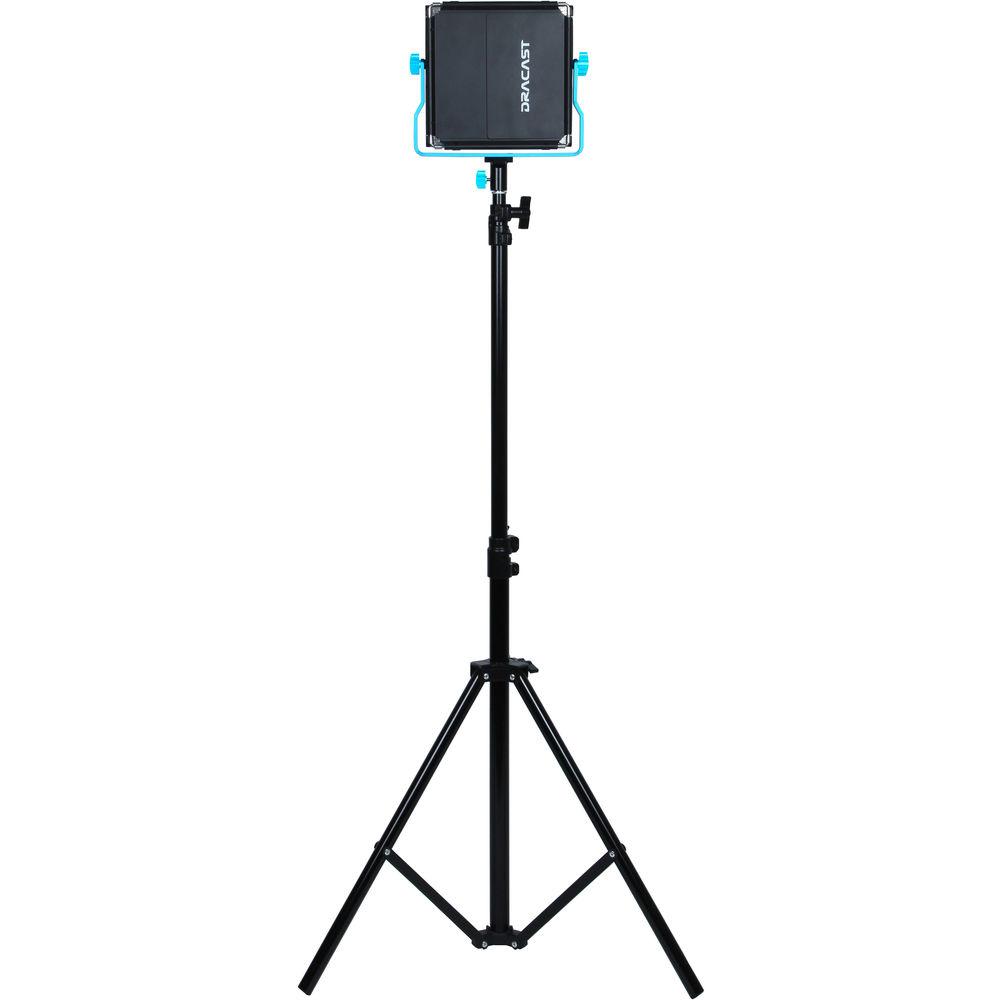

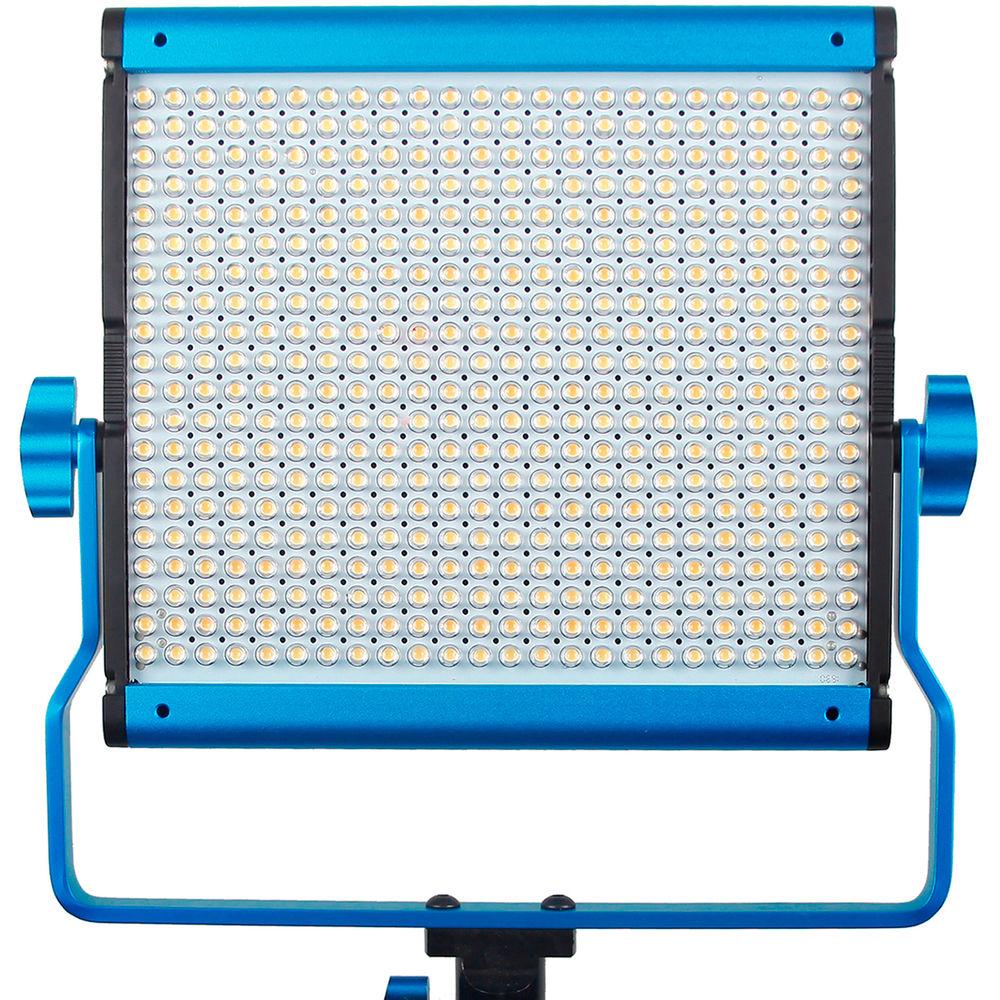

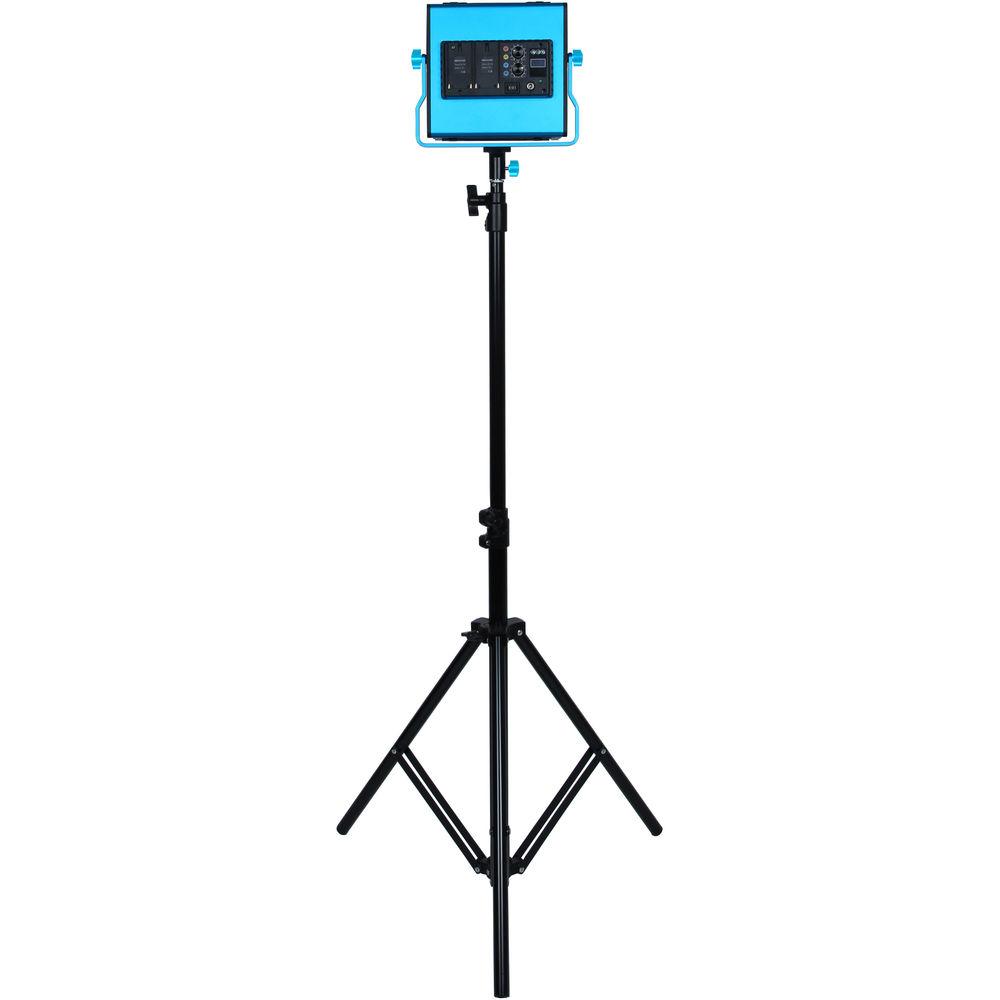

Product description Dracast has put together this S-Series LED500 Plus Bi-Color LED 2-Light Kit with NP-F Battery Plates to offer image makers a 2-point light solution for the studio or the road. The kit comes with 2 S-Series LED500 Plus Bi-Color panels with 4-way barndoors. Each light comes with a diffuser, a multi-voltage AC adapter, an NP-F battery plate, and an individual soft case. A hard travel case is also included for storage and transport. - S-Series Plus Bi-Color LED500 Panel with NP-F Battery Plates Featuring a slim and lightweight design, the S-Series Plus Bi-Color LED500 Panel with NP-F Battery Plates from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. One of the light's enhancements is Multi-Light Control Capability whereby you can make color and dimming adjustments to a single master light and other lights in a group will follow suit. The panel also has both color and light intensity presets to make it easy to return to previously used settings. The low electrical draw of just 29W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional NP-F batteries. A carry case is included.
- Photometrics
- 2822 lux / 262 fc @ 3.0' / 0.9m at 3200K
664 lux / 62 fc @ 6.0' / 1.8m at 3200K
361 lux / 29 fc @ 9.0' / 2.7m at 3200K
194 lux/18 fc @ 12' / 3.6m and 3200K
4994 lux / 466 fc @ 3.0' / 0.9m at 4400K
1357 lux / 126 fc @ 6.0' / 1.8m at 4400K
610 lux / 57 fc @ 9.0' / 2.7m at 4400K
366 lux / 34 fc @ 12' / 3.6m at 4400K
3082 lux / 286 fc @ 3.0' / 0.9m at 5600K
762 lux / 71 fc @ 6.0' / 1.8m at 5600K
345 lux / 32 fc @ 9.0' / 2.7m at 5600K
205 lux / 19 fc @ 12' / 3.6m at 5600K UPC: 612520499891 - Barndoors for Silver Series LED500 These Dracast Barndoors for Silver Series LED500 control the spread of light and prevent unwanted spill. Made specifically for the Silver Series lights, they are constructed with an aluminum chassis in a 4-way design. UPC: 722589274336
- V-Mount to Dual NPF Converter Dracast's V-Mount to Dual NPF Converter allows you to power any V-Mount/V-Lock light, monitor, or other piece of equipment with 2 Sony-type L-series or NPF batteries, as long as the voltage is equivalent. The combined voltage of the two NPFs will be 14.8V, which is the standard output power of a V-Mount battery. UPC: 612520463717

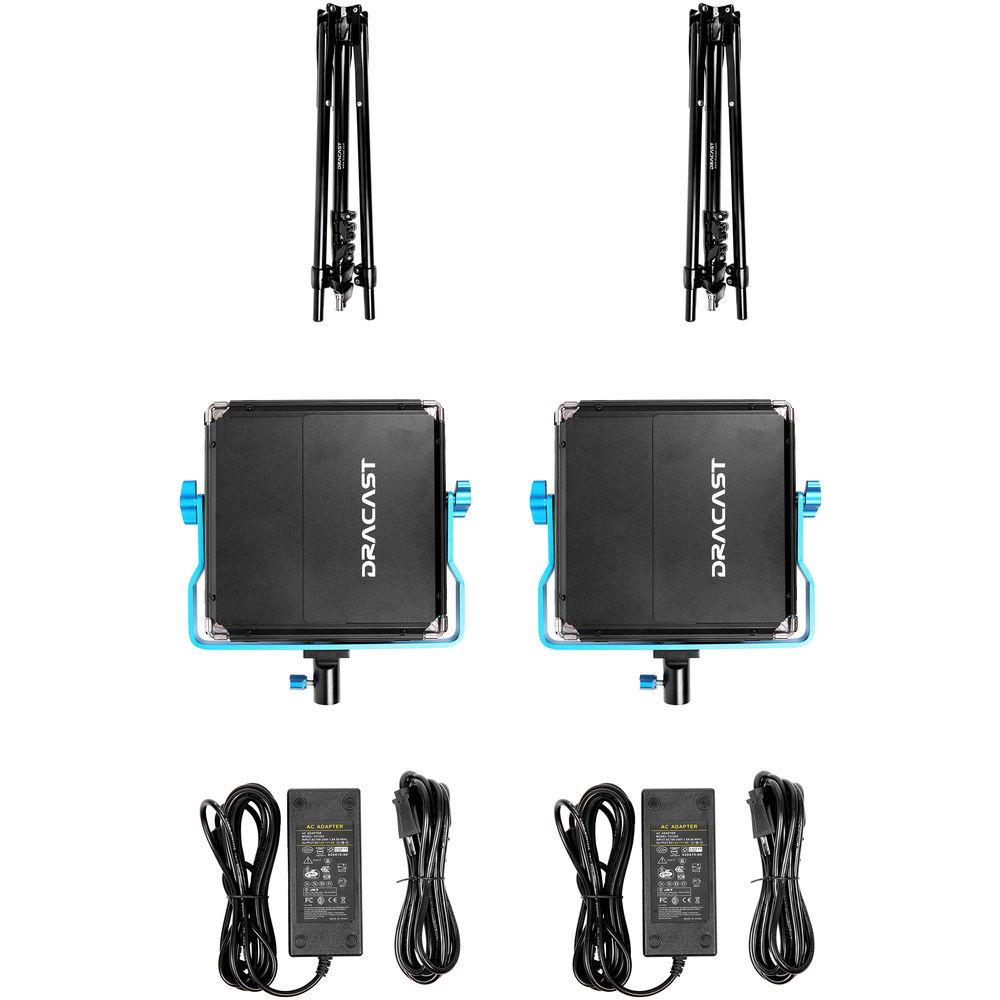

In the Box Bundle Items 2 x S-Series Plus Bi-Color LED500 Panel with NP-F Battery Plates rffbxrftxwxveysuxtxzdwbwuazrded - AC Power Supply for S-Series LED500 LED Panel
2 x Barndoors for Silver Series LED500 2 x V-Mount to Dual NPF Converter
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast S-Series LED500 Plus Bi-Color LED 2-Light Kit with NP-F Battery Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - S-Series Plus Bi-Color LED500 Panel with NP-F Battery Plates
| Light Source | LED | | Color Range | 3200-5600K Variable Color Temperature | | CRI | 96 | | Dimming | 100-0% | | Beam Angle | 45° | | Operating Voltage | 100-240 VAC, 50/60 Hz
15 VDC | | Power Consumption | 29 W | | Material | Anodized aluminum | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 10 x 10.4 x 1.8" / 260 x 265 x 48 mm | | Weight | 2.0 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 13.4 x 13.3 x 5.7" | - Barndoors for Silver Series LED500
| Material | Aluminum | | Dimensions | 11.2 x 11.4 x 2.9" (28.4 x 28.9 x 7.4 cm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.95 x 8.75 x 1.05" | - V-Mount to Dual NPF Converter
| | | Box Dimensions (LxWxH) | 5.35 x 4.0 x 1.0" |
