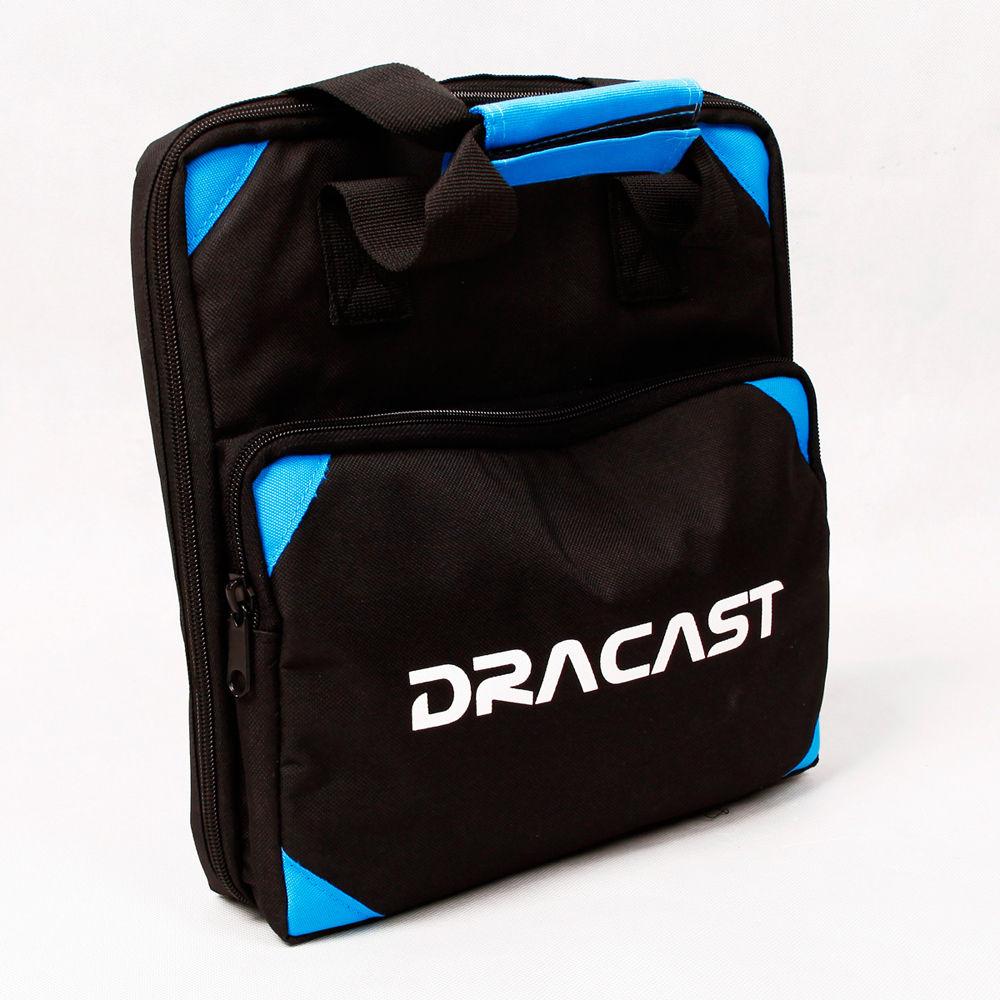

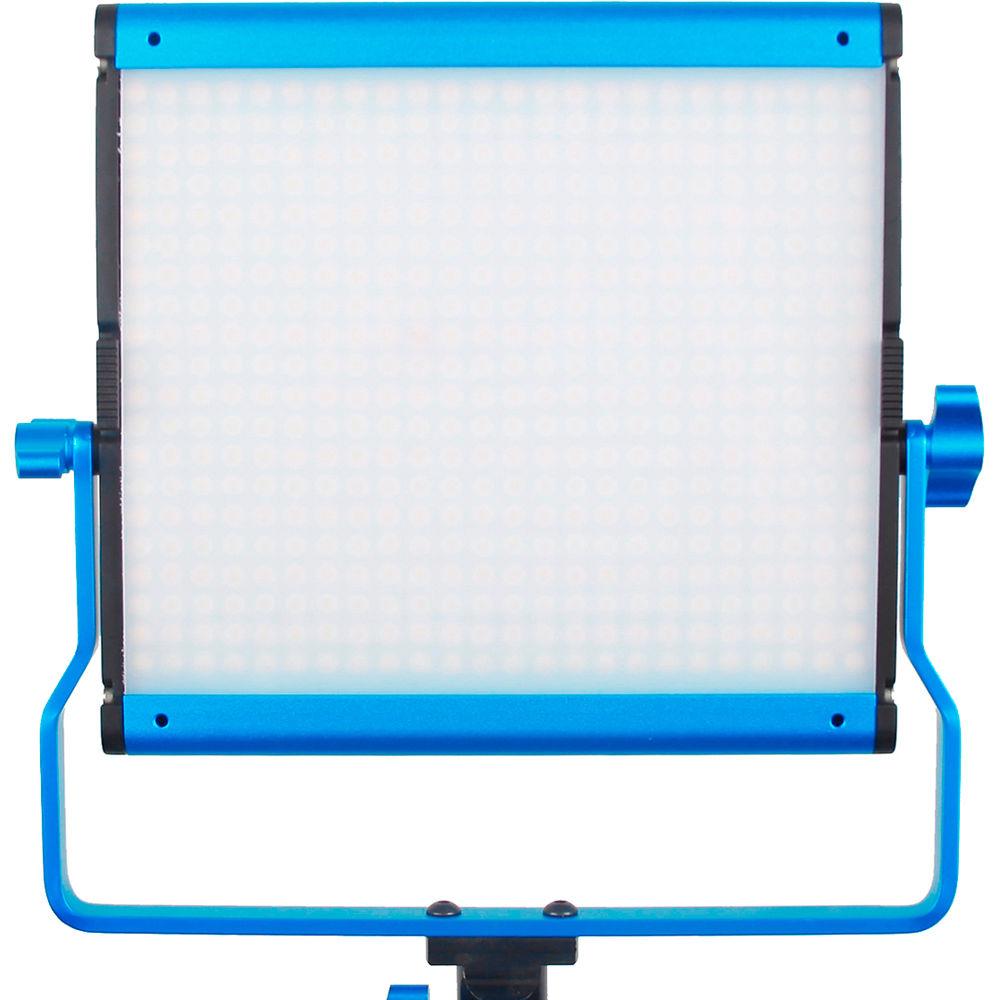

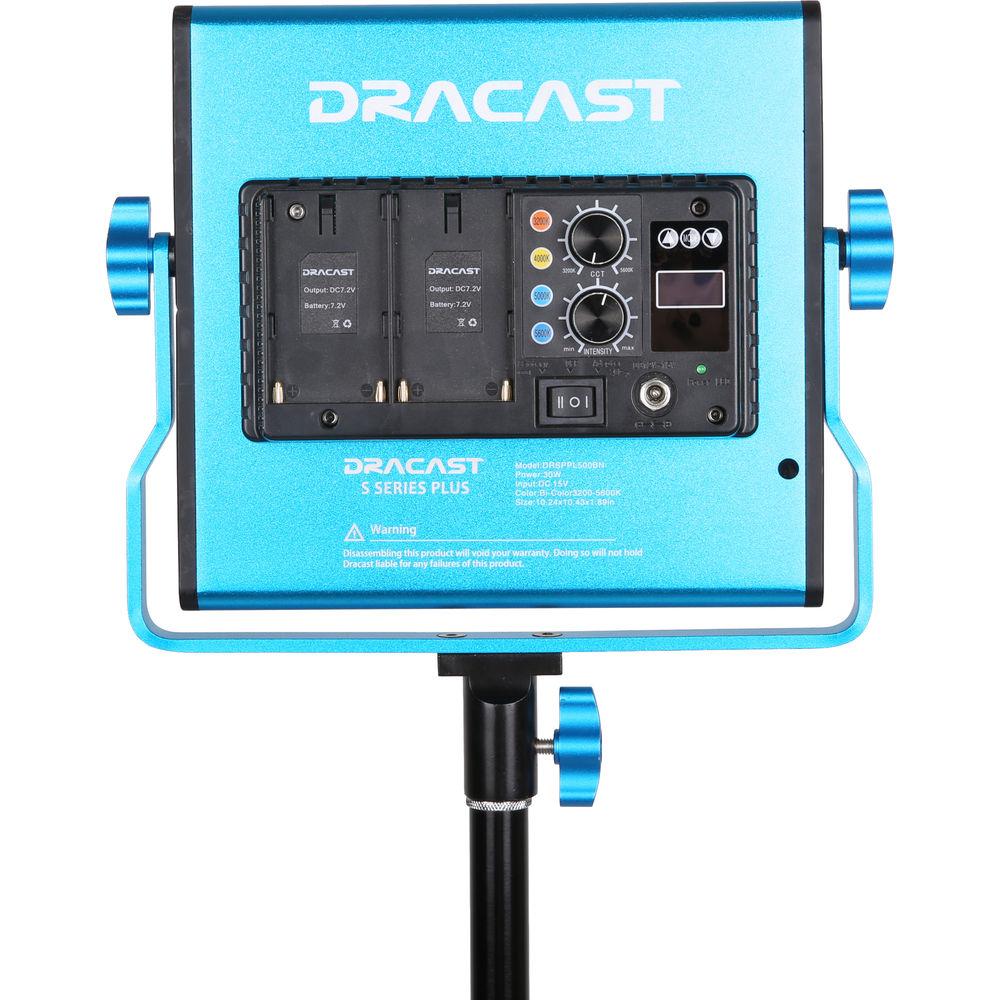

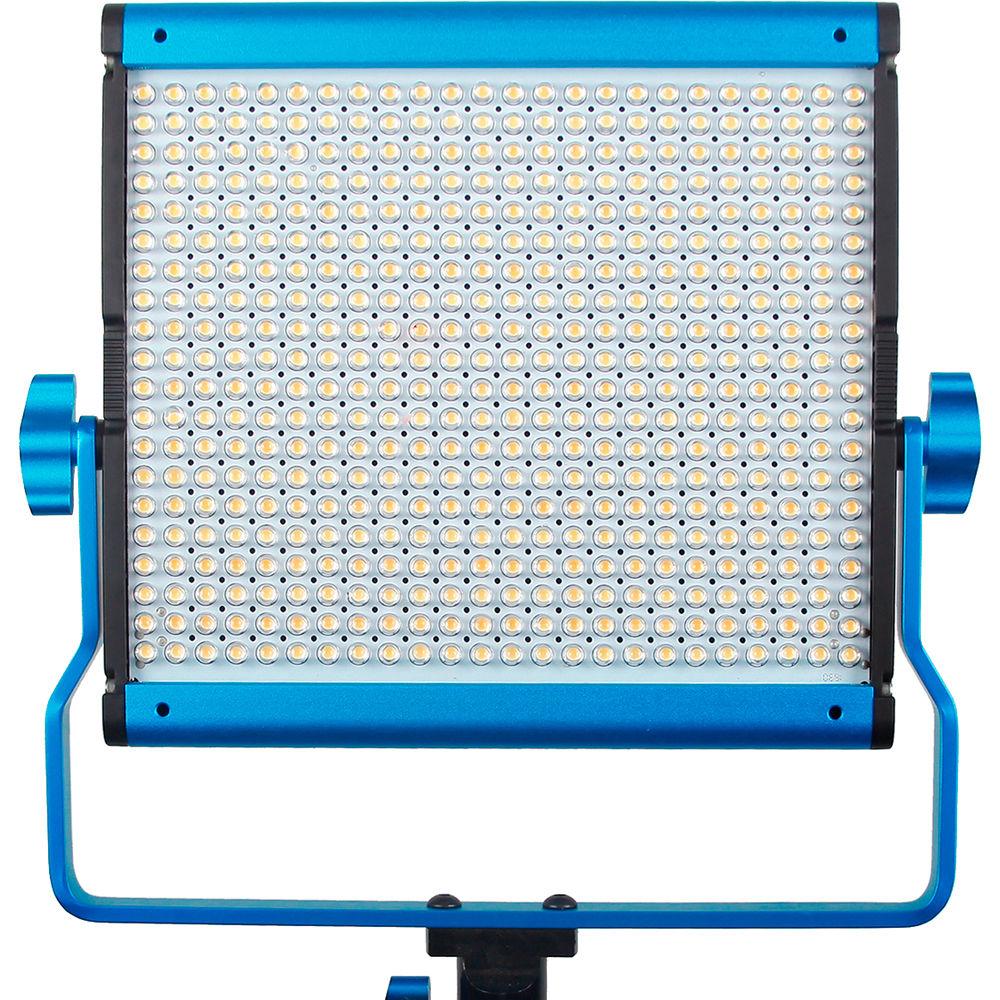

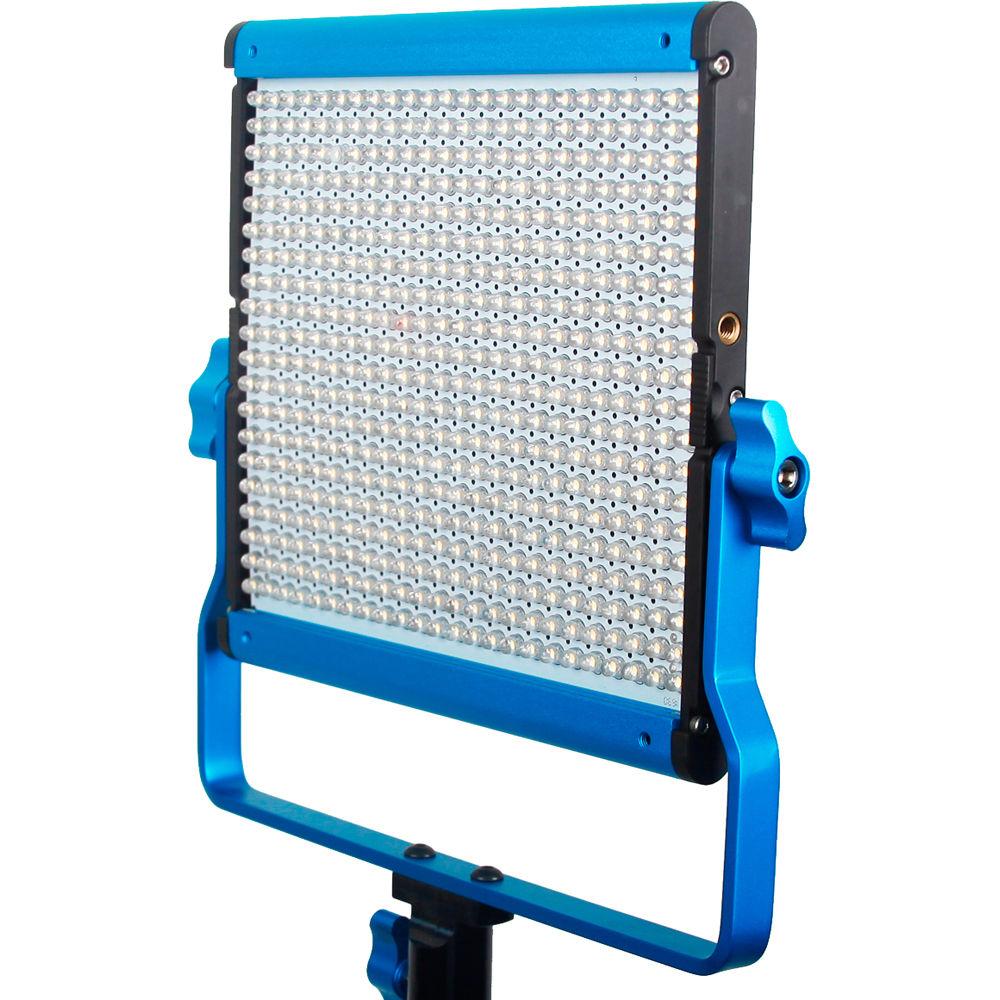

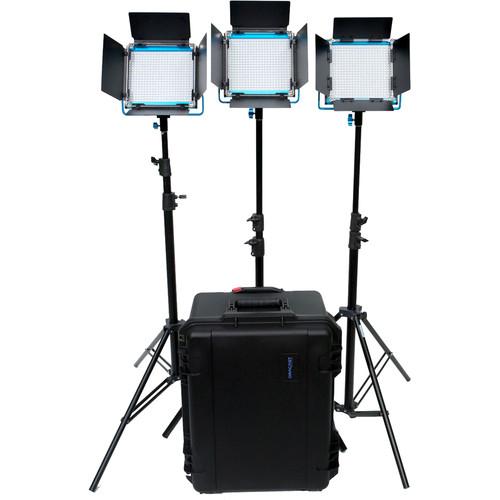

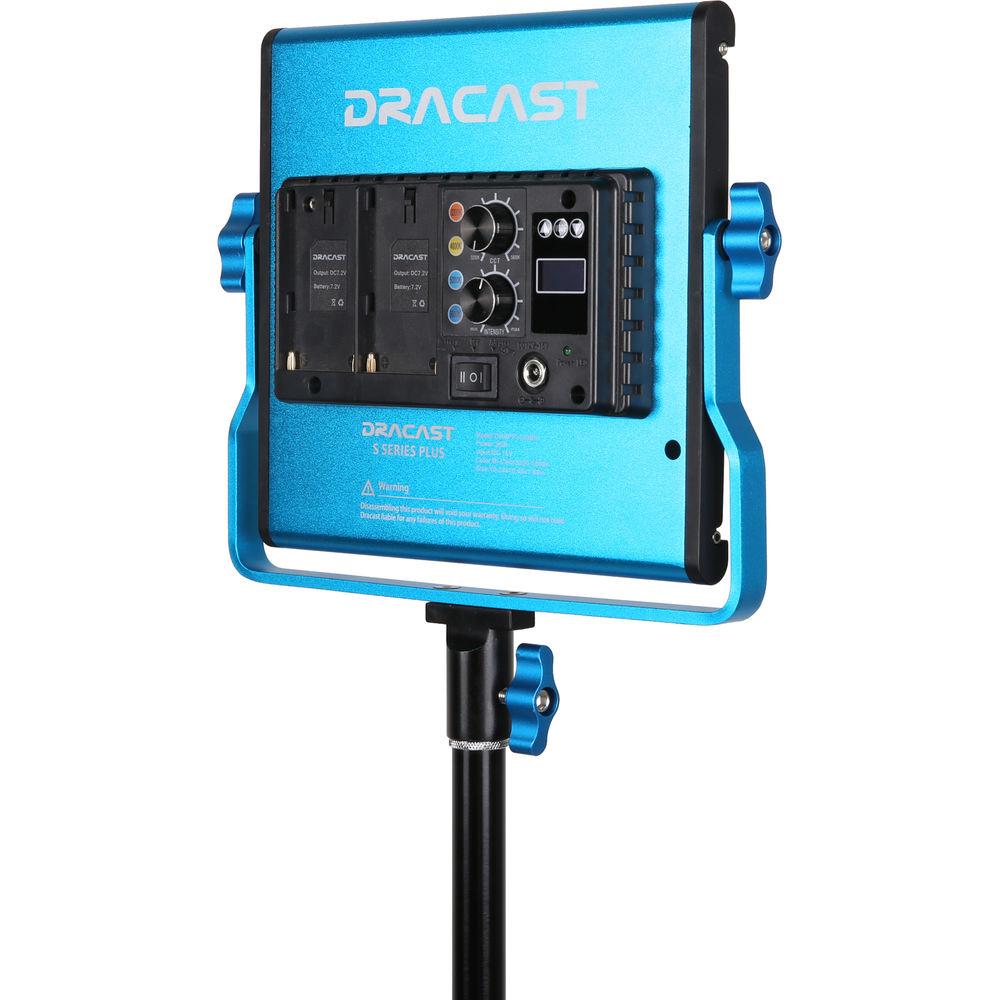

Product description Dracast has put together this S-Series LED500 Plus Bi-Color LED 3-Light Kit with V-Mount Battery Plates to offer image makers a 3-point light solution for the studio or the road. The kit comes with 3 S-Series LED500 Plus Bi-Color panels with 4-way barndoors. Each light comes with a diffuser, a multi-voltage AC adapter, a V-mount battery plate, and an individual soft case. A hard travel case is also included for storage and transport. - S-Series Plus Bi-Color LED500 Panel with V-Mount Battery Plate Featuring a slim and lightweight design, the S-Series Plus Bi-Color LED500 Panel with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. One of the light's enhancements is wireless Multi-Light Control Capability whereby you can make color and dimming adjustments to a single master light and other lights in a group will follow suit. The panel also has both color and light intensity presets to make it easy to return to previously used settings. The low electrical draw of just 29W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-mount batteries. A carry case is included.
- Photometrics
- 2822 lux / 262 fc @ 3.0' / 0.9m at 3200K
664 lux / 62 fc @ 6.0' / 1.8m at 3200K
361 lux / 29 fc @ 9.0' / 2.7m at 3200K
194 lux/18 fc @ 12' / 3.6m and 3200K
4994 lux / 466 fc @ 3.0' / 0.9m at 4400K
1357 lux / 126 fc @ 6.0' / 1.8m at 4400K
610 lux / 57 fc @ 9.0' / 2.7m at 4400K
366 lux / 34 fc @ 12' / 3.6m at 4400K
3082 lux / 286 fc @ 3.0' / 0.9m at 5600K
762 lux / 71 fc @ 6.0' / 1.8m at 5600K
345 lux / 32 fc @ 9.0' / 2.7m at 5600K

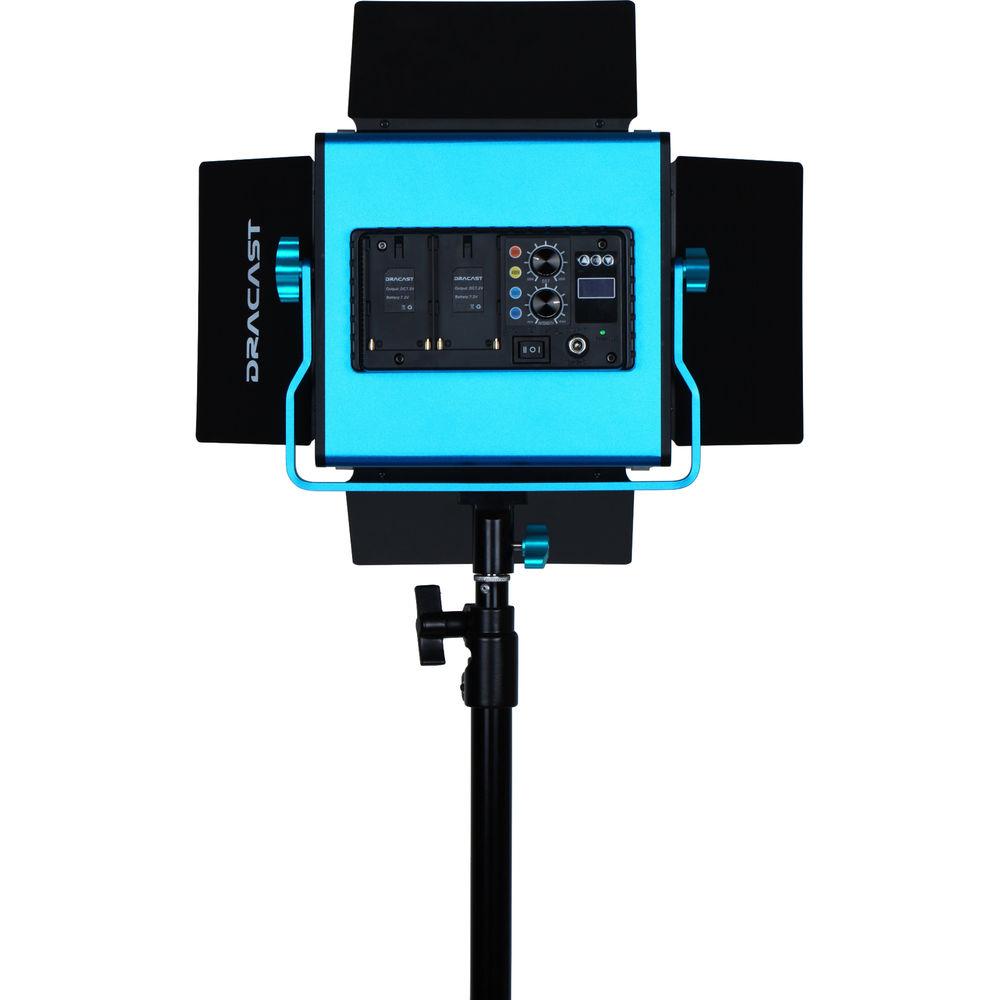

205 lux / 19 fc @ 12' / 3.6m at 5600K UPC: 612520499914 - Barndoors for Silver Series LED500 These Dracast Barndoors for Silver Series LED500 control the spread of light and prevent unwanted spill. Made specifically for the Silver Series lights, they are constructed with an aluminum chassis in a 4-way design. UPC: 722589274336
- Battery Plate for LED500 and LED1000 (V-Mount) This V-Mount Battery Plate for LED500 and LED1000 from Dracast allows convenient DC operation of the LED 500 and 1000 fixtures. The plate accepts a Dracast or other brand battery with a V-mount. This battery requires a backing plate for use.

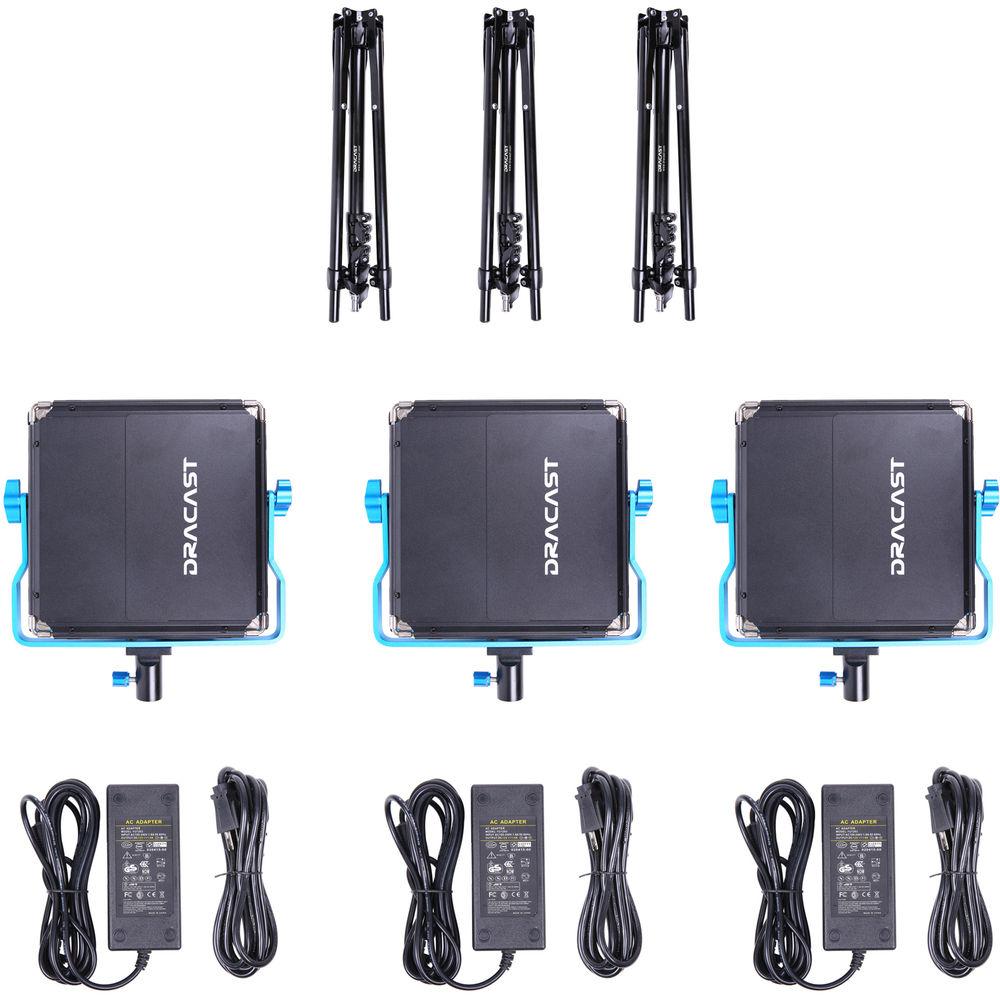

In the Box Bundle Items 3 x S-Series Plus Bi-Color LED500 Panel with V-Mount Battery Plate wwxsraradteruedavsby - AC Power Supply for S-Series LED500 LED Panel
3 x Barndoors for Silver Series LED500 3 x Battery Plate for LED500 and LED1000 (V-Mount)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast S-Series LED500 Plus Bi-Color LED 3-Light Kit with V-Mount Battery Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - S-Series Plus Bi-Color LED500 Panel with V-Mount Battery Plate
| Light Source | LED | | Color Range | 3200-5600K Variable Color Temperature | | CRI | 96 | | Dimming | 100-0% | | Beam Angle | 45° | | Operating Voltage | 100-240 VAC, 50/60 Hz
15 VDC | | Power Consumption | 29 W | | Material | Anodized aluminum | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 10 x 10.4 x 1.8" / 260 x 265 x 48 mm | | Weight | 2.0 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 13.25 x 13.2 x 4.9" | - Barndoors for Silver Series LED500
| Material | Aluminum | | Dimensions | 11.2 x 11.4 x 2.9" (28.4 x 28.9 x 7.4 cm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.95 x 8.75 x 1.05" | - Battery Plate for LED500 and LED1000 (V-Mount)
| | | Box Dimensions (LxWxH) | 7.7 x 5.2 x 0.7" |
