Dracast S-Series LED500 Plus Daylight LED

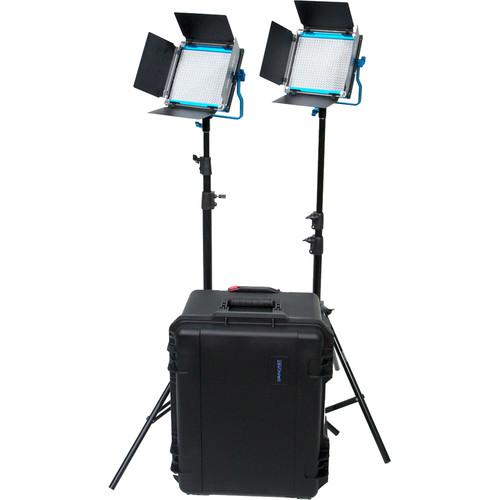

User Manual for Dracast S-Series LED500 Plus Daylight LED 2-Light Kit with V-Mount Battery Plates

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

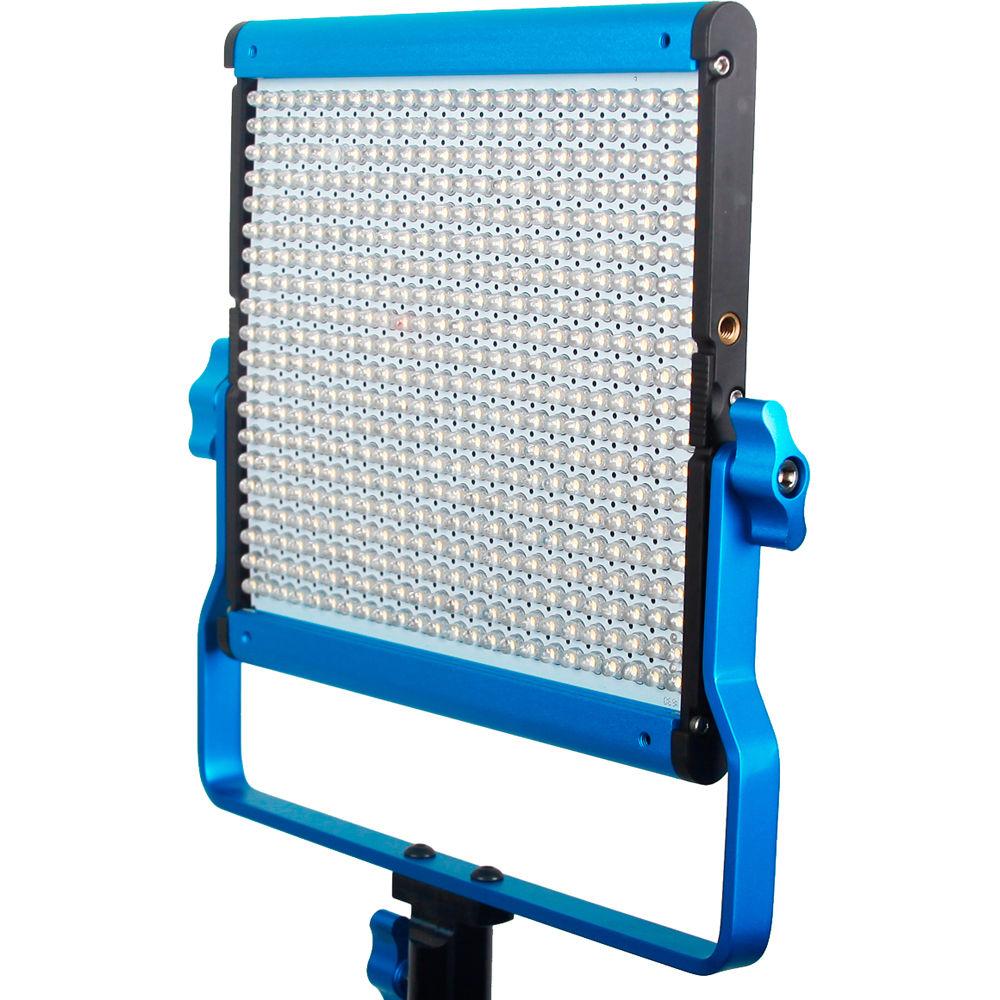

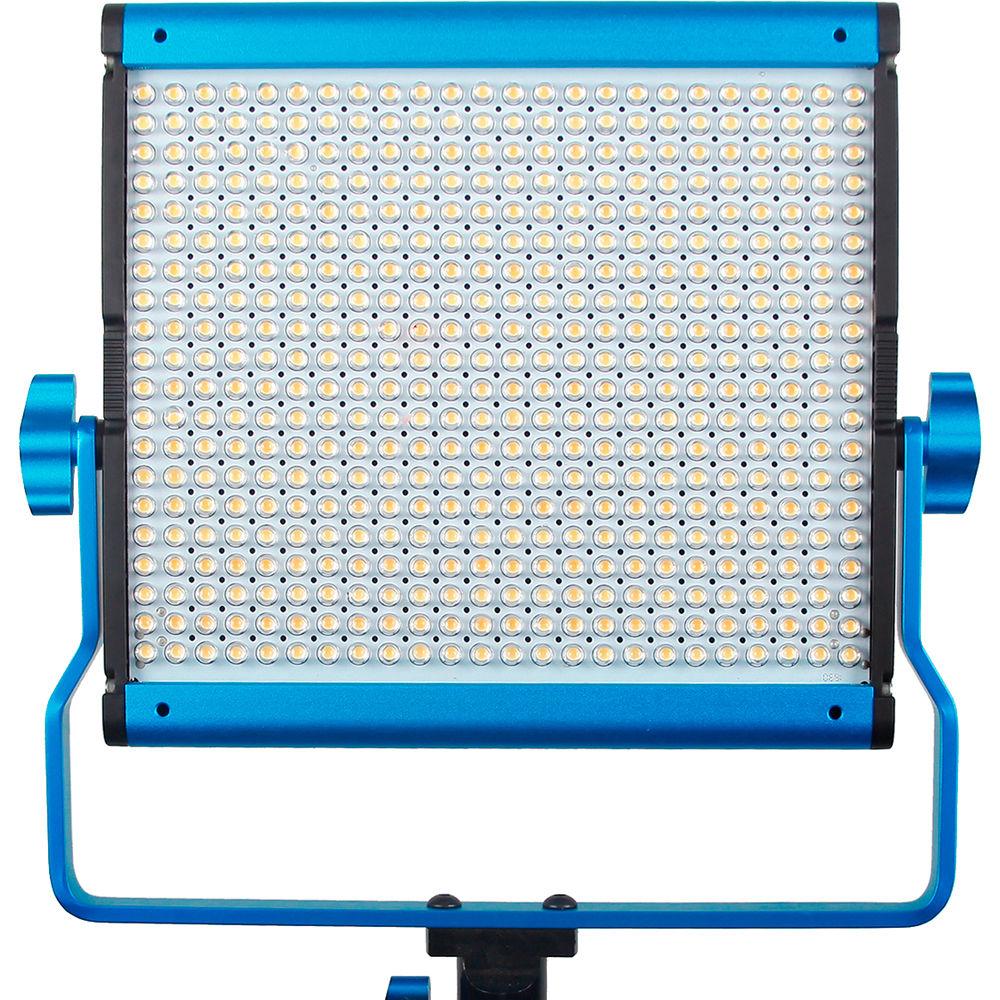

• S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate Featuring a slim and lightweight design, the S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. The panel has a solid color temperature of 5600K, making it a good choice for shooting outdoors or matching other daylight fixtures. The panel maintains a CRI of 96 indicating a precise rendering of color. The panel is 100-0% dimmable with negligible color shift. One of the light's enhancements is wireless Multi-Light Control Capability whereby you can make color and dimming adjustments to a single master light and other lights in a group will follow suit. The (LED) also has both color and light intensity presets to make it easy to return to previously used settings. The low electrical draw of just 29W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-mount batteries. A carry case is included.
  Photometrics
  • 5094 lux / 474 fc @ 3.0' / 0.9m
    1567 lux / 146 fc @ 6.0' / 1.8m
    630 lux / 59 fc @ 9.0' / 2.7m
    399 lux / 37 fc @ 12' / 3.6m
  UPC: 612520499921
• Barndoors for Silver Series LED500 These Dracast Barndoors for Silver Series LED500 control the spread of light and prevent unwanted spill. Made specifically for the Silver Series lights, they are constructed with an aluminum chassis in a 4-way design. UPC: 722589274336
• Battery Plate for LED500 and LED1000 (V-Mount) This V-Mount Battery Plate for LED500 and LED1000 from Dracast allows convenient DC operation of the LED 500 and 1000 fixtures. The plate accepts a Dracast or other brand battery with a V-mount. This battery requires a backing plate for use.

• AC Power Supply for S-Series LED500 LED Panel

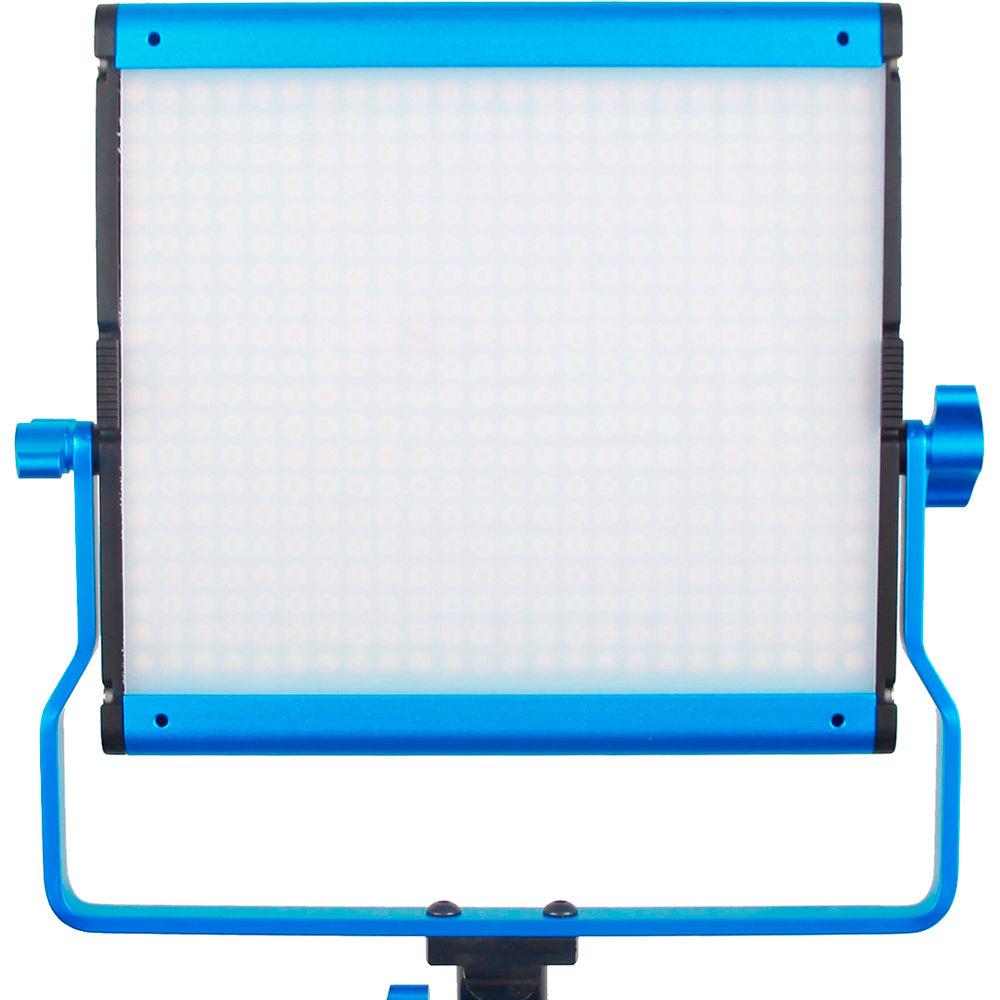

• Diffusion Filter

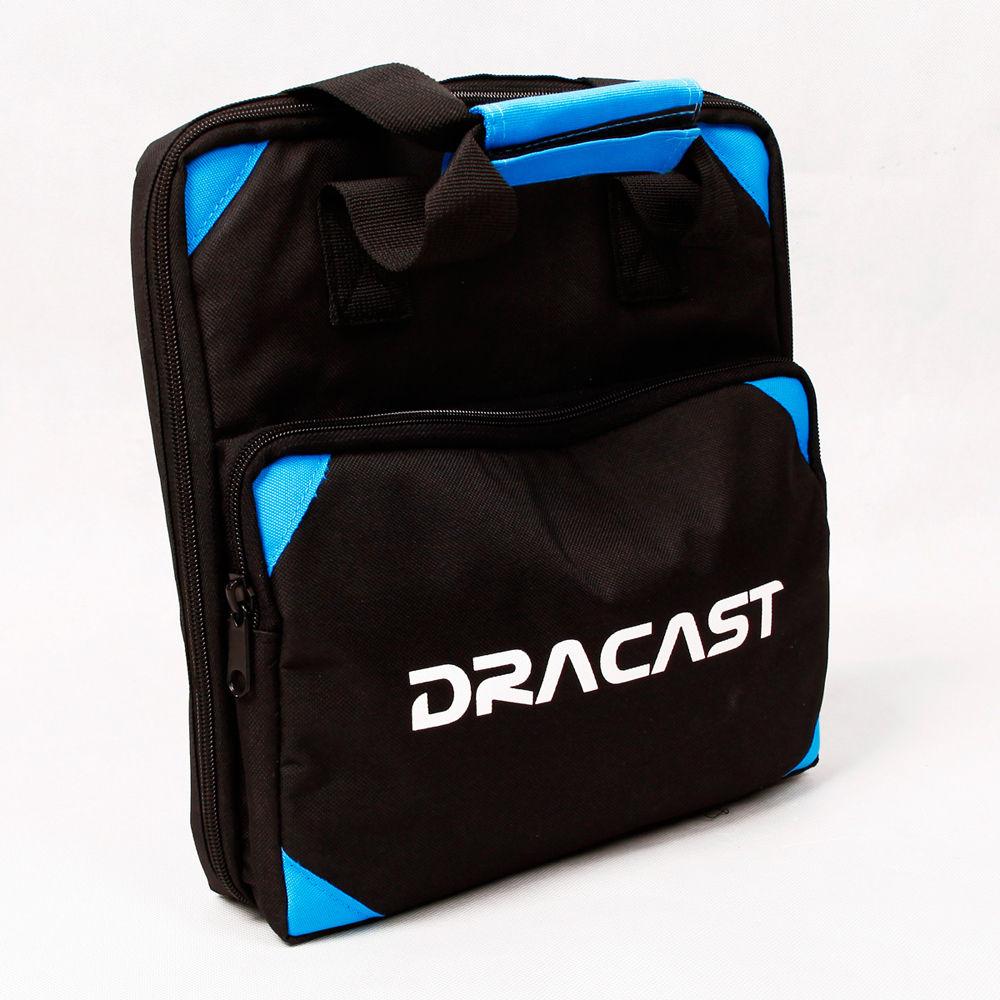

• Carry Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Hard Travel Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate

  Light Source	LED
  Color Range	5600K Daylight Color Temperature
  CRI	96
  Dimming	100-0%
  Beam Angle	45°
  Operating Voltage	100-240 VAC, 50/60 Hz 15 VDC
  Power Consumption	29 W
  Material	Anodized aluminum
  Mount	Yoke with 5/8" / 16 mm receiver
  Dimensions	10 x 10.4 x 1.8" / 260 x 265 x 48 mm
  Weight	2.0 lb / 1.0 kg

  Box Dimensions (LxWxH)	13.55 x 12.6 x 6.7"

• Barndoors for Silver Series LED500

  Material	Aluminum
  Dimensions	11.2 x 11.4 x 2.9" (28.4 x 28.9 x 7.4 cm)
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	8.95 x 8.75 x 1.05"

• Battery Plate for LED500 and LED1000 (V-Mount)

  Box Dimensions (LxWxH)	7.7 x 5.2 x 0.7"
