User Manual for Dracast S-Series LED500 Plus Daylight LED 3-Light Kit with V-Mount Battery Plates Click to enlarge the picture
Contents of the user manual for the Dracast S-Series LED500 Plus Daylight LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast S-Series LED500 Plus Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

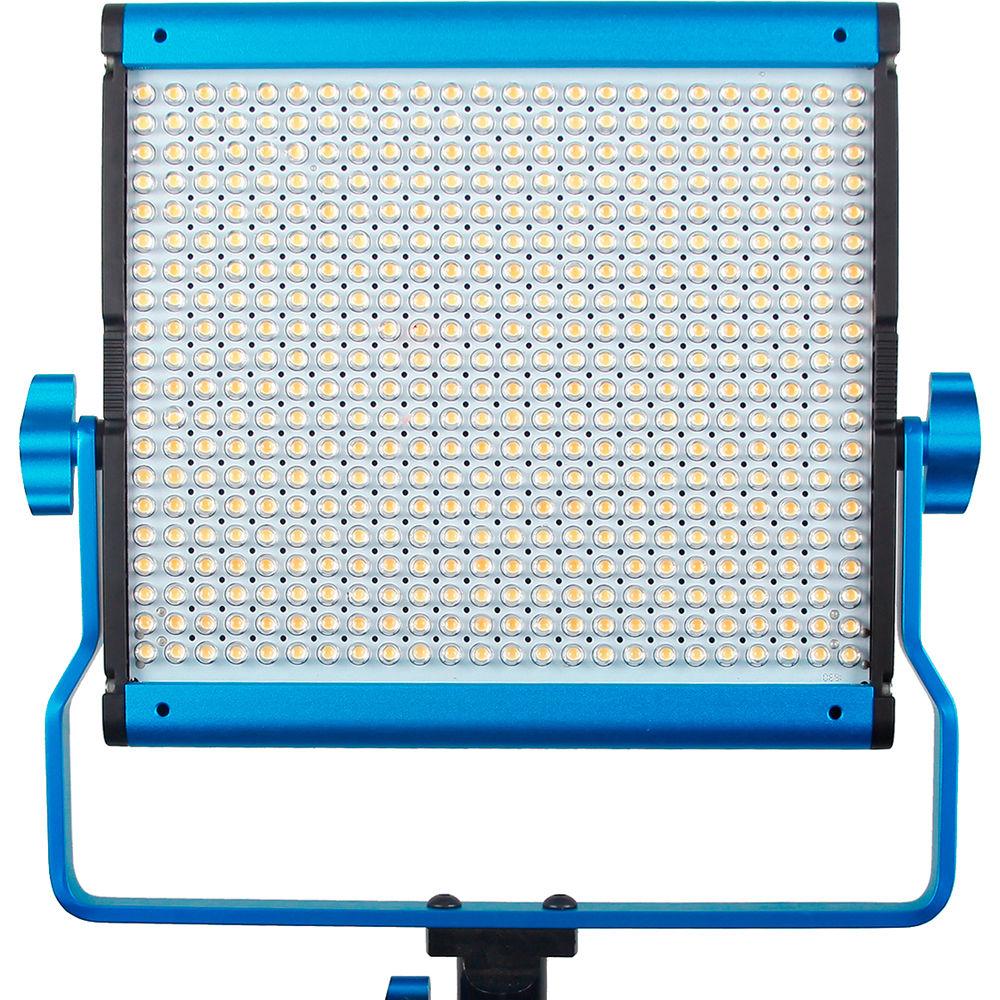

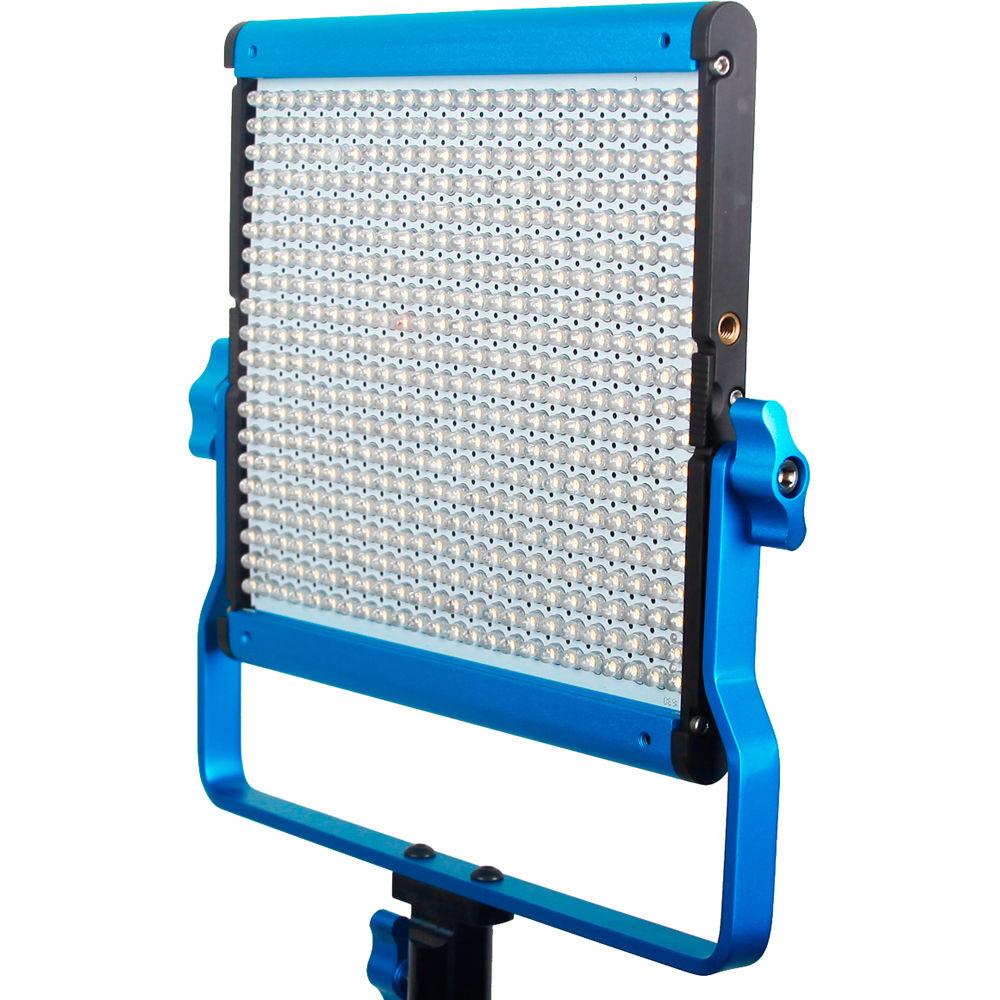

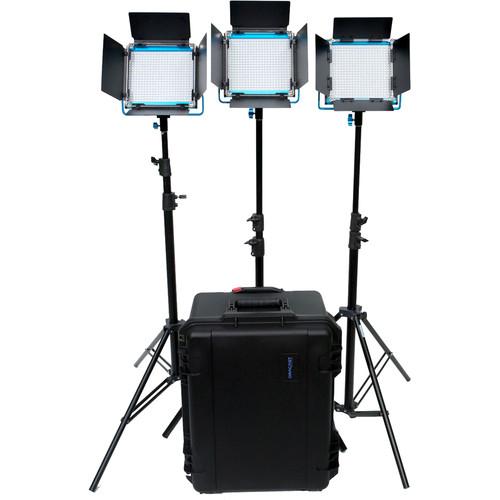

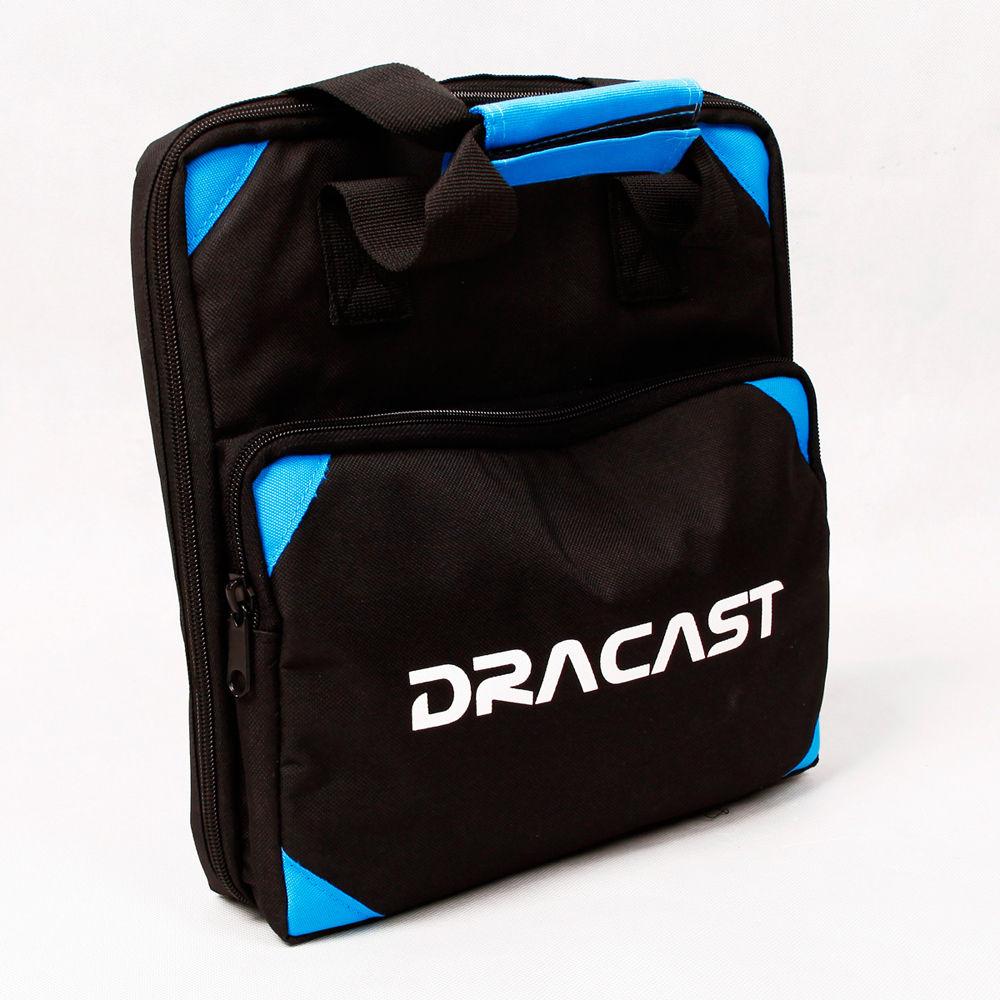

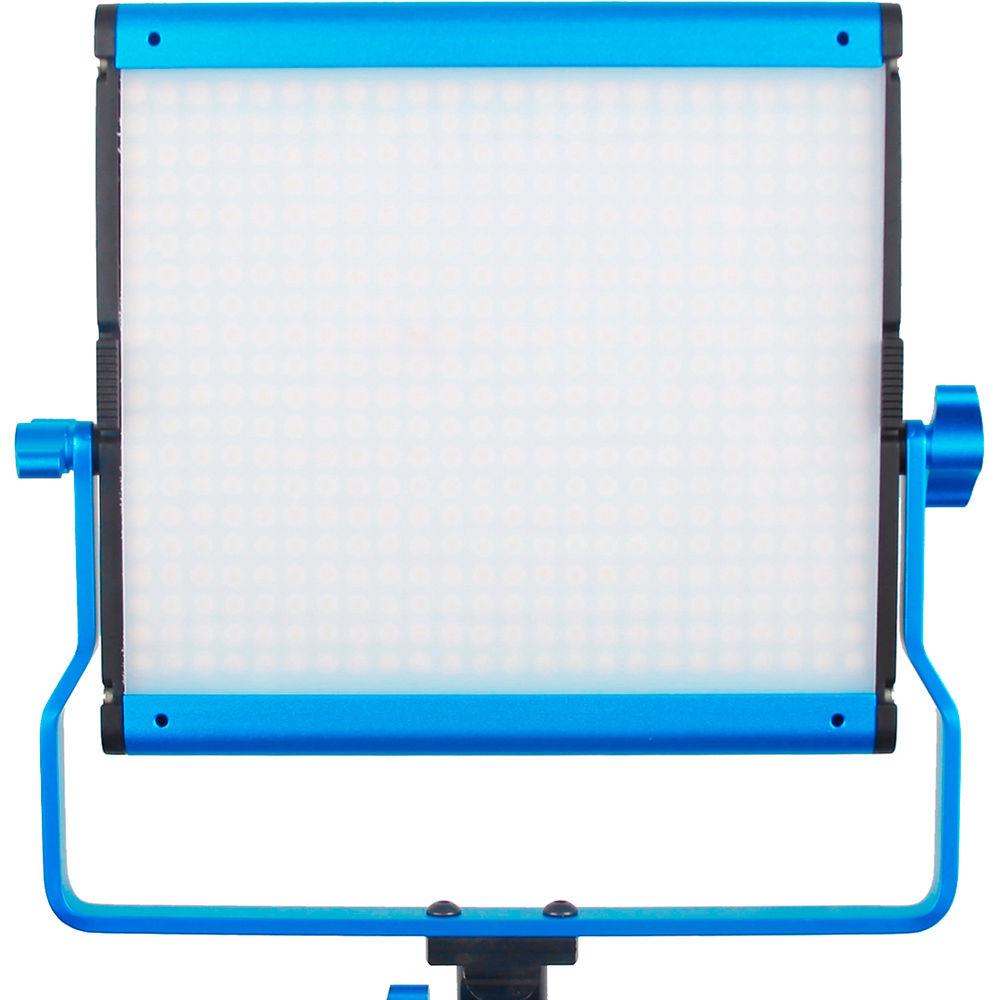

Product description Dracast has put together this S-Series LED500 Plus Daylight LED 3-Light Kit with V-Mount Battery Plates to offer image makers a 3-point light solution for the studio or the road. The kit comes with 3 S-Series LED500 Plus Daylight panels with 4-way barndoors. Each light comes with a diffuser, a multi-voltage AC adapter, a V-mount battery plate, and an individual soft case. A hard travel case is also included for storage and transport. - S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate Featuring a slim and lightweight design, the S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. The panel has a solid color temperature of 5600K, making it a good choice for shooting outdoors or matching other daylight fixtures. The panel maintains a CRI of 96 indicating a precise rendering of color. The panel is 100-0% dimmable with negligible color shift. One of the light's enhancements is wireless Multi-Light Control Capability whereby you can make color and dimming adjustments to a single master light and other lights in a group will follow suit. The (LED) also has both color and light intensity presets to make it easy to return to previously used settings. The low electrical draw of just 29W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-mount batteries. A carry case is included.
- Photometrics
- 5094 lux / 474 fc @ 3.0' / 0.9m
1567 lux / 146 fc @ 6.0' / 1.8m
630 lux / 59 fc @ 9.0' / 2.7m
399 lux / 37 fc @ 12' / 3.6m UPC: 612520499921 - Barndoors for Silver Series LED500 These Dracast Barndoors for Silver Series LED500 control the spread of light and prevent unwanted spill. Made specifically for the Silver Series lights, they are constructed with an aluminum chassis in a 4-way design. UPC: 722589274336
- Battery Plate for LED500 and LED1000 (V-Mount) This V-Mount Battery Plate for LED500 and LED1000 from Dracast allows convenient DC operation of the LED 500 and 1000 fixtures. The plate accepts a Dracast or other brand battery with a V-mount. This battery requires a backing plate for use.

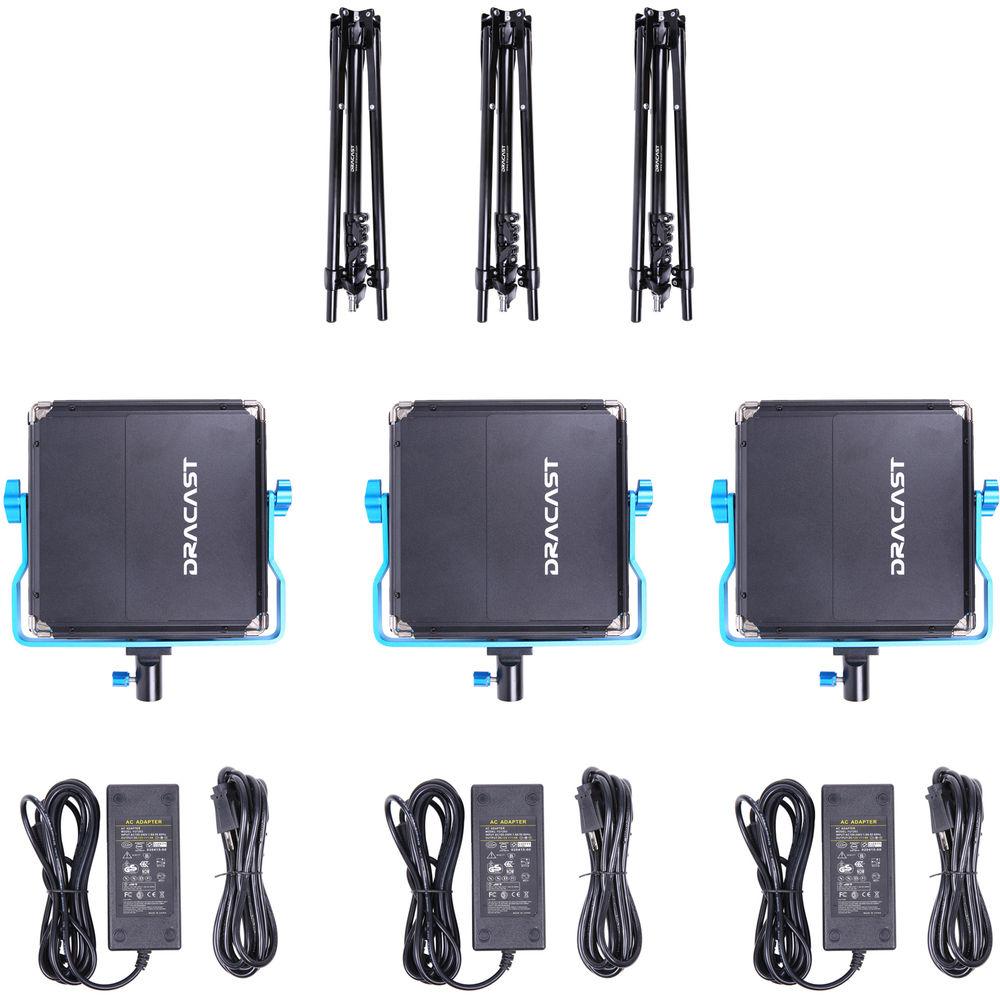

In the Box Bundle Items 3 x S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate wuxtwvrfasfcstfxrscxvdeacvy - AC Power Supply for S-Series LED500 LED Panel
3 x Barndoors for Silver Series LED500 3 x Battery Plate for LED500 and LED1000 (V-Mount)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast S-Series LED500 Plus Daylight LED 3-Light Kit with V-Mount Battery Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - S-Series Plus Daylight LED500 Panel with V-Mount Battery Plate
| Light Source | LED | | Color Range | 5600K Daylight Color Temperature | | CRI | 96 | | Dimming | 100-0% | | Beam Angle | 45° | | Operating Voltage | 100-240 VAC, 50/60 Hz
15 VDC | | Power Consumption | 29 W | | Material | Anodized aluminum | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 10 x 10.4 x 1.8" / 260 x 265 x 48 mm | | Weight | 2.0 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 13.55 x 12.6 x 6.7" | - Barndoors for Silver Series LED500
| Material | Aluminum | | Dimensions | 11.2 x 11.4 x 2.9" (28.4 x 28.9 x 7.4 cm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.95 x 8.75 x 1.05" | - Battery Plate for LED500 and LED1000 (V-Mount)
| | | Box Dimensions (LxWxH) | 7.7 x 5.2 x 0.7" |
