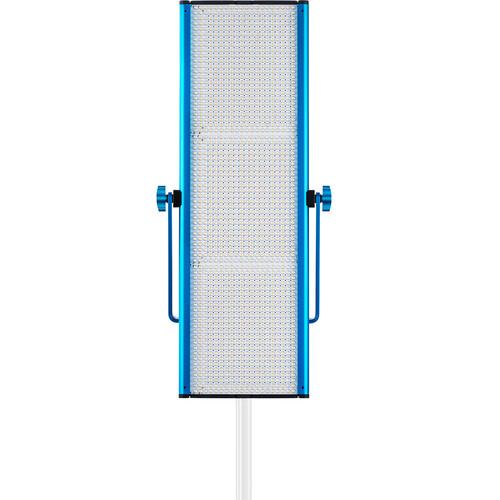

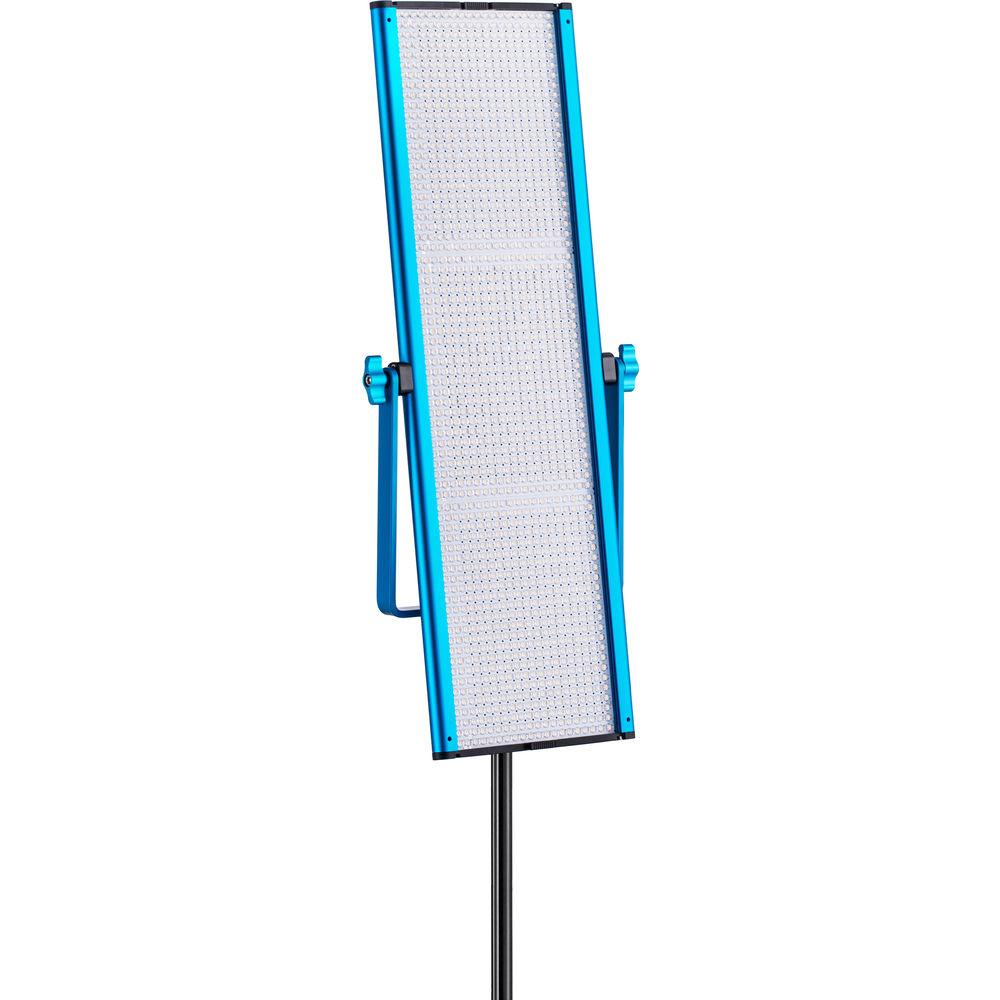

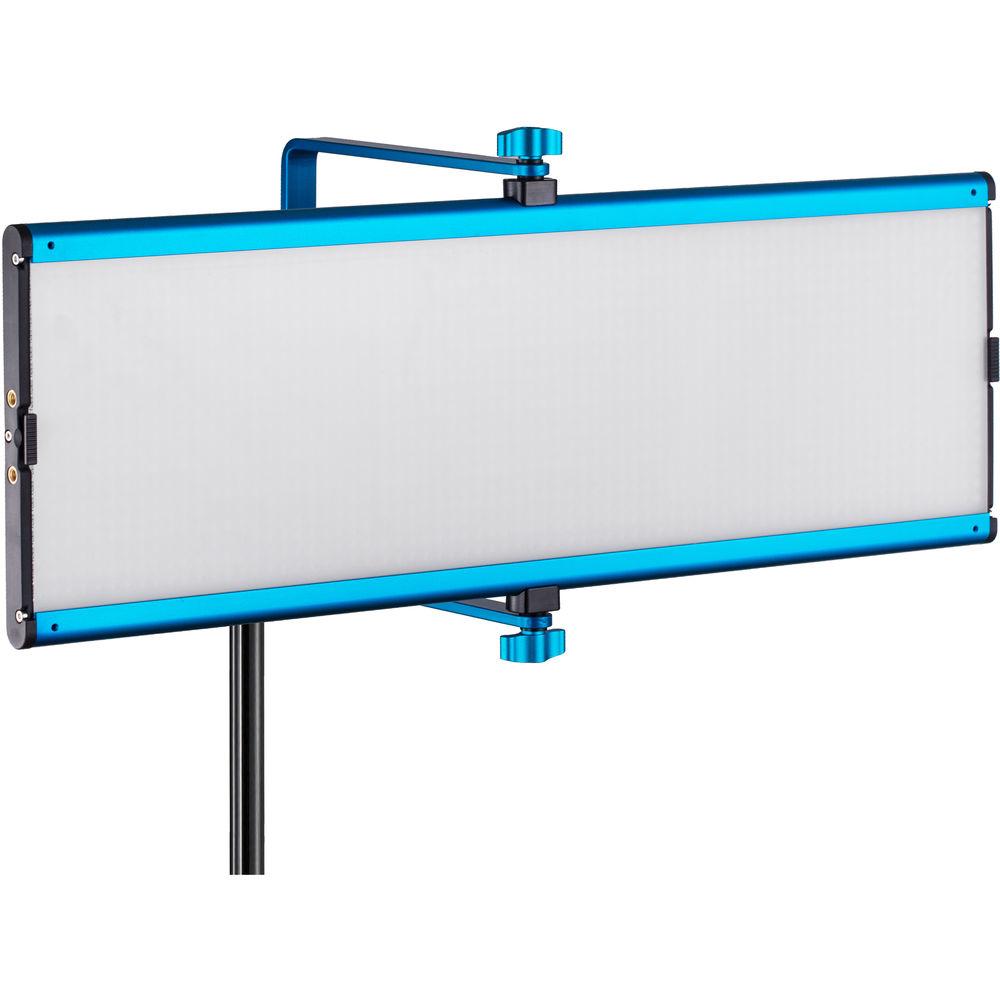

User Manual for Dracast S-Series Plus Daylight LED1500 Panel with V-Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Dracast S-Series Plus Daylight LED1500 Panel
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast S-Series Plus Daylight LED1500 Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

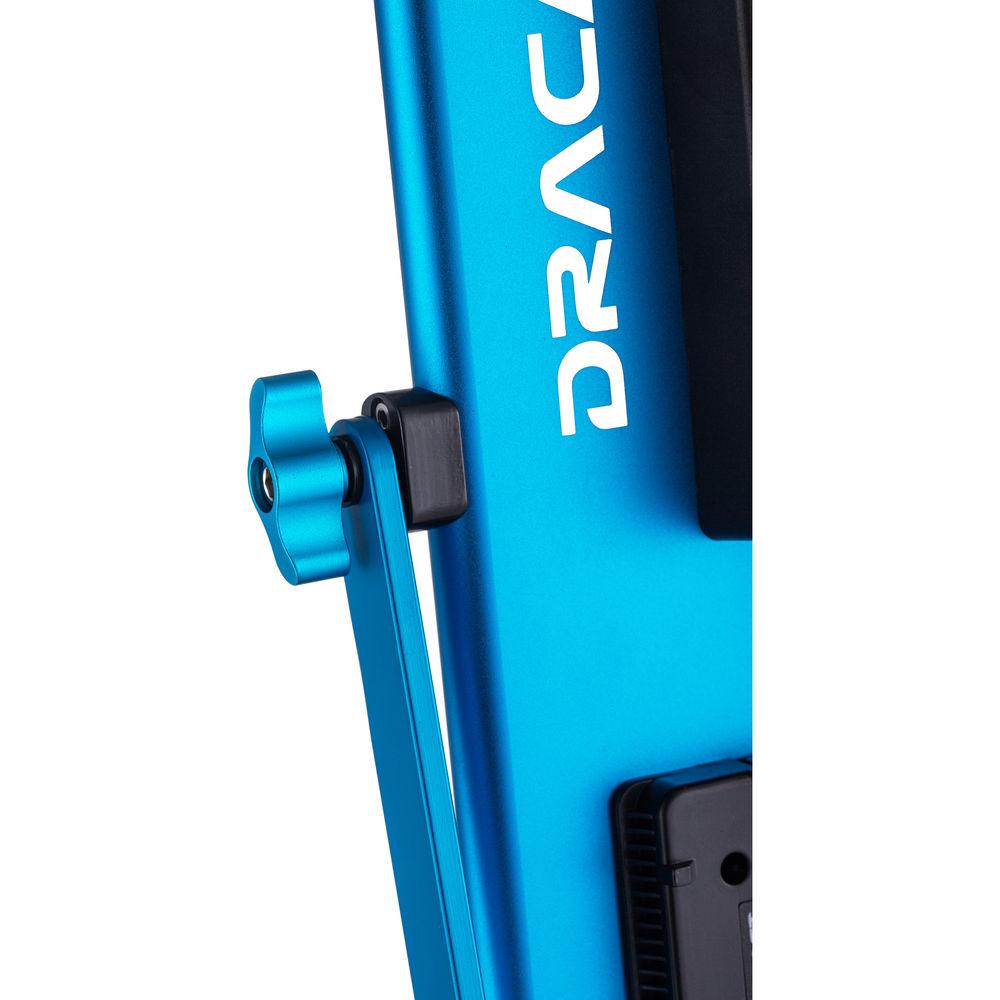

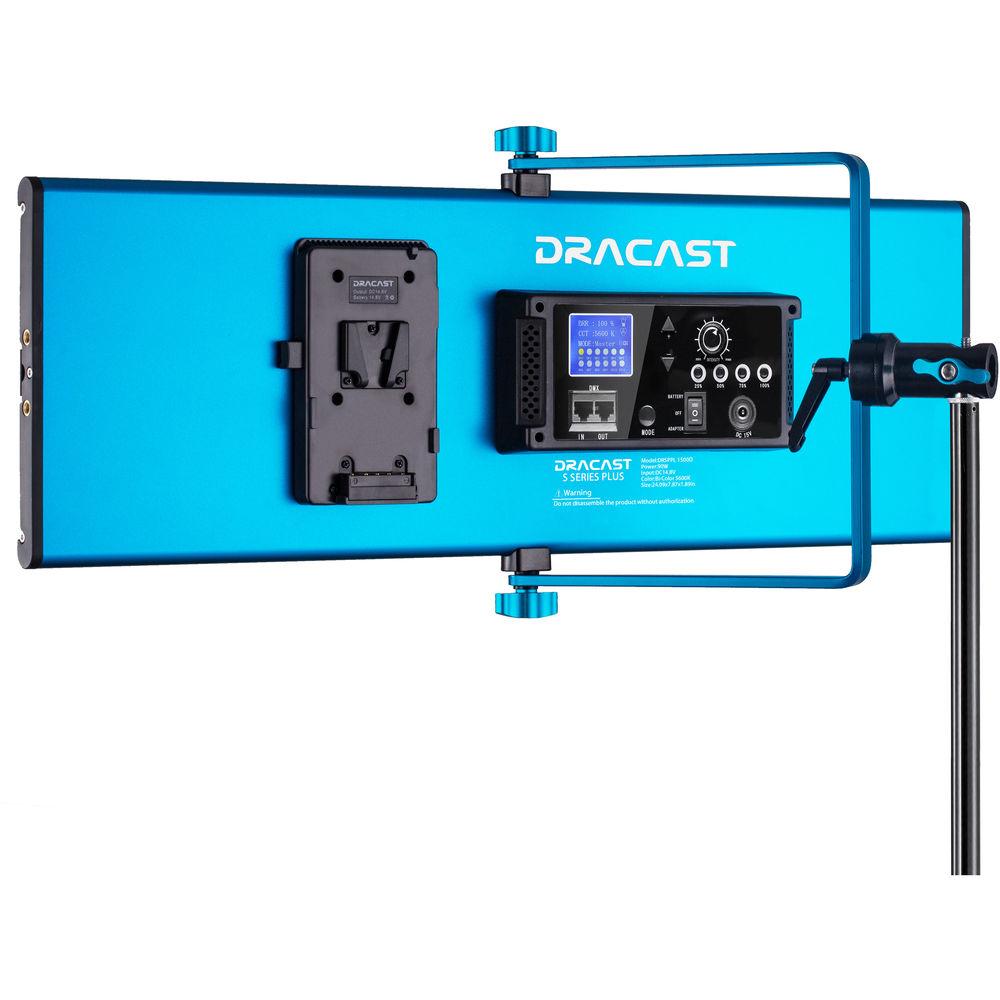

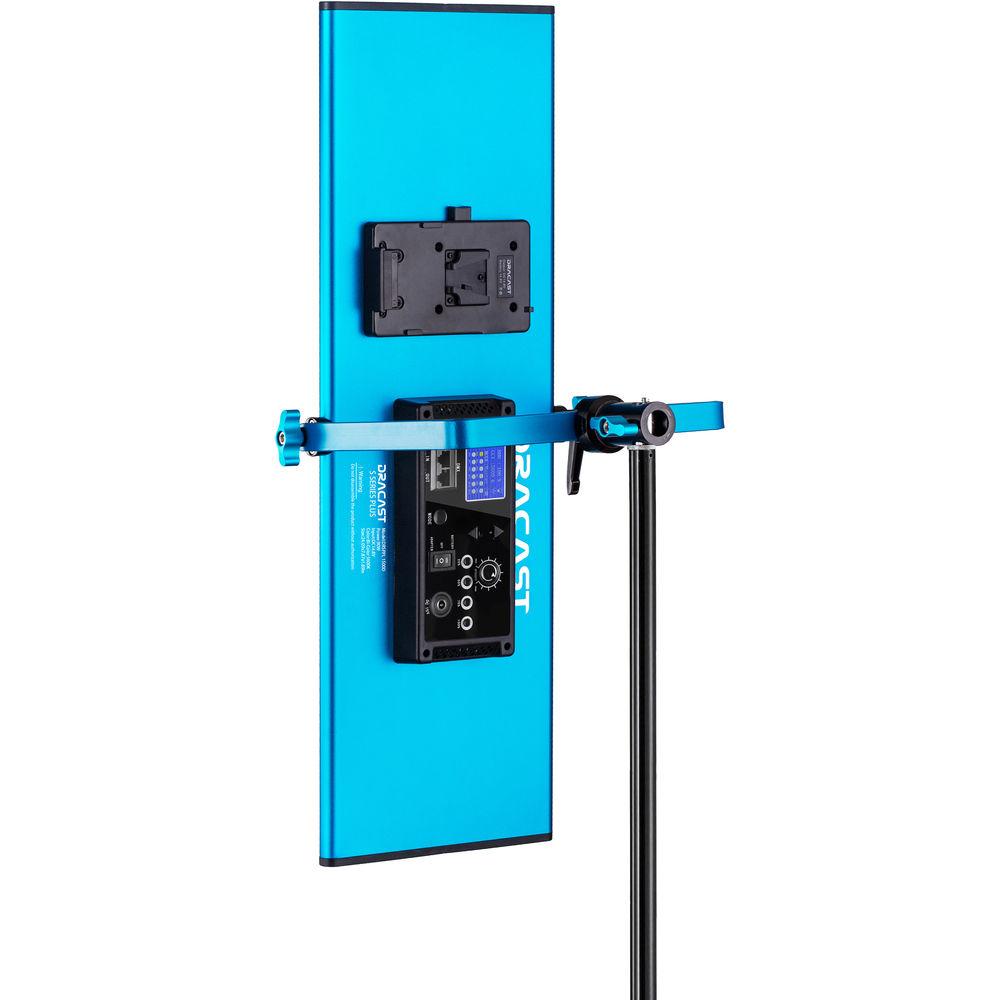

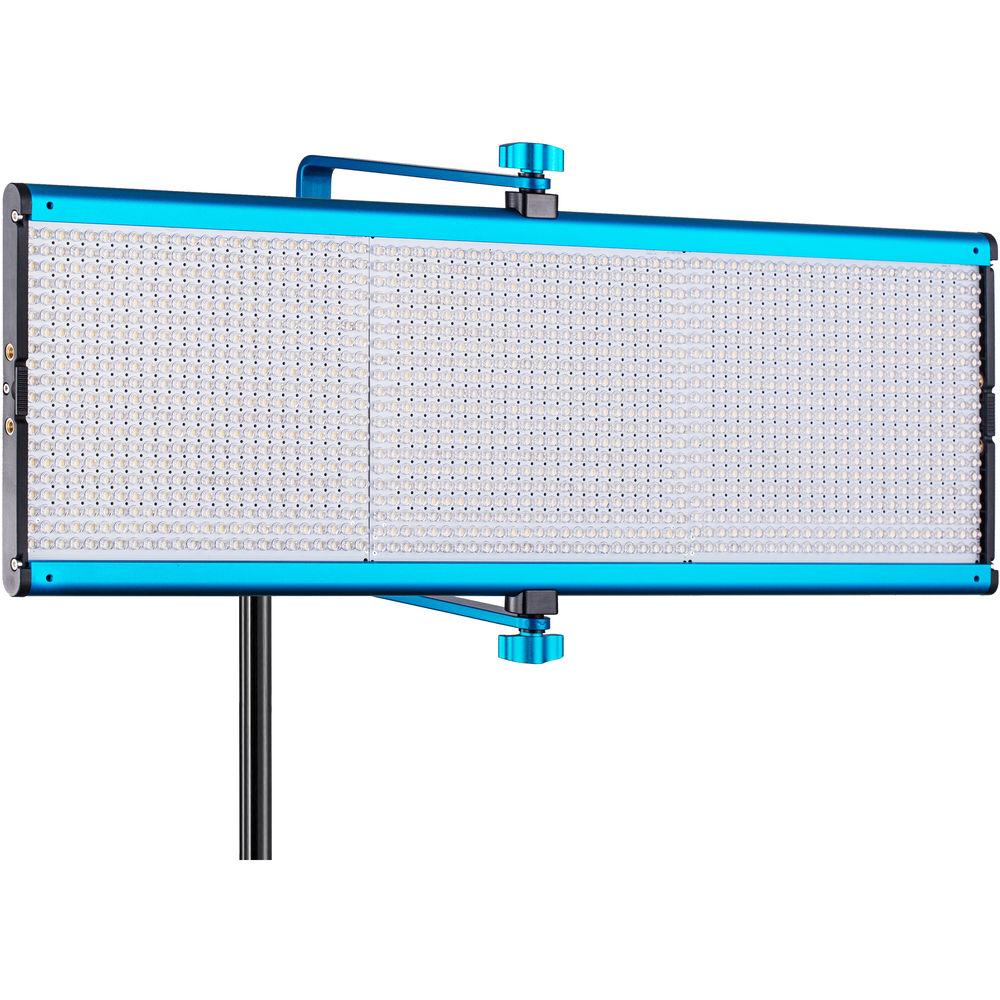

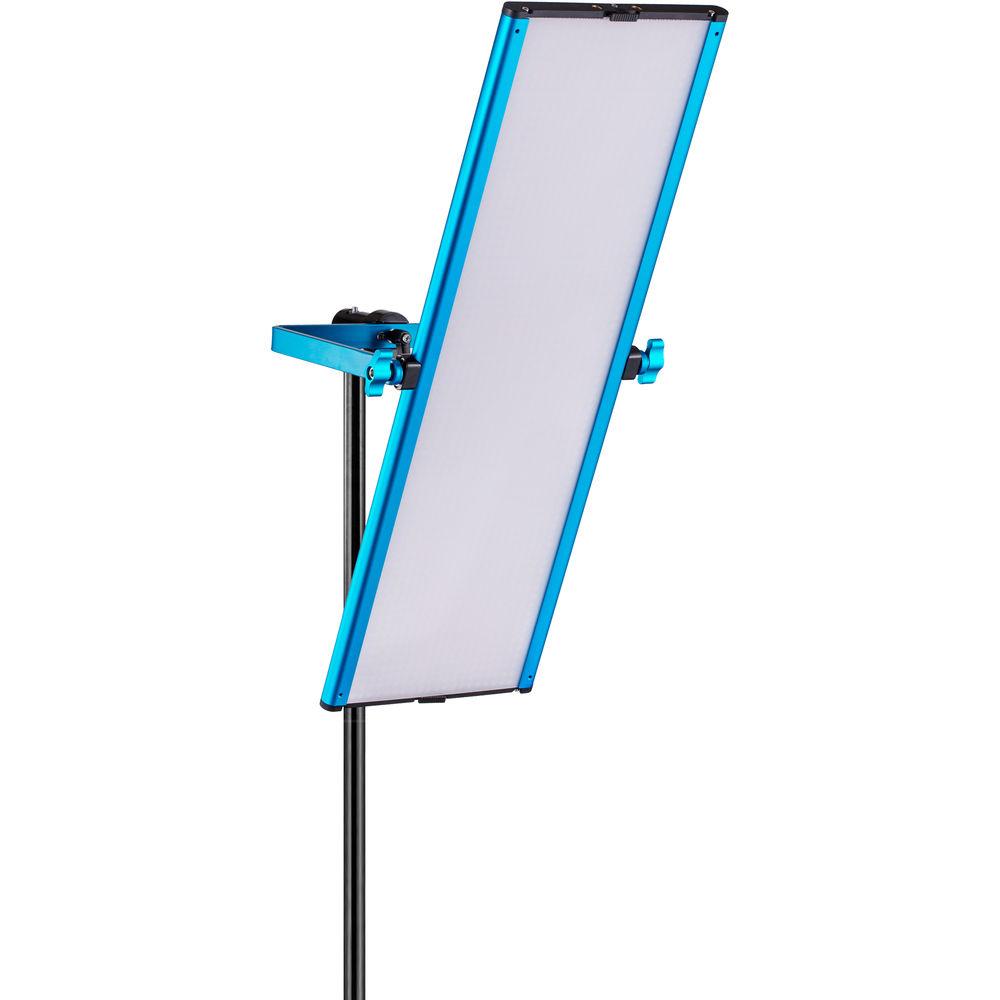

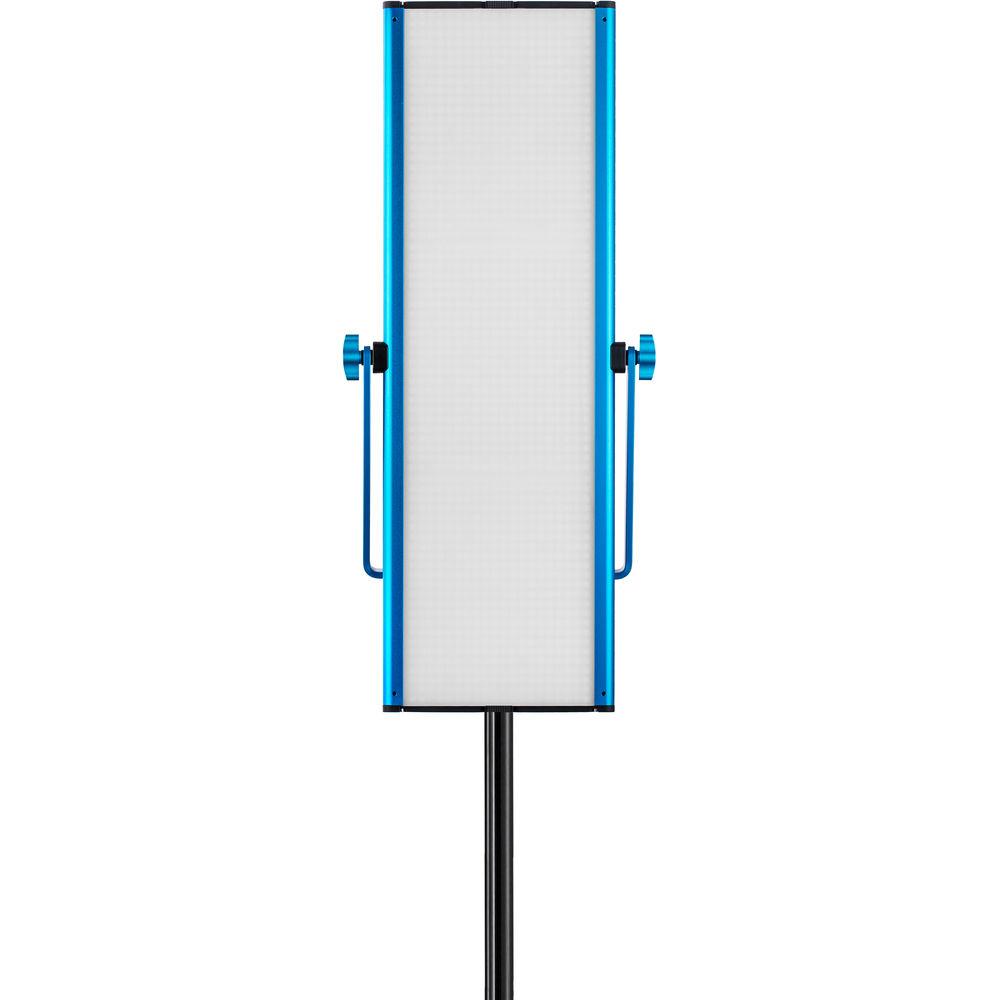

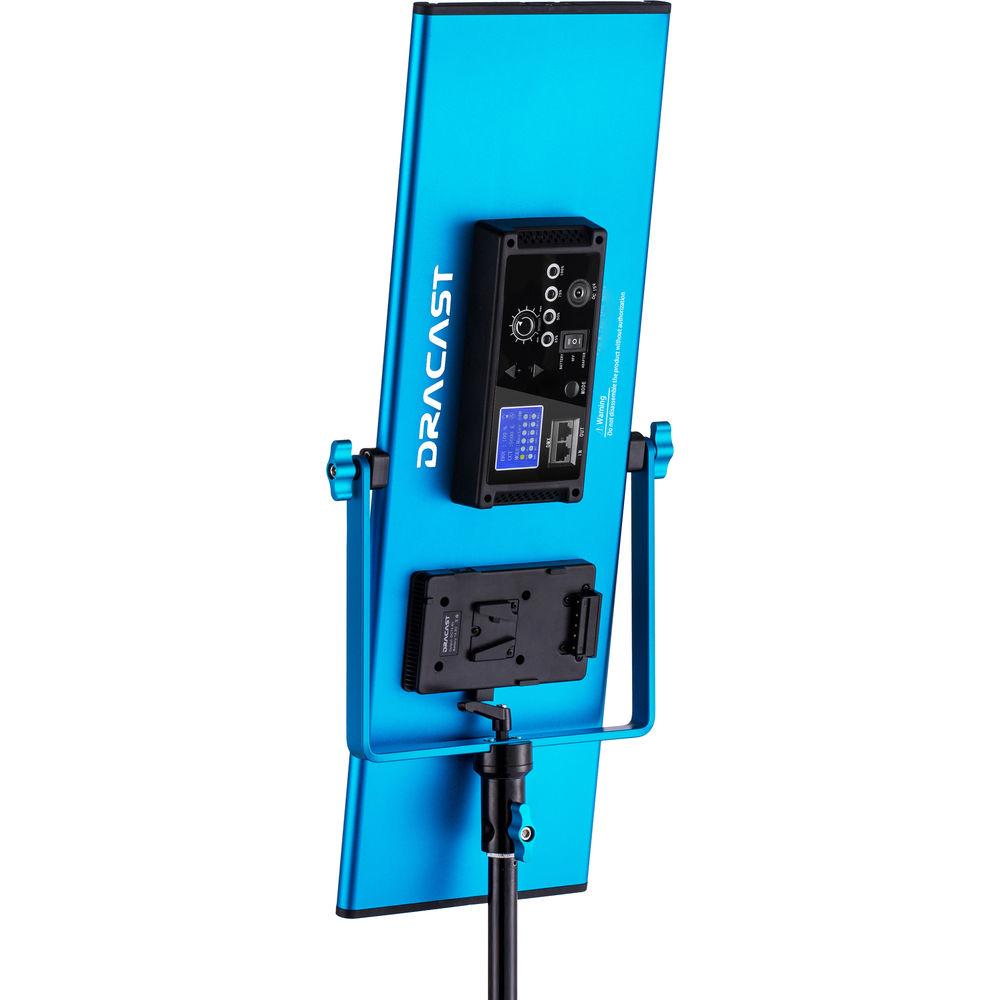

Product description Featuring a slim and lightweight design, the S-Series Plus Daylight LED1500 Panel with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. The panel has a solid color temperature of 5600K, making it a good choice for shooting outdoors or matching other daylight fixtures. The panel maintains a CRI of 96 indicating a precise rendering of color. The panel is 100-0% dimmable with negligible color shift. One of the light's enhancements is wireless Multi-Light Control Capability whereby you can make color and dimming adjustments to a single master light and other lights in a group will follow suit. The (LED) also has both color and light intensity presets to make it easy to return to previously used settings. The low electrical draw of just 87W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED1500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-mount batteries. A carry case is included. - Photometrics
- 8090 lux / 752 fc @ 3.0' / 0.9m
2549 lux / 237 fc @ 6.0' / 1.8m
1146 lux / 106 fc @ 9.0' / 2.7m UPC: 612520499860 In the Box Dracast S-Series Plus Daylight LED1500 Panel with V-Mount Battery Plate AC Power Supply for S-Series LED1500 LED Panel etcztrquze Diffusion Filter Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast S-Series Plus Daylight LED1500 Panel with V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1500 Plus Specs | Light Source | LED | | Color Range | 5600K Daylight Color Temperature | | CRI | 96 | | Dimming | 100-0% | | Beam Angle | 45° | | Operating Voltage | 100-240 VAC, 50/60 Hz
15 VDC | | Power Consumption | 87 W | | Material | Anodized aluminum | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 24 x 7.8 x 1.8" / 610 x 198 x 46 mm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 26.0 x 12.0 x 6.0" |
