User Manual for Dracast Silver Series Foldable LED1000 Bi-Color 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Dracast Silver Series Foldable LED1000 Bi-Color
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Silver Series Foldable LED1000 Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

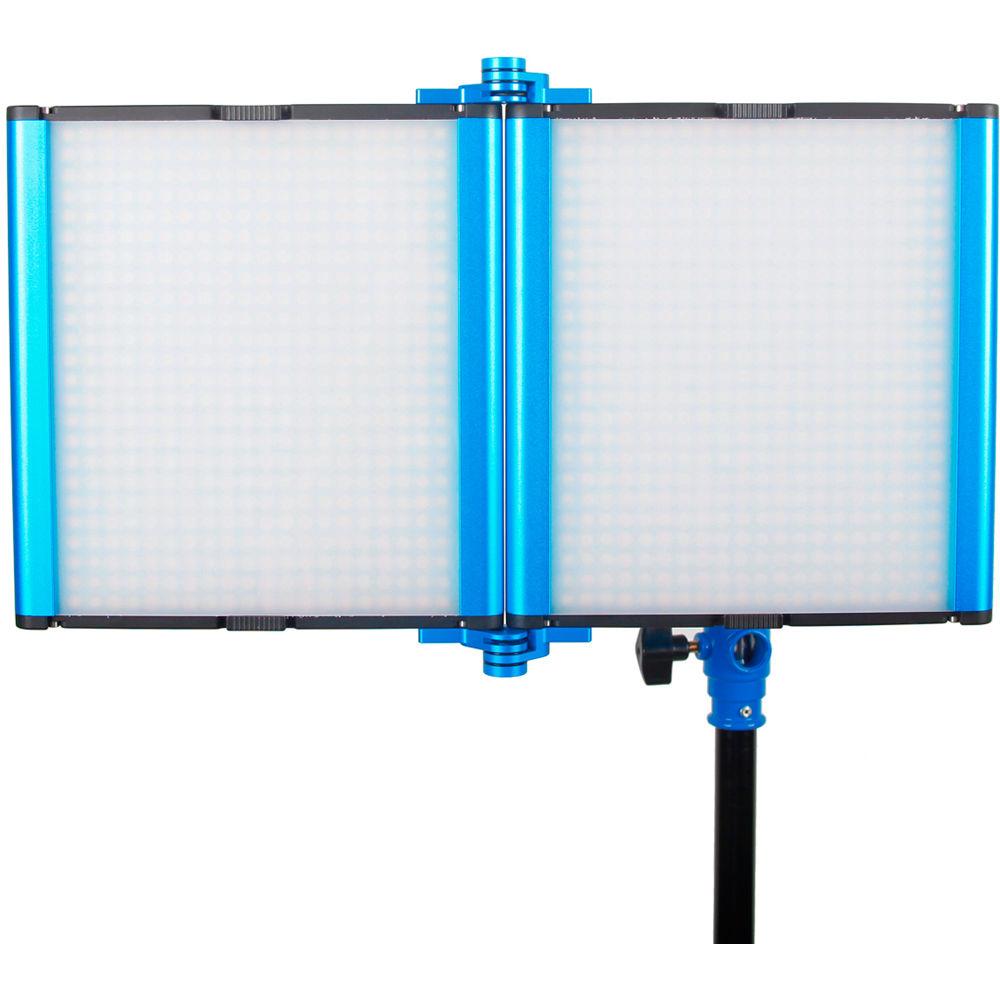

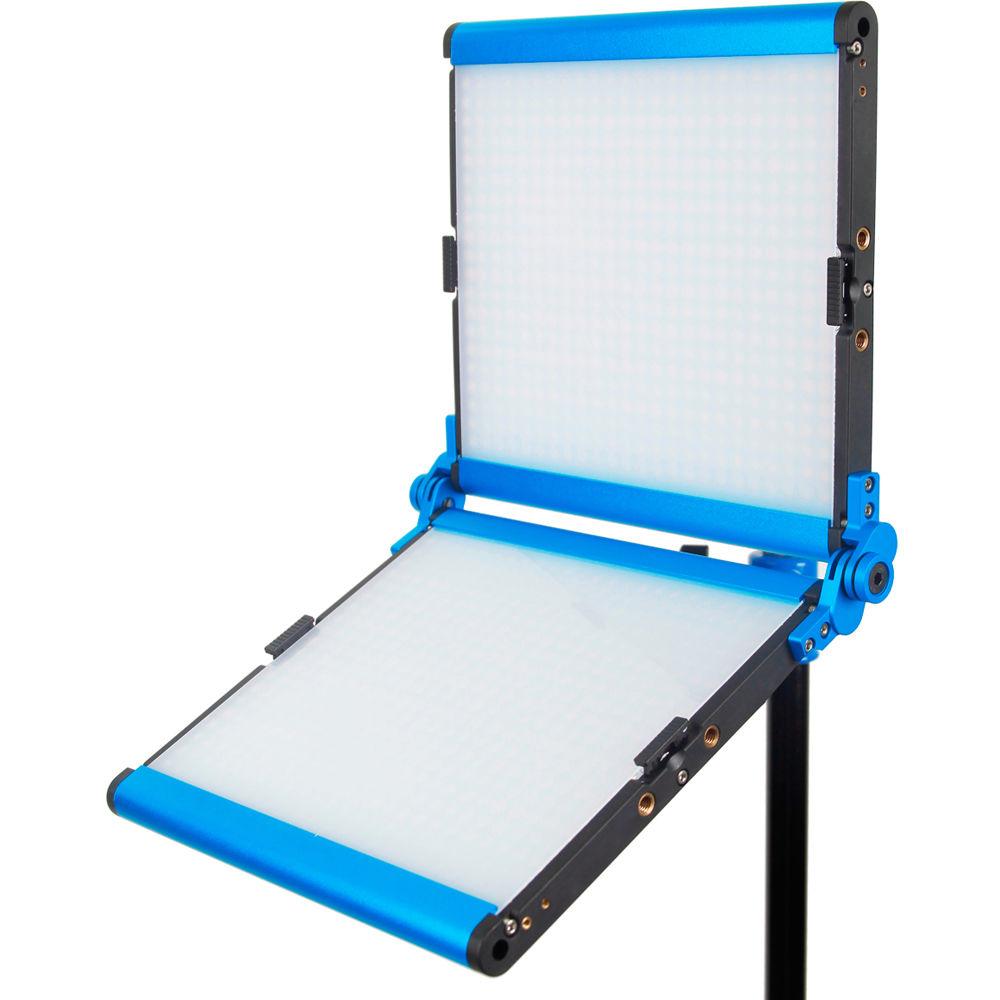

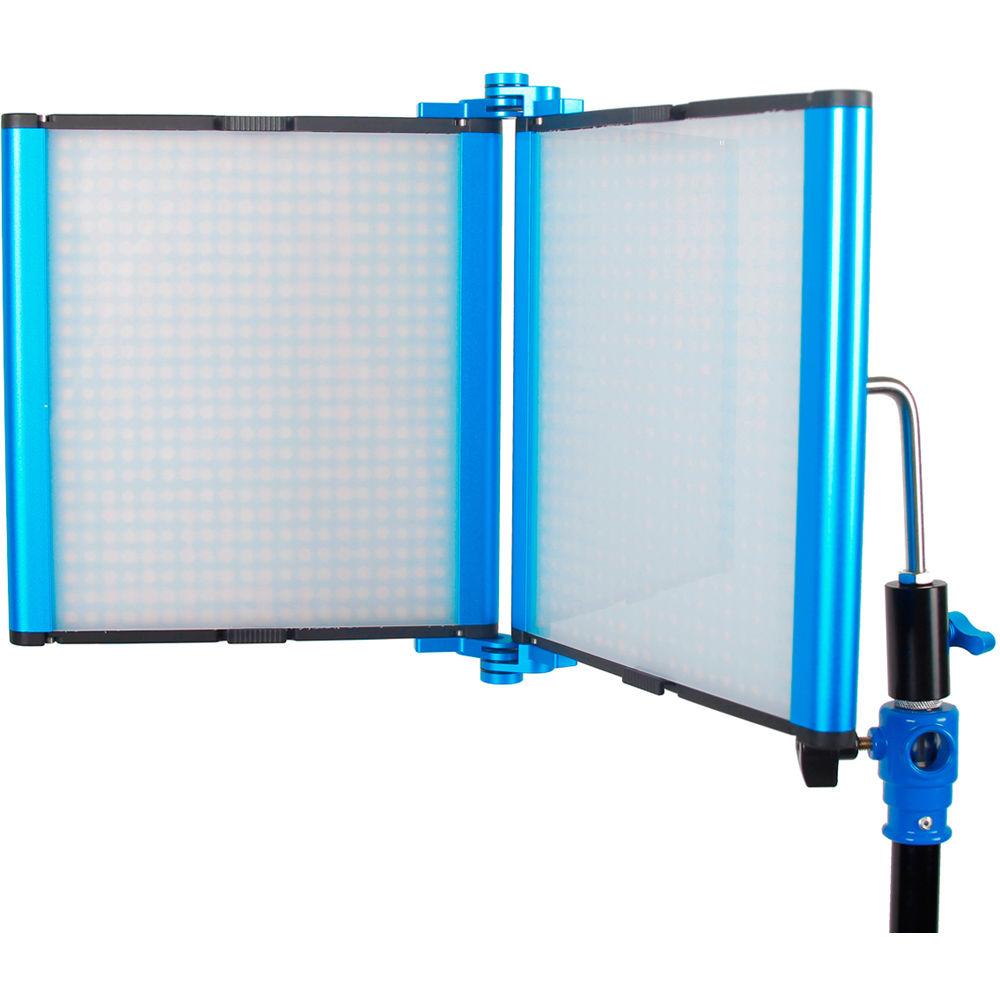

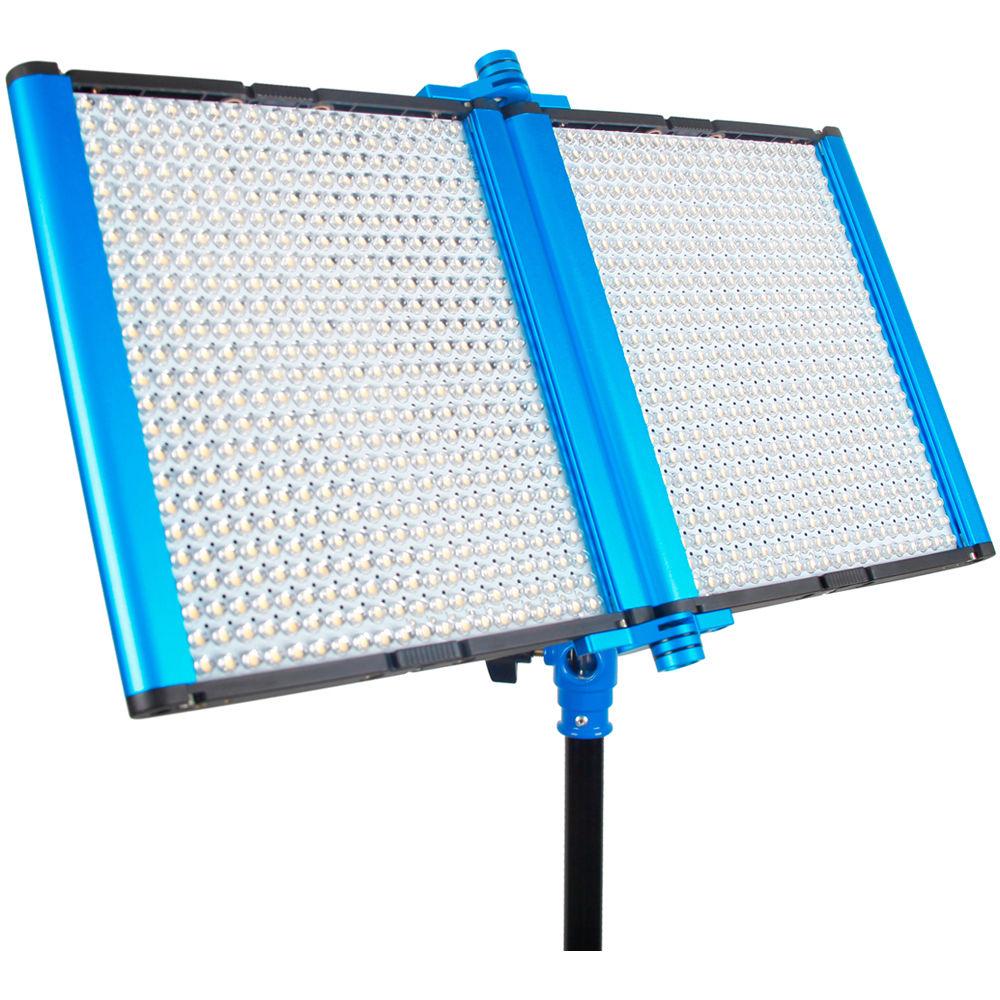

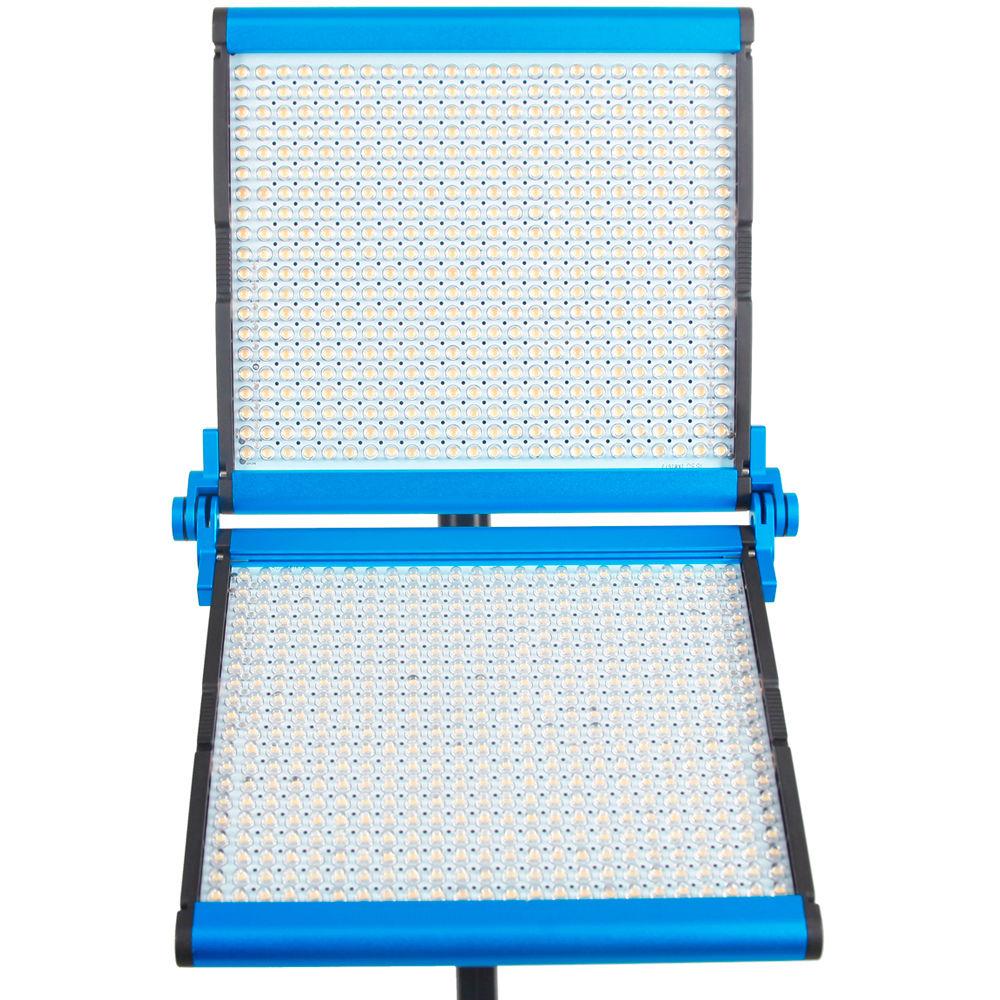

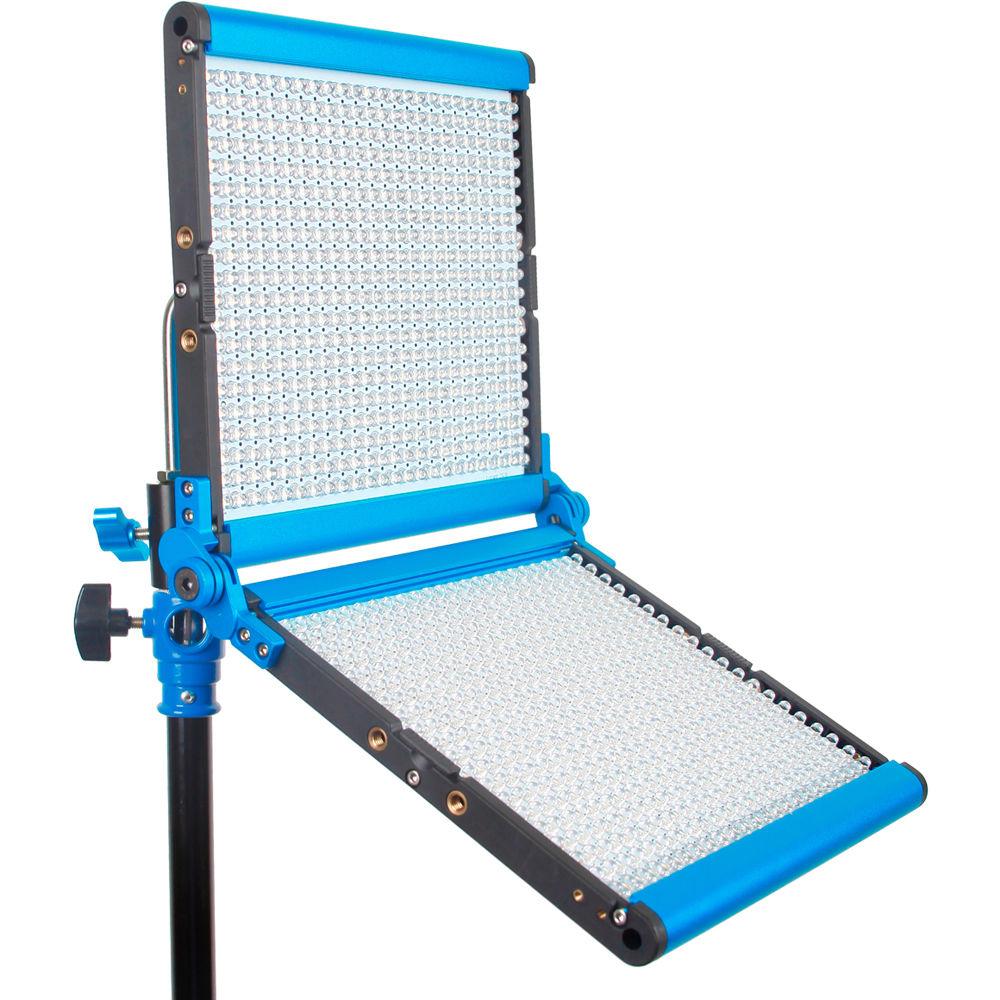

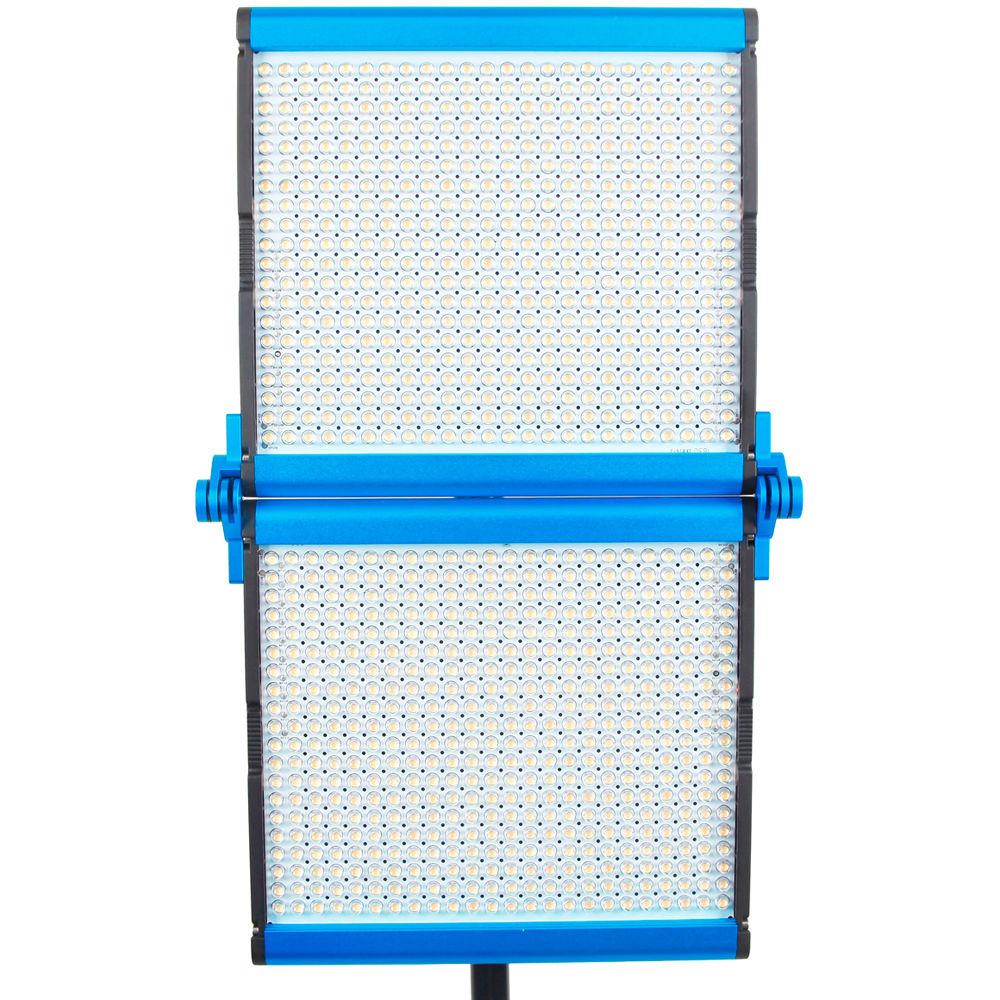

Product description The Silver Series Foldable LED1000 Bi-Color 2-Light Kit from Dracast presents run-and-gun shooters and opportunity to travel small and light on the road with the unique folding LED1000 panel. The kit comes with 2 panels that fold down to half their 15.7" width. Each light comes with a multi-voltage AC adapter, V-mount battery plate and a light stand. A carry case is provided to store and transport it all. - LED1000 Silver Series Foldable Bi-Color LED Light Taking the standard panel and slimming it down, Dracast has developed the LED1000 Silver Series Foldable Bi-Color LED Light to be a powerful and portable fixture ideal for run-and-gun shooting. This model specifically takes things up a notch with a folding design, making it more compact for storage and travel. In terms of light output, the LED1000 Silver is quite capable with 1000 LEDs rated with a CRI of >95. It also sports a 45° beam angle and has a physical dial on the back permitting dimming from 0-100%.

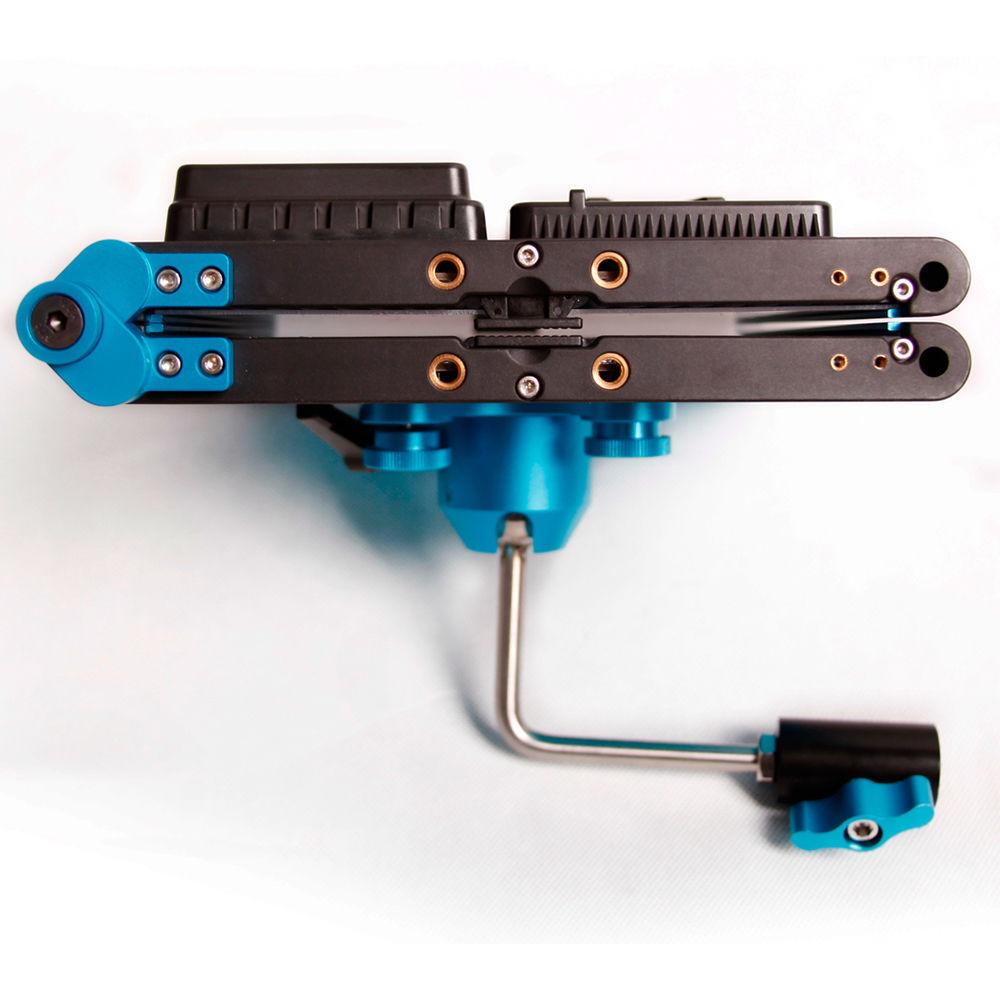

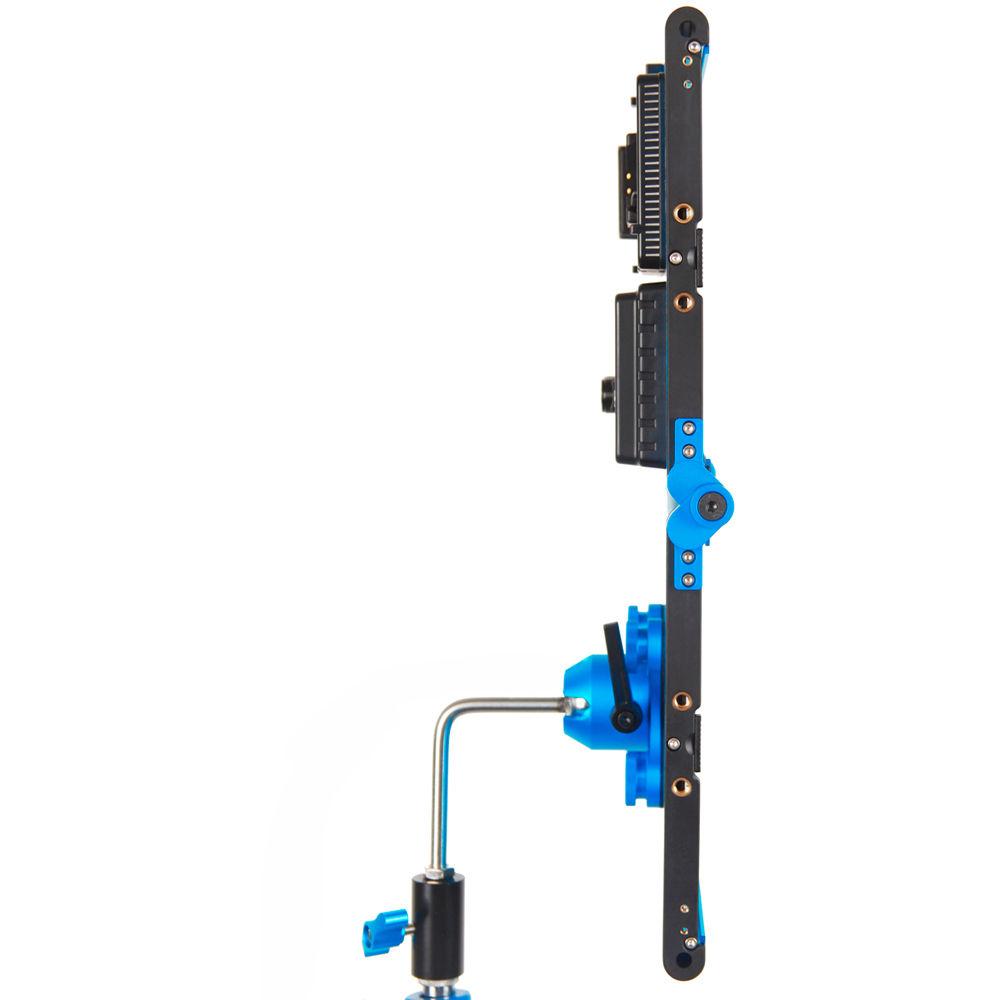

For maximum durability the panel has an aluminum chassis and it comes with a center mount yoke for control over light placement. The light itself also measures just 9.1 x 7.8 x 1.4" when folded and opens up to 9.1 x 15.7 x 0.7" for a broad, soft light source. It can run on either 100-240 VAC power via the included adapter or a 14.8 VDC battery pack on the V-mount plate. It draws just 58W and comes with a carrying case. - Illumination: 7,000 lux / 650 fc at 3.3' / 1m
UPC: 722589274299 - Compact Collapsible Light Stand for Silver Series LED Panels This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels. UPC: 722589274268
- Carrying Case for Two LED 1000 Silver Series Store and transport two LED 1000 Silver Series Panels in this Dracast Carrying Case. UPC: 722589274114

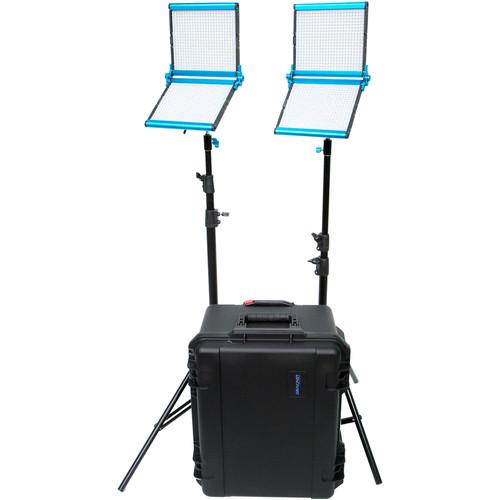

In the Box Bundle Items 2 x LED1000 Silver Series Foldable Bi-Color LED Light wqqsexazxfzayswuuzvsatbauf 2 x Compact Collapsible Light Stand for Silver Series LED Panels Carrying Case for Two LED 1000 Silver Series Specification PDF 787kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Silver Series Foldable LED1000 Bi-Color 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED1000 Silver Series Foldable Bi-Color LED Light
| | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Number of LEDs | 1000 | | Fixture Dimensions | Extended: 9.1 x 15.7 x 0.7" / 23.2 x 40.0 x 1.8 cm
Folded: 9.1 x 7.8 x 1.5" / 23.2 x 20.0 x 3.7 cm | | Fixture Weight | 8.25 lb / 3.7 kg | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | Lollipop | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 14.8 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 58 W | | | | Box Dimensions (LxWxH) | 16.5 x 12.7 x 7.7" | - Compact Collapsible Light Stand for Silver Series LED Panels
| | | Box Dimensions (LxWxH) | 20.2 x 4.6 x 4.3" | - Carrying Case for Two LED 1000 Silver Series
| Compatibility | LED 1000 Silver Series Panels | | Material | Not specified by manufacturer | | Exterior Dimensions | Not specified by manufacturer | | Carrying/Transport Options | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 22.45 x 14.2 x 9.3" |
