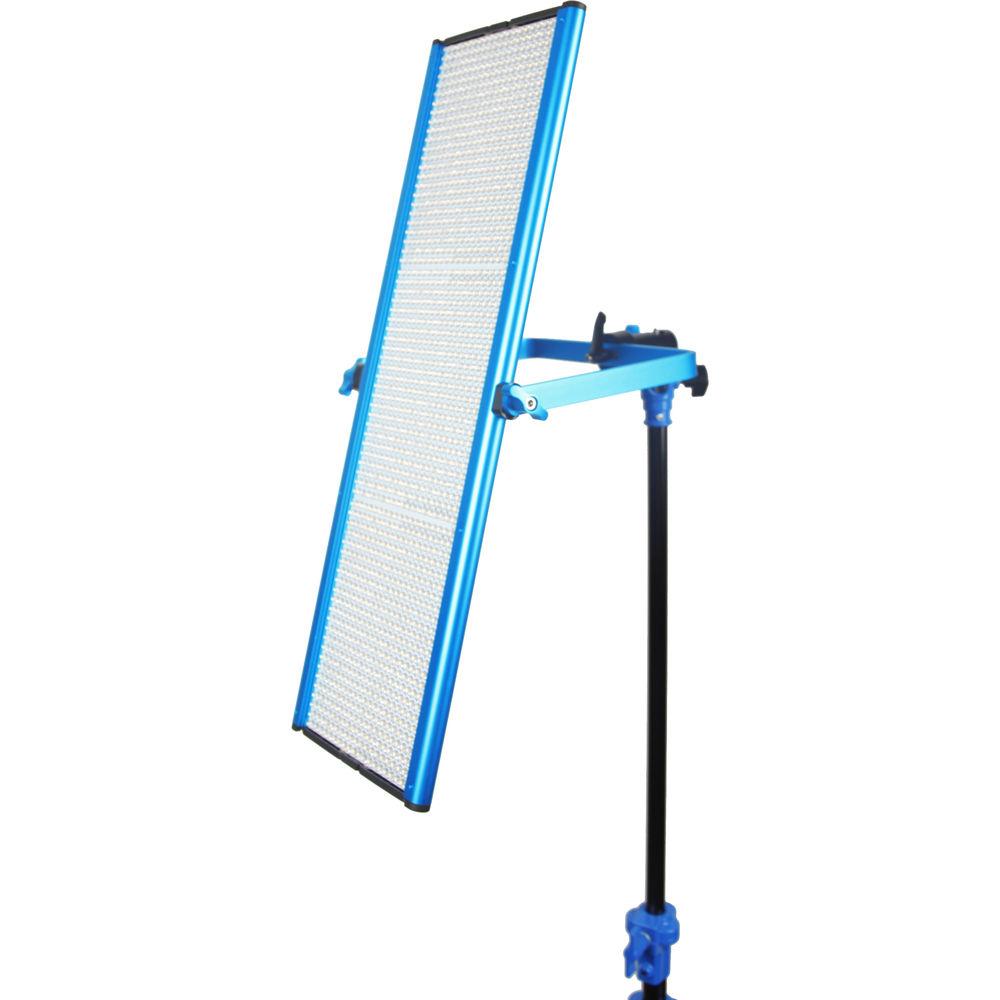

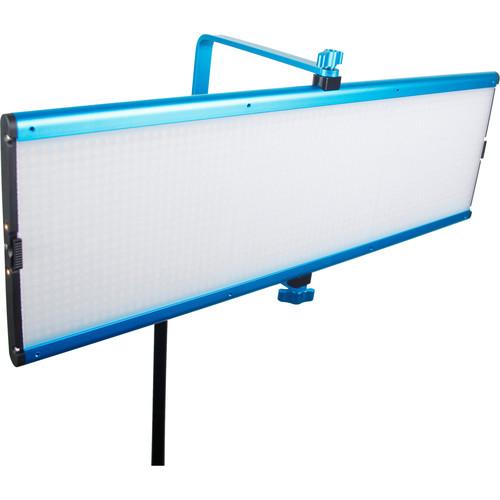

User Manual for Dracast Silver Series LED1500 Bi-Color Panel with V-Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Dracast Silver Series LED1500 Bi-Color Panel
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Silver Series LED1500 Bi-Color Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

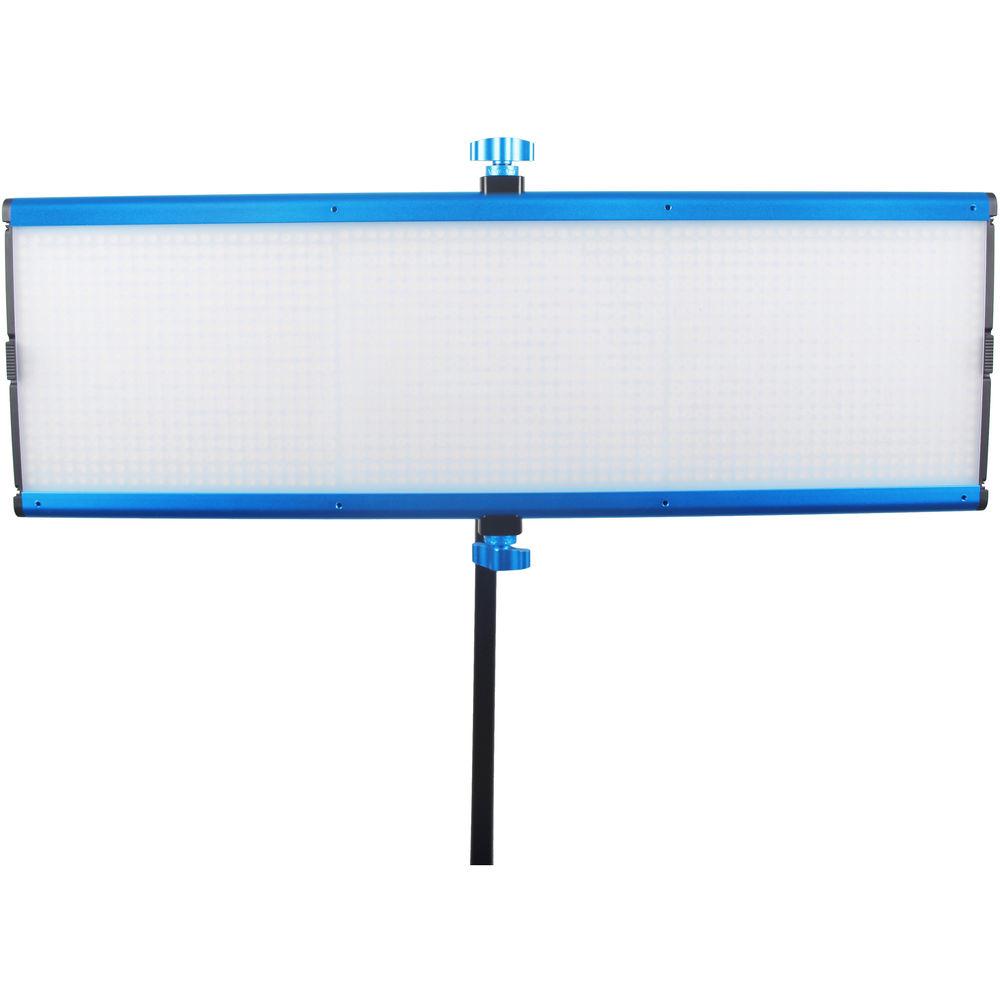

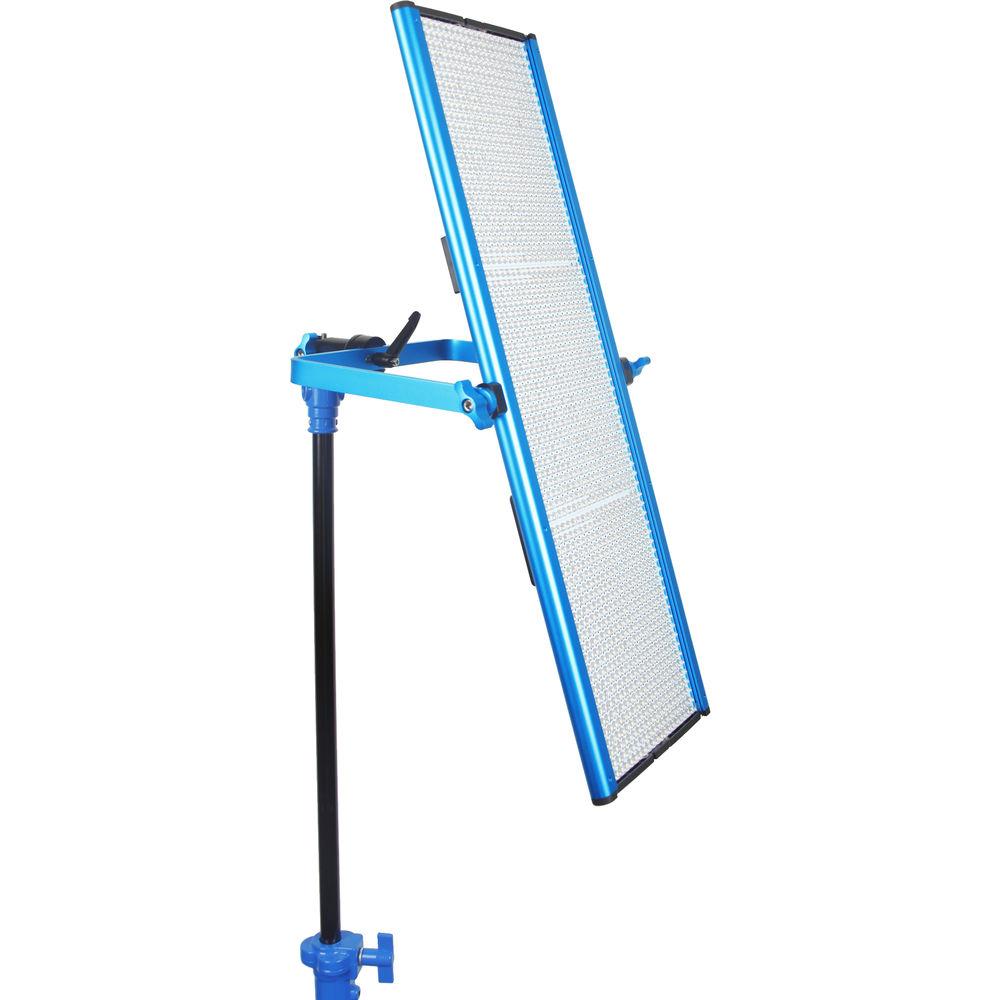

Product description With dimensions of 24 x 7.9" and a slim profile, this Silver Series LED1500 Bi-Color Panel with V-Mount Battery Plate from Dracast is well-suited to those that need both power and portability. This model features a beam angle of 45° and has a bi-color design, with a color temperature range from 3200 to 5600K that allows for easy use in the studio or outdoors. The LEDs are rated to have a CRI of 95 and above, making them relatively accurate in their color rendering, and are rated to last for approximately 50,000 hours before needing to be replaced. The LED1500 light is composed of 1440 bulbs in an anodized aluminum housing, coming ready for mounting with a 5/8" pin yoke. On the back of the fixture is a panel for on-board control, which gives you full and continuous dimming from 0 to 100%. At a weight of 6 lb, the light is compact and can be easily transported in its included nylon soft case by a single person. A V-mount plate is provided for cable-free use with an optional battery; however, the fixture can also be powered by its 12V power supply. -

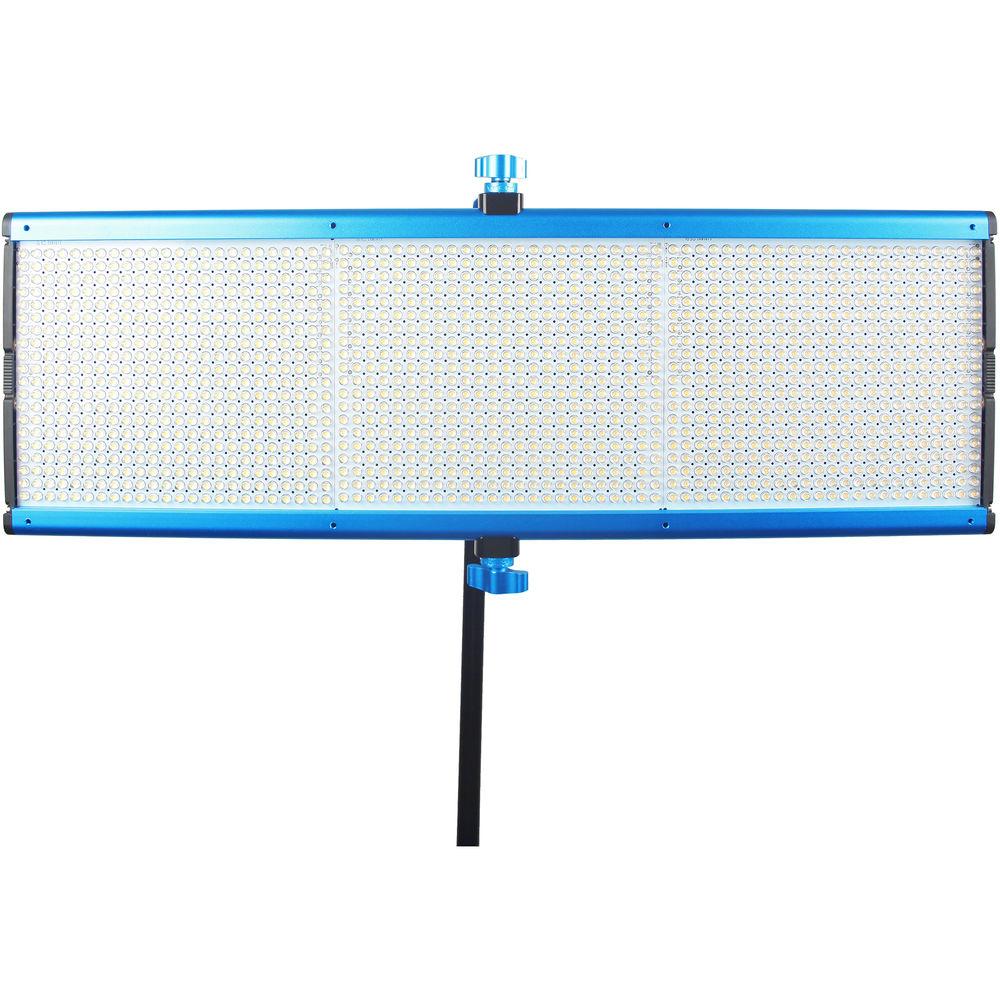

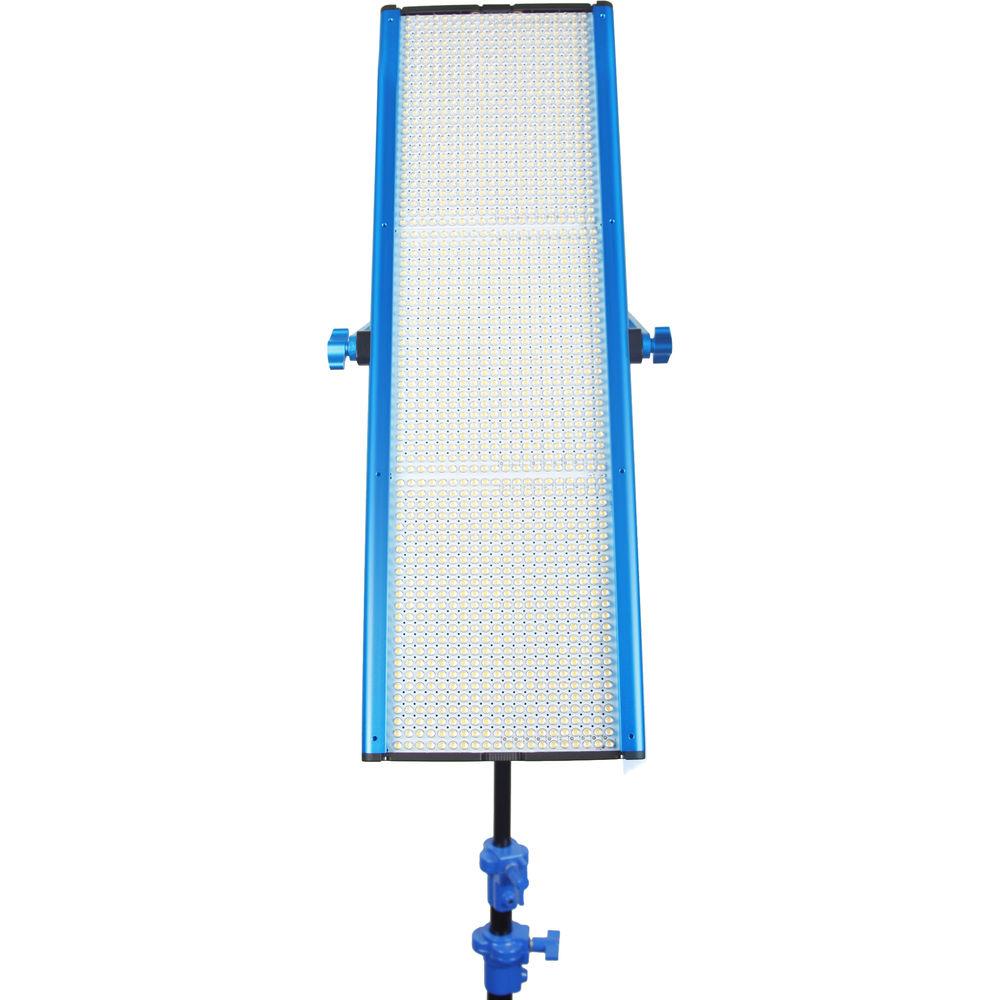

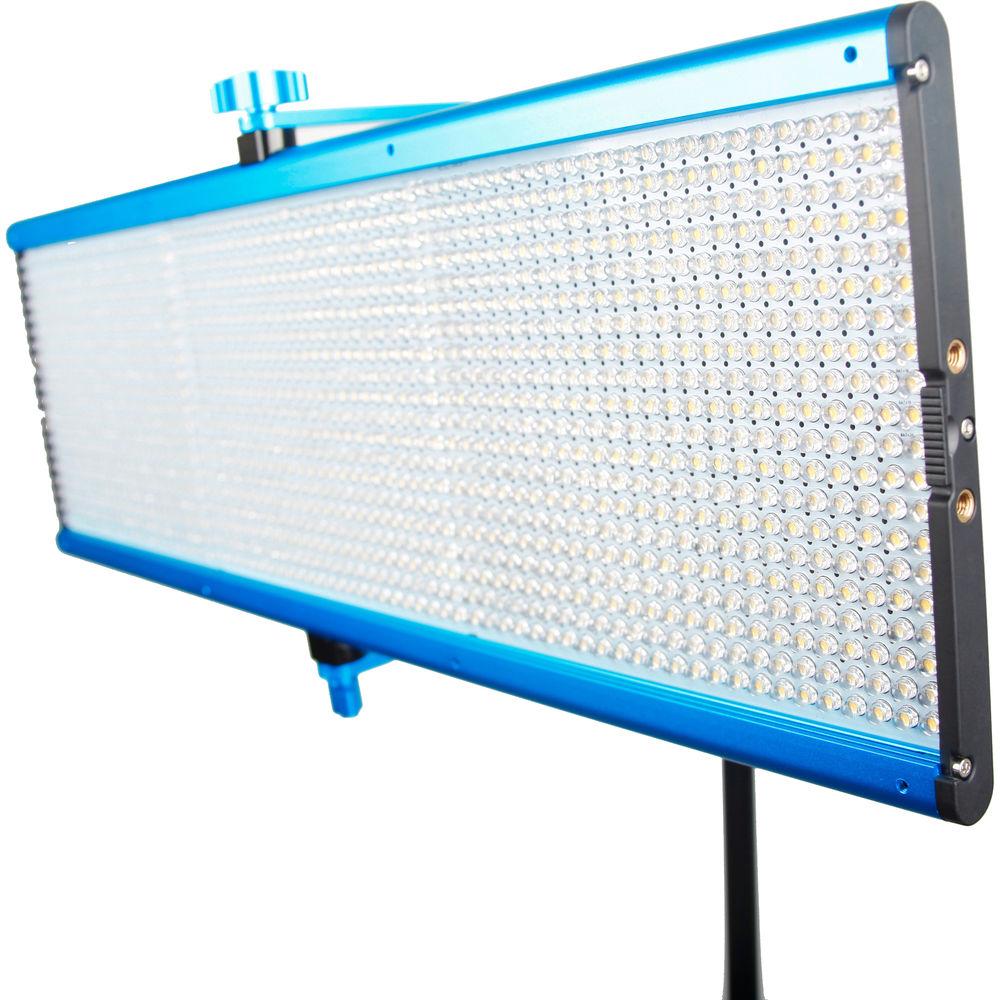

- 24 x 7.9" panel with 1440 LEDs in a durable anodized aluminum housing
- Compact and easy to transport thanks to its low weight of 6 lb and included nylon soft case
- Bi-color design with a color temperature range from 3200-5600K
- CRI rating of >95 for accurate color rendition
- LEDs rated to have a lifetime of approximately 50,000 hours
- Beam angle of 45°

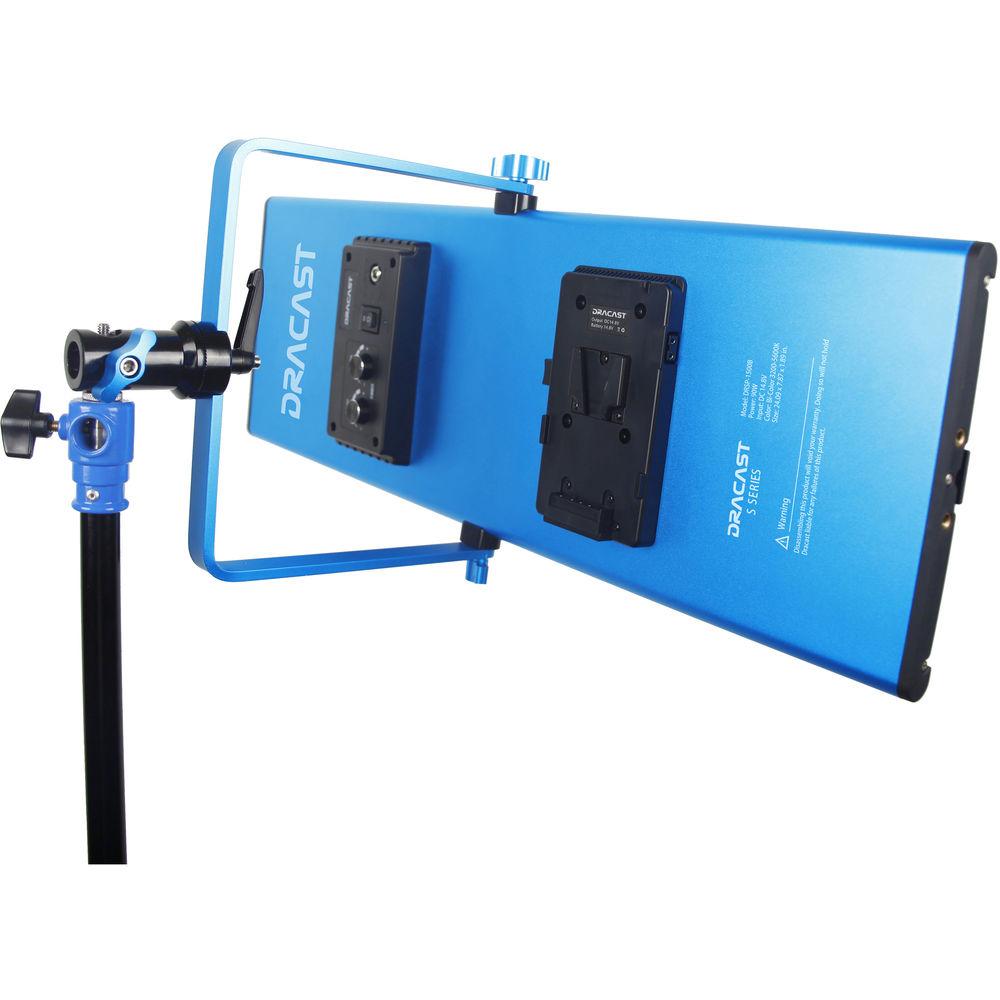

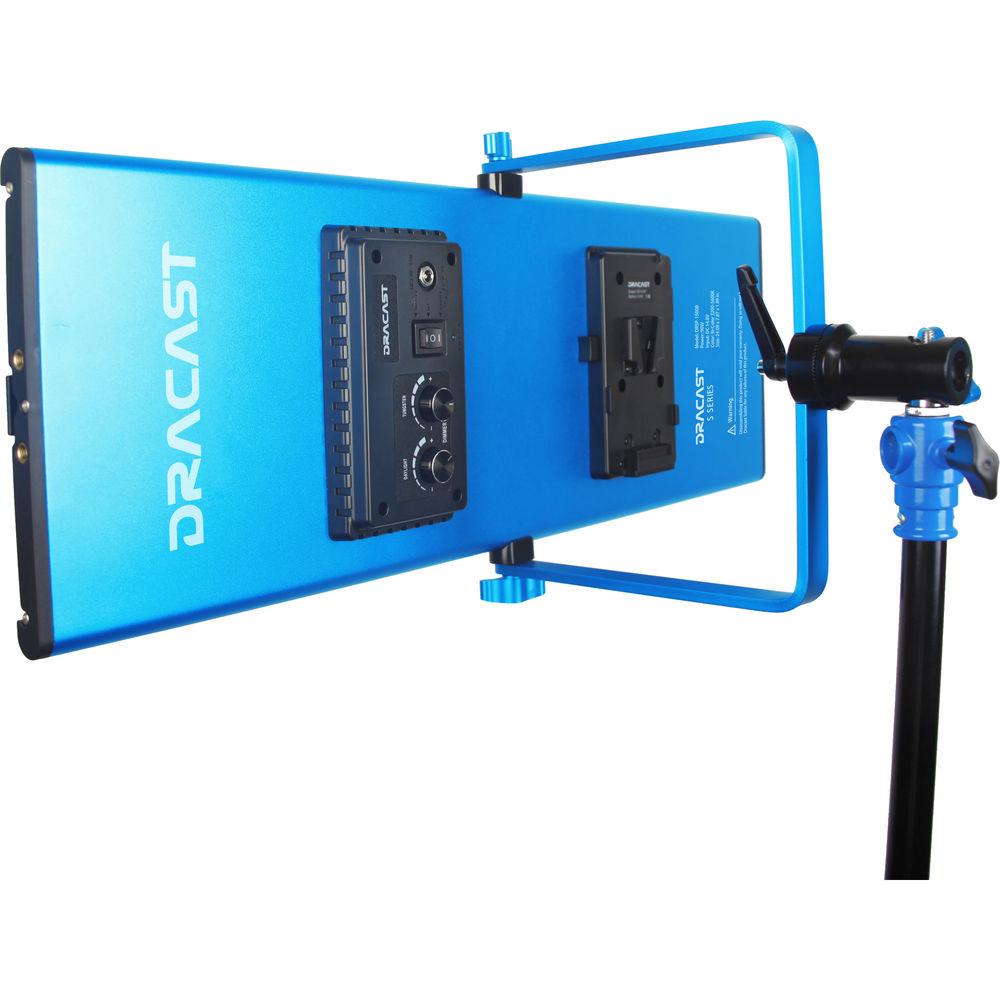

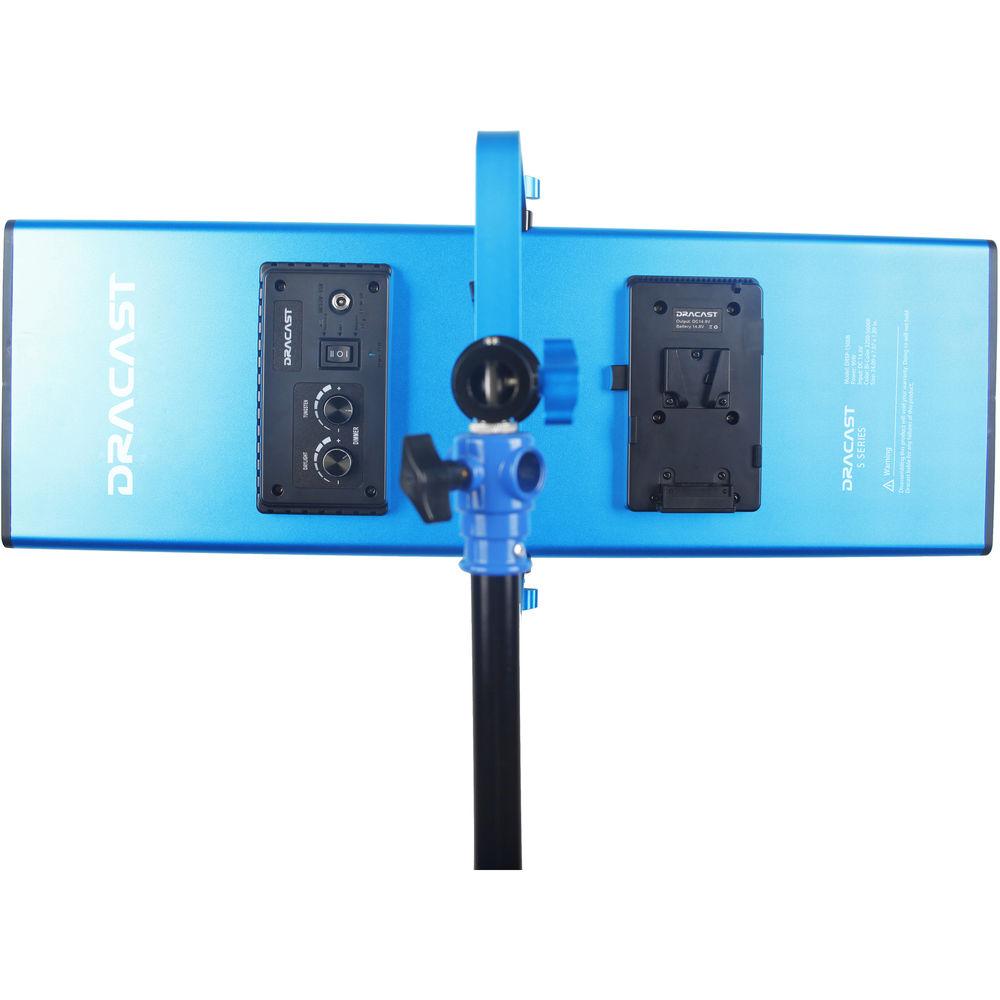

- On-board controls at the back of the fixture offering 0-100% dimming, as well as a V-mount battery plate
- Can be powered by an optional 14.4 VDC battery, or by included power supply at 110-240 VAC, 50/60 Hz
UPC: 722589274275 In the Box Dracast Silver Series LED1500 Bi-Color Panel with V-Mount Battery Plate V-Mount Battery Plate Nylon Soft Case Yoke Power Supply Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Silver Series LED1500 Bi-Color Panel with V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Dracast Silver Series LED1500 Bi-Color Panel with V-Mount Battery Plate can be downloaded in PDF format at the link stated below.
Technical parametersDracast LED1500 Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Housing Material | Aluminum | | Photometrics | 3200K:
228 fc / 3800 lux at 3' / 0.9 m
86 fc / 921 lux at 6' / 1.8 m
41 fc / 445 lux at 9' / 2.7 m
25 fc / 268 lux at 12' / 3.6 m
4400K:
588 fc / 7200 lux at 3' / 0.9 m
187 fc / 2008 lux at 6' / 1.8 m
86 fc / 923 lux at 9' / 2.7 m
54 fc / 579 lux at 12' / 3.6 m
5600K:
488 fc / 4200 lux at 3' / 0.9 m
105 fc / 1130 lux at 6' / 1.8 m
51 fc / 551 lux at 9' / 2.7 m
29 fc / 308 lux at 12' / 3.6 m | | Number of LEDs | 1440 | | Expected Lamp Life | 50000 Hours | | Rectangular Panel Size | 24.02 x 7.87" / 61 x 20 cm | | Fixture Weight | 6.04 lb / 2.74 kg | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | Barrel | | DMX Connector | None | | | | Fixture Mount | 5/8" Receiver | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 90 W | | | | Power Supply Output | 12 VDC | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 32.0 x 13.5 x 4.5" |
