User Manual for Dracast Silver Series LED500 Daylight 2-Light Kit with Soft Case Click to enlarge the picture
Contents of the user manual for the Dracast Silver Series LED500 Daylight 2-Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Silver Series LED500 Daylight 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

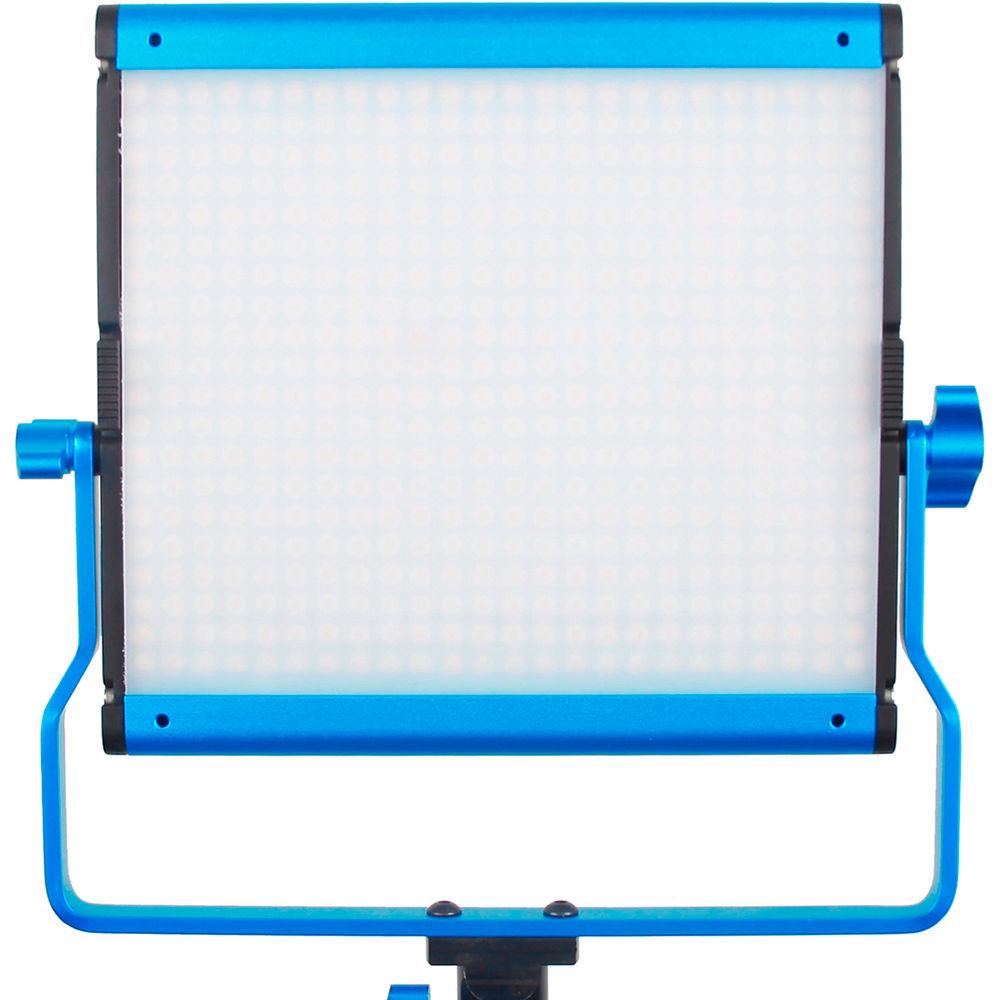

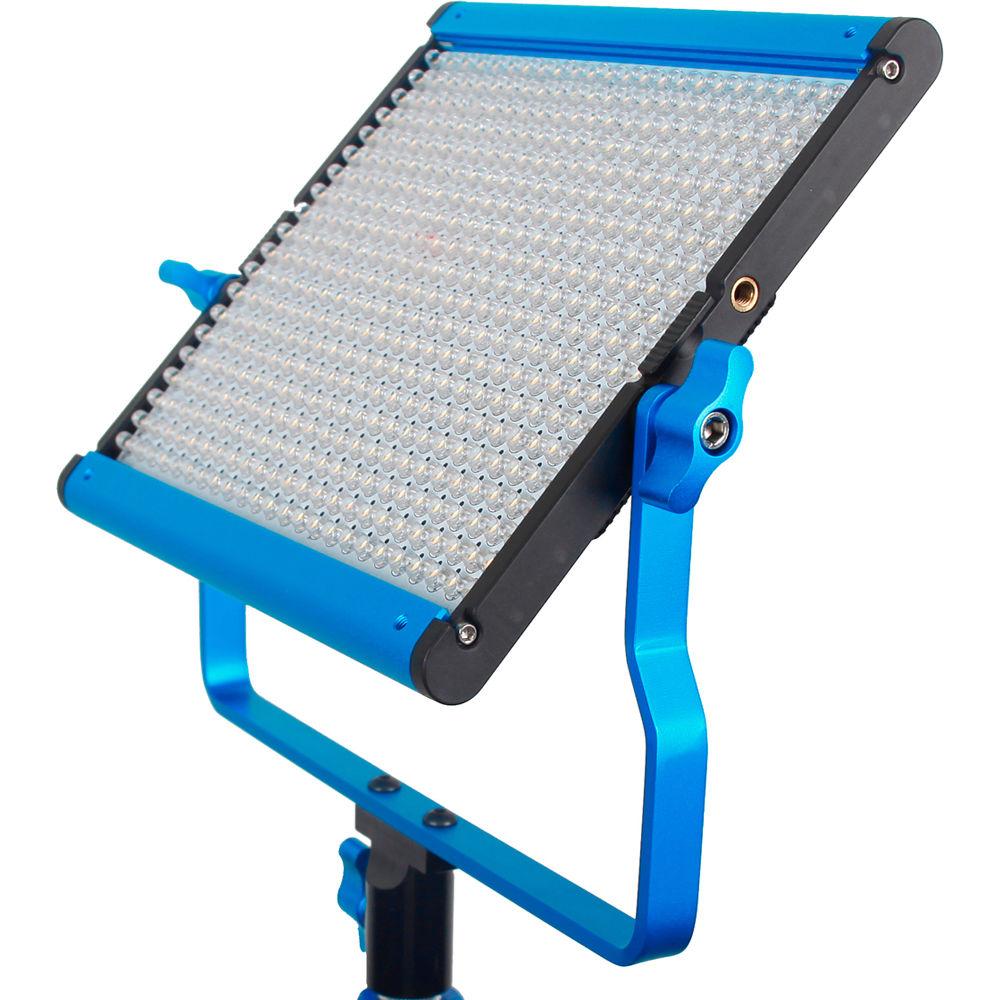

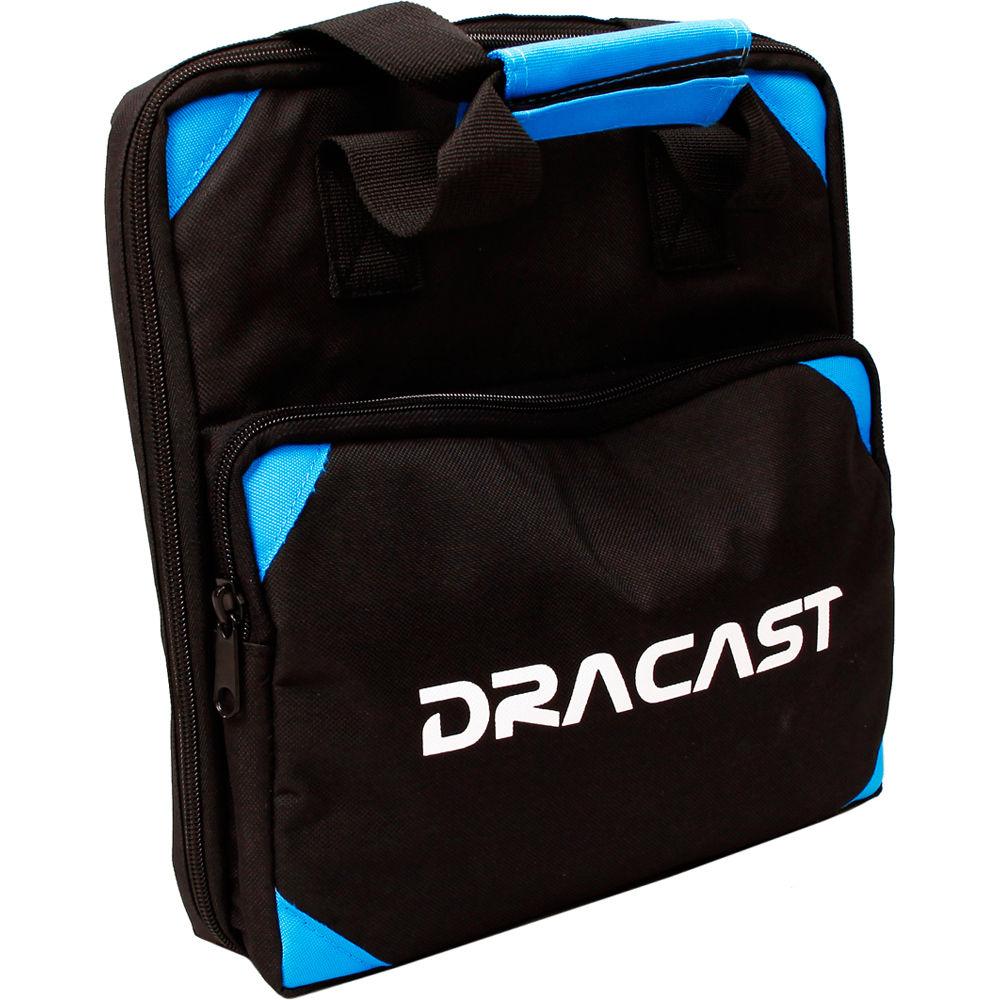

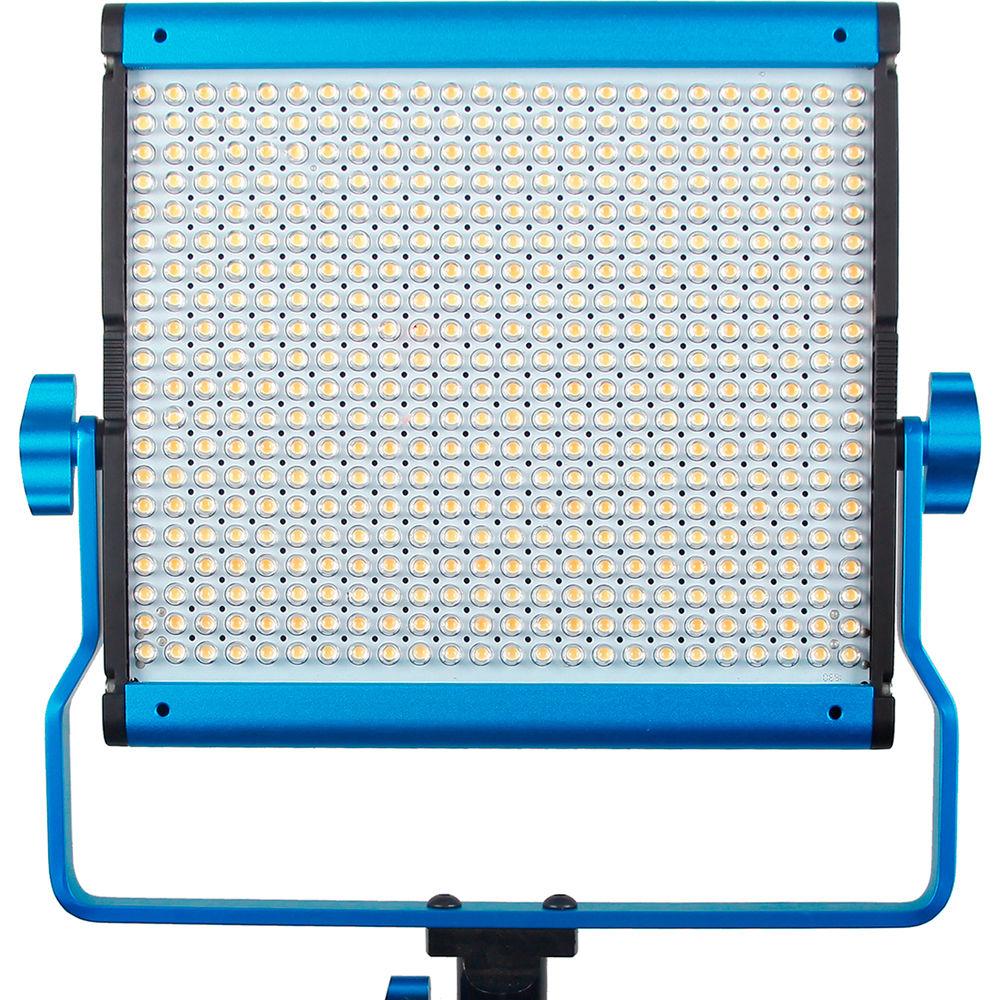

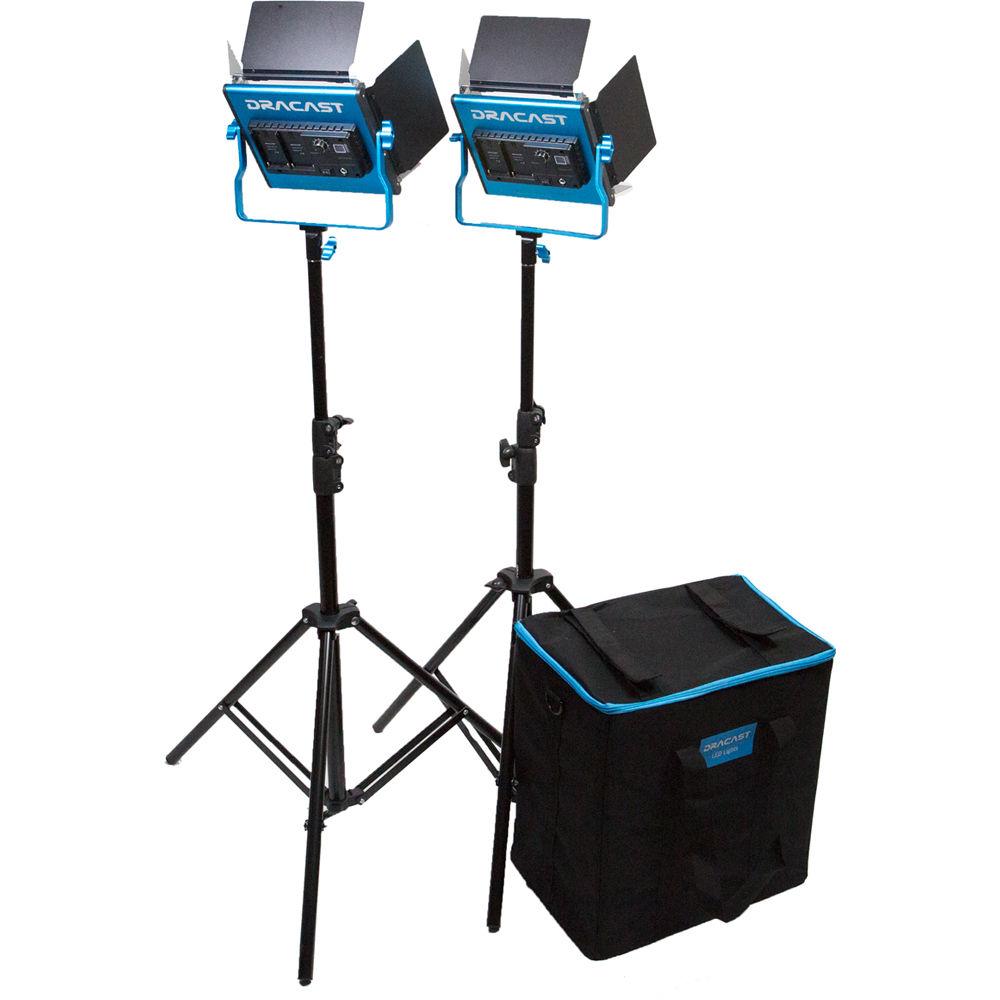

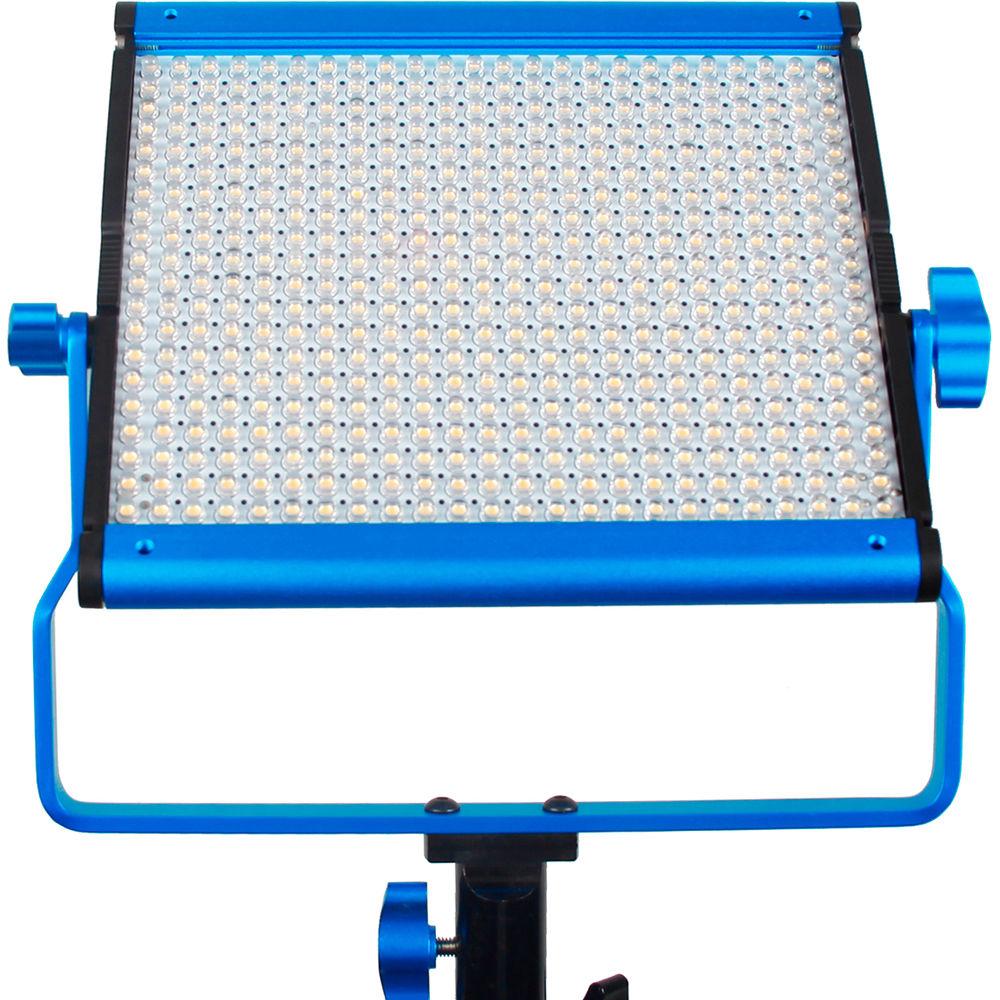

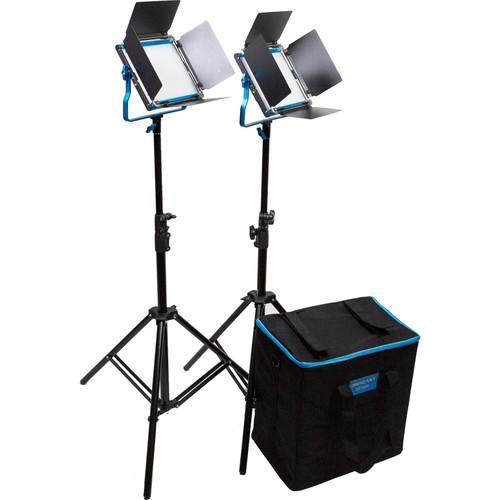

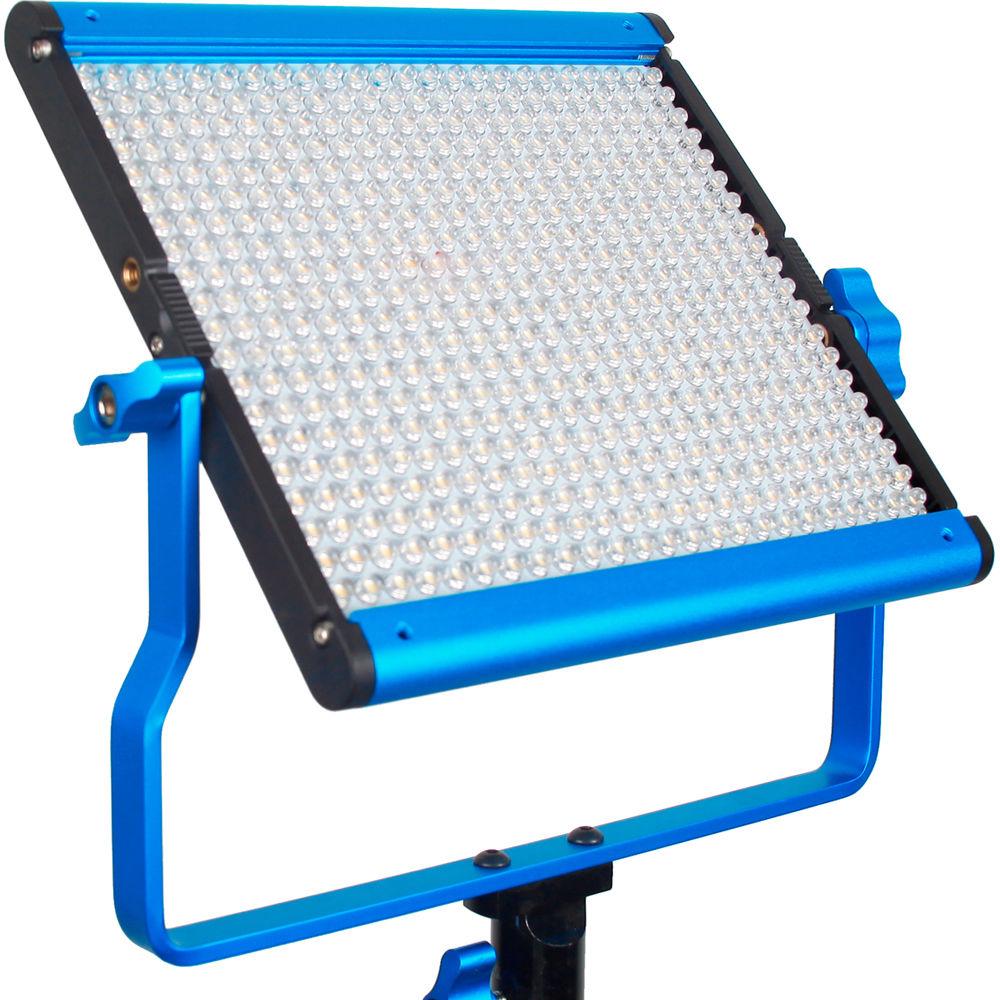

Product description Bundling everything needed for versatile two-point lighting setups, the Silver Series LED500 Daylight 2-Light Kit with Soft Case from Dracast pairs two daylight-balanced Silver Series LED500 panels with two compact collapsible light stands and a soft case to protect and store the whole kit when not in use. - LED500 Silver Series Daylight LED Light with V-Mount Battery Plate Featuring a slimmer and lighter design, the LED500 Silver Series Daylight LED Light with V-Mount Battery Plate from Dracast weighs just 2 lb and is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's daylight balanced output is well suited for outdoor work or color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 29W means a timely return on your investment.The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard V-mount battery plate with optional 14.8 VDC batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED500's 45-degree beam angle. A carrying case is included.
- Photometrics
- 5500 lux / 511 fc at 3.0' (0.9m)
1550 lux / 144 fc at 6.0' (1.8m)
725 lux / 530 fc at 9.0' (2.7m)
430 lux / 40 fc at 12' (3.6m)
600 lux / 56 fc at 12' (3.6m) - Compact Collapsible Light Stand for Silver Series LED Panels This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels. UPC: 722589274268

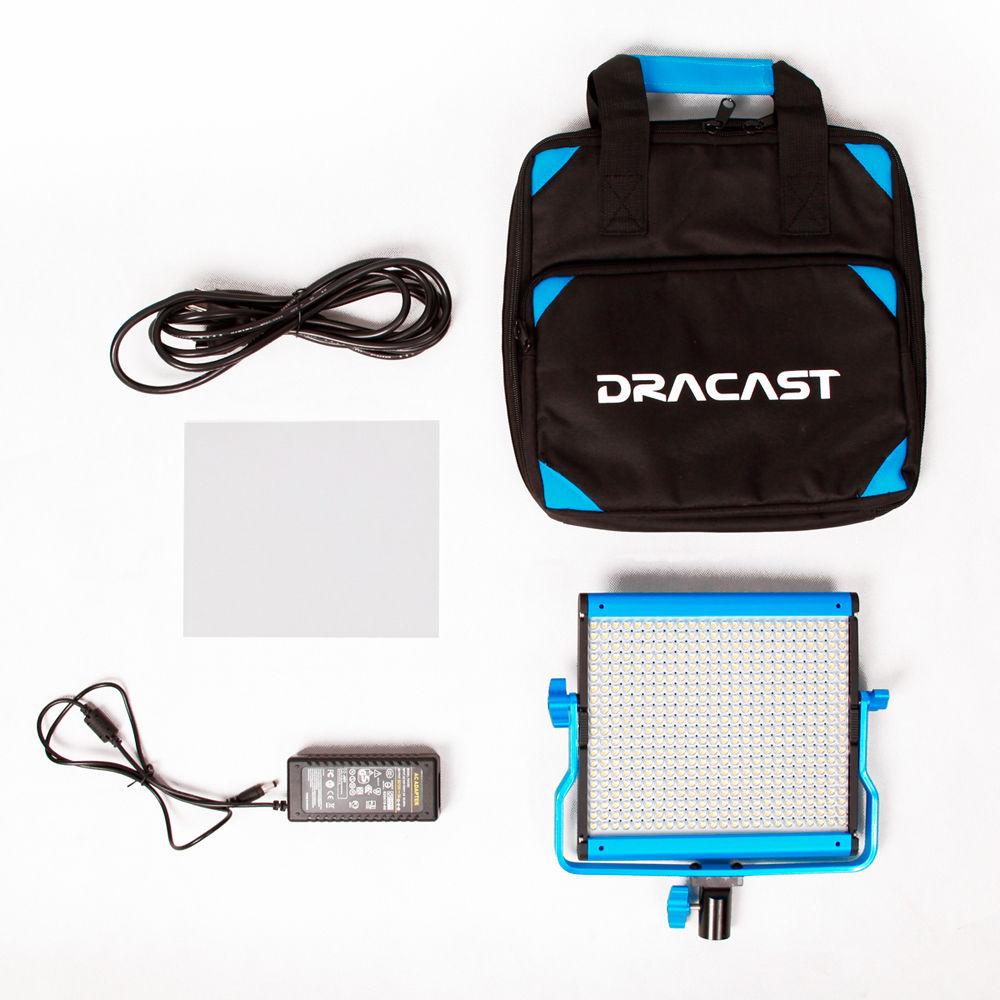

In the Box Bundle Items 2 x LED500 Silver Series Daylight LED Light with V-Mount Battery Plate - AC Power Adapter for LED500 Light
2 x Compact Collapsible Light Stand for Silver Series LED Panels
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Silver Series LED500 Daylight 2-Light Kit with Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED500 Silver Series Daylight LED Light with V-Mount Battery Plate
| | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 16.2 x 7.8 x 1.8" / 412.0 x 200.0 x 48.0 mm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 58 W | | | | Box Dimensions (LxWxH) | 13.7 x 13.6 x 6.4" | - Compact Collapsible Light Stand for Silver Series LED Panels
| | | Box Dimensions (LxWxH) | 20.2 x 4.6 x 4.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
