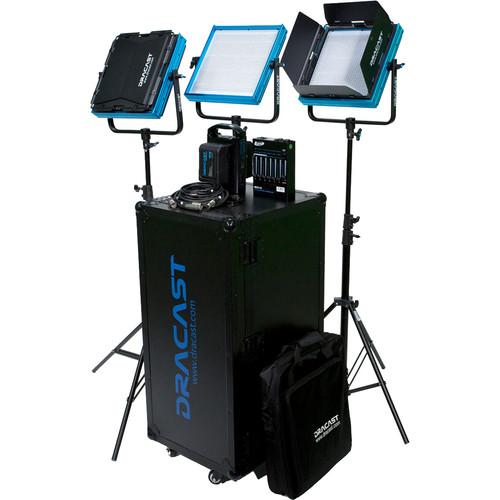

Dracast Small Newsroom Bi-Color 3-Light Kit

User Manual for Dracast Small Newsroom Bi-Color 3-Light Kit

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

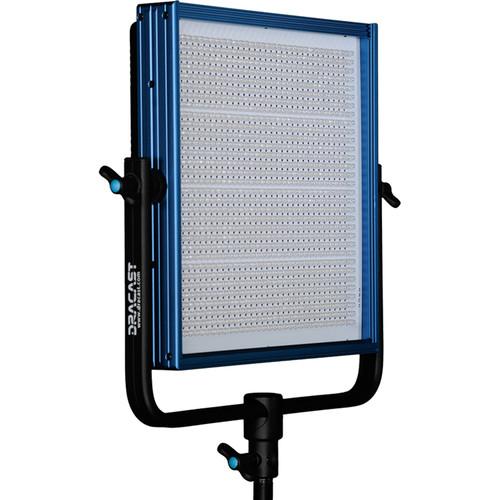

• LED1000-BX Studio Bi-Color LED Light with DMX At 5.5 lb the LED1000-BX Studio Bi-Color LED Light with DMX from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3,200K-5,600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple push of a button instead of using filters. Dimming is equally convenient via another button that adjusts the light intensity from 100-0% with negligible color shift. Both values are displayed in a digital readout and can be controlled from a console via DMX. And the low electrical draw of just 60W means a timely return on your investment. The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This AC only version of the LED1000 can be used worldwide, powered by the included 100-240 VAC power adapter. Accessories include optional 4-way barndoors for contouring and control of the LED1000-BX's 45 degree beam angle.
  Photometrics
  • 17,700 lux/ 1,650 fc @ 3.0' (0.9 m)
    4,800 lux/ 465 fc @ 6.0' (1.8 m)
    2,100 lux/ 225 fc @ 9.0' (2.7 m)
    1,200 lux/ 113 fc @ 12' (3.6 m)
  UPC: 720189883033

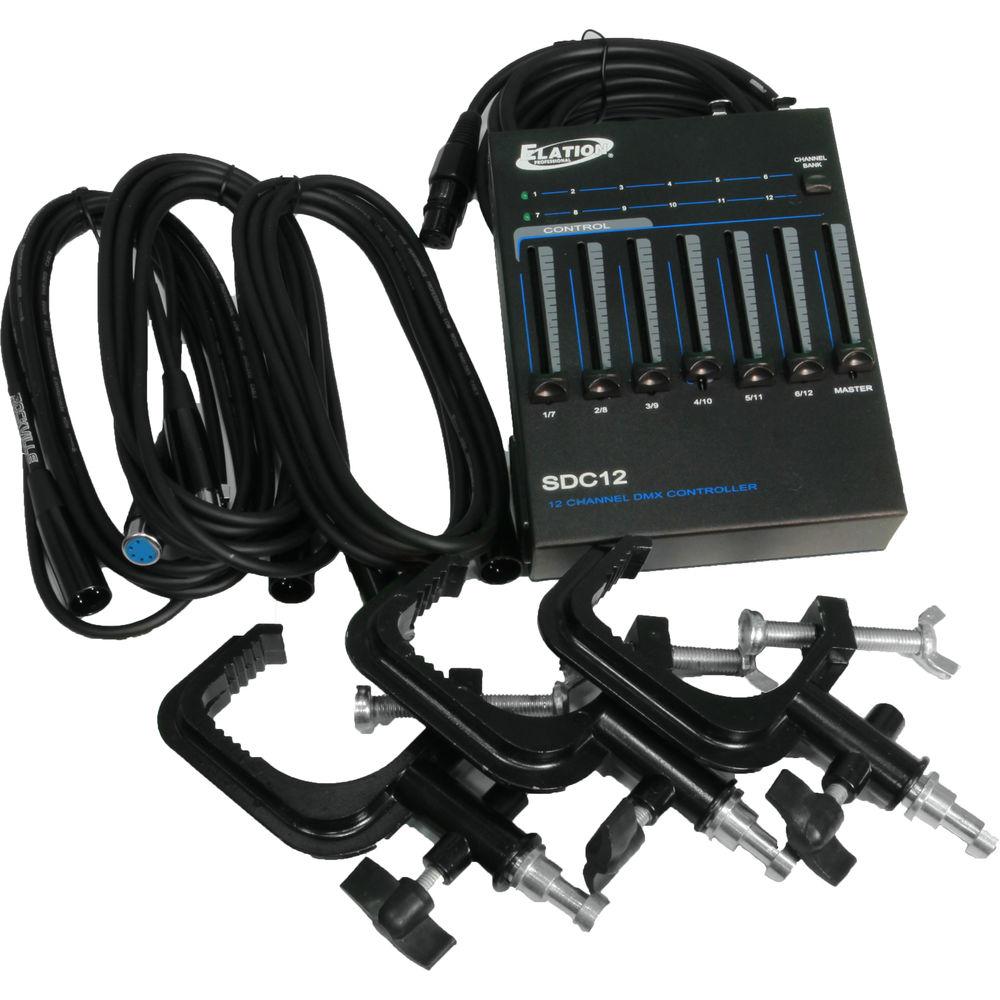

• SDC12 12-Channel Basic DMX Controller The SDC12 12-Channel Basic DMX Controller by Elation Professional is a 12-channel, portable DMX controller which features 3-pin and 5-pin XLR DMX outputs, a master dimmer fader, and six faders which control channels 1-6 and 7-12. The DMX controller can be powered either by the included 12 VDC power supply or by a standard 9 VDC battery (not included). It can be used as a portable, handheld device or wall mounted for permanent installation.
  • 12 DMX channels faders
  • Master dimmer fader
  • Portable handheld or wall mountable
  • Powered by external 12 VDC power supply (included) or 9 VDC battery (not included)
  UPC: 837874016451
• DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.

  The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699

• Carry Case

• AC Power Adapter for LED1000 Light

• Limited 1-Year Warranty

• Power Supply

• Limited 2-Year Warranty

• Soft Case

• Limited 1-Year Warranty

Also Includes

• 3 x DMX Cables
• 20' DMX Cable
• 3 x Junior Pipes
• Limited 1-Year Warranty
