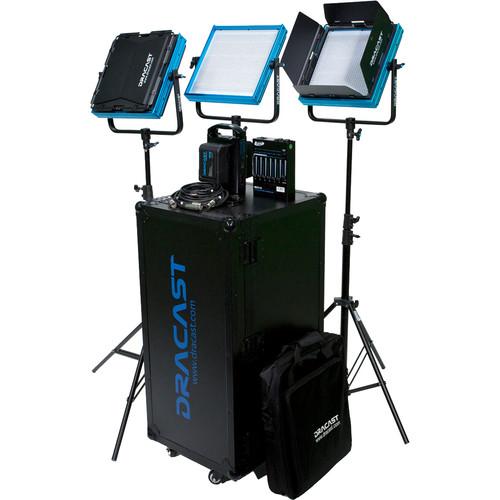

Dracast Small Newsroom Tungsten 3-Light Kit

User Manual for Dracast Small Newsroom Tungsten 3-Light Kit

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

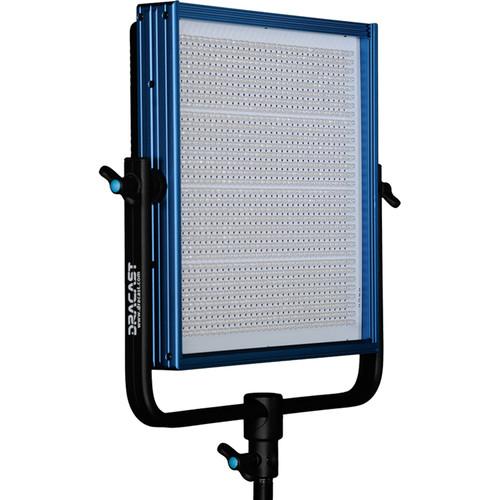

• LED1000-TX Studio Tungsten LED Light with DMX At 5.5 lb the LED1000-TX Studio Tungsten LED Light with DMX from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED1000-TX's tungsten-balanced output is well-suited to color matching other tungsten fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel button that adjusts the output with negligible color shift and indicates the light level on a digital readout. Alternatively, you can control the light's functions remotely thanks to its DMX capability. The low electrical draw of just 60W means a timely return on your investment.The durable anodized aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This version of the LED1000 can be used worldwide, powered by the included 100-240 VAC power adapter. Accessories include optional 4-way barndoors for contouring and control of the LED1000-TX's 45 degree beam angle.
  Photometrics
  • 8500 lux / 790 fc at 3.0' (0.9 m)
    2700 lux / 251 fc at 6.0' (1.8 m)
    1330 lux / 121 fc at 9.0' (2.7 m)
    735 lux / 68 fc at 12' (3.6 m)
  UPC: 720189883002

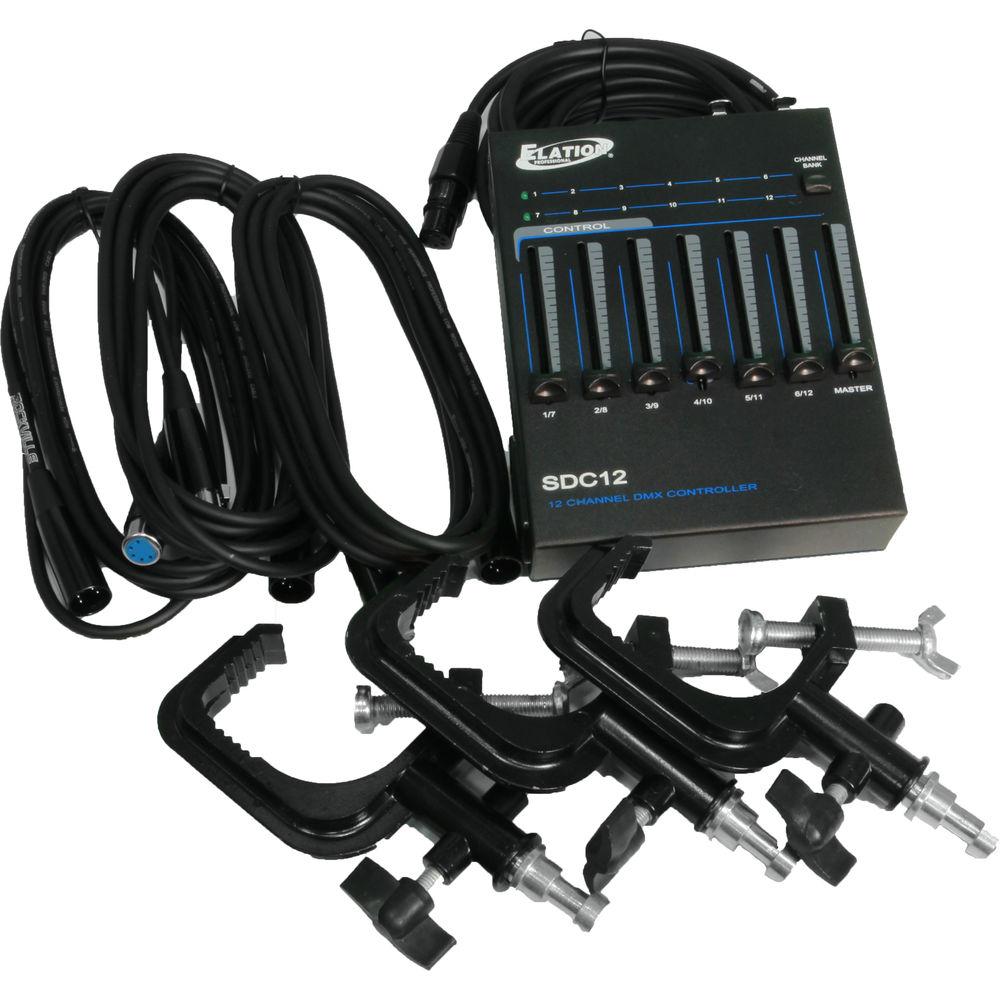

• SDC12 12-Channel Basic DMX Controller The SDC12 12-Channel Basic DMX Controller by Elation Professional is a 12-channel, portable DMX controller which features 3-pin and 5-pin XLR DMX outputs, a master dimmer fader, and six faders which control channels 1-6 and 7-12. The DMX controller can be powered either by the included 12 VDC power supply or by a standard 9 VDC battery (not included). It can be used as a portable, handheld device or wall mounted for permanent installation.
  • 12 DMX channels faders
  • Master dimmer fader
  • Portable handheld or wall mountable
  • Powered by external 12 VDC power supply (included) or 9 VDC battery (not included)
  UPC: 837874016451
• DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.

  The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699

• Carry Case

• AC Power Adapter for LED1000 Light

• Limited 1-Year Warranty

• Power Supply

• Limited 2-Year Warranty

• Soft Case

• Limited 1-Year Warranty

Also Includes

• 3 x DMX Cables
• 20' DMX Cable
• 3 x Junior Pipes
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED1000-TX Studio Tungsten LED Light with DMX

  Beam Angle	45°
  Color Temperature	3200K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm
  Fixture Weight	5.5 lb / 2.5 kg

  DMX Connector	5-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	60 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	20.7 x 20.4 x 11.2"

• SDC12 12-Channel Basic DMX Controller

  DMX Channels	12
  Connectors	1 x 12 VDC power input 1 x 3-pin XLR female, DMX output to lighting device 1 x 5-pin XLR female, DMX output to lighting device
  Controls	1 x power switch, on/off 1 x binary DMX patch, 10 DIP switches to set starting DMX channel 1 x channel bank button, toggles between banks 1-6 and 7-12 1 x master slider, controls DMX output values 6 x faders
  Indicators	1 x LED, channel bank
  Voltage Requirements	12 VDC 500 mA min / 9 VDC battery
  Dimensions	7.5 x 5.9 x 1.6" (19.1 x 14.9 x 4.1 cm)
  Weight	2 lb (900 g)

  Box Dimensions (LxWxH)	14.173 x 8.425 x 5.039"

• DLS-805 Spring-Cushioned Light Stand (6')

  Load Capacity	13 lb / 6 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	72" / 182.9 cm
  Minimum Working Height	28.5" / 72.4 cm
  Collapsed Height	28.5" / 72.4 cm
  Leg Shape	Round
  Air Cushioned	No Spring-Cushioned
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	3.4 lb / 1.5 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	37.5 x 4.0 x 4.0"
