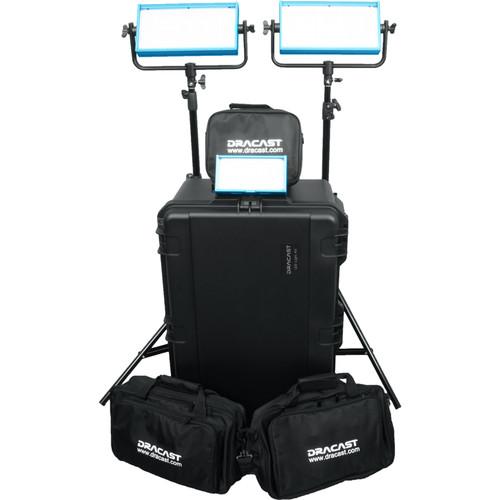

• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

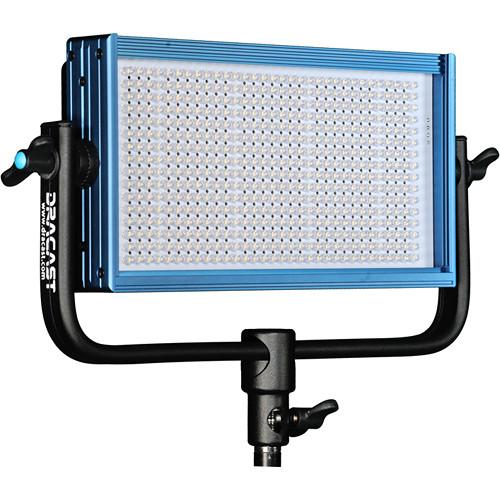

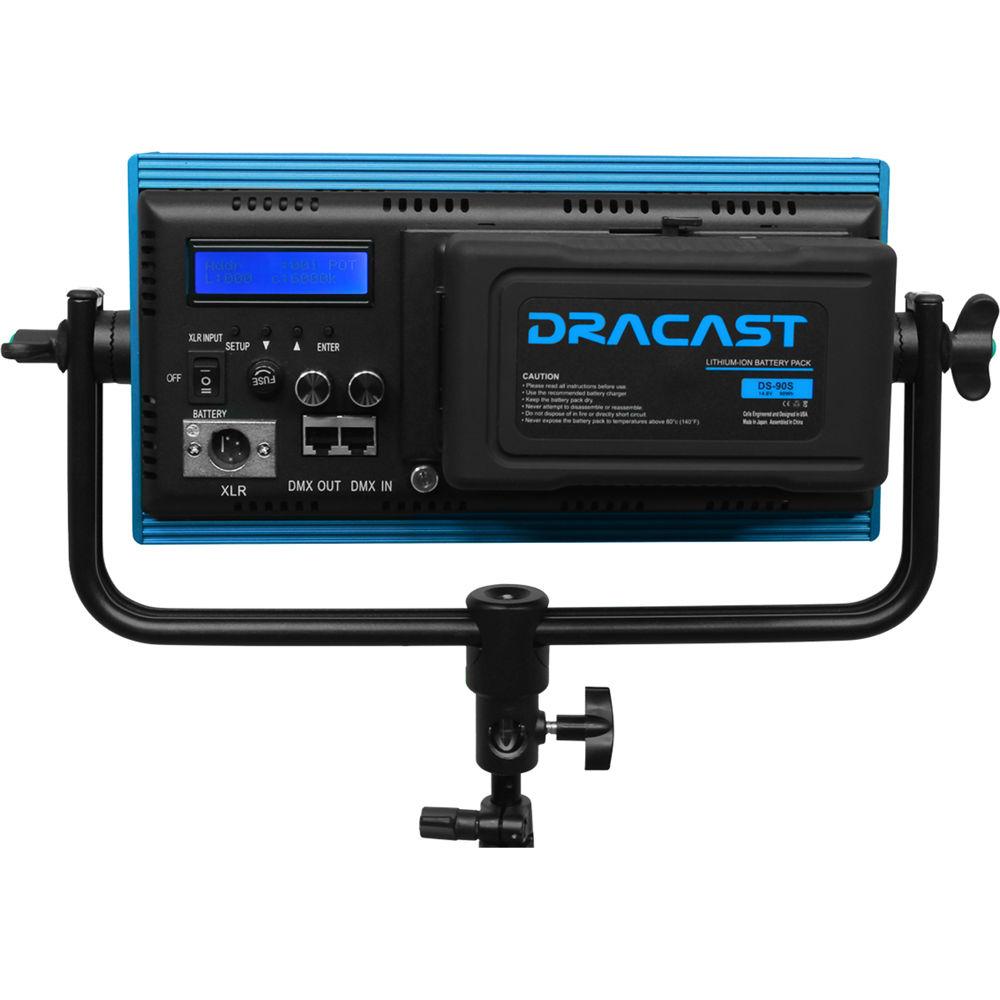

• LED500 Plus Series Tungsten LED Light Expanding on their line of panels, the LED500 Plus Series Tungsten LED Light from Dracast adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 512 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a tungsten-balanced color temperature of 3200K for matching with other fixtures.

  The lights offer a spot beam angle of 45° as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 30W of power. Additionally, it is lightweight at just 4 lb and measures 12 x 6 x 2" in size.
  Photometrics
  • 3800 lux / 353 fc at 3' (1 m)
    1150 lux / 107 fc at 6' (2 m)
    530 lux / 49 fc at 9' (3 m)
    300 lux / 28 fc at 12' (4 m)
  UPC: 743724583144
• DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.

  The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699
• iSeries 2918-10BE Waterproof Case (Black, Empty) Store, transport, and protect two cameras, up to ten lenses, and related accessories in the watertight, dustproof, and molded SKB iSeries 2918-10BE Case. The black case features five trigger latches, two metal-reinforced locking loops for optional padlocks, an automatic ambient pressure-equalization valve, an over-sized top handle, side handles, and a trolley handle with wheels.
  • Industrial strength injection-molded pull handle
  • Wide set inline skate-style wheels for easy transport
  • TSA accepted key locking latches (sold separately)
  • Padlock holes include stainless steel padlock protector clips
  • Water and dustproof design
  • Molded-in hinge for added protection
  • Trigger-release latch system
  • Snap-down, rubber, overmolded, cushion grip handle
  • Polypropylene co-polymer used in injection molding
  • Ambient pressure equalization valve
  • Resistant to impact damage
  UPC: 789270991934

• Battery Plate for LED500 and LED1000 (Gold Mount)

• Battery Plate for LED500 and LED1000 (V-Mount)

• Aluminum Yoke for LED500 Light

• AC Power Adapter for LED500 Light

• Carrying Case

• Limited 1-Year Warranty

• Soft Case

• Limited 1-Year Warranty

• Limited Lifetime Warranty

Also Includes

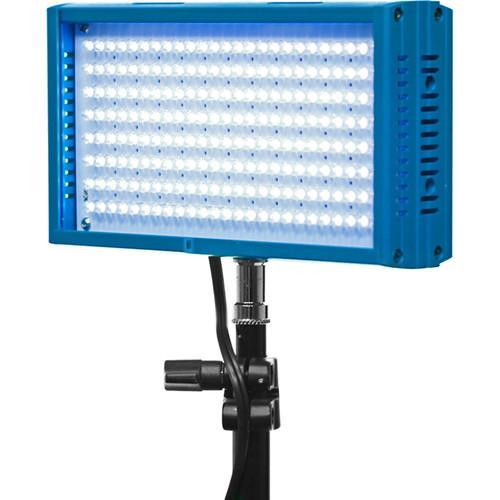

• LED200 Tungsten On-Camera LED Light

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED500 Plus Series Tungsten LED Light

  Beam Angle	45°
  Color Temperature	3200K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Number of LEDs	512
  Fixture Dimensions	12.0 x 6.0 x 2.0" / 30.5 x 15.2 x 5.1 cm
  Fixture Weight	4 lb / 1.8 kg (Including Yoke)

  Battery Plate	1 x Gold Mount 1 x V-Mount
  DMX Connector	RJ45

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	30 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.25 x 11.5 x 8.5"

• DLS-805 Spring-Cushioned Light Stand (6')

  Load Capacity	13 lb / 6 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	72" / 182.9 cm
  Minimum Working Height	28.5" / 72.4 cm
  Collapsed Height	28.5" / 72.4 cm
  Leg Shape	Round
  Air Cushioned	No Spring-Cushioned
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	3.4 lb / 1.5 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	37.5 x 4.0 x 4.0"

• iSeries 2918-10BE Waterproof Case (Black, Empty)

  Carry/Transport Options	Side Handle, Telescoping Handle, Top Handle, Wheels
  Closure Type	Latch
  Materials	Nylon, Polypropylene
  Interior Contents	None
  Exterior Dimensions	31.5 x 20.5 x 12.5" / 80.0 x 52.1 x 31.8 cm
  Interior Dimensions	28 x 17 x 8.8" / 71.1 x 43.2 x 22.4 cm
  Base Depth	8.8" / 22.35 cm
  Lid Depth	2" / 5.08 cm
  Watertight	Yes
  Weight	23 lb / 10.4 kg

  Box Dimensions (LxWxH)	32.5 x 20.8 x 13.3"
