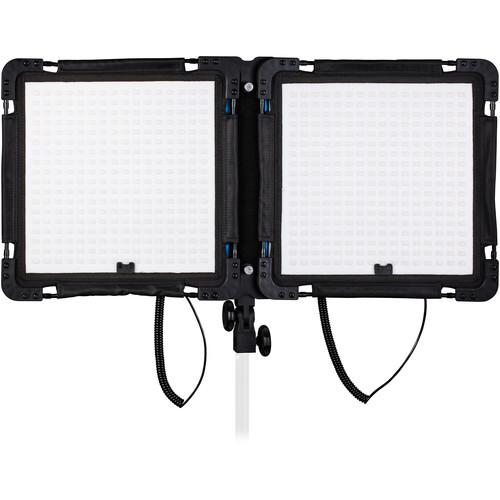

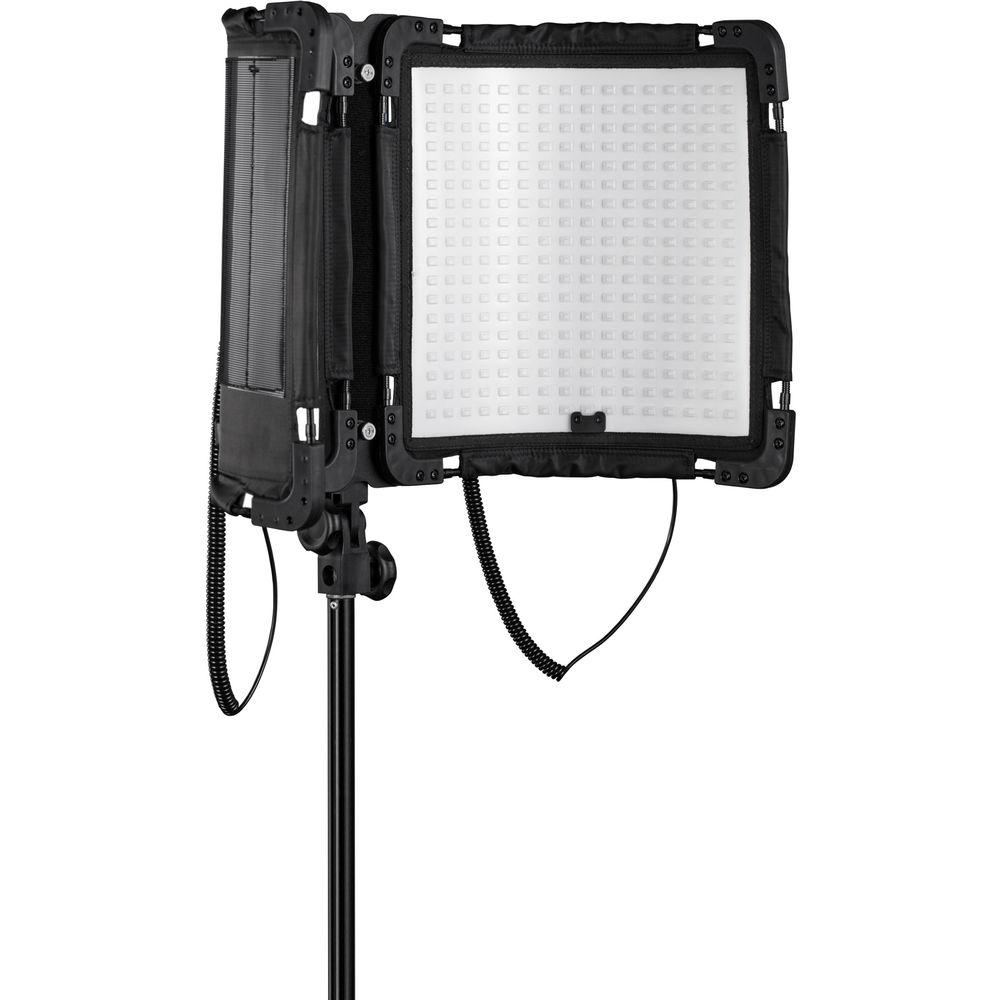

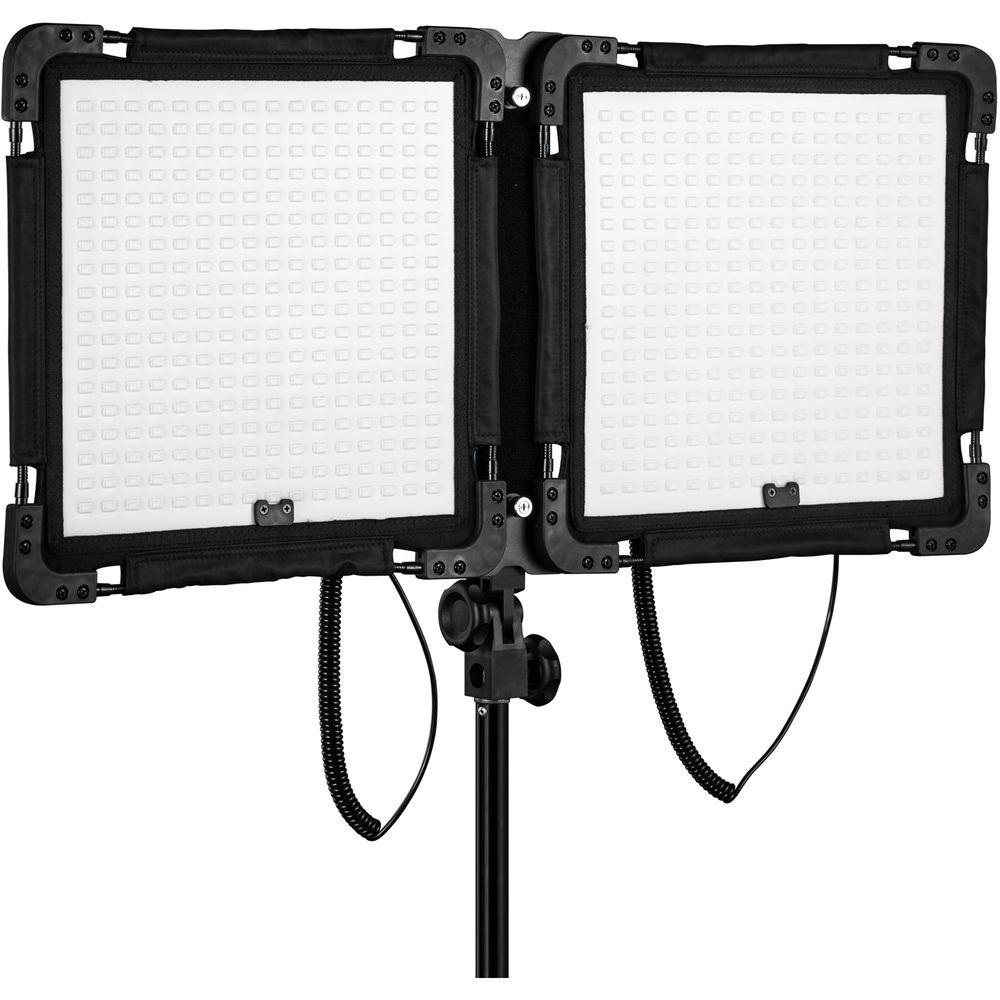

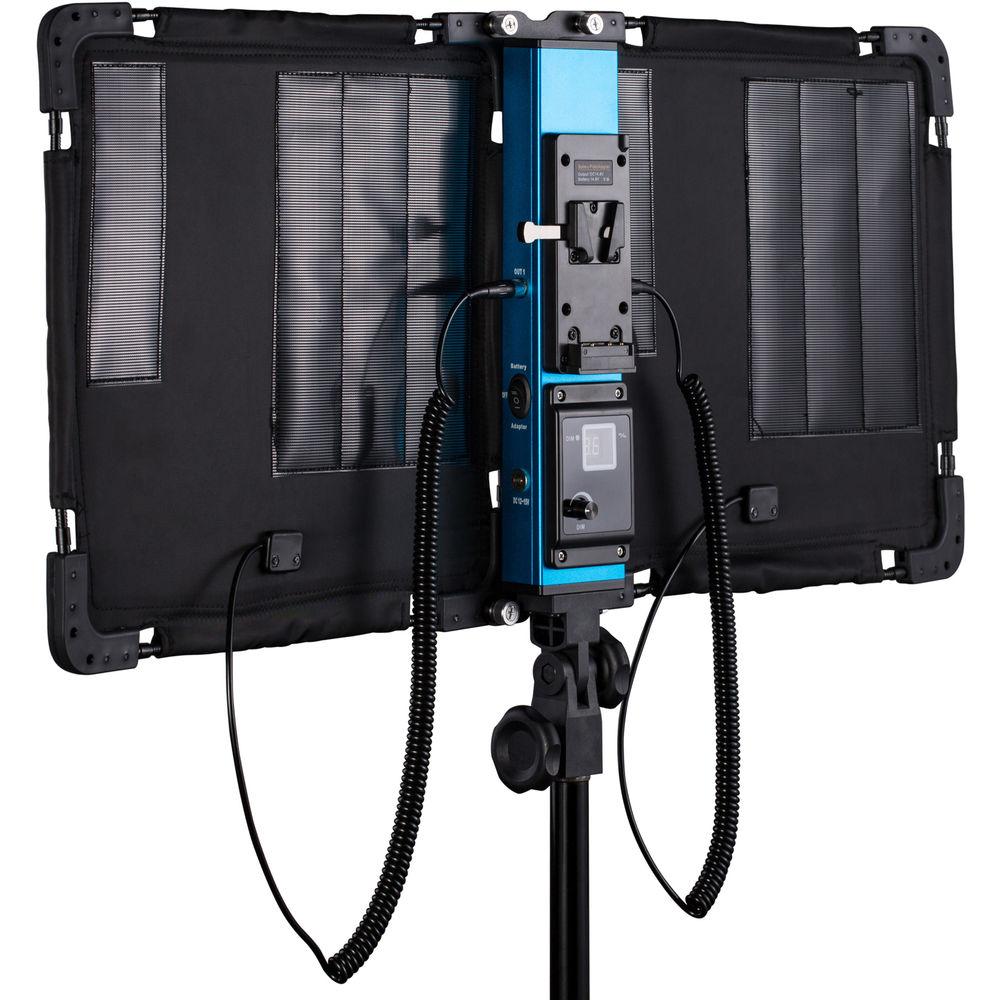

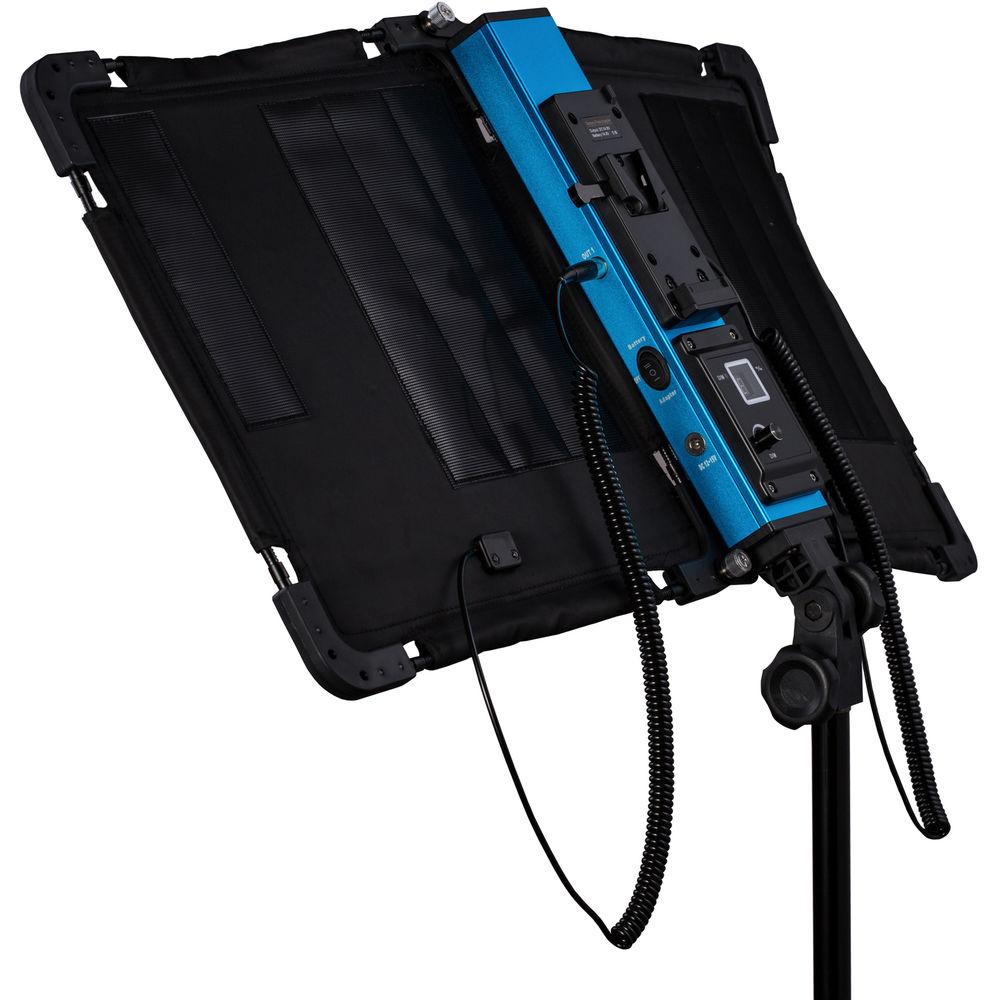

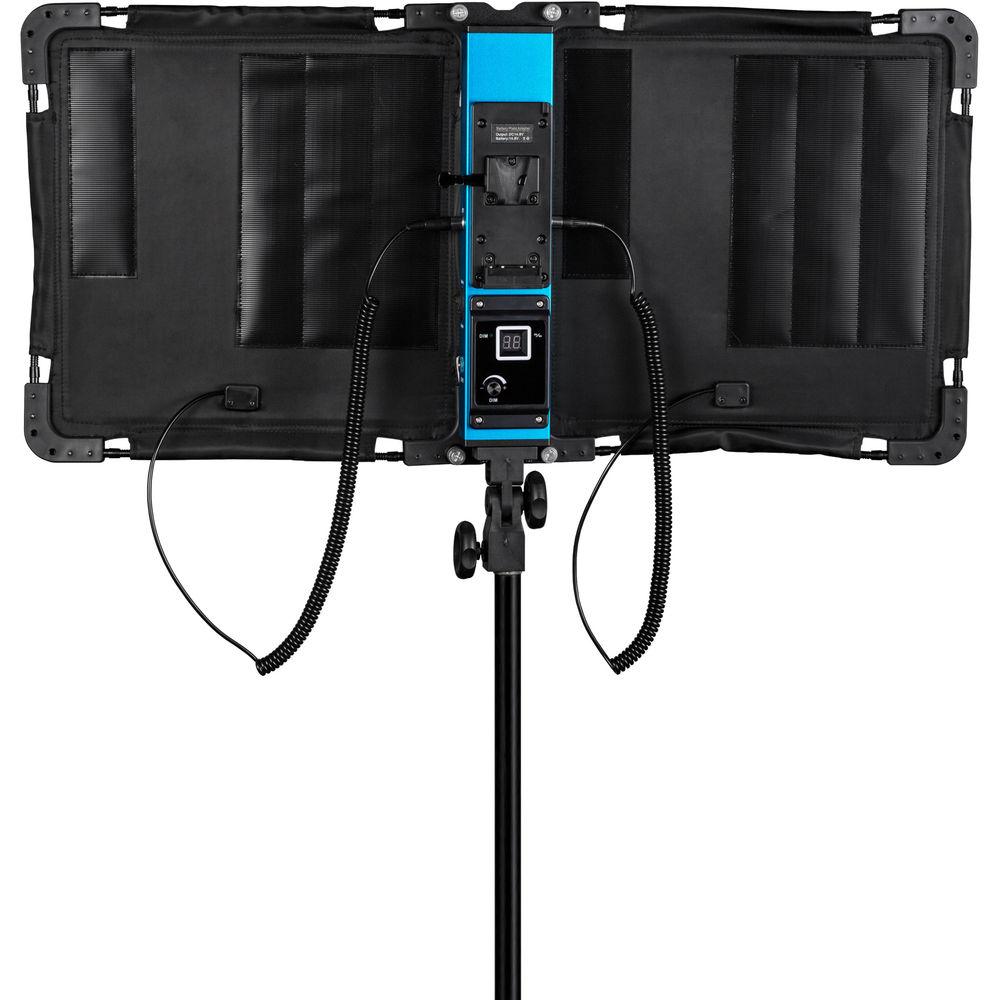

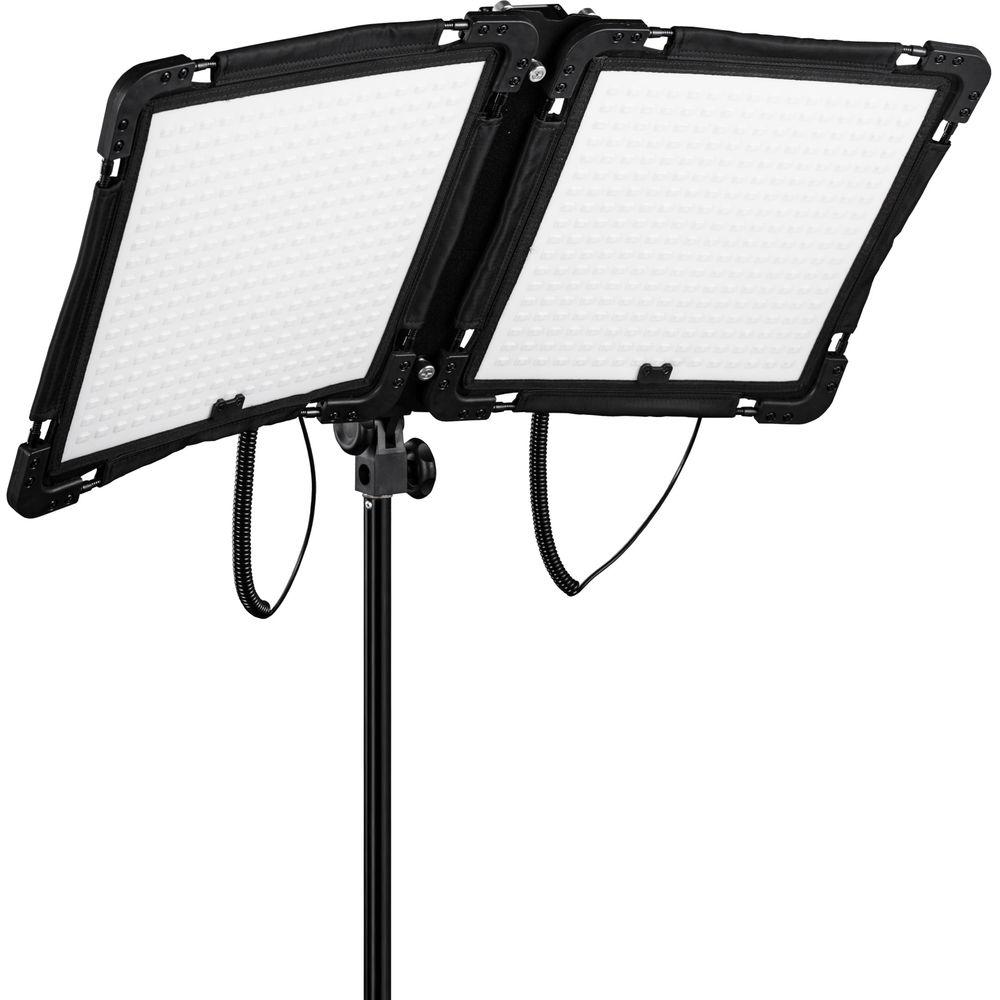

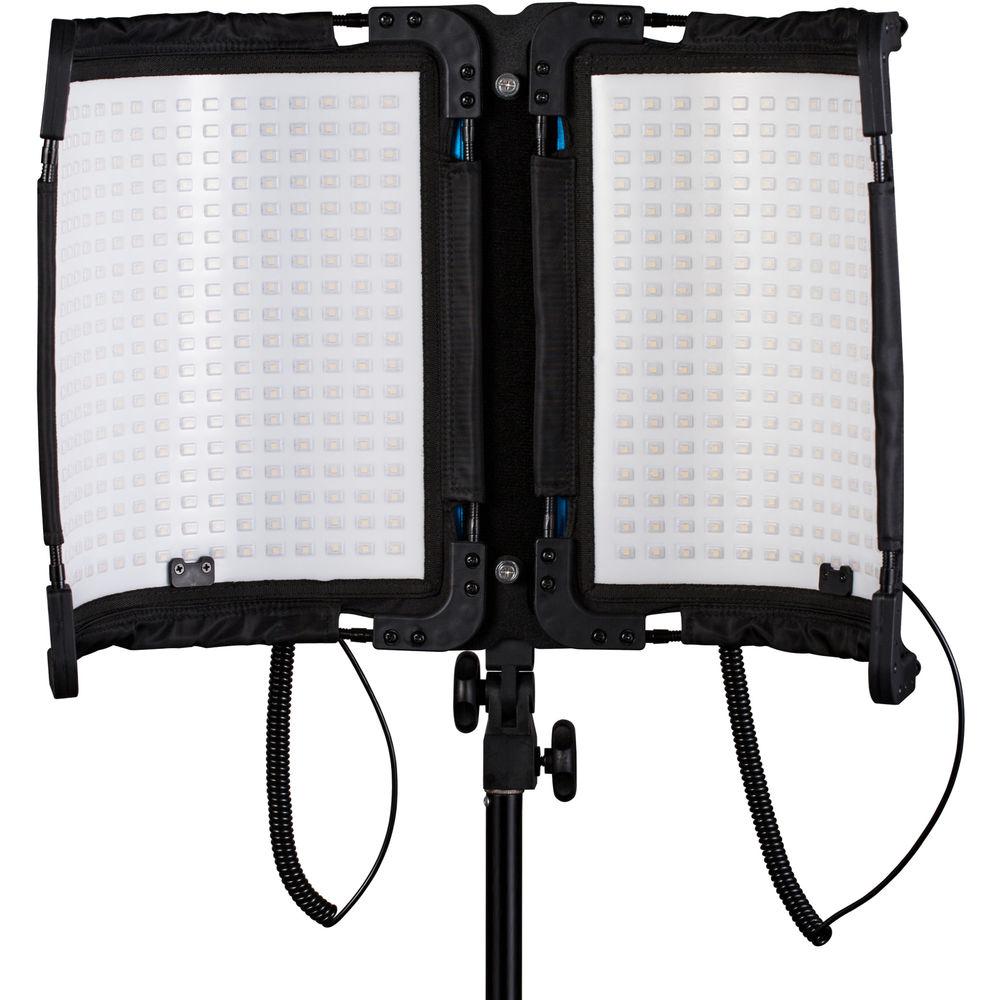

Product description Featuring a very slim profile, light weight, and measuring 10.5 x 21.5" fully open, the Yoga LED1000 Bi-Color Flexible Panel from Dracast possesses the unique benefit of pliability. If you've ever wished you could bend your aluminum-framed fixture while lighting a tricky subject, the Yoga is your solution. Thanks to its cool-running LEDs, you can wedge the light anywhere without fear of damage, or place it up close to the talent without discomfort. You can even wrap it around your subject. The Yoga LED1000 will hold the shape you've bent it into. The light is wise choice for location work, interviews, and small sets where color accuracy, control, and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 10-100% with negligible color shift. The low electrical draw of just 100W means a timely return on your investment.The Yoga LED1000 can be used worldwide, powered by the included 100-240 VAC adapter, or by optional batteries in the field thanks to the Yoga's V-Mount plate. For protection during transport and storage, a carry case is included. In the Box Dracast Yoga LED1000 Bi-Color Flexible Panel AC Power Adapter Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Yoga LED1000 Bi-Color Flexible Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1000 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Continuous) | | Display | None | | Housing Material | Aluminum | | Photometrics | 120° at 3200K:
209 fc / 2250 lux at 2.95' / 0.9 m
120° at 4400K:
445.9 fc / 4800 lux at 2.95' / 0.9 m
120° at 5600K:
250.8 fc / 2700 lux at 2.95' / 0.9 m | | Number of LEDs | 576 | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | Flood: 21.5 x 10.5 x 2.0" / 54.6 x 26.7 x 5.1 cm | | Fixture Weight | 6.5 lb / 2.95 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Power Supply Output | 15 VDC | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 18.6 x 18.5 x 3.4" |
