User Manual for Draco Broadcast AFi 3-Axis Handheld Gimbal for GoPro HERO 3 3 4 5 Click to enlarge the picture
Contents of the user manual for the Draco Broadcast AFi 3-Axis Handheld Gimbal
- Product category: See All Gimbal Stabilizers Draco Broadcast
- Brand: Draco Broadcast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draco Broadcast See All Gimbal Stabilizers
|
User manual for the Draco Broadcast AFi 3-Axis Handheld Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draco Broadcast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draco Broadcast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draco Broadcast product will considerably shorten its lifespan!
|

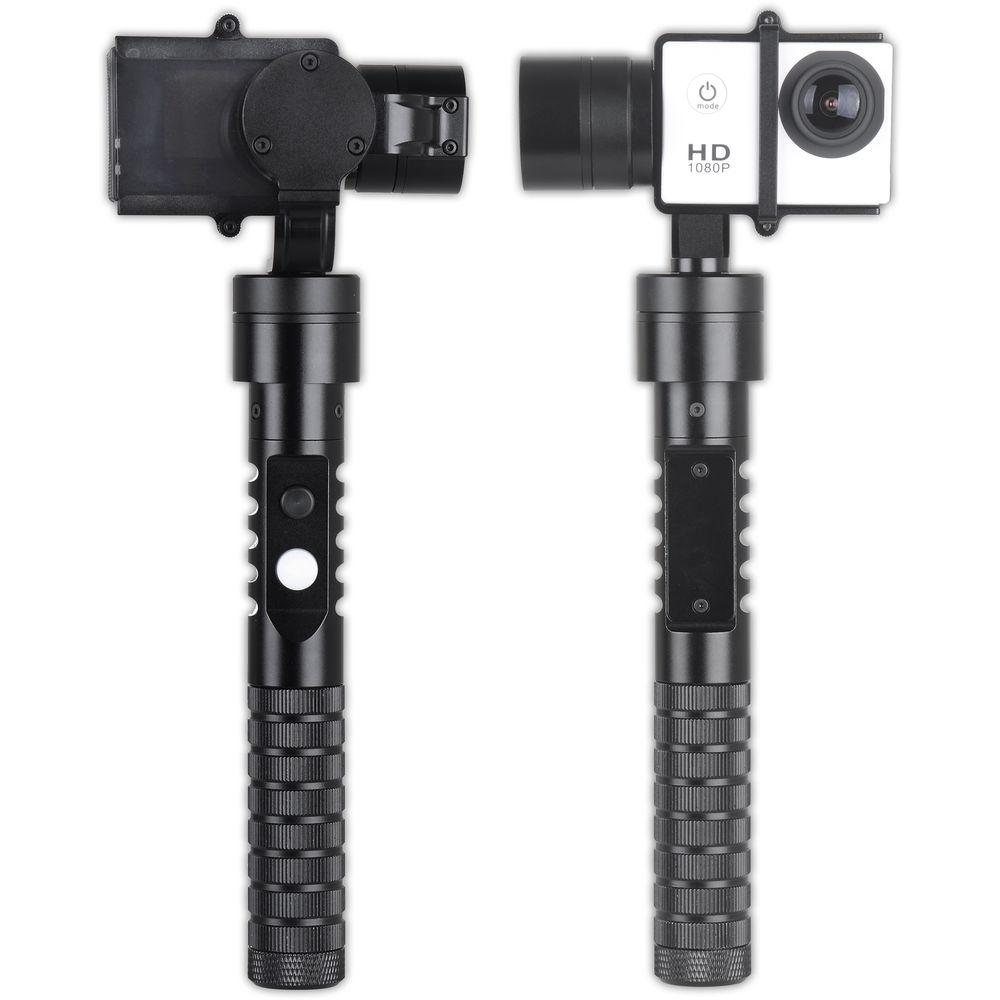

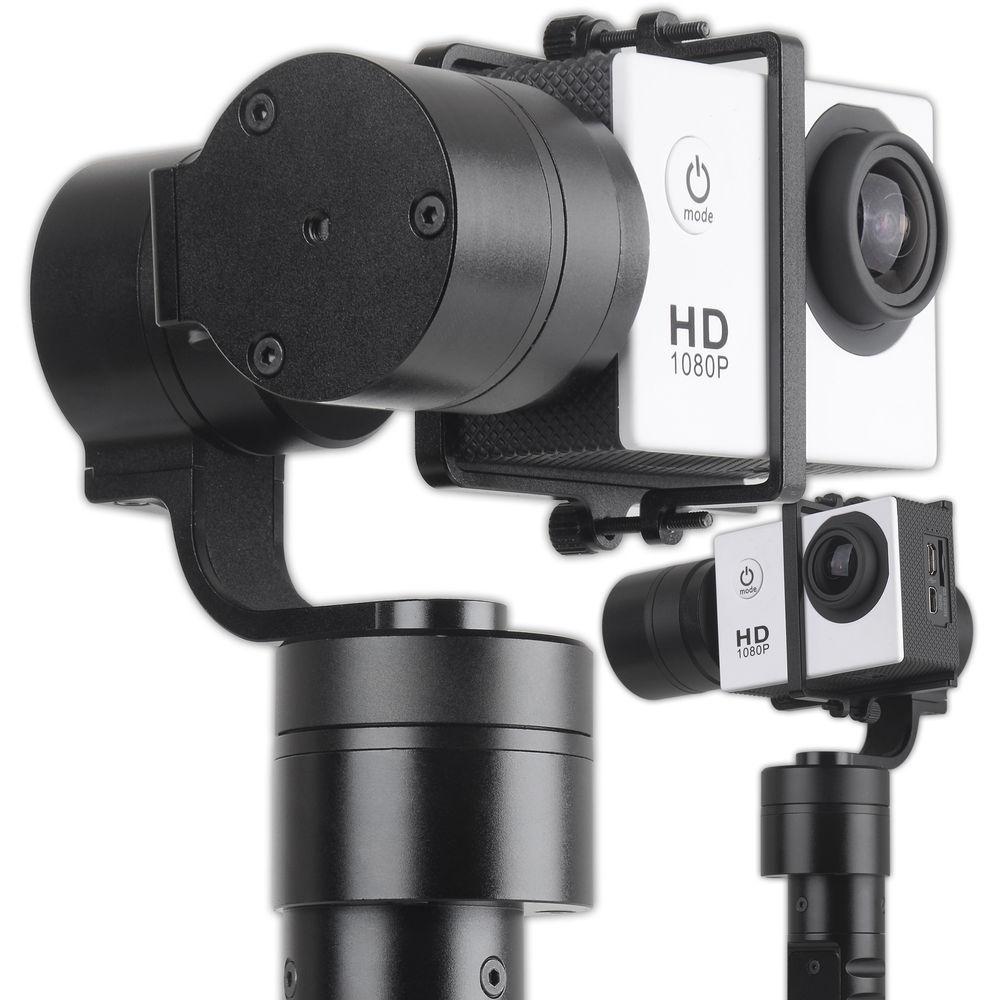

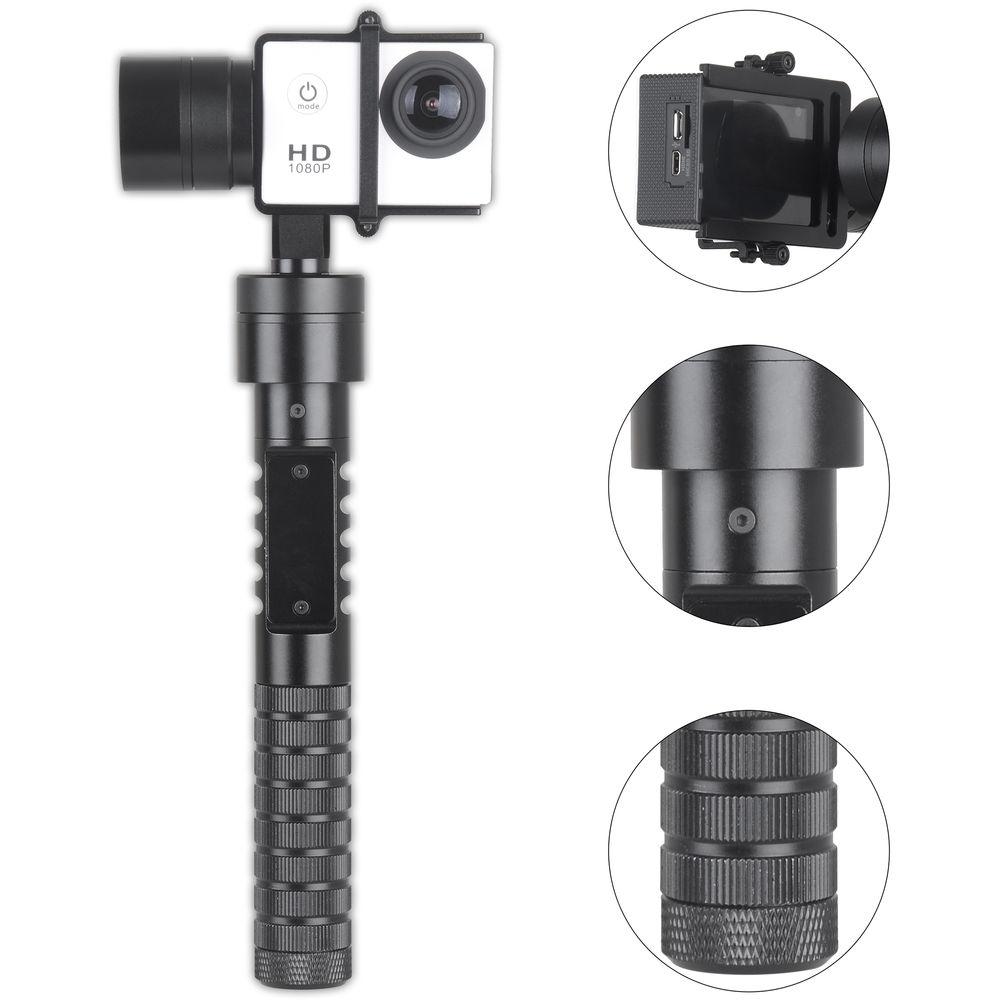

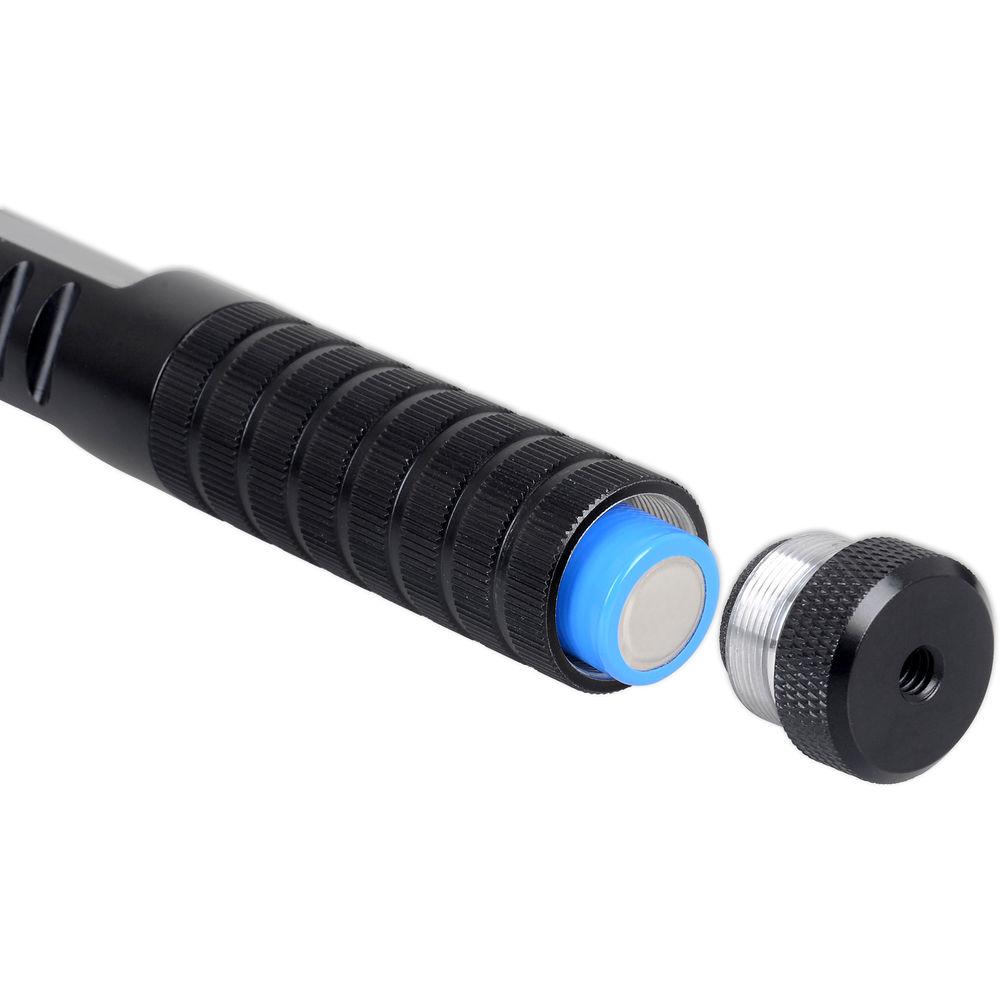

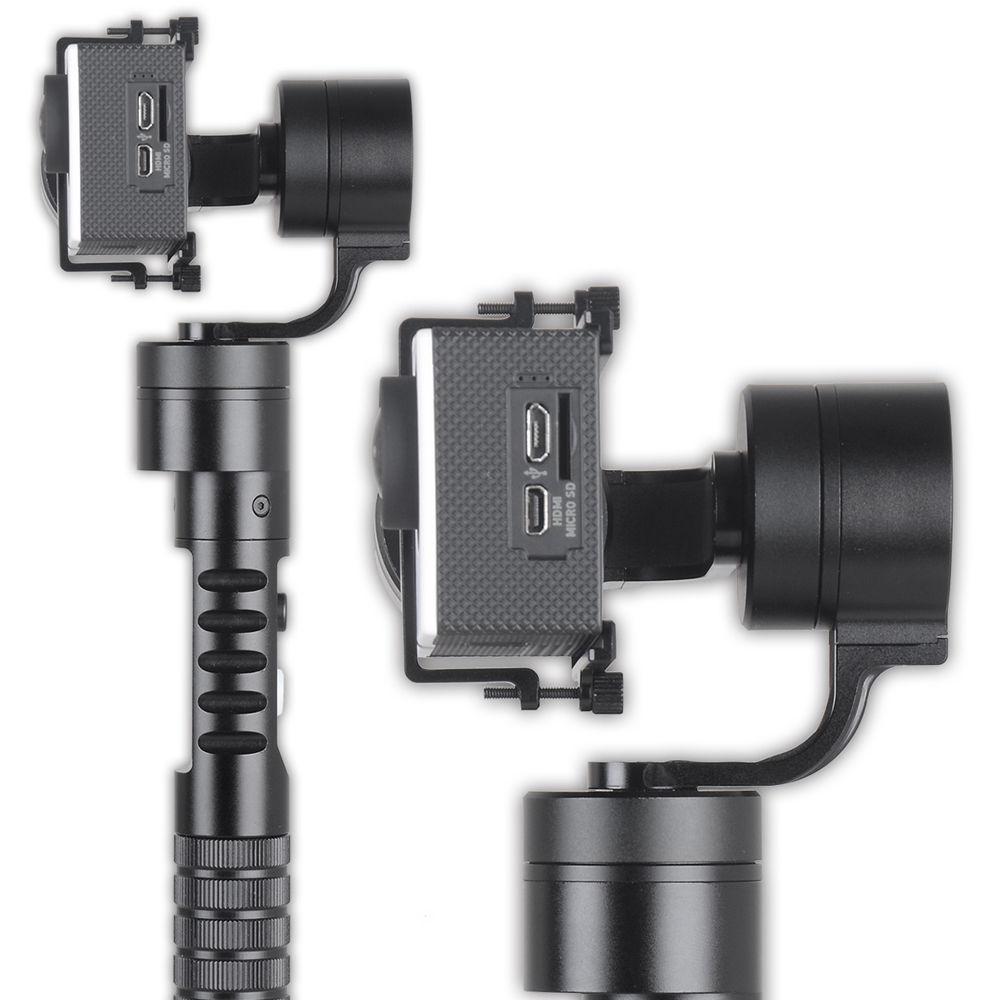

Product description Capture fluid action shots using the AFi 3-Axis Handheld Gimbal from Draco Broadcast. Compatible with the GoPro HERO 3, 3+, 4, and 5, as well as with other sport cameras, this gimbal stabilizes your video on all three axes—yaw, pitch, and roll. Modes can be switched on the fly to customize the gimbal's effect, making your camera follow your every move smoothly while locking one or more axes. There is also an inverting mode for shots that call for ultra-low vantage points. The gimbal runs on two 18350 rechargeable batteries, and comes with a 1/4"-20 bottom thread for easy attachment to an extension pole (available separately) or other gear. - LED indicates current working mode
- Easy mode switching during operation
- Four modes: Semi-following, all-locking, all-following, and inverting

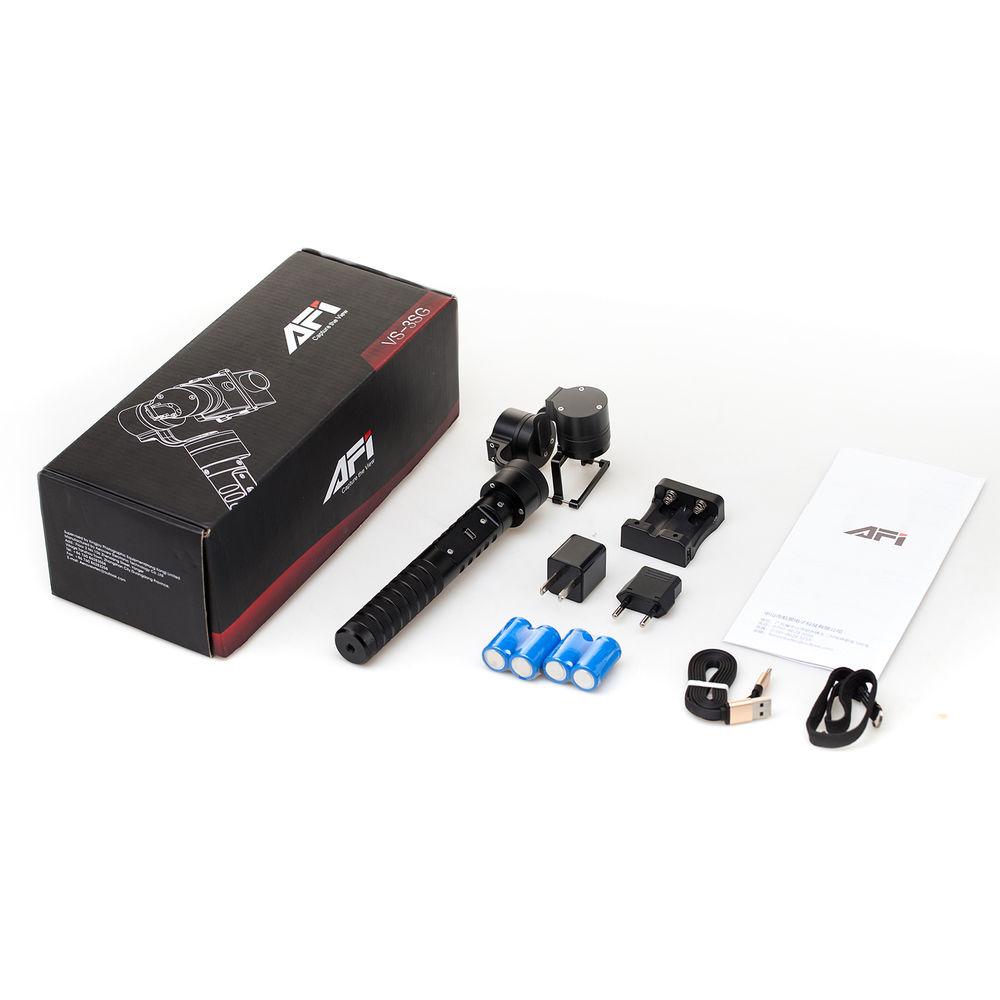

UPC: 711583465918 In the Box Draco Broadcast AFi 3-Axis Handheld Gimbal for GoPro HERO 3/3+/4/5 2 x 18350 Rechargeable Battery USB Charging Cable 0.9 oz Counterweight Battery Charger Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Draco Broadcast AFi 3-Axis Handheld Gimbal for GoPro HERO 3 3 4 5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraco Broadcast A5 Specs Compatibility | GoPro HERO 3, 3+, 4, 5 Other similarly sized action cameras | Working Voltage | Min: 6.5 V Standard: 7.4 V Max: 8.4 V | Pitch Angle | Holding Gimbal Vertically Min: 160° (down) Standard: 0° (horizontal) Max: 160° (up) | Roll Angle | Holding Gimbal Vertically Min: -50° Max: 50° | Heading Angle | Holding Gimbal Vertically Min: 160° (left) Standard: 0° (horizontal) Max: 160° (right) Holding Gimbal Horizontally Min: -50° Standard: 0° Max: 50° | Pitch Following Rate | 30°/second | Heading Following Rate | 120°/second | Tracking | Accuracy in Static Mode: 0.01° Accuracy with Motor Overload <2 G: 0.02° | Overload Current Protection | 1 A | Standby Time | 2.5 to 3 hours | Mounting Threads | 1 x 1/4"-20, bottom of handle | Dimensions | Not specified by manufacturer | Weight | 0.58 lb (265 g), without battery and camera | | Package Weight | 1.74 lb | Box Dimensions (LxWxH) | 12.5 x 5.65 x 4.55" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
