User Manual for Draco Broadcast AFi 3-Wheel Auto Dolly for Cameras & Smartphones Click to enlarge the picture
Contents of the user manual for the Draco Broadcast AFi 3-Wheel Auto Dolly
- Product category: Cine Dollies Draco Broadcast
- Brand: Draco Broadcast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draco Broadcast Cine Dollies
 |
User manual for the Draco Broadcast AFi 3-Wheel Auto Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draco Broadcast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draco Broadcast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draco Broadcast product will considerably shorten its lifespan!
|

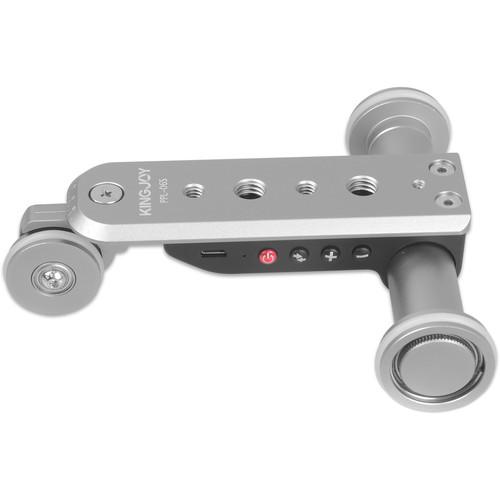

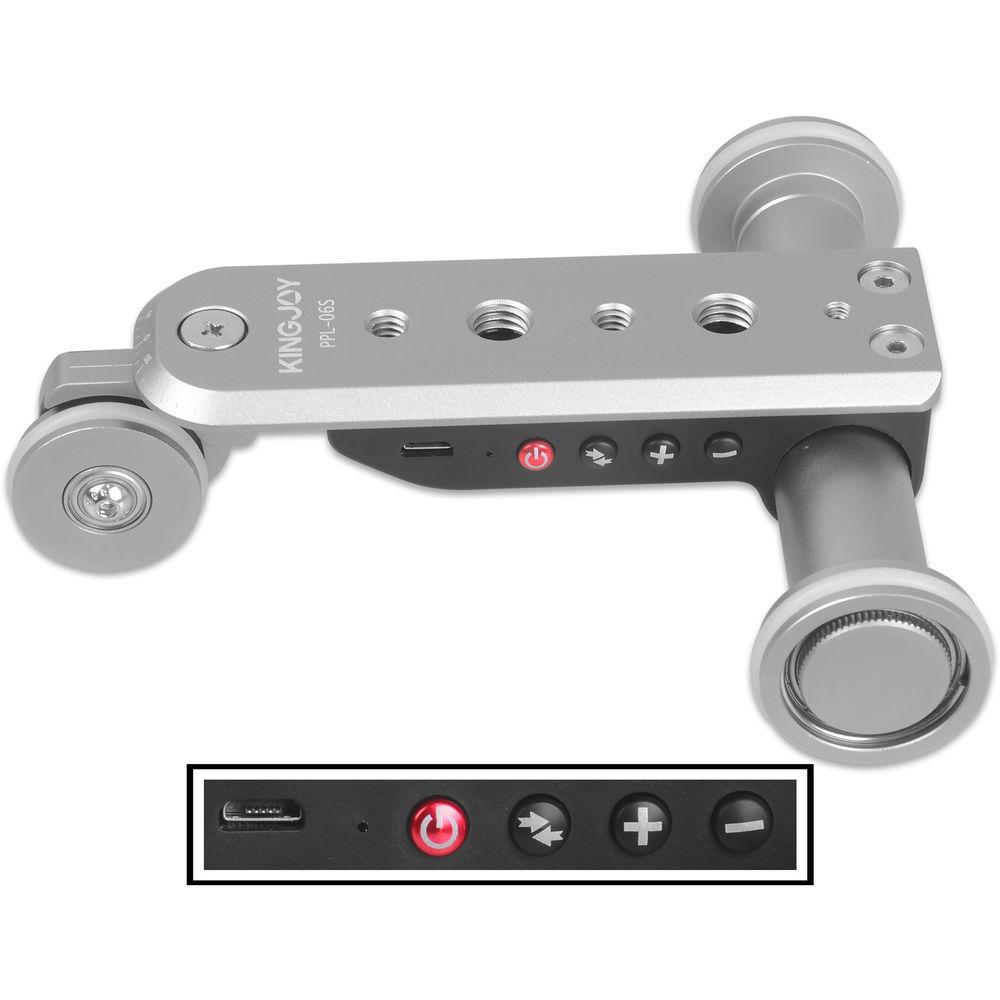

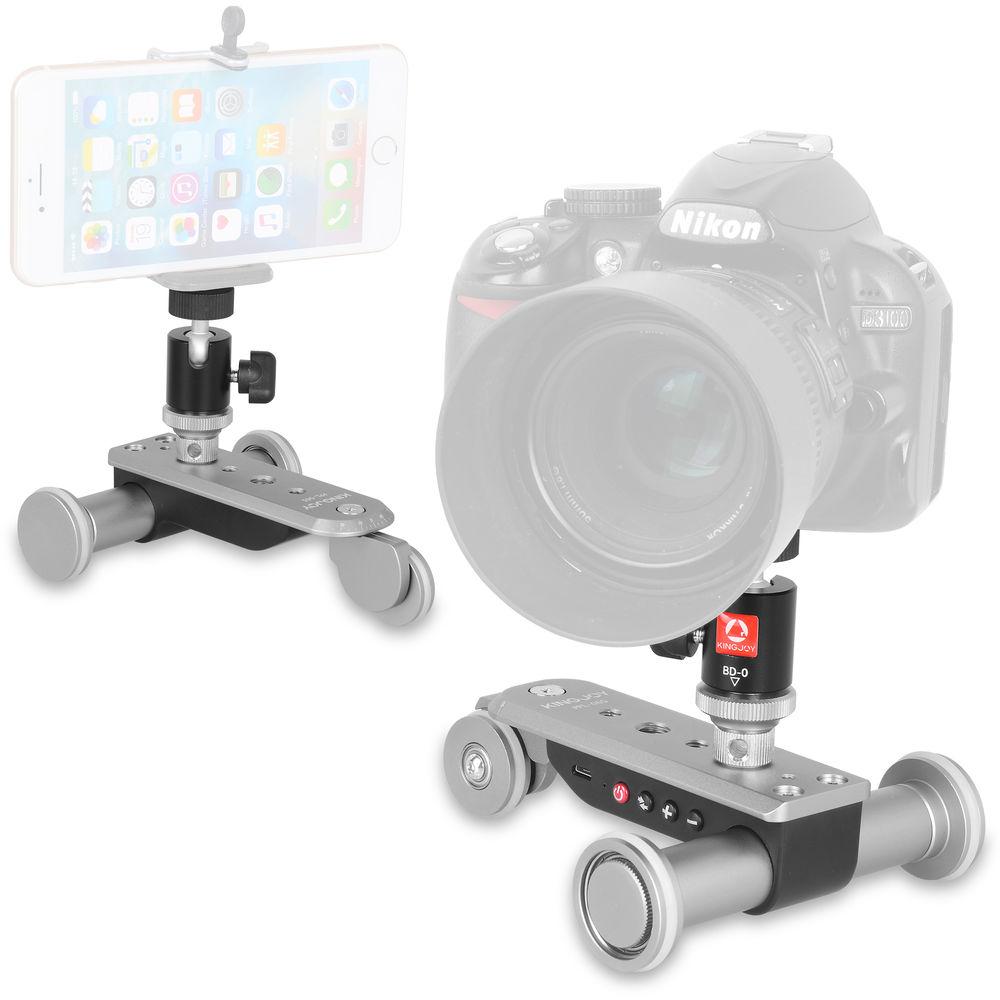

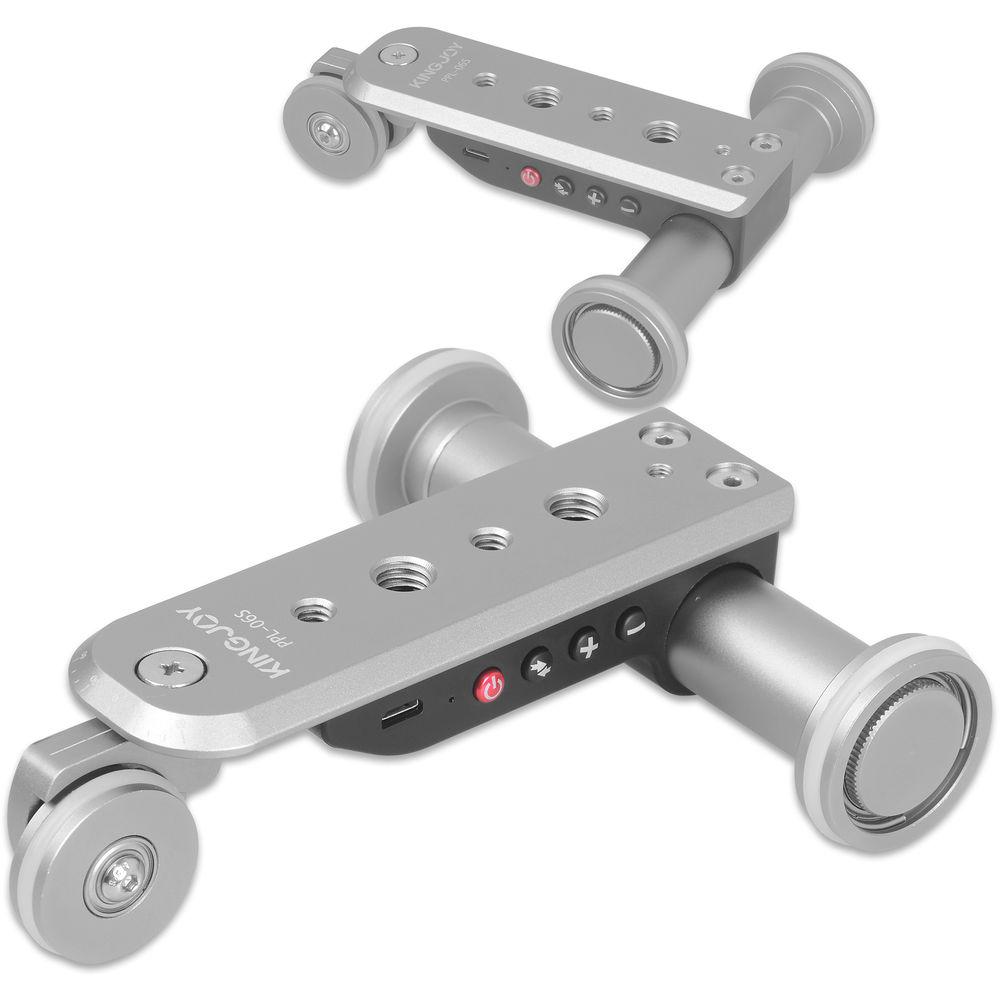

Product description The pocket-sized AFi 3-Wheel Auto Dolly from Draco Broadcast is designed to help you take smooth horizontal shots with a variety of cameras including DSLRs, action cameras, and smartphones. Featuring a 180° rotary front wheel, this dolly can move not only forward and backward in a straight line, but also in circles, all at five different speeds. It can carry up to 8.8 lb and can run for 1 to 10 hours on one charge, depending on the weight of the mounted camera. - Low-noise 60 dB motor helps ensure quiet shooting environment

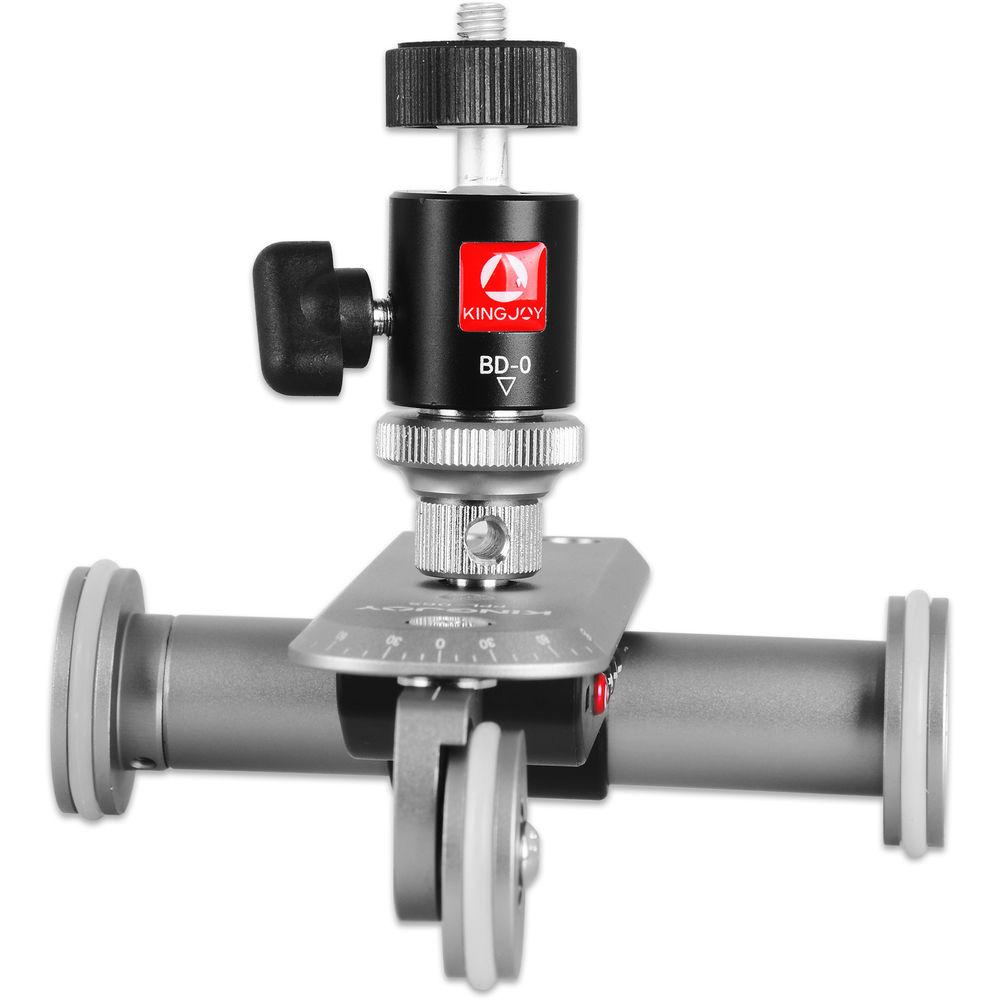

- Angle-adjustable ball head with 1/4"-20 camera screw
- 1/4"-20 and 3/8"-16 mounting threads
- Heavy-duty aluminum alloy body
- Rechargeable via included USB cable
UPC: 711583465819 In the Box Draco Broadcast AFi 3-Wheel Auto Dolly for Cameras & Smartphones 3 x Wrench 3 x Ring USB Cable Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draco Broadcast AFi 3-Wheel Auto Dolly for Cameras & Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraco Broadcast PPL-06S Specs | Material | Aluminum alloy | | Load Capacity | 8.8 lb (4 kg) | | Speed | 0.2"/sec (4 mm/sec), default
0.3"/sec (7 mm/sec)
0.4"/sec (11 mm/sec)
0.7"/sec (17 mm/sec)

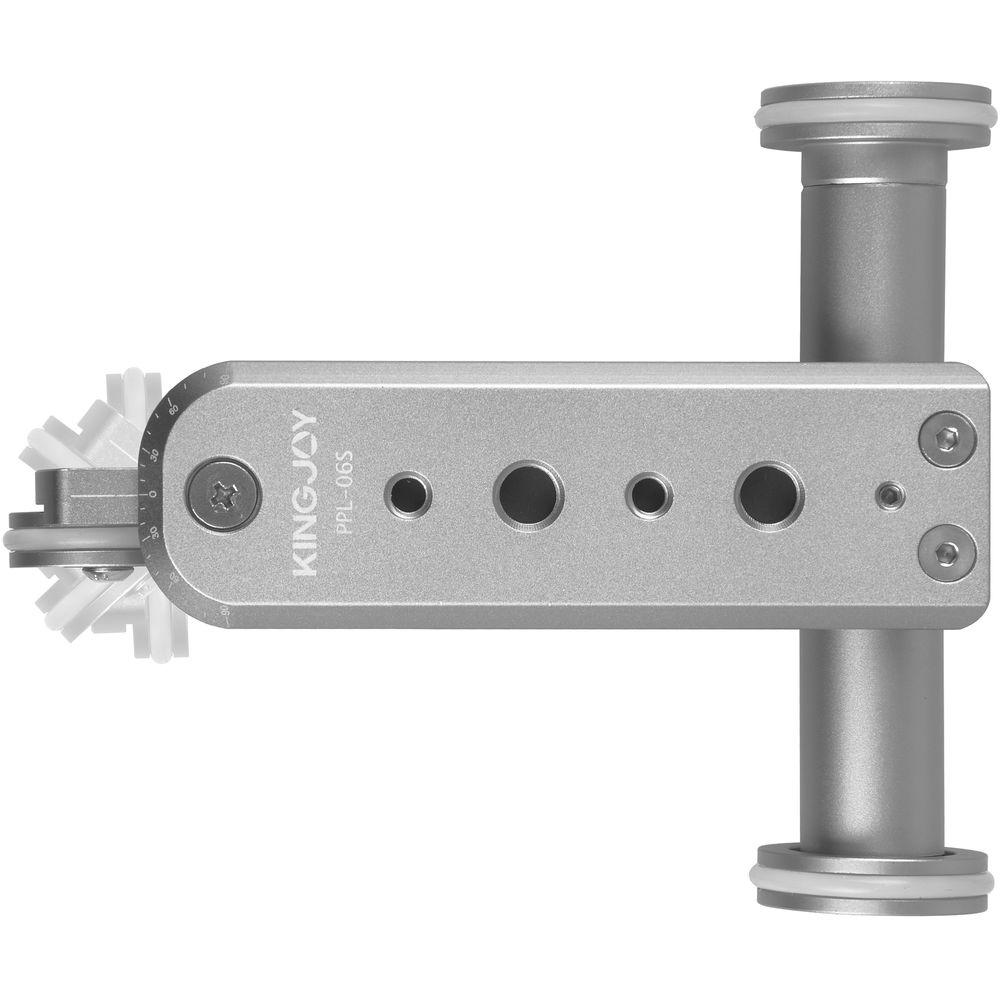

0.9"/sec (24 mm/sec) | | Decibel Level | 60 dB | | Range | Front Wheel Turn-Right Angle vs Driving Radius:
10° at 17.7" (450 mm)
20° at 8.3" (210 mm)
30° at 5.3" (135 mm)
40° at 3.0" (75 mm)
50° at 1.6" (40 mm)
60° at 0.5" (12 mm) | | Battery | 3.7 V, 650 mAh 14430 rechargeable battery (built-in) | | Battery Life | 1 hour at maximum load
10 hours for smartphone | | Dimensions | 5.7 x 4.6 x 1.5" (14.5 x 11.7 x 3.8 cm) | | Weight | 8.1 oz (228.5 g) | | | | Package Weight | 0.99 lb | | Box Dimensions (LxWxH) | 7.5 x 6.5 x 2.7" |
