User Manual for Draco Broadcast AFi D3 3-Axis Handheld Gimbal Click to enlarge the picture
Contents of the user manual for the Draco Broadcast AFi D3 3-Axis Handheld
- Product category: See All Gimbal Stabilizers Draco Broadcast
- Brand: Draco Broadcast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draco Broadcast See All Gimbal Stabilizers
 |
User manual for the Draco Broadcast AFi D3 3-Axis Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draco Broadcast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draco Broadcast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draco Broadcast product will considerably shorten its lifespan!
|

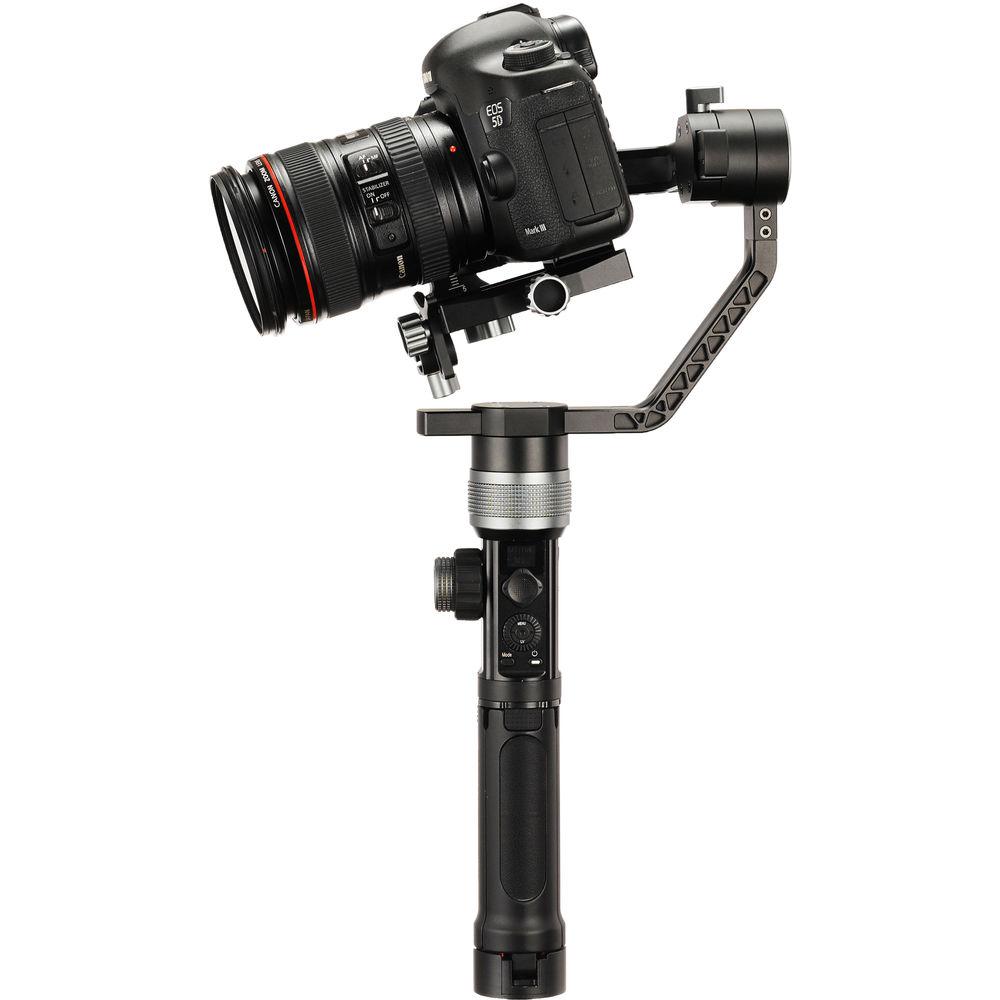

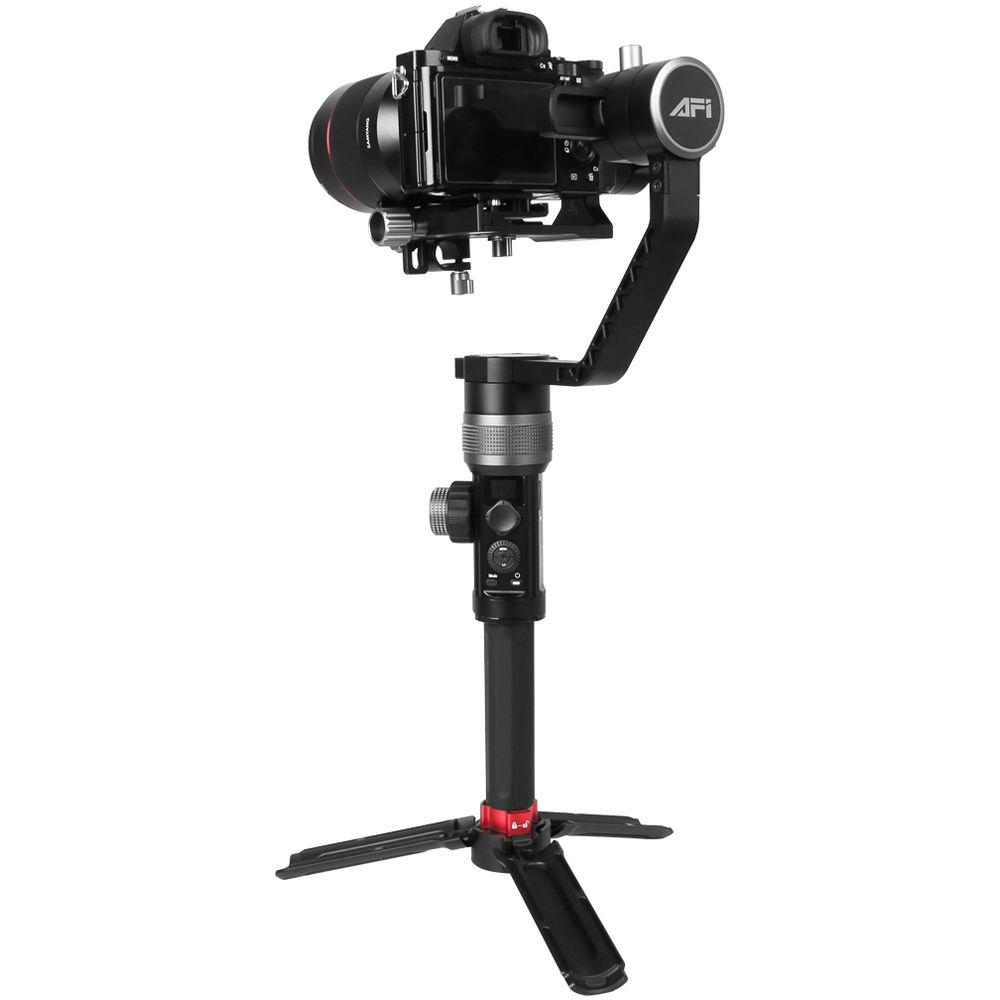

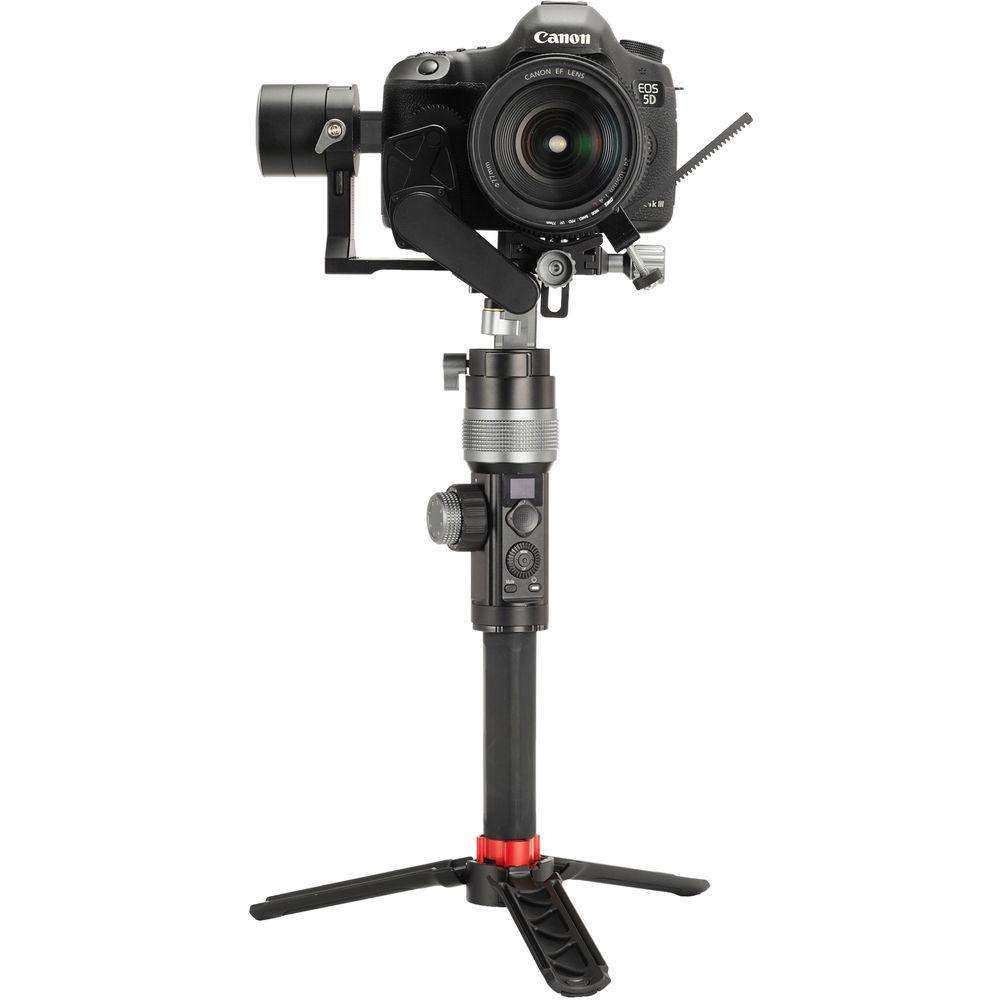

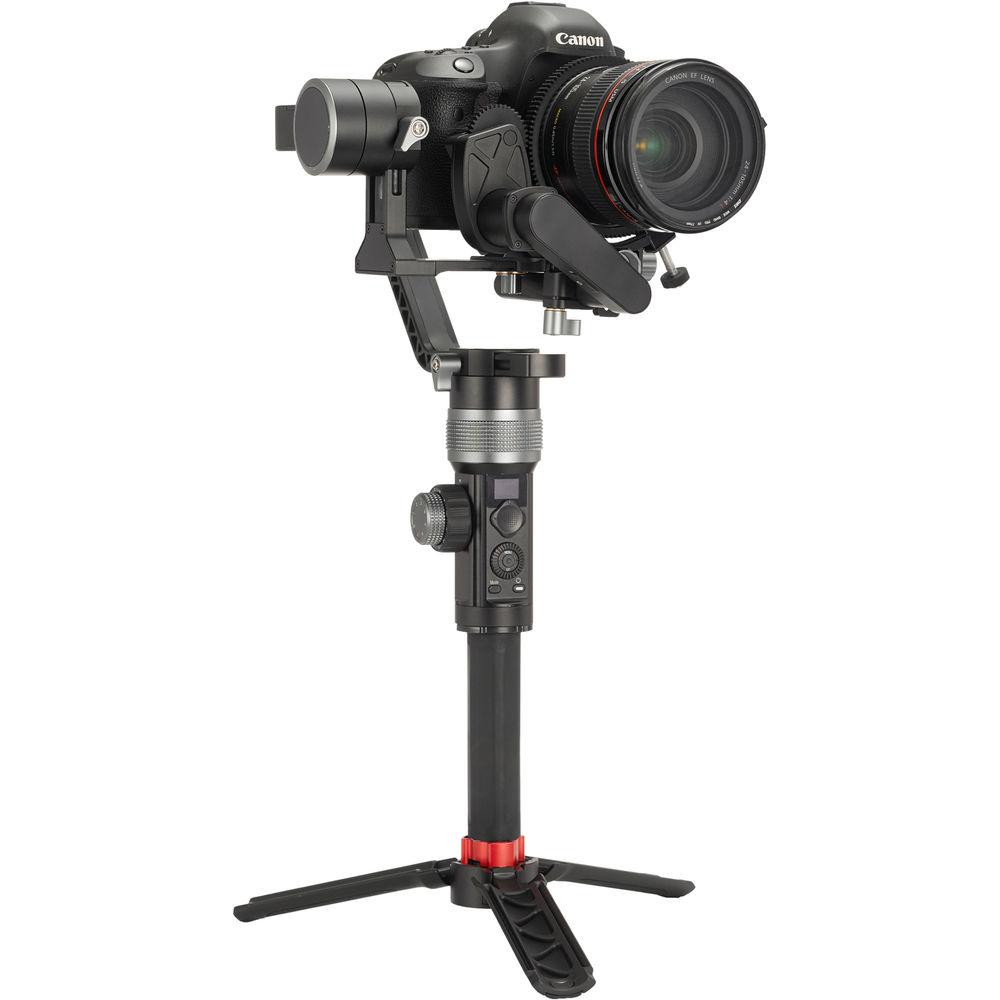

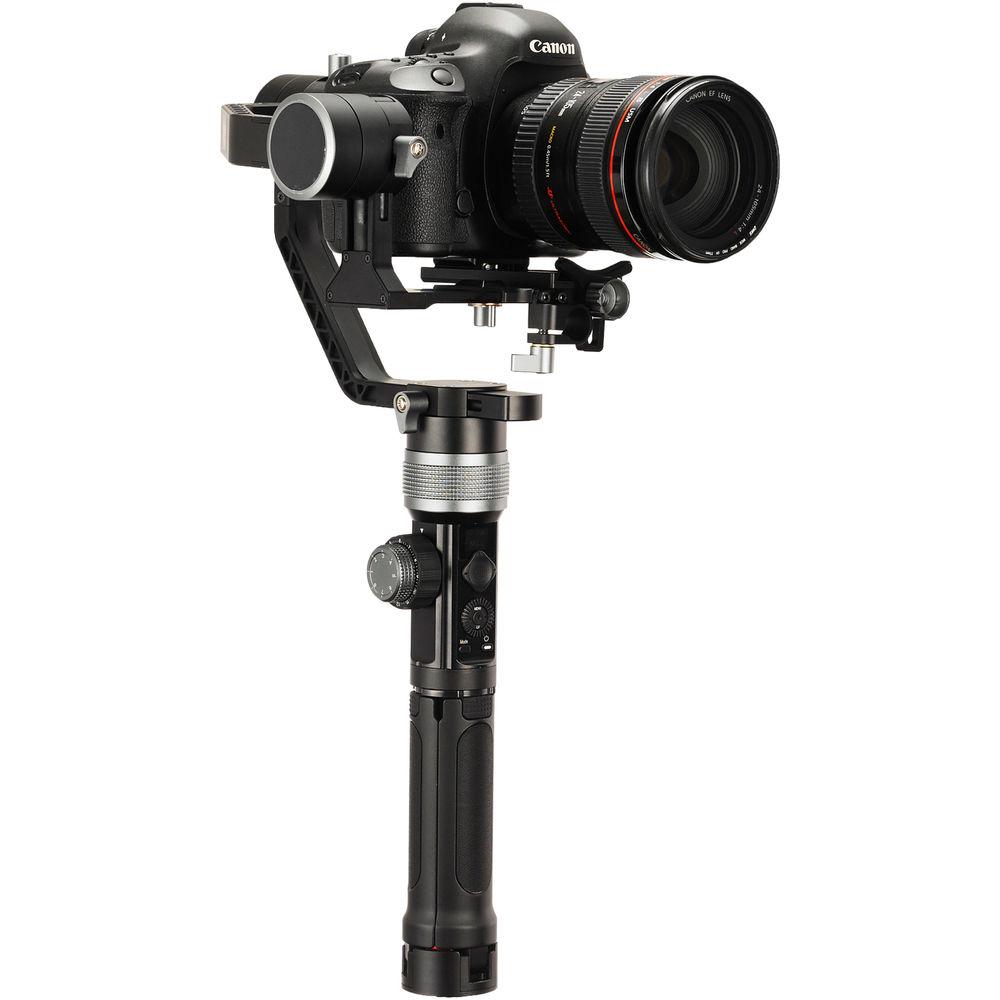

Product description Shoot smooth video with your DSLR using the AFi D3 3-Axis Handheld Gimbal from Draco Broadcast. This gimbal stabilizes your video on all three axes—yaw, pitch, and roll. Modes can be switched to customize the gimbal's effect, making your camera follow your every move fluidly while locking one or more axes. The gimbal runs on two 18650 rechargeable batteries (included), and comes with a charger, two mini-USB to micro-USB control cables, and a USB charging cable. - Works with Canon EOS DSLRs featuring a mini-USB or micro-USB interface, as well as with Sony DSLRs featuring a multi-USB interface
- Tilt range of 320° (-135 to +185°)
- Integrated joystick for pitch and pan control
- OLED display shows gimbal status and camera parameters
- Three modes: Full-following, pan-following, and full-locking
- Allows control of camera settings such as aperture, shutter speed, ISO, and focus (when used with select Canon EOS and Sony DSLR cameras)

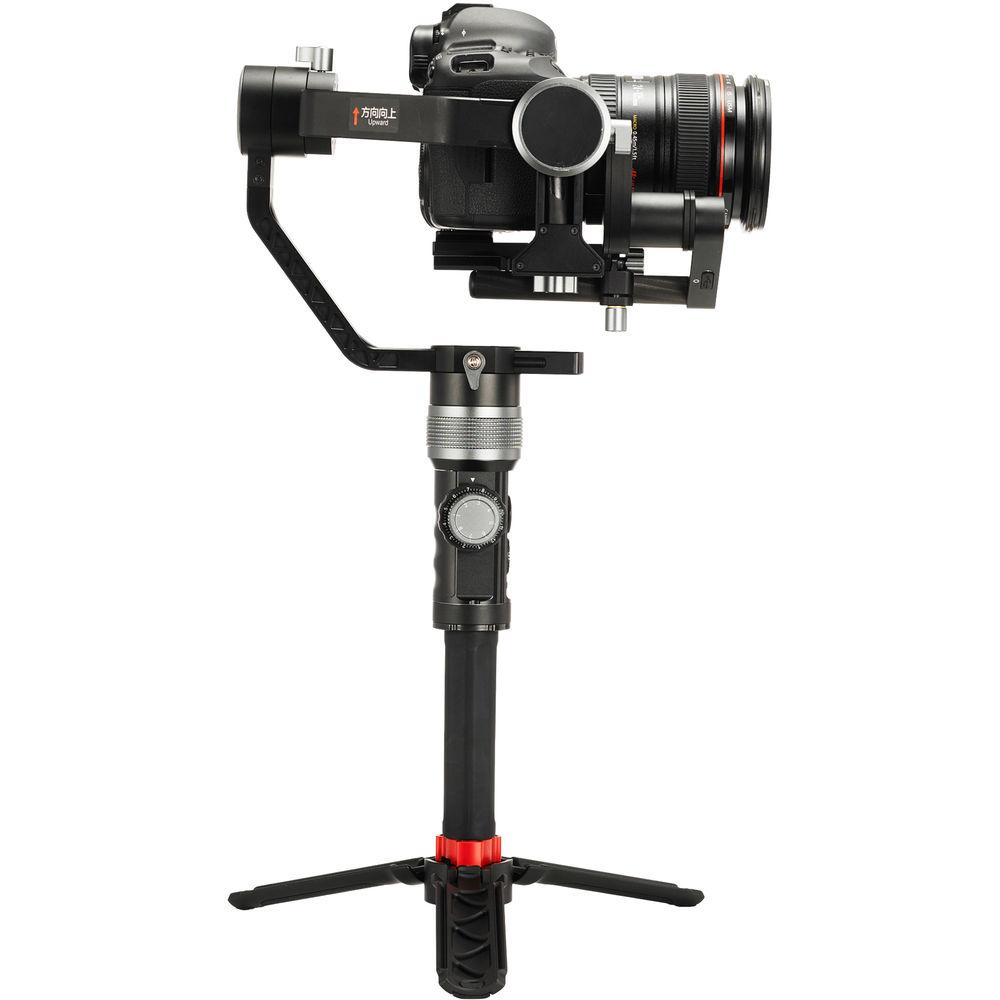

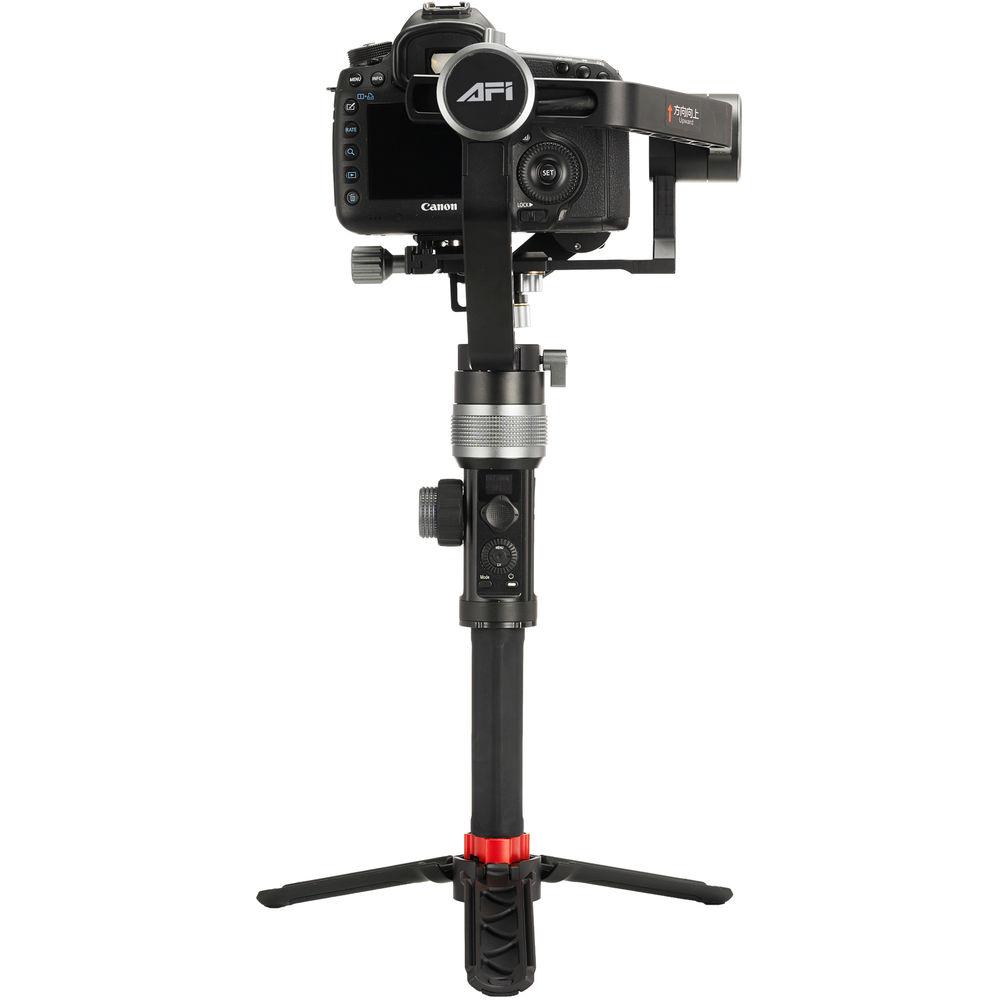

- Foldable mini tripod built into handle
- Camera zoom control wheel
- USB interface for gimbal adjustment and firmware upgrades
UPC: 711583465772 In the Box Draco Broadcast AFi D3 3-Axis Handheld Gimbal 2 x 18650 Battery 2 x Mini-USB to Micro-USB Control Cable USB Charging Cable Dual-Channel Battery Charger Limited 1-Year Warranty on Gimbal Limited 3-Month Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Draco Broadcast AFi D3 3-Axis Handheld Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraco Broadcast D3 Specs | | | Number of Axes | 3-Axis (Pitch, Roll, Yaw) | | Rotation Range | Pitch (Tilt): 320
