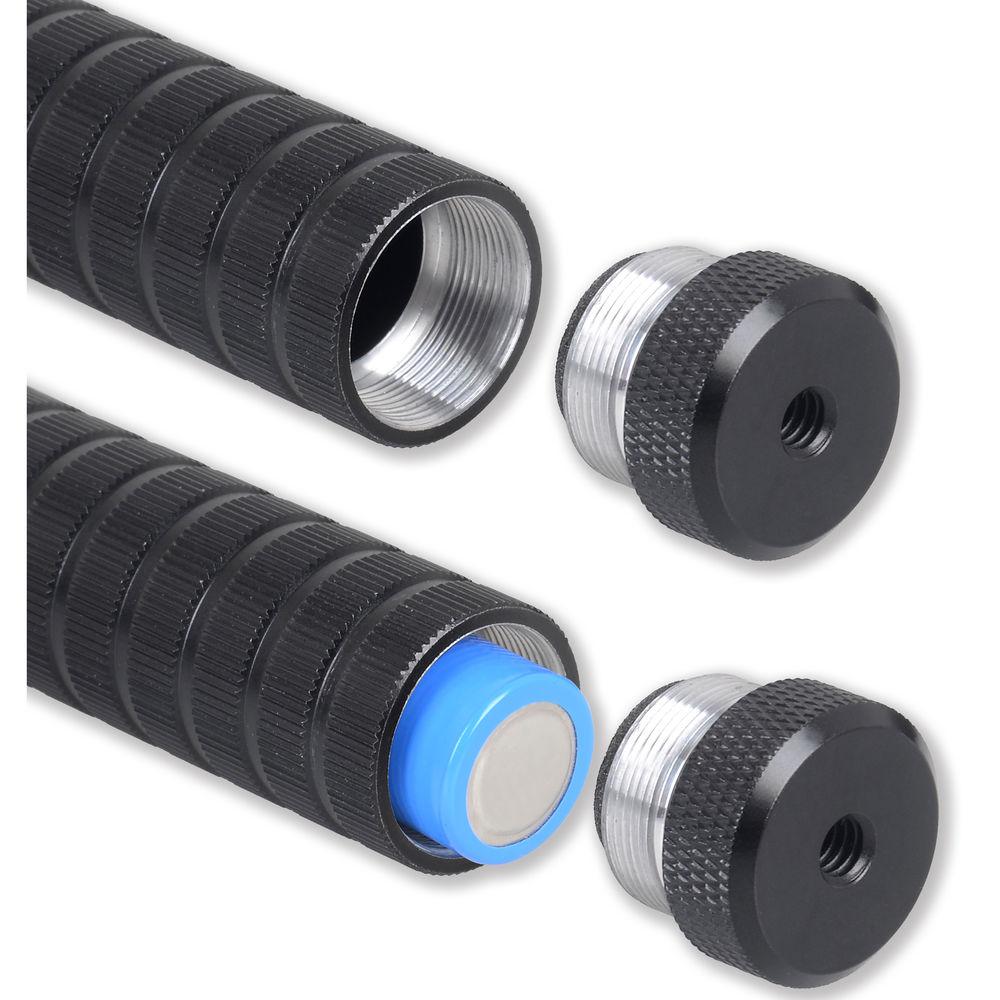

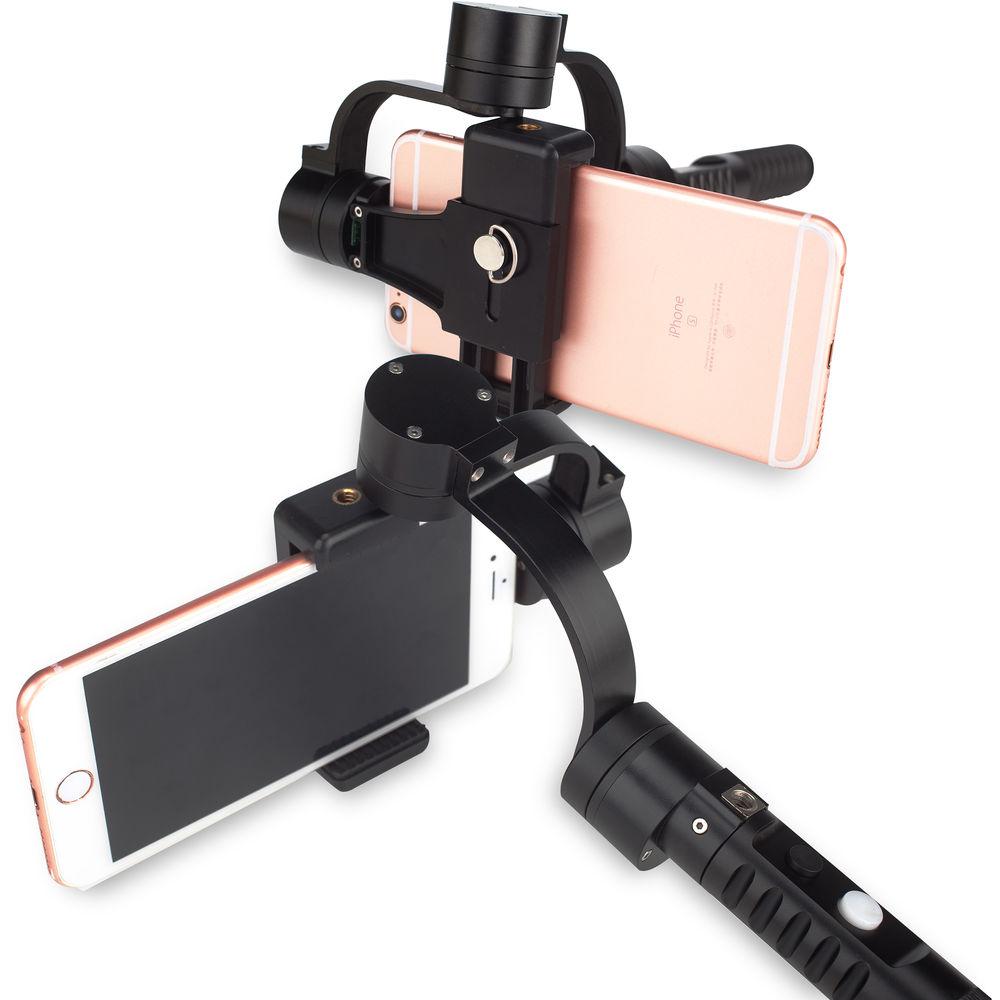

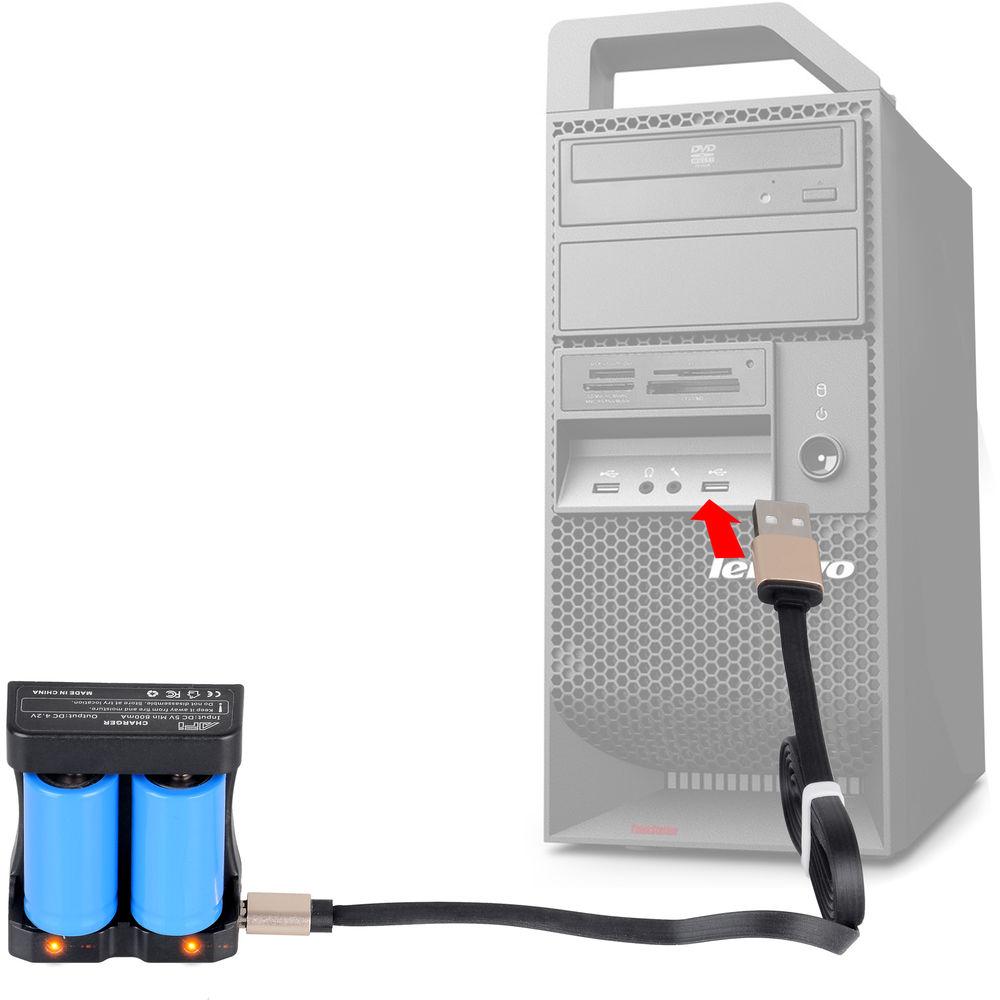

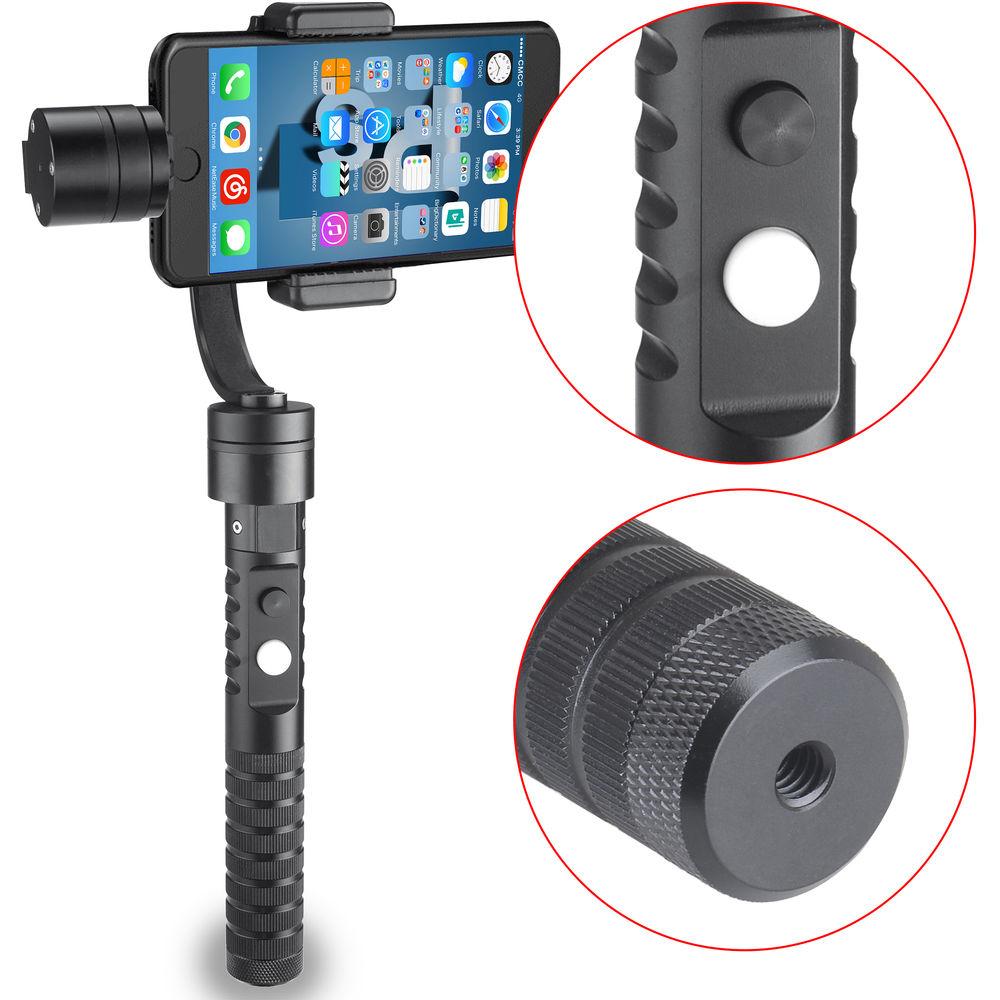

Product description Shoot smooth video with your smartphone using the AFi V2 3-Axis Handheld Gimbal from Draco Broadcast. This gimbal stabilizes your video on all three axes—yaw, pitch, and roll. Modes can be switched on the fly to customize the gimbal's effect, making your camera follow your every move fluidly while locking one or more axes. There is also an inverting mode for shots that call for ultra-low vantage points. The gimbal runs on two 18350 rechargeable batteries (included), and comes with a charger, a 1.9 oz counterweight, and a USB charging cable. - LED indicates current working mode
- Easy mode switching during operation
- Four modes: Semi-following, all-locking, all-following, and inverting

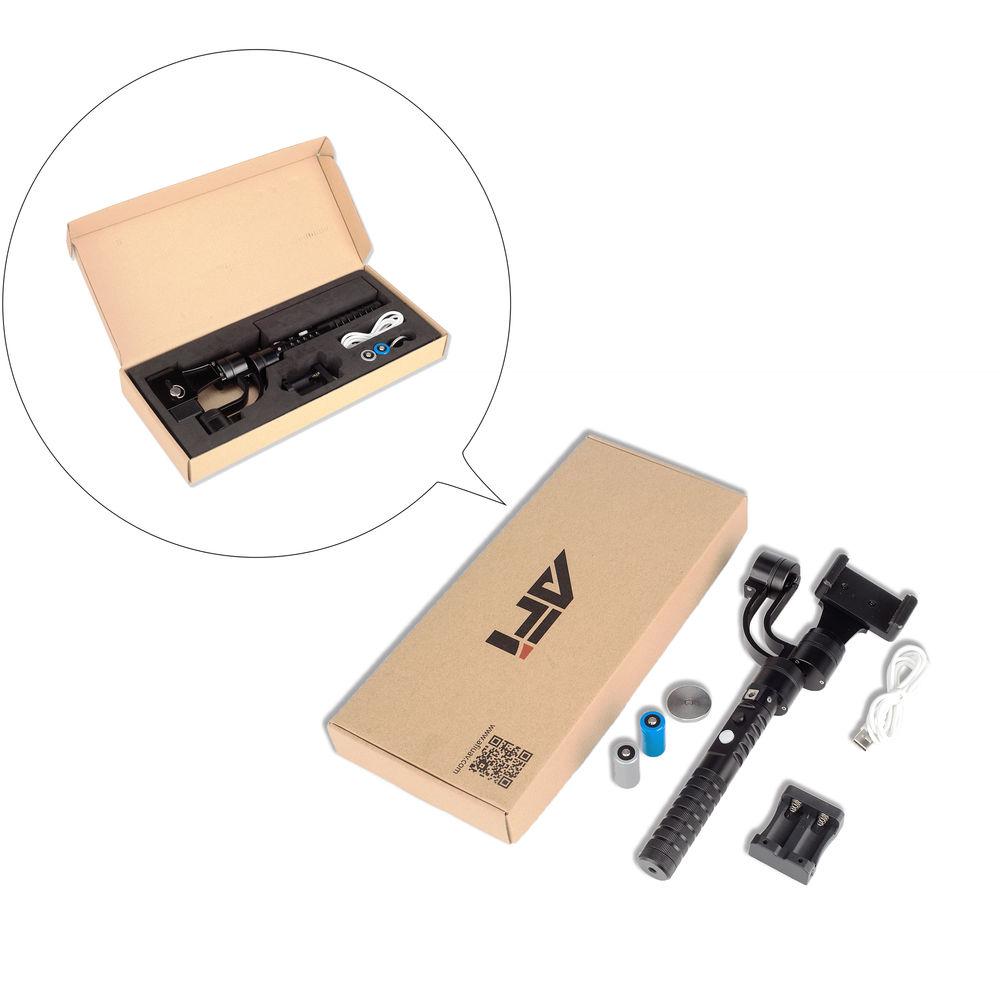

UPC: 711583465932 In the Box Draco Broadcast AFi V2 3-Axis Handheld Gimbal for Smartphones USB Charging Cable 1.9 oz Counterweight 2 x 18350 Rechargeable Battery Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draco Broadcast AFi V2 3-Axis Handheld Gimbal for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

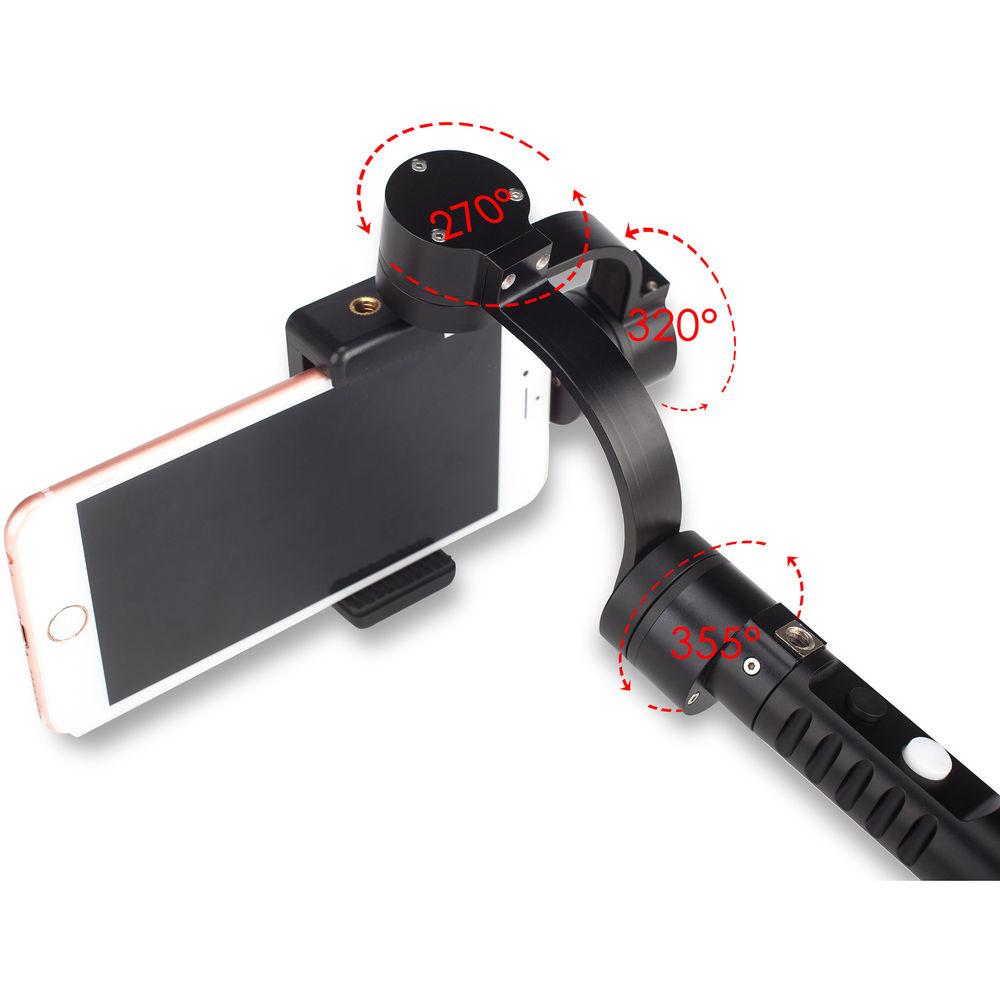

Technical parametersDraco Broadcast V2 Specs | Compatibility | 3.5–5.5" (8.9–13.9 cm) smartphones | | Pitch Angle | Holding Gimbal Vertically
Min: -160° (down)
Standard: 0° (horizontal)
Max: +160° (up) | | Roll Angle | Holding Gimbal Vertically
Min: -50°
Standard: 0° (horizontal)
Max: +50° | | Heading Angle | Holding Gimbal Vertically
Min: -160° (left)
Standard: 0° (horizontal)
Max: +160° (right)
Holding Gimbal Horizontally
Min: -50°
Standard: 0°
Max: +50° | | Pitch Following Rate | 30°/second | | Heading Following Rate | 120°/second | | Tracking | Accuracy in Static Mode: 0.01°
Accuracy during Motion: 0.02° | | Overload Current Protection | 1 A | | Dimensions | Not specified by manufacturer | | Weight | 12.35 oz (350 g), without battery and camera |
