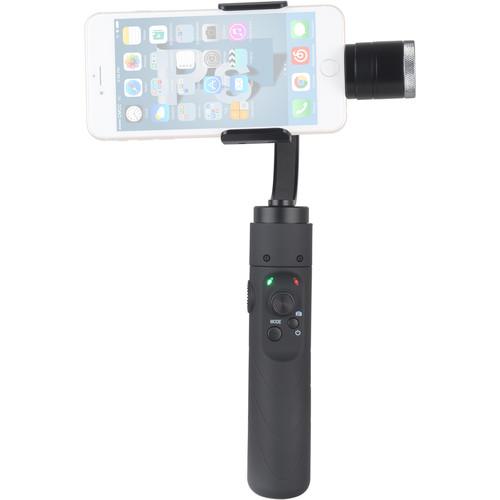

User Manual for Draco Broadcast AFi V3 3-Axis Handheld Gimbal for Smartphones Click to enlarge the picture
Contents of the user manual for the Draco Broadcast AFi V3 3-Axis Handheld
- Product category: See All Gimbal Stabilizers Draco Broadcast
- Brand: Draco Broadcast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draco Broadcast See All Gimbal Stabilizers
 |
User manual for the Draco Broadcast AFi V3 3-Axis Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draco Broadcast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draco Broadcast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draco Broadcast product will considerably shorten its lifespan!
|

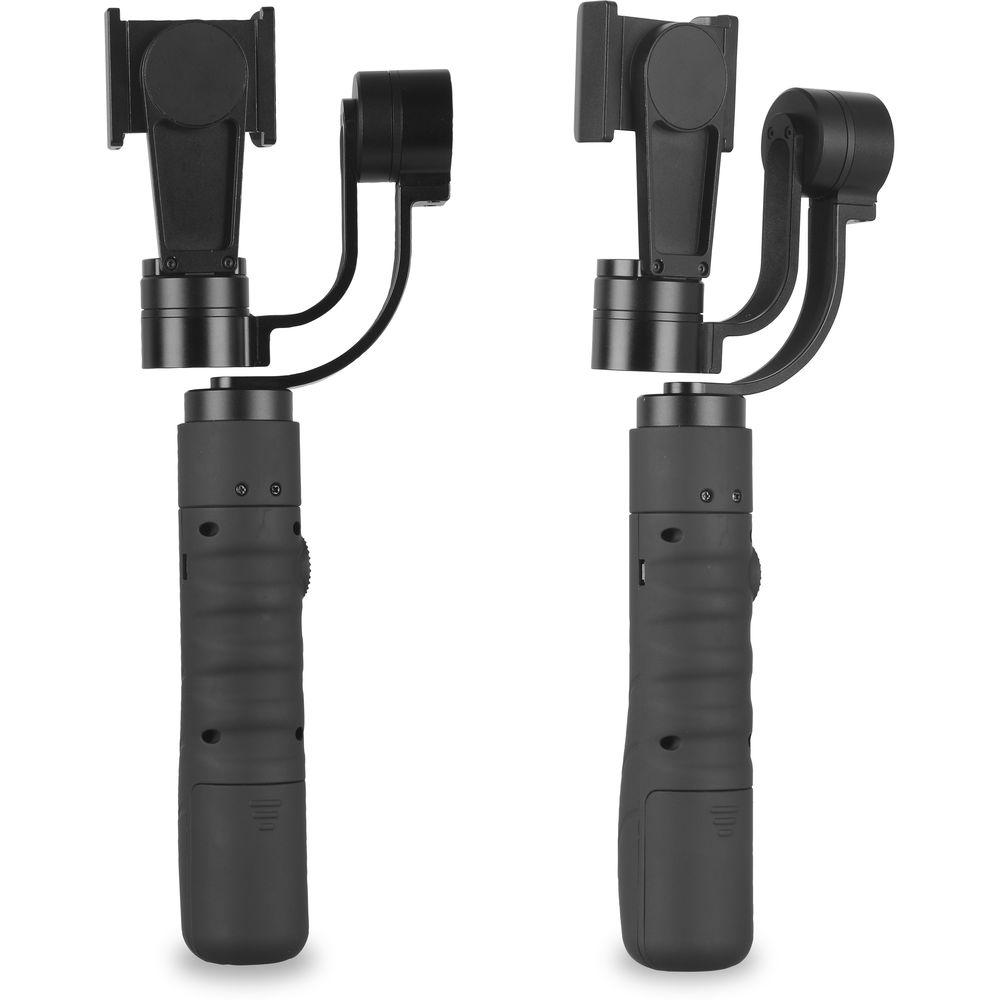

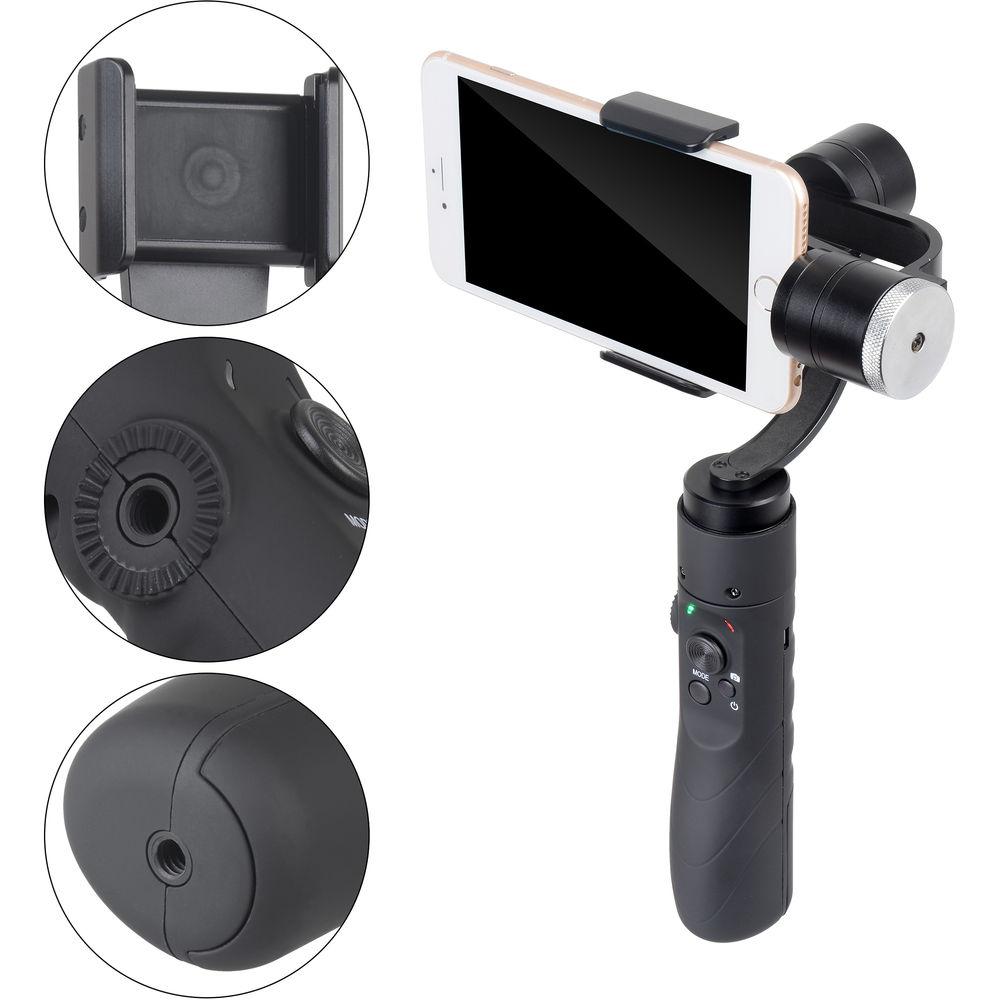

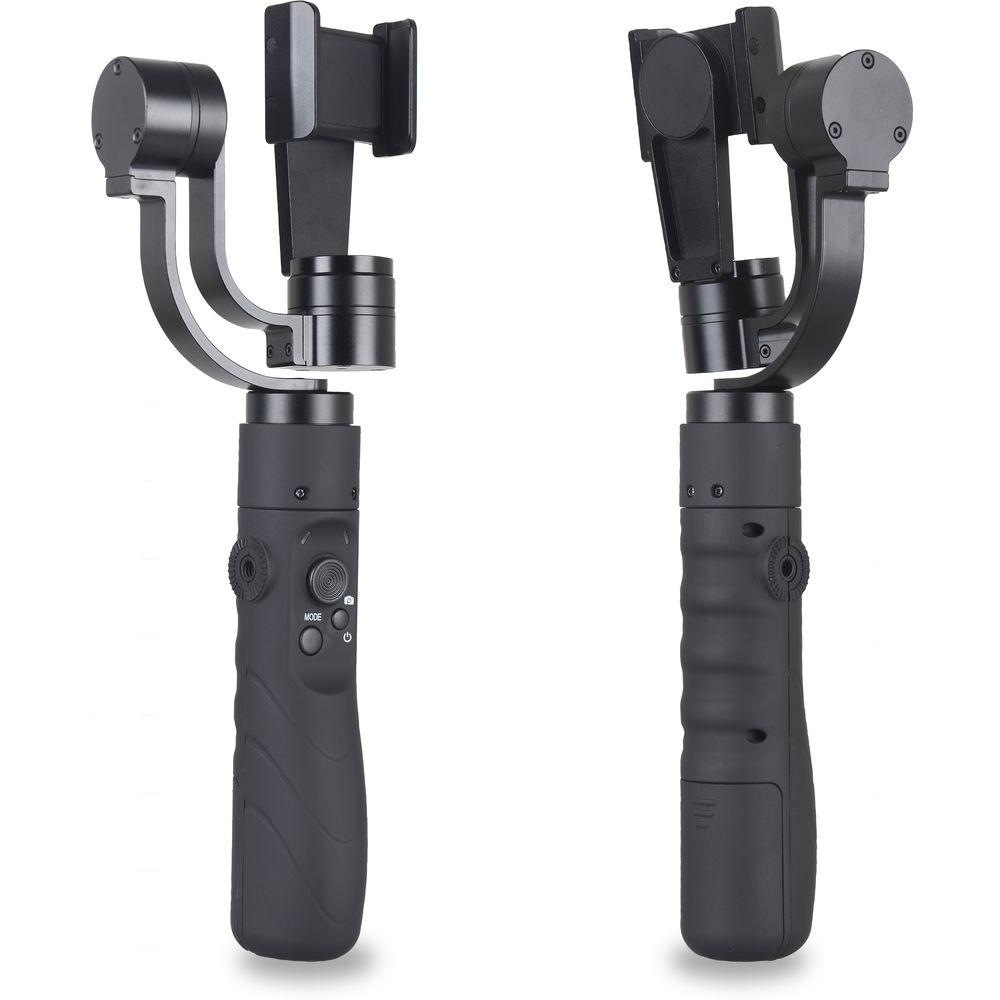

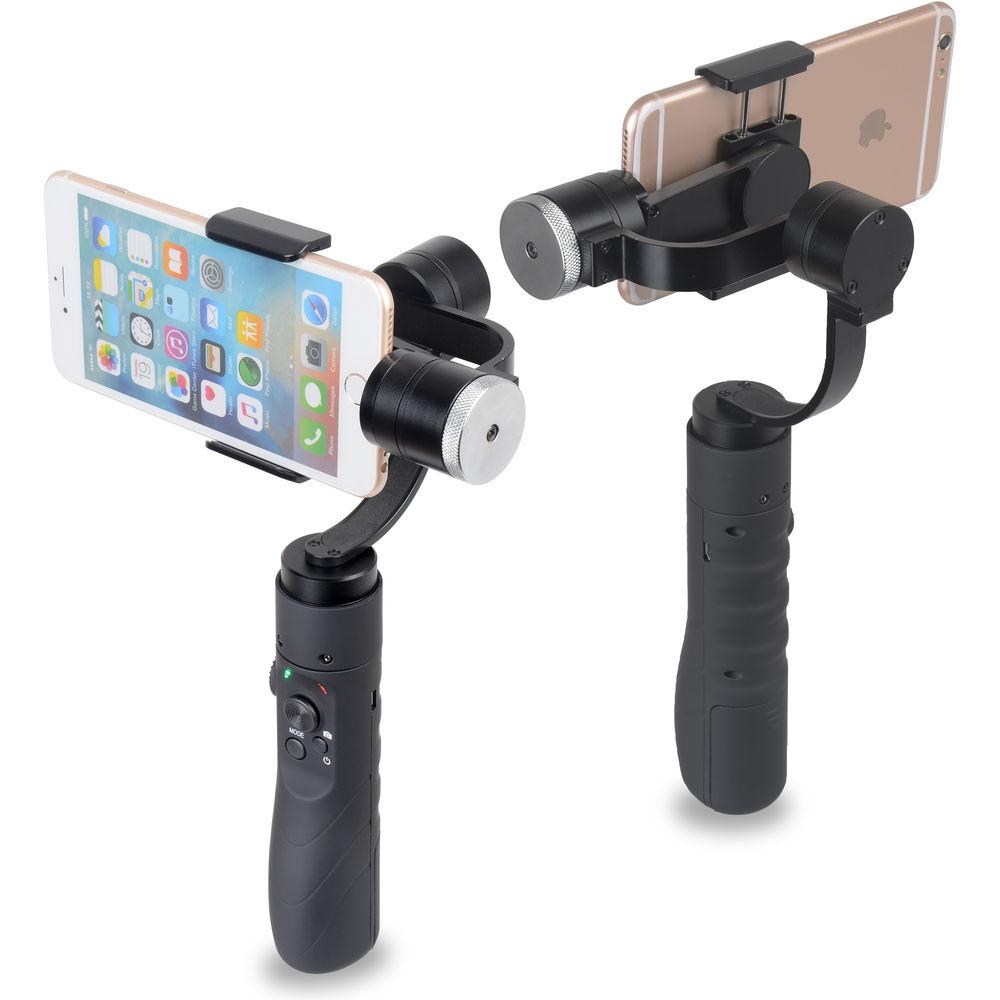

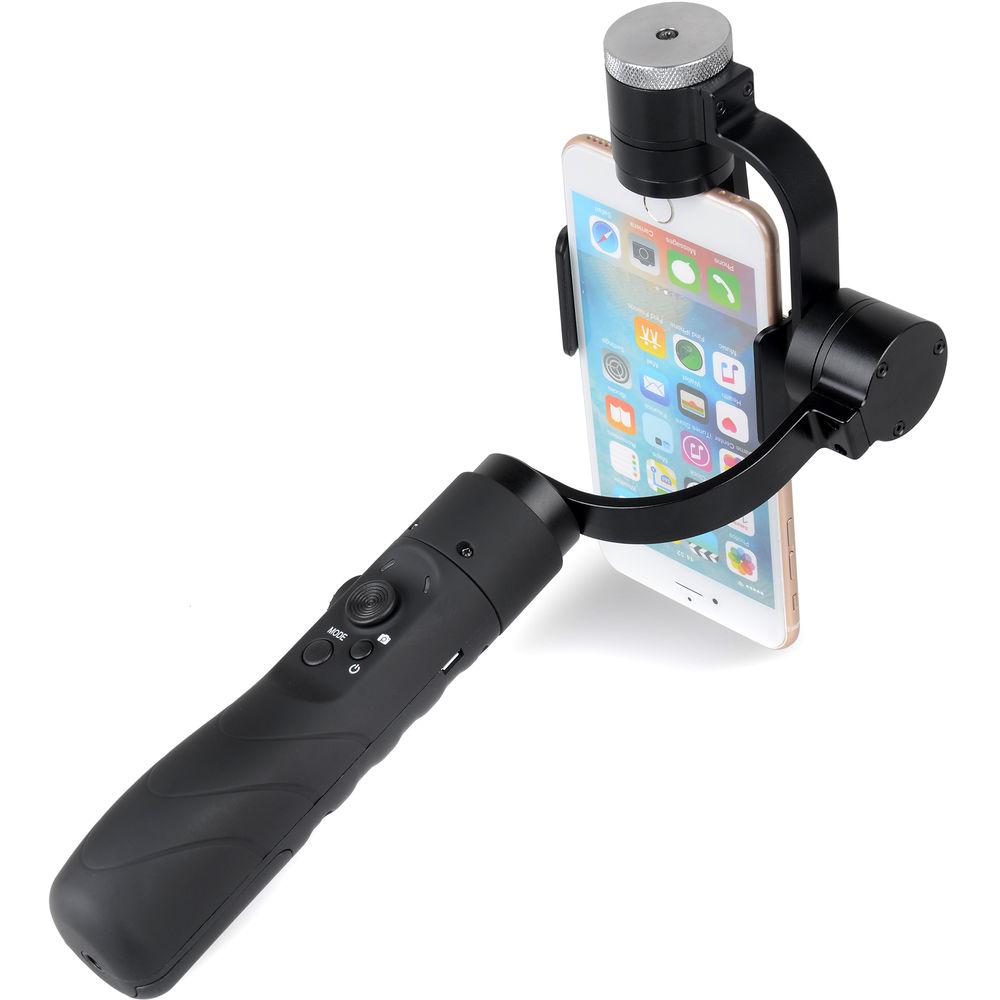

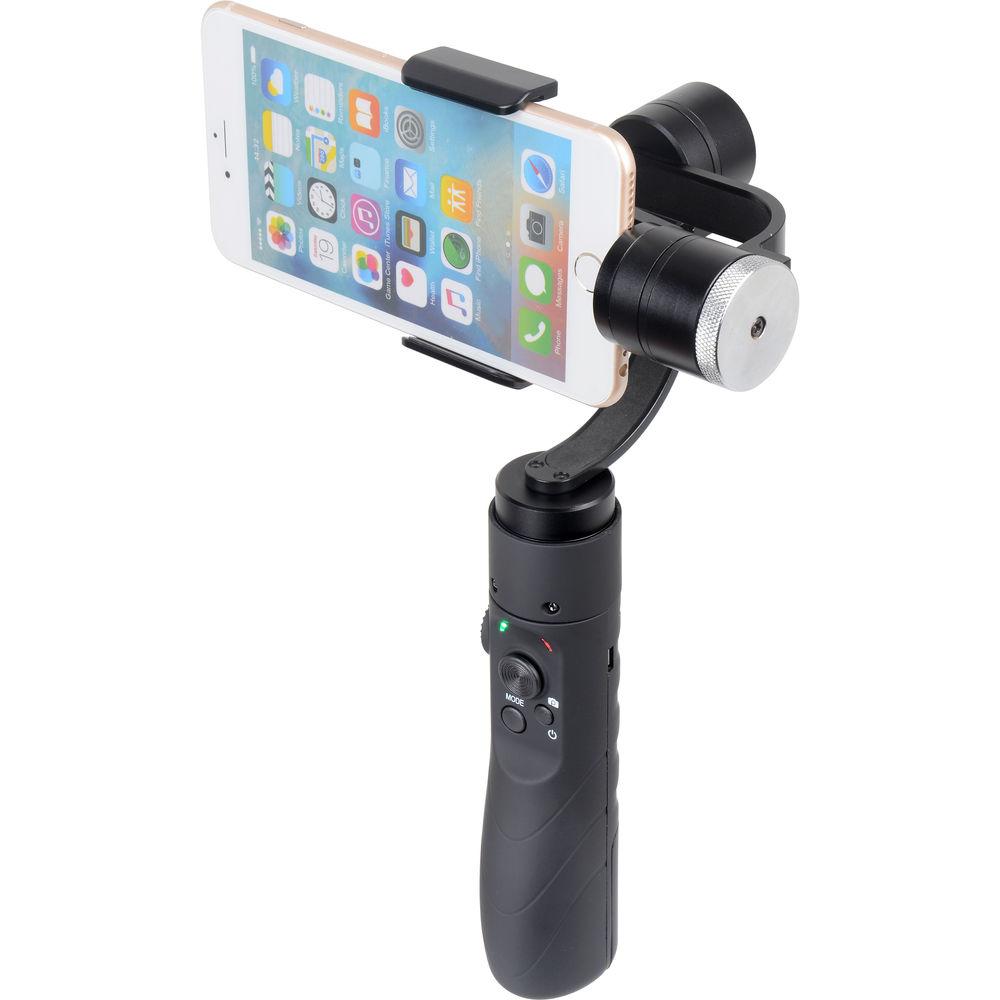

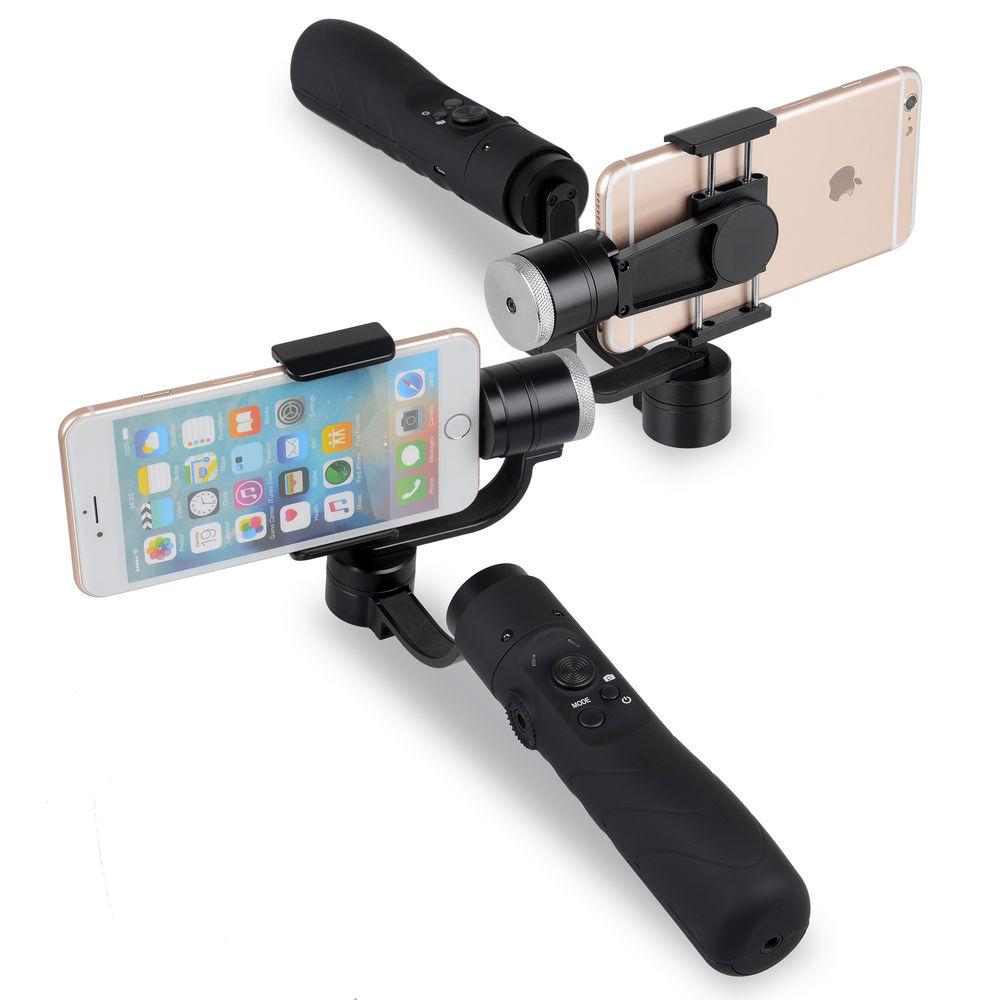

Product description Shoot smooth video with your 3.5 to 6.1" smartphone using the AFi V3 3-Axis Handheld Gimbal from Draco Broadcast. This gimbal stabilizes your video on all three axes—yaw, pitch, and roll. Modes can be switched on the fly to customize the gimbal's effect, making your camera follow your every move fluidly while locking one or more axes. There is also an inverting mode for shots that call for ultra-low vantage points, as well as a point-and-lock function for the pitch axis. Besides smartphones, this gimbal fits GoPro cameras using a separately available quick release plate. - Integrated joystick for gimbal control
- Four modes: Semi-following, all-locking, all-following, and inverting
- On the fly mode switching
- Point-and-lock function for pitch axis
- Easy switching between horizontal and vertical shooting positions
- LED indicates current working mode
- Bluetooth function for use with Android/iOS app

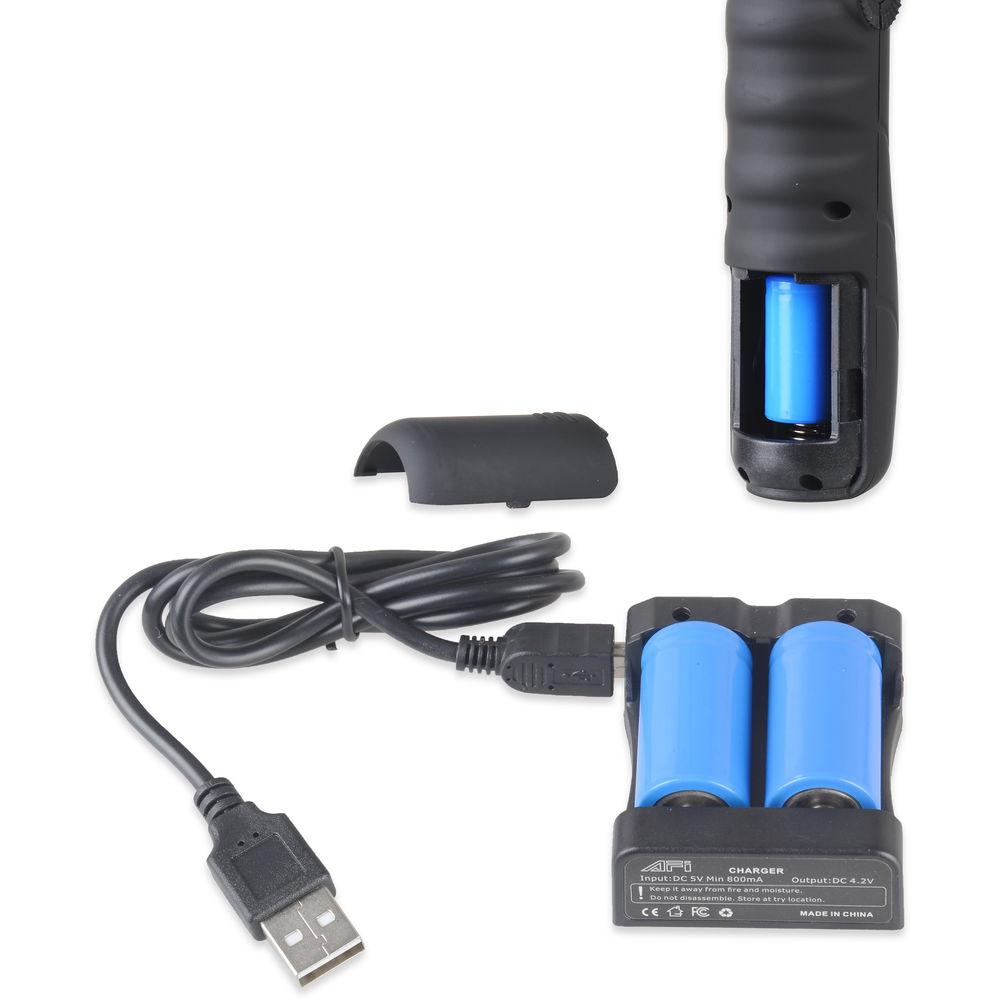

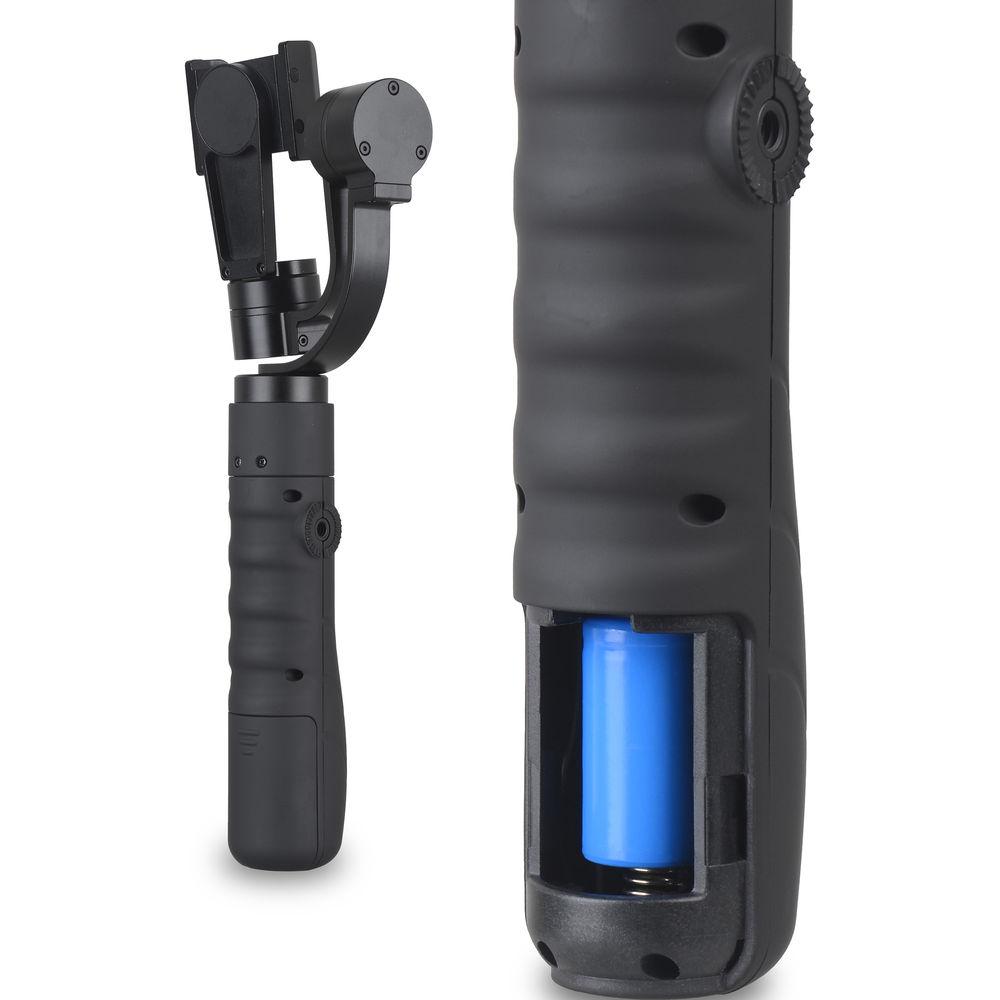

UPC: 711583465949 In the Box Draco Broadcast AFi V3 3-Axis Handheld Gimbal for Smartphones USB Charging Cable 1.9 oz Counterweight 4 x 18350 Rechargeable Battery Battery Charger Limited 1-Year Warranty User Manual PDF 3.5mbczavufsefsurcfvwwaayrvywscyyzvbwvyadty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draco Broadcast AFi V3 3-Axis Handheld Gimbal for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraco Broadcast V3 Specs | Compatibility | 3.5–6.1" / 8.9–15.5 cm smartphones
GoPro cameras via quick release plate (available separately) | | Pitch Angle | Holding Gimbal Vertically
Min: -160° (down)
Standard: 0° (horizontal)
Max: +160° (up) | | Roll Angle | Holding Gimbal Vertically
Min: -50°
Standard: 0° (horizontal)
Max: +50° | | Heading Angle | Holding Gimbal Vertically
Min: -180° (left)
Standard: 0° (horizontal)
Max: +180° (right) | | Overload Current Protection | 1 A | | Battery Life Time | 3 to 4 hours, continuous operation | | Charging Time | 4 hours approx. | | Payload | 2.64–7.05 oz (75–200 g) | | Dimensions | Not specified by manufacturer | | Weight | 11.64 oz / 330 g, without battery and smartphone | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 14.6 x 7.0 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
