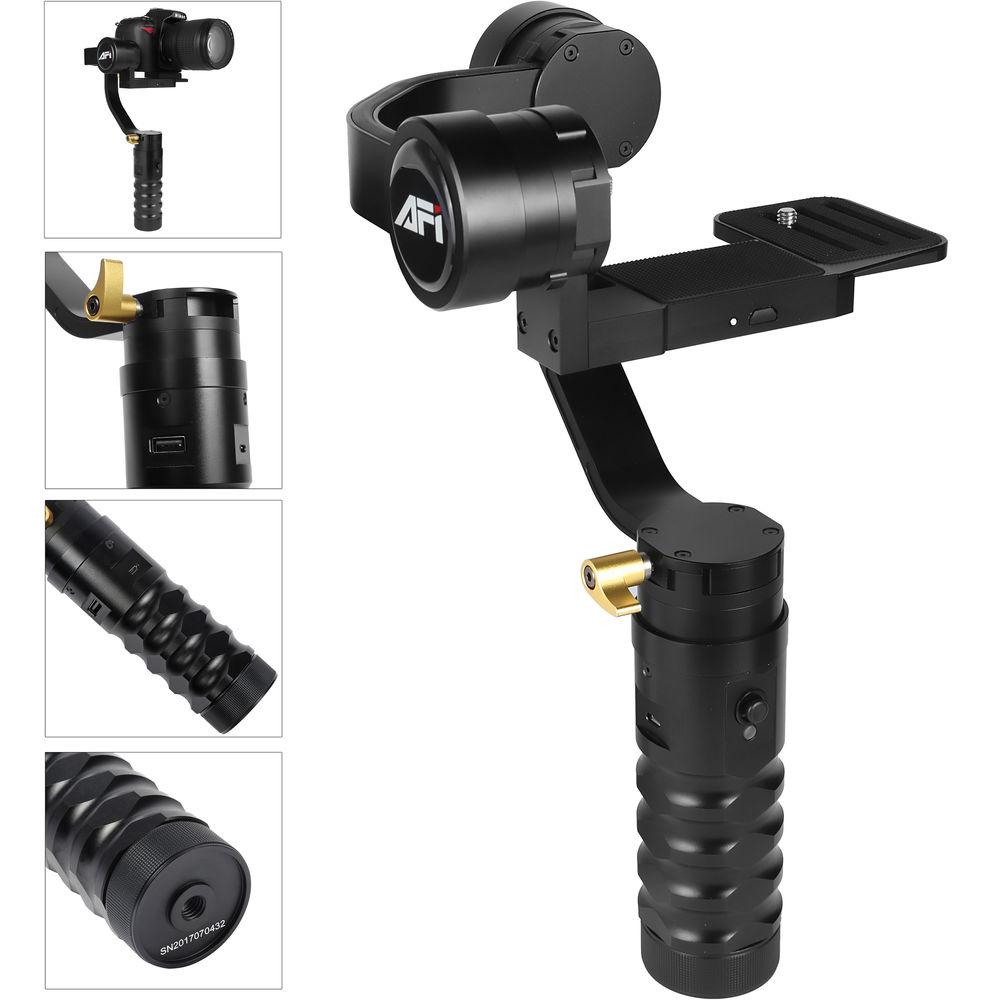

User Manual for Draco Broadcast AFi VS-3SD 3-Axis Motorized Handheld Gimbal for DSLR Mirrorless Camera Click to enlarge the picture
Contents of the user manual for the Draco Broadcast AFi VS-3SD 3-Axis Motorized
- Product category: See All Gimbal Stabilizers Draco Broadcast
- Brand: Draco Broadcast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draco Broadcast See All Gimbal Stabilizers
 |
User manual for the Draco Broadcast AFi VS-3SD 3-Axis Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draco Broadcast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draco Broadcast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draco Broadcast product will considerably shorten its lifespan!
|

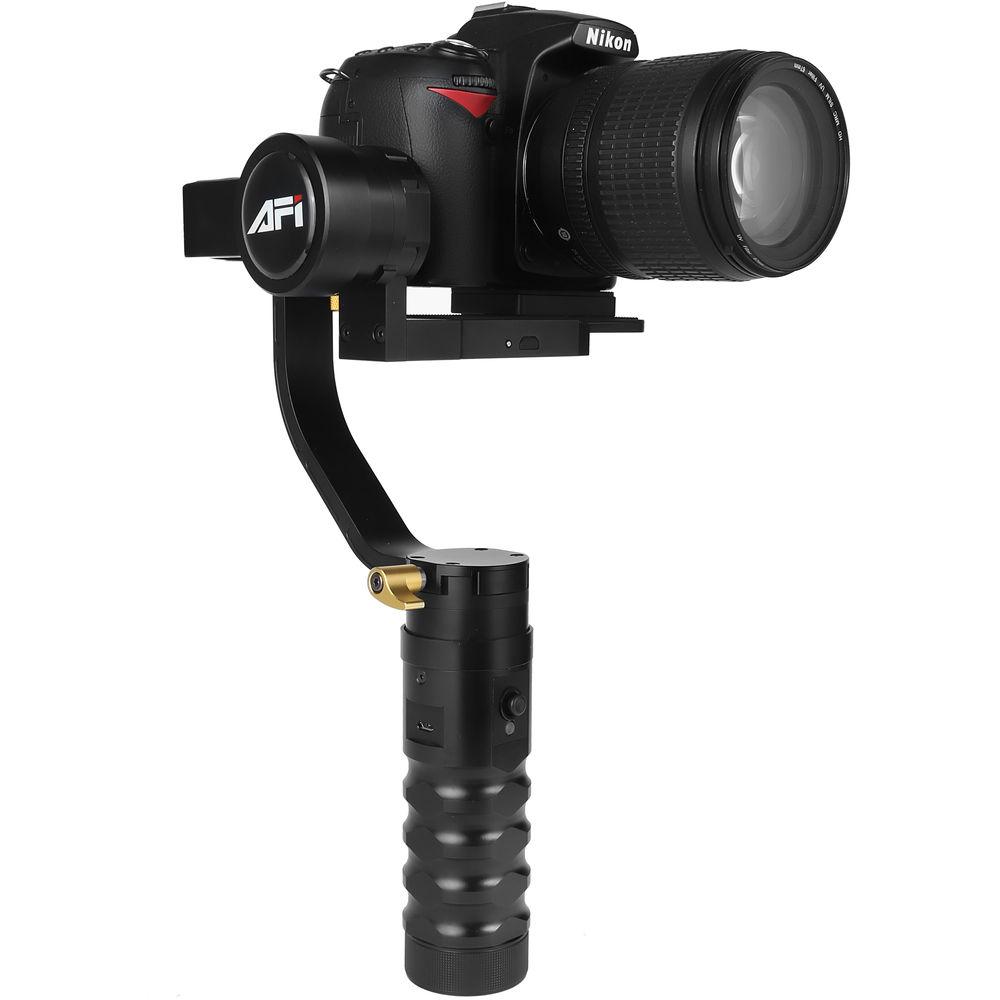

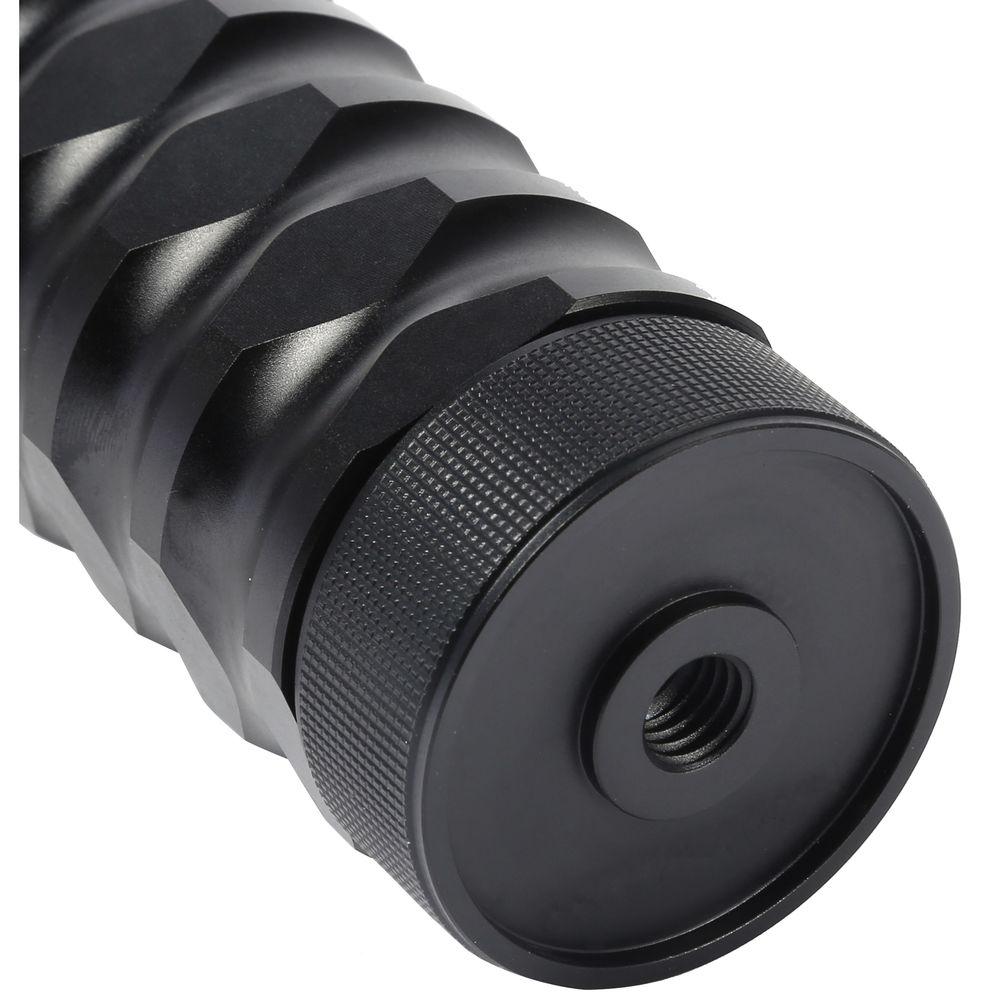

Product description Shoot cinematic video with your DSLR or mirrorless camera using the AFi VS-3SD 3-Axis Motorized Handheld Gimbal from Draco Broadcast. Featuring pan/tilt/roll ranges of 355° and an integrated five-way joystick, this gimbal makes it easy to change perspective smoothly and capture fluid sweeping shots. Modes can be switched to customize the gimbal's effect, making your camera follow your every move fluidly along one more axes while the remaining axes remain locked. The gimbal supports loads up to 3.7 lb, and comes with a standard 1/4"-20 mounting thread for easy attachment to other pieces of equipment such as tripods, monopods, jib cranes, and sliders (all available separately). - Integrated five-way joystick for gimbal control
- Multiple modes including semi-following, locking, and following
- 32-bit controller and dual-sensor augmentation system
- Supports ppm remote control

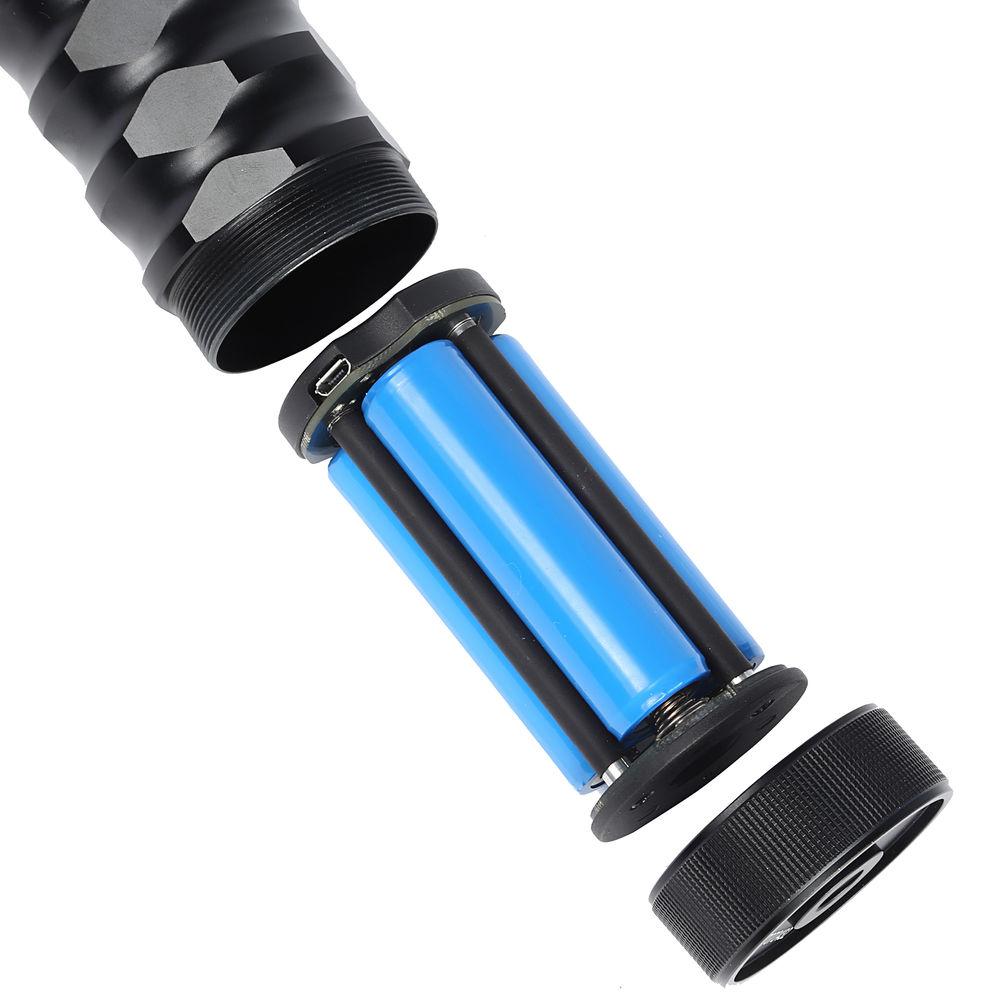

- Runs on three 18650 batteries
- USB LED for night shots included

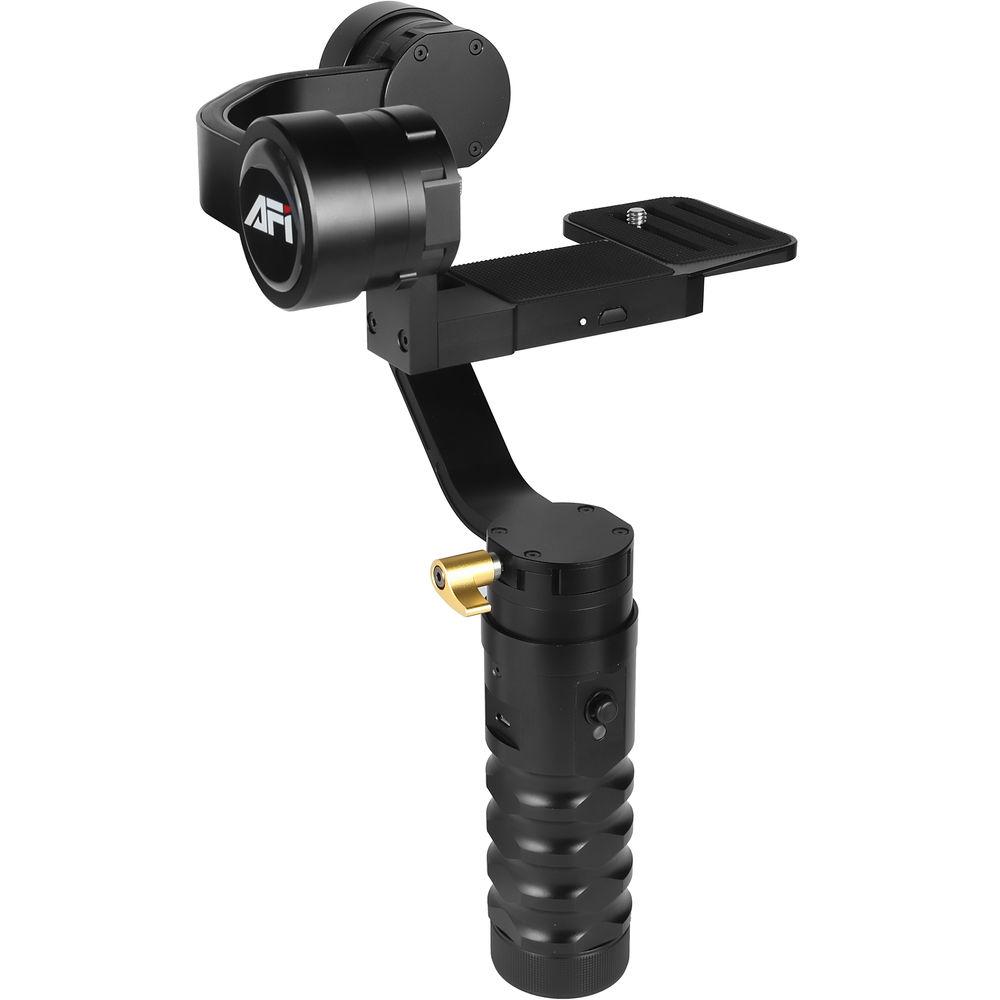

- Quick release plate included
UPC: 711583466007 In the Box Draco Broadcast AFi VS-3SD 3-Axis Motorized Handheld Gimbal for DSLR/Mirrorless Camera Battery Holder 3 x 18650 Battery Micro-USB Cable Adapter Base 2 x 1/4"-20 Camera Screw USB LED Limited 1-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Draco Broadcast AFi VS-3SD 3-Axis Motorized Handheld Gimbal for DSLR Mirrorless Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraco Broadcast VS-3SD Specs | Compatibility | Examples of Possible Setups:
Canon 5D, 6D, or 7D with 16–35 mm f/4.0 or 24–105 mm f/4.0 lens
Large micro-mono cameras such as Sony a7 Series with 24–70 or 16–35 mm lens
Panasonic GH4 with 12–35, 14–40, or 7–14 mm lens | | Electrical System Type | 3-axis brushless motor augmentation system | | Angle Adjustment Range | 90–180° | | Pan Range | 355° | | Tilt Range | 355°, ±180° available during operation | | Roll Range | 355°, ±60° available during operation | | Power | 3 x 18650 3.7 V 2600 mAh batteries (included) | | Runtime | 2 hours approx. (depending on operation conditions, camera weight, and power setting) | | Max Load | 3.75 lb / 1.7 kg, camera plus lens | | Dimensions | 11.8 x 6.9 x 6.3" / 30.0 x 17.5 x 16.0 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 16.0 x 5.3 x 3.5" |
