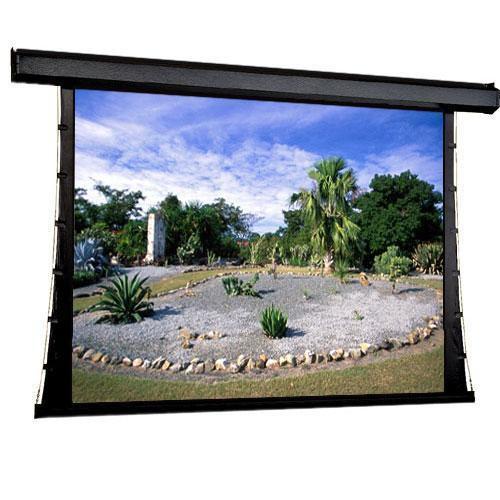

Product description The Draper 96 x 96" Premier Motorized Front Projection Screen with its automatic Tab Tensioning System and flat screen performance, exhibits picture quality far superior to older screens previous generations used. This elegant screen will grace any lecture hall, school room, learning center or hospital theater. The screen is quiet when in "up/down" operation because of its vibration insulation system, which minimizes noise. With the flick of a switch, the screen is ready to use by means of the built-in standard motor with preset, accessible limit switches. The steel case and special tensioning dowel are finished in flat black. The Premier's motor is mounted inside the roller on special vibration insulators, so operation is smooth and silent. You have your choice of M1300, M2500, HiDef Grey or Cineflex rear projection viewing surface. Screen Surface Note: This screen is also available with a Plug & Play option. - Draper's Tab-Tensioning System holds the surface taut and wrinkle-free
- Delivers outstanding picture quality even with sophisticated data graphic projectors
- Projected image is framed by standard black masking borders at sides
- Meets the exacting requirements of large-screen video and data projection
- Motor-in-roller is mounted on special vibration insulators so it operates smoothly and silently
- Available with a ceiling trim kit for ceiling-recessed installation
- Black case with matching endcaps; white is available as an option
- Depending on surface, available in sizes through 12 x 12' and 15' NTSC
- With control options, it can be operated from any remote location
In the Box Draper 101174QLP Premier Motorized Front Projection Screen (96 x 96") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 101174QLP Premier Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 101174QLP Specs | | | Style | Premier | | Front/Rear Projection | Front | | Mount | Wall or Ceiling | | Finish | M1300; mildew resistant | | Tension Control | Tab-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 96 x 96" (2.4 x 2.4 m) | | Diagonal | 136" (3.5 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | 12" black drop is standard | | | | Voltage | 110-120VAC, 60Hz
3-wire motor mounted inside screen roller
1.1 amp | | Integrated Control | Quiet Motor
With Low Voltage Controller
3-position control switch
Switch complete with cover plate | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control This screen is also available with a Plug & Play option. | | | | Color | Black plastisol | | Material | 22-gauge steel | | Length | 117.75" (3.0 m) | | | | Shipping Weight | 79 lbs (35.8kg) | | | | Package Weight | 79.0 lb | | Box Dimensions (LxWxH) | 129.0 x 11.0 x 10.0" |
