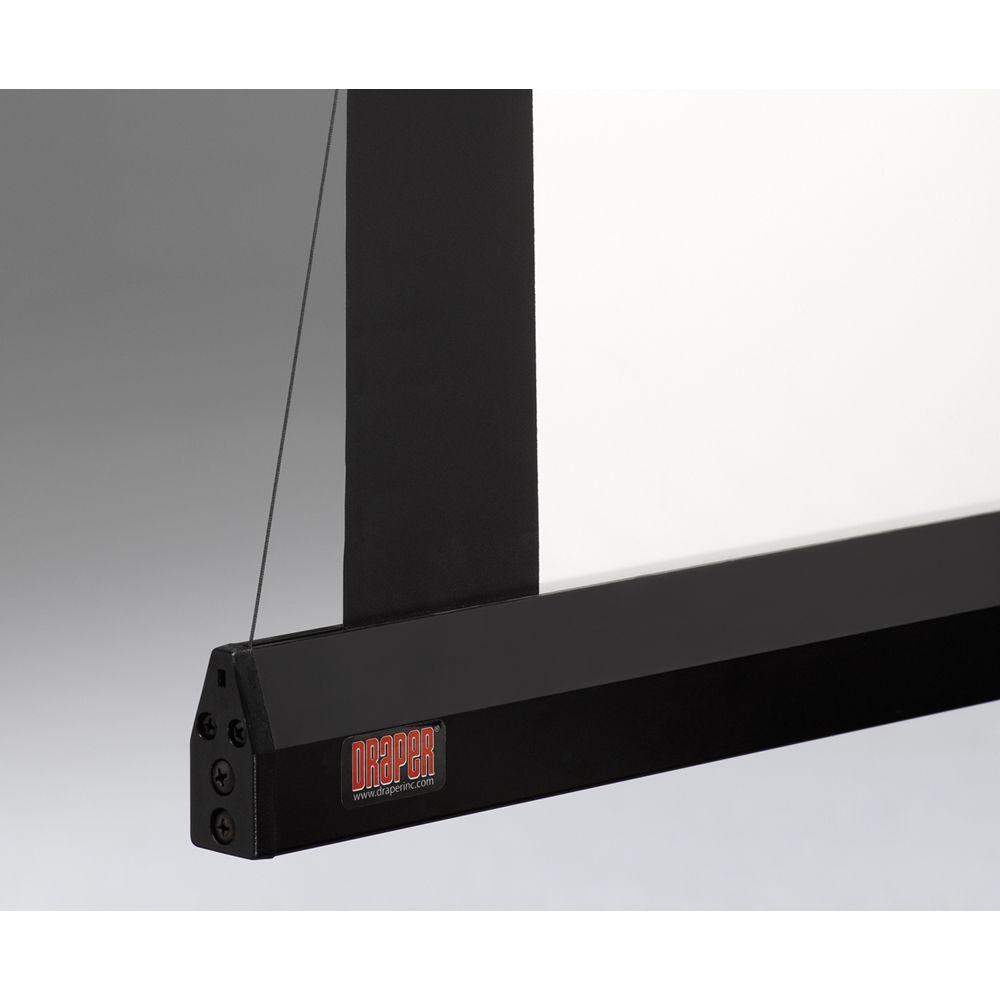

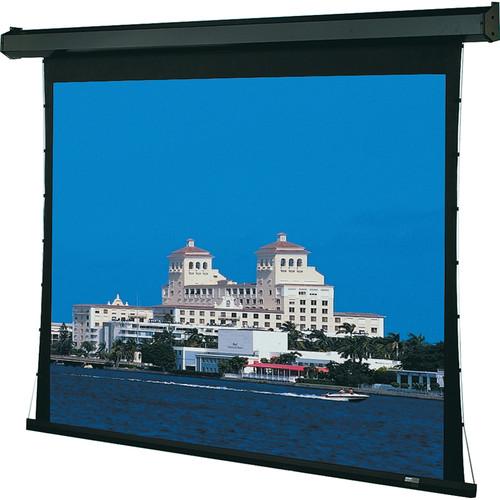

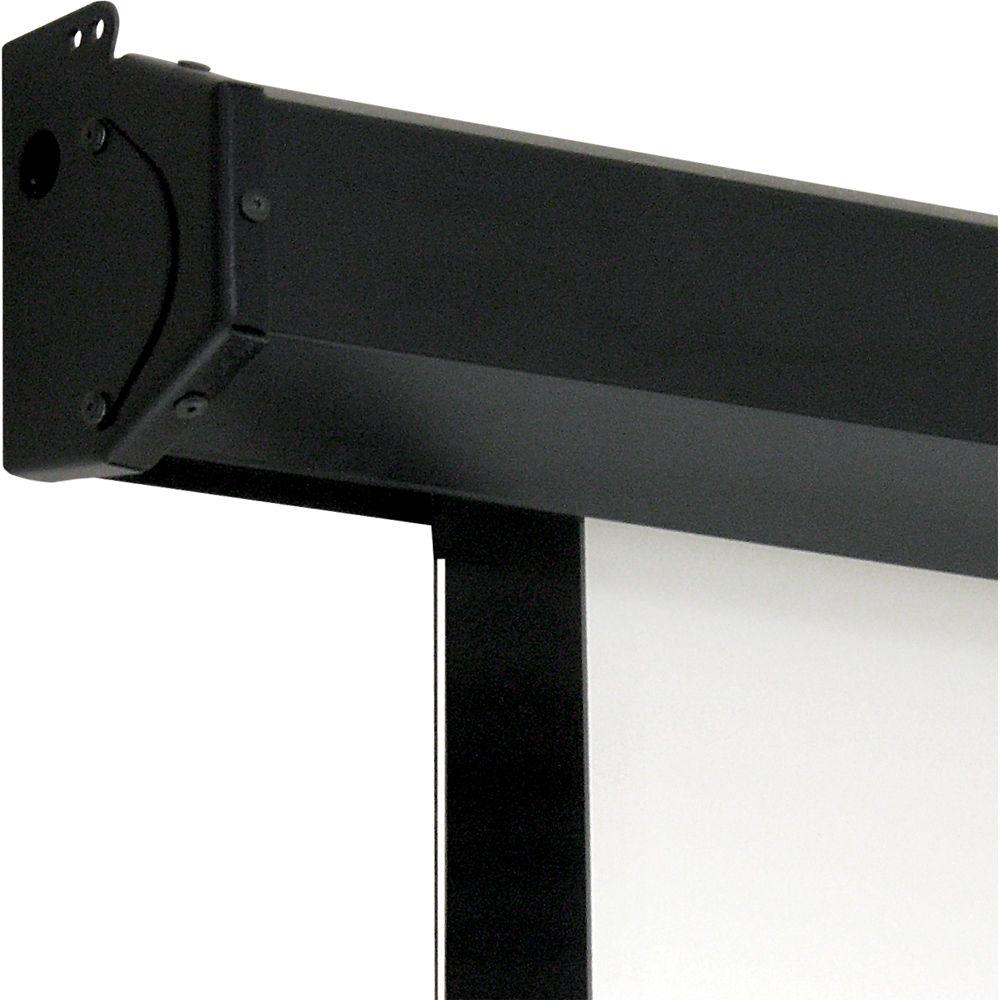

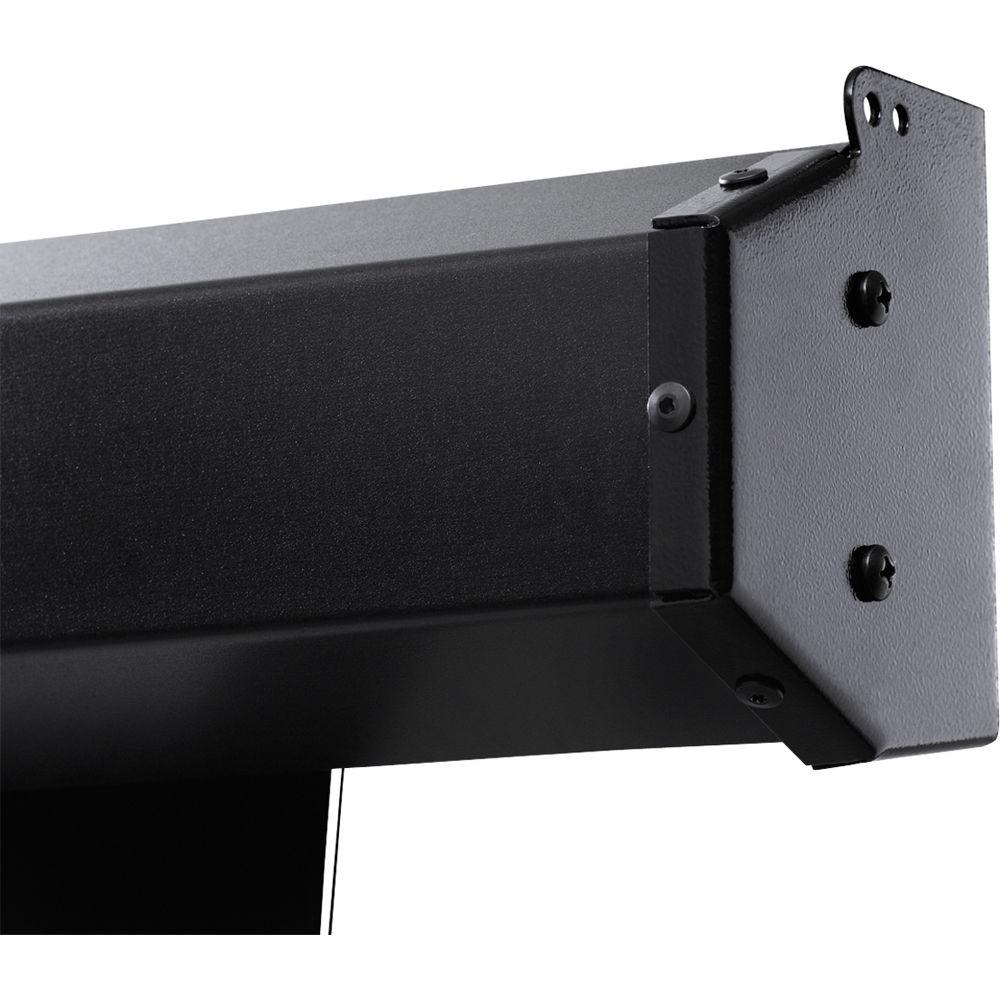

Product description The black, 120V 101305U Premier 58 x 104" Motorized Screen with LVC-IV Low Voltage Controller from Draper is designed for wall or ceiling mounted installation. It features Draper's Tab-Tensioning System to hold the surface taut and keep it wrinkle-free. The projected image is framed by black masking borders at all sides for enhanced contrast. It uses a motor-in-roller system, which is mounted on special vibration insulators, so the screen operates smoothly and silently. - Matt White XT1000V Screen Surface
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. This surface is GREENGUARD Children and Schools certified
- Motor-in-Roller Design
- The motor is mounted inside the roller on special vibration insulators
Included Options - LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 101305U Premier 58 x 104" Motorized Screen with LVC-IV Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 101305U Premier 58 x 104" Motorized Screen with LVC-IV Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 101305U Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Motorized wall/ceiling | | | | Viewing Area | 58 x 104" / 147.3 x 264.2 cm | | Diagonal | 119" / 302.3 cm | | | | Gain | 1.0 | | Viewing Angle | 180° | | Screen Surface | Matt White XT1000V | | | | Included Controls | Low voltage control | | Motor | Standard | | | | Box Dimensions (LxWxH) | 131.0 x 11.0 x 11.0" |
