User Manual for Draper 101640SCQL Premier 65 x 104" Motorized Screen with Low Voltage Controller and Quiet Motor Click to enlarge the picture
Contents of the user manual for the Draper 101640SCQL Premier 65 x 104"
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 101640SCQL Premier 65 x 104" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

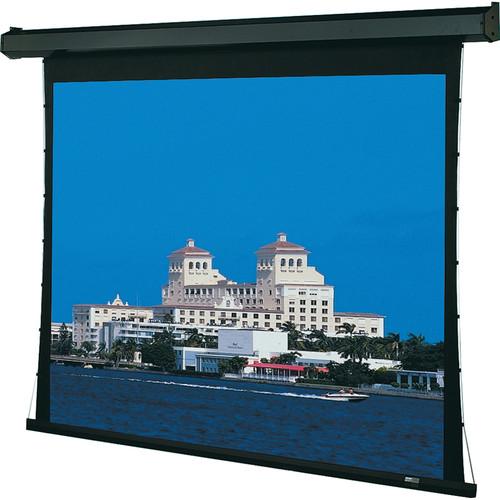

Product description The black, 120V 101640SCQL Premier 65 x 104" Motorized Screen with Low Voltage Controller and Quiet Motor from Draper is designed for wall or ceiling mounted installation. It features Draper's Tab-Tensioning System to hold the surface taut and keep it wrinkle-free. The projected image is framed by black masking borders at all sides for enhanced contrast. It uses a motor-in-roller system, which is mounted on special vibration insulators, so the screen operates smoothly and silently. - ClearSound NanoPerf XT800V Screen Surface
- Microscopic perforations in the fabric create an acoustically transparent surface that does not compromise audio quality when speakers are placed behind the screen. The projected image has a full 180° viewing cone and accurate color reproduction. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. Ideal for home theater; not recommended for viewing less than 10' from screen
- Motor-in-Roller Design
- The motor is mounted inside the roller on special vibration insulators
- Low Voltage Controller (LVC)
- Low voltage control (LVC) enables control of the screen's motor using a third-party system, including direct connection to the projector, via a wall switch, or with integration with automation systems
- Quiet Motor
- Produces less noise when the screen is lowered or raised. Ideal for boardrooms, lecture halls, or other settings where the screen may need to raised or lowered during the event
In the Box Draper 101640SCQL Premier 65 x 104" Motorized Screen with Low Voltage Controller and Quiet Motor (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 101640SCQL Premier 65 x 104" Motorized Screen with Low Voltage Controller and Quiet Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 101640SCQL Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 65.0 x 104.0" / 165.1 x 264.2 cm | | Diagonal | 123.0" / 312.4 cm | | | | Gain | 0.8 | | Viewing Angle | 180 degrees | | Tensioned | Yes | | | | Motor | Quiet | | Included Controls | Low voltage control | | | | Finish | Steel | | Length | 122.0" / 309.9 cm |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
