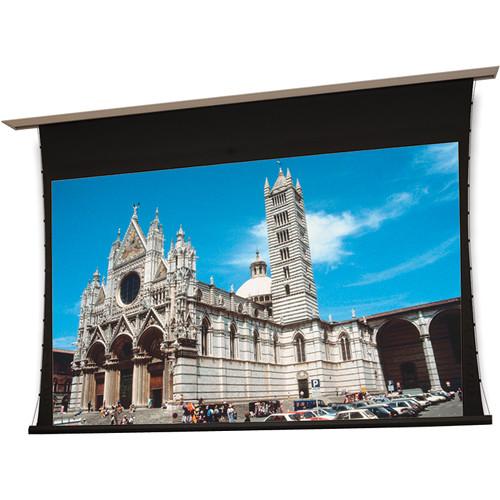

Product description The 102803SCL 192 x 192" Access XL/Series V Ceiling-Recessed Screen with LVC from Draper is a tab-tensioned front projection screen designed for larger rooms over the standard Access/Series V. The white extruded aluminum case installs above the ceiling, and a trim flange conceals the opening cut into the ceiling. The surface and roller can be installed at the same time, or easily added later. The low voltage controller is built into the motor, simplifying installation. The LVC is compatible with IR and RF remotes and receivers (sold separately), which can be used to control the screen from your couch or even another room. The included 3-button wall switch operates the screen and sets limit switches.As a part of Draper's ClearSound family of acoustically transparent screens, the perforated ClearSound NanoPerf XT800V surface allows you to place your speakers behind the projector screen. This setup is ideal for home theater use in rooms where space is restricted. Microscopic perforations in the fabric allow the audio to come through the screen, without compromising audio quality. Black backing helps control ambient light coming from behind the screen. The surface provides accurate color reproduction and a full 180° viewing cone, with a gain of 0.8 at 0°. The PVC fabric surface can be cleaned with mild soap and water. - Motor-in-roller operation
- 12" of black drop at top of screen
- Included sliding brackets on top of the case allow unlimited adjustment along the bracket channels for mounting the case
- Surface and roller can easily be removed and replaced to update system
- Bottom is removable without tools for screen installation or maintenance
- Sliding brackets inside the case accommodate different sizes of screens in the same case
- Case dimensions are 10.44 H x 9.50" D (26.52 x 24.13 cm), including flange and mounting brackets
- Fasteners and supporting hardware are not included
In the Box Draper 102803SCL 192 x 192" Access XL/Series V Ceiling-Recessed Screen with LVC (110-120 VAC) 3-Position Wall Switch Adjustable Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 102803SCL 192 x 192" Access XL Series V Ceiling-Recessed Screen with LVC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 147001SCL Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 1:1 | | Style | Ceiling-recessed | | | | Viewing Area | 192.0 x 192.0" / 487.7 x 487.7 cm | | Diagonal | 271.5" / 689.6 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 0.8 | | Viewing Angle | 180 degrees | | Tensioned | Yes | | Black Backing | Yes | | | | Finish | Aluminum | | Length | 229.0" / 581.7 cm | | | | Voltage | 120 VAC/60 Hz | | Weight | 279.0 lb / 126.5 kg, approximate |
