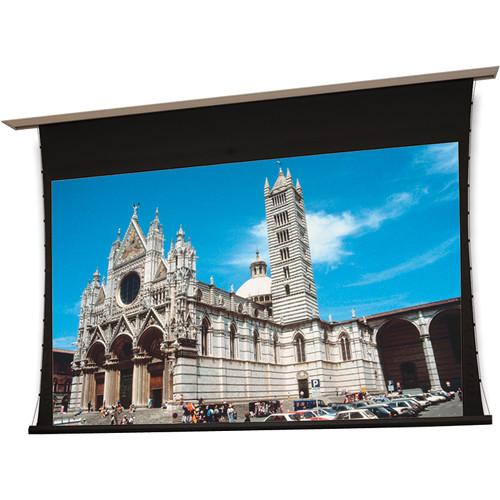

User Manual for Draper 102819FNL 121.5 x 216" Access XL Series V Ceiling-Recessed Screen with LVC Click to enlarge the picture
Contents of the user manual for the Draper 102819FNL 121.5 x 216" Access
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
|
User manual for the Draper 102819FNL 121.5 x 216" Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The 102819FNL 121.5 x 216" Access XL/Series V Ceiling-Recessed Screen with Low Voltage Controller from Draper is a tab-tensioned front projection screen designed for larger rooms over the standard Access/Series V. The white extruded aluminum case installs above the ceiling, and a trim flange conceals the opening cut into the ceiling. The surface and roller can be installed at the same time, or easily added later. The low voltage controller is built into the motor, simplifying installation. The LVC is compatible with IR and RF remotes and receivers (sold separately), which can be used to control the screen from your couch or even another room. An included 3-position wall switch provides up, down, and stop controls. A 25' data cable is included to connect the switch to the LVC. Pure White XT1300V's 1.3 gain rating is designed to offer a brighter picture while still maintaining a wide 180° viewing cone, with the surface reaching half gain around 90°. Colors do not shift, even at wide angles, and white field uniformity is maintained. The surface is a part of Draper's OptiFlex family, which makes Pure White XT1300V suitable for tensioning for a flat front viewing surface. This flexible PVC surface can be cleaned with mild soap and water. - Motor-in-roller operation
- 12" of black drop at top of screen
- Included sliding brackets on top of the case allow unlimited adjustment along the bracket channels for mounting the case
- Surface and roller can easily be removed and replaced to update system
- Bottom is removable without tools for screen installation or maintenance
- Sliding brackets inside the case accommodate different sizes of screens in the same case
- Case dimensions are 10.44 H x 9.50" D (26.52 x 24.13 cm), including flange and mounting brackets
- Fasteners and supporting hardware are not included
In the Box Draper 102819FNL 121.5 x 216" Access XL/Series V Ceiling-Recessed Screen with LVC (110-120 VAC) 3-Position Wall Switch Adjustable Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 102819FNL 121.5 x 216" Access XL Series V Ceiling-Recessed Screen with LVC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 147006FNL Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 121.5 x 216.0" / 308.6 x 548.6 cm | | Diagonal | 248.0" / 629.9 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 180 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | No | | | | Motor | Standard | | Included Controls | Wall switch | | | | Finish | Aluminum | | Length | 244.9" / 622.0 cm | | | | Voltage | 120 VAC/60 Hz | | Weight | 285.0 lb / 129.3 kg, approximate |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
