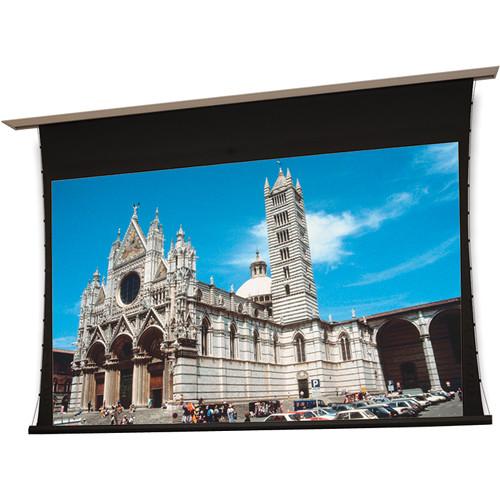

Product description The 120V 102828U Access XL/Series V 135 x 216" Motorized Screen with LVC-IV Low Voltage Controller from Draper combines the benefits of the Access/Series V with a size range suitable for larger rooms. It features a sleek white extruded aluminum case that installs above ceiling. Trim flange finishes the ceiling opening, giving the screen an integrated feel. The tab-tensioned viewing surface and roller can be installed at the same time or can be added without tools at a later time. - Matt White XT1000V Screen Surface
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. This surface is GREENGUARD Children and Schools certified
- 12" Drop Standard
- 12" of extra drop is standard, helping ensure proper viewing height even in rooms with high ceilings
- Motor-in-Roller
- The motor-in-roller design helps assure quiet and smooth operation
- LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
