User Manual for Draper 105049 Access Multiview Series V Motorized Masking Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 105049 Access Multiview Series V
- Product category: Masking Electric Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Masking Electric Screens
|
User manual for the Draper 105049 Access Multiview Series V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

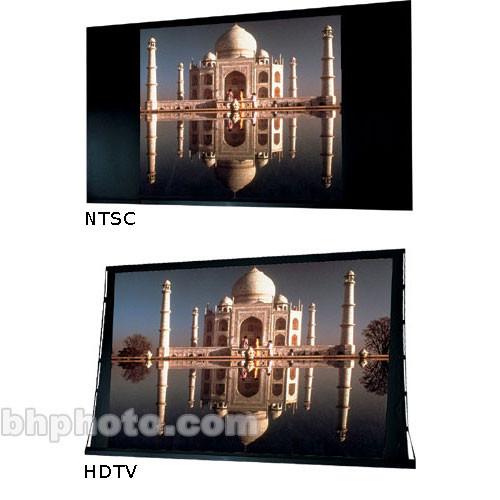

Product description The Draper 65 x 116/87" Access Multiview/Series V Motorized Masking Projection Screen is a motorized, tab-tensioned front projection screen with independently motorized masking system installed in the same case for dual format projection. A flat black mask on a second motor-in-roller converts the screen to a 4:3 NTSC video format by masking the right and left sides of the viewing surface. Imagine having two screens in one! Either Video or HDTV formats can be projected with the touch of a button! No need to buy a second screen! The height of the viewing surface remains constant. Both the screen and masking systems are independently controlled, each using any standard or optional control. Or, select AMV-C, a low voltage control that allows both motors to be controlled by independent 3-button switches in a single box. - One projection screen, two formats - Video & HDTV
- Ceiling-recessed projection screen
- Great for schools, businesses and lecture halls
- Depending on surface, available in sizes through 133" diagonal HDTV format or 136" diagonal WideScreen format
In the Box Draper 105049 Access Multiview/Series V Motorized Masking Projection Screen (65 x 116/87") 2 x SS-1R Remote Controls Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 105049 Access Multiview Series V Motorized Masking Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 105049 Specs | | | Style | Access Multiview V | | Front/Rear Projection | Front or Rear | | Mount | Ceiling | | Finish | HD Grey | | Tension Control | None | | Keystone Control | None | | | | Overall Size | Not specified | | Image Size | 65 x 116" (1651 x 2946 mm)65 x 87" (1651 x 2210 mm) | | Diagonal | 65 x 116" - 133" (3378 mm) 65 x 87" - 109" | | Format | HDTV and Video | | Aspect Ratio | 16:9 and 4:3 | | Masking Options | Interchangeable formats available via remote control | | | | Voltage | 110-120v, 60 Hz | | Integrated Control | Two SS-1R remote controls | | Control Options | AMV-C, a low voltage control that allows both motors to be controlled by independent 3-button switches in a single box | | | | Color | White | | Material | Extruded Aluminum | | Length | 151" (3.8m) | | | | Shipping Weight | 135 lb (61 kg) | | | | Package Weight | 160.0 lb | | Box Dimensions (LxWxH) | 164.0 x 13.0 x 11.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
