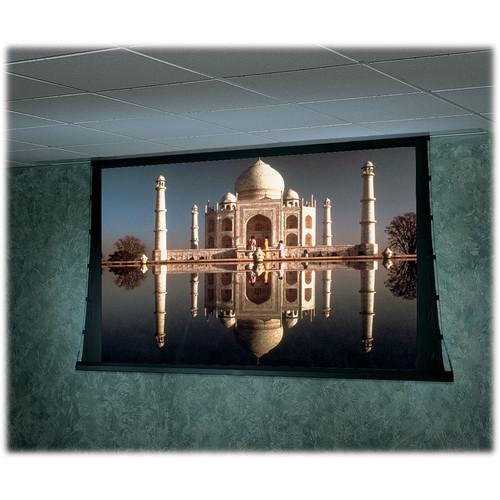

User Manual for Draper 105051 Access Series V Motorized Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 105051 Access Series V Motorized
- Product category: Masking Electric Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Masking Electric Screens
|
User manual for the Draper 105051 Access Series V Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The Draper 40.5 x 90.25" Access/Series V Motorized Front Projection Screen - What if you know that you want a ceiling-recessed screen, but you don't know what projector (or projectors) will be used - and therefore you don't know the optimum size or aspect ratio of the screen, the optimum screen surface, or whether tab tensioning is required? With the Access, that's not a problem; order the case now - just make sure it's large enough to accept the largest screen you think you may need. Order the screen later, after the projector decision is made. Or let the occupant make the decision at a later date. What if technology changes? What if a new projection format is introduced or Draper introduces a superior new screen surface? With the Access, that's not a problem; it's quick, easy and comparatively inexpensive to replace the screen in an Access, with no extra electrical or ceiling work.What if you're planning a facility and the room design is flexible, or the presentation rooms have not yet been determined? With the Access, that's not a problem; install an Access case in each room during construction, and think about screen selection later. Adds great value to the facility. Gain and Screen Surface Chartweyyvdsvtbtuzz - Motor-in-roller operation
- Draper's Tab Tensioning System keeps screen flat, providing the best possible picture
- With control options, this projection screen can be operated from any remote location
- 12" extra drop is standard
- Depending on surface, available in sizes through 12 x 12' and 15' NTSC
In the Box Draper 105051 Access/Series V Motorized Front Projection Screen (40.5 x 90.25" ) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 105051 Access Series V Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 105051 Specs | | | Style | Access/Series V | | Front/Rear Projection | Front | | Mount | Ceiling | | Finish | M1300 | | Tension Control | Tab-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 40.5 x 90.25" (103 x 229.2cm) | | Diagonal | 103" (261.6cm) | | Format | Cinemascope | | Aspect Ratio | 2.35:1 | | Masking Options | Black masking borders are standard | | | | Voltage | 120VAC, 60Hz
3-wire motor mounted inside screen roller
1.1 amp | | Integrated Control | 3-position control switch
Standard motor with preset, accessible limit switches | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R/MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3/SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum; case allows for left or right-hand motor location | | Length | Not Specified by Manufacturer | | | | Shipping Weight | 115 lbs (52.2 kg) | | | | Package Weight | 112.0 lb | | Box Dimensions (LxWxH) | 139.0 x 13.0 x 11.0" |
