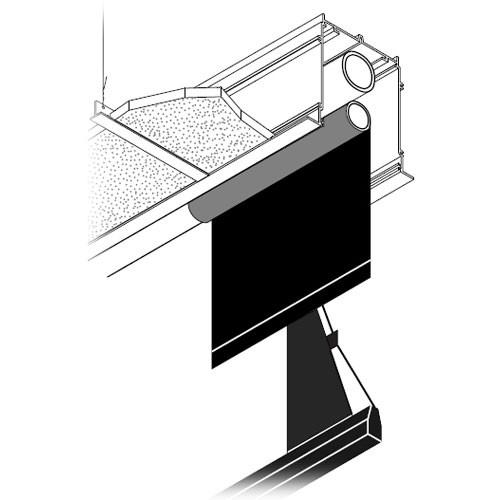

Product description The Draper 52 x 122" Access Multiview/Series E Motorized Masking Projection Screen System: Ceiling Recessed - Non-Tensioned - 132" Diagonal - CinemaScope Format (2.35:1 Aspect Ratio); Masks to: 52 x 92" - 106" Diagonal - HDTV Format (16:9 Aspect Ratio) - (Matte White) - This is a motorized projection screen with an independently motorized masking system installed in the same case for dual format projection. A flat black mask on a second motor-in-roller converts the screen to a 4:3 NTSC format by masking the right and left sides of the viewing surface. The height of the viewing surface remains constant. Both screen and masking system are independently controlled, each using any standard or optional control. Or, select AMV-C, a low voltage control that allows both motors to be controlled by independent 3-button switches in a single box. - A motorized screen and independently motorized masking system that provides dual formats; one front projection screen, two formats
- Select a projection screen in HDTV or WideScreen format
- Motor-in-roller converts the screen to a NTSC video format by masking the right and left sides of the viewing surface
- The height of the viewing surface remains constant
- Depending on surface, available in sizes through 133" diagonal HDTV format or 136" diagonal WideScreen format
- Available surfaces: Fiberglass Matt White, Glass Beaded, High Contrast Grey, AT Grey, AT1200
In the Box Draper 106083 Access Multiview/Series E Motorized Masking Projection Screen System (52 x 122" ) 2 x SS-1R Single Station Controls Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 106083 Access Multiview Series E Motorized Masking Projection Screen System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 106083 Specs | | | Style | Access Multiview/Series E | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | Matte White; flame and mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 52 x 122" (132 x 310cm) | | Diagonal | 132" (335.3cm) | | Format | CinemaScope | | Aspect Ratio | 2.35:1 | | Masking Options | CinemaScope Format: 52 x 122" (132 x 310cm) - 132" Diagonal - (2.35:1 Aspect Ratio) masks to: HDTV: 52 x 92" (132 x 233.7cm) - 106" Diagonal - (16:9 Aspect Ratio) | | | | Voltage | 110-120VAC, 60 Hz, 3-wire motor, 1.1 amp draw | | Integrated Control | Instantly reversible
Lifetime lubricated, with thermal overload protector and electric brake
Preset, accessible limit switches
Independent 3-position control switches to stop or reverse screen or masking at any point
Switches furnished with cover plates | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R/MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3/SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum | | Length | 143" (363.2cm) | | | | Shipping Weight | 160 lbs (72.6 kg) | | | | Package Weight | 110.0 lb | | Box Dimensions (LxWxH) | 153.0 x 13.0 x 11.0" |
