User Manual for Draper 107251FNLP Silhouette Series V 52 x 92" Motorized Screen with Plug & Play Motor and Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 107251FNLP Silhouette Series V 52
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 107251FNLP Silhouette Series V 52 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

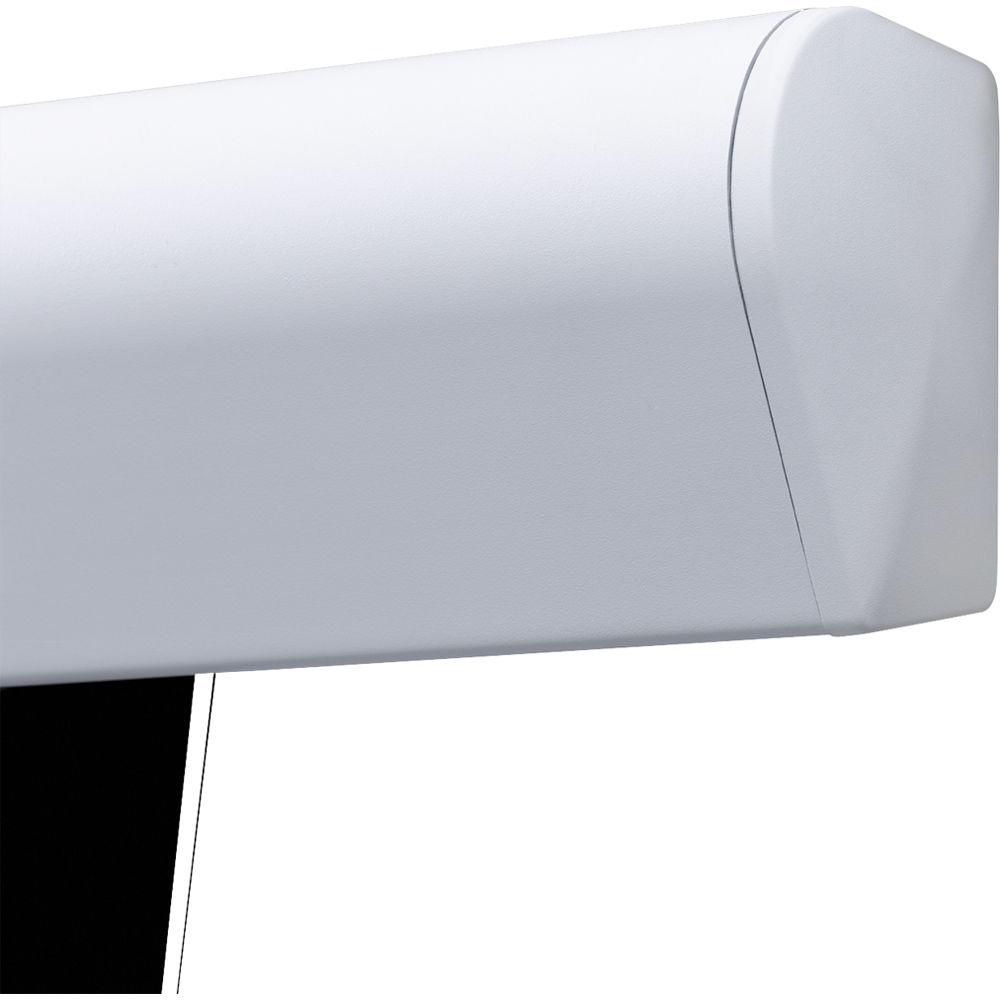

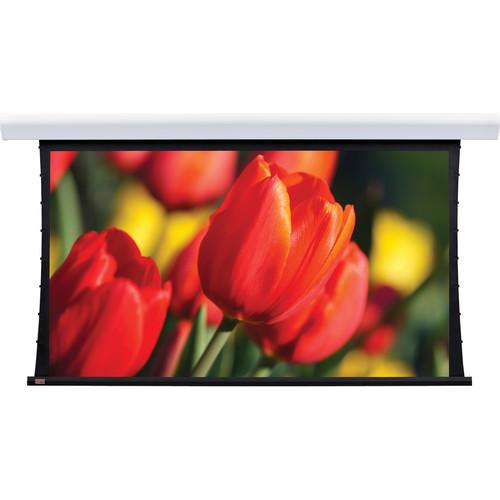

Product description The 120V 107251FNLP Silhouette/Series V 52 x 92" Motorized Screen with Plug & Play Motor and Low Voltage Controller from Draper supports wall or ceiling installation and features a tab-tensioning system. The sleek, curved aluminum case and endcaps are finished in white. The screen and dowel retract completely inside the case. - Pure White XT1300V Screen Surface
- Draper Pure White offers a 30% boost in brightness over a traditional matte white surface while still maintaining 180° viewing (90° half angle). Color does not shift when viewed from any angle, and the surface provides very good white field uniformity
- 12" Drop Standard
- 12" of extra drop is standard, helping ensure proper viewing height even in rooms with high ceilings
- Clean Cabling
- Conduit connection is provided at back or top
- Toolless Access
- The front fascia is removable without tools providing easy access to roller and motor for service

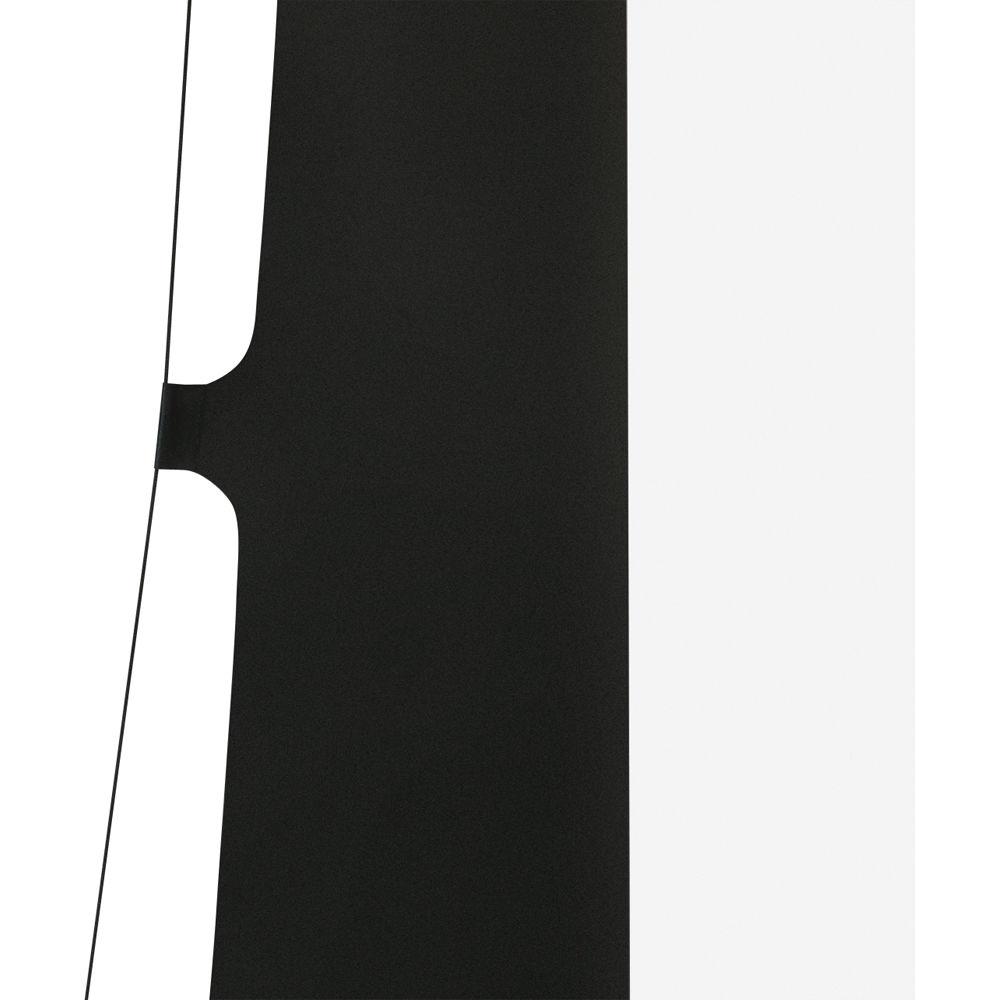

- Tab Tensioning
- The tab-tensioned design help ensure the surface stays perfectly flat
- Plug and Play Motor with Low Voltage Controller
- Plug and Play convenience allows you to plug-in the 10' power cord directly to a power outlet, eliminating the need to hire an electrician to wire the screen to a junction box. Low voltage control (LVC) enables control of the screen's motor using a third-party system, including direct connection to the projector, via a wall switch, or by integration with automation systems
In the Box Draper 107251FNLP Silhouette/Series V 52 x 92" Motorized Screen with Plug & Play Motor and Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 107251FNLP Silhouette Series V 52 x 92" Motorized Screen with Plug & Play Motor and Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 107251FNLP Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Wall and ceiling | | | | Viewing Area | 52.0 x 92.0" / 132.1 x 233.7 cm | | Diagonal | 106.0" / 269.2 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 180 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | No | | | | Motor | Standard | | Included Controls | Low voltage control | | | | Finish | Aluminum | | Length | 114.8" / 291.5 cm | | | | Voltage | 120 VAC/60 Hz | | Weight | 54.0 lbs / 24.5 kg, approximate |
