User Manual for Draper 108218EGLP Silhouette Series E 72 x 96" Motorized Screen with Plug & Play Motor and Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 108218EGLP Silhouette Series E 72
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
 |
User manual for the Draper 108218EGLP Silhouette Series E 72 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

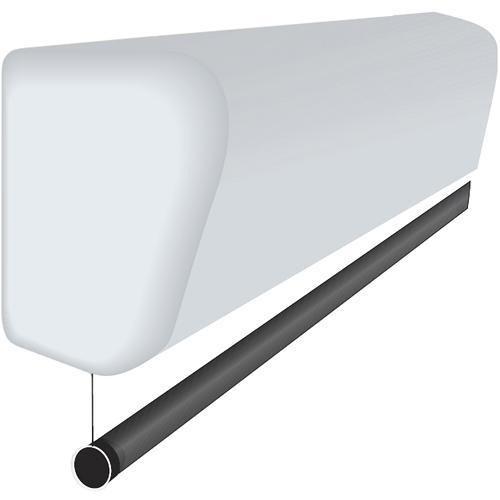

Product description The 120V 108218EGLP Silhouette/Series E 72 x 96" Motorized Screen with Plug & Play Motor and Low Voltage Controller from Draper supports wall or ceiling installation. The sleek, curved aluminum case and endcaps are finished in white. When not in use, the screen surface and dowel retract completely inside the case. - Contrast White XH1100E Screen Surface
- Provides a diffuse white coating over a grey base material, designed to yield a surface with the best qualities of both matt white and contrast grey screen fabrics. Recommended for use with low to moderate light output digital projectors, where some provision for light control exists. Improves the quality of blacks without affecting whites. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. Flame and mildew resistant
- Clean Cabling
- Conduit connection is provided at back or top
- Toolless Access
- The front fascia is removable without tools, providing easy access to roller and motor for service
- Plug and Play Motor with Low Voltage Controller
- Plug and Play convenience allows you to plug-in the 10' power cord directly to a power outlet, eliminating the need to hire an electrician to wire the screen to a junction box. Low voltage control (LVC) enables control of the screen's motor using a third-party system, including direct connection to the projector, via a wall switch, or by integration with automation systems
In the Box Draper 108218EGLP Silhouette/Series E 72 x 96" Motorized Screen with Plug & Play Motor and Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 108218EGLP Silhouette Series E 72 x 96" Motorized Screen with Plug & Play Motor and Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 108218EGLP Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 4:3 | | Style | Wall and ceiling | | | | Viewing Area | 72.0 x 96.0" / 182.9 x 243.8 cm | | Diagonal | 120.0" / 304.8 cm | | | | Gain | 1.1 | | Viewing Angle | 180 degrees | | Black Backing | Yes | | | | Motor | Standard | | Included Controls | Low voltage control | | | | Finish | Aluminum | | Length | 108.0" / 274.3 cm | | | | Voltage | 120 VAC/60 Hz | | Weight | 48.0 lbs / 21.8 kg, approximate |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
