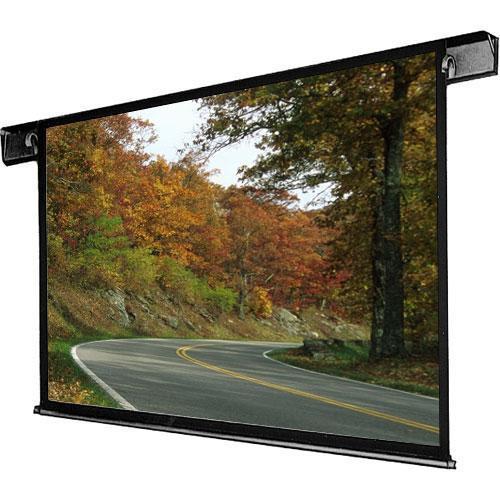

User Manual for Draper 112012Q Envoy Motorized Front Projection Screen with Quiet Motor Click to enlarge the picture
Contents of the user manual for the Draper 112012Q Envoy Motorized Front Projection
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
 |
User manual for the Draper 112012Q Envoy Motorized Front Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

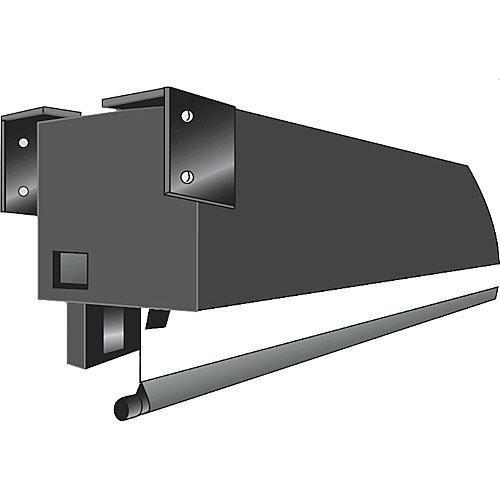

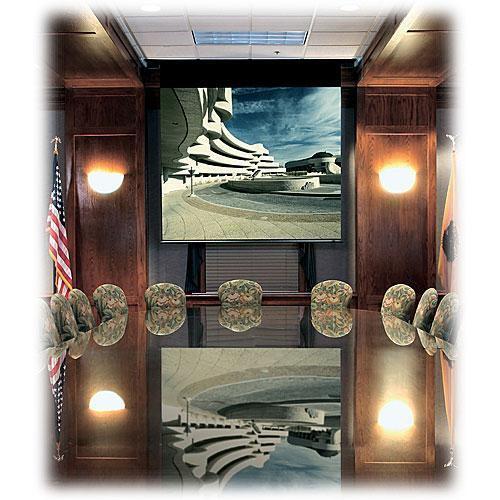

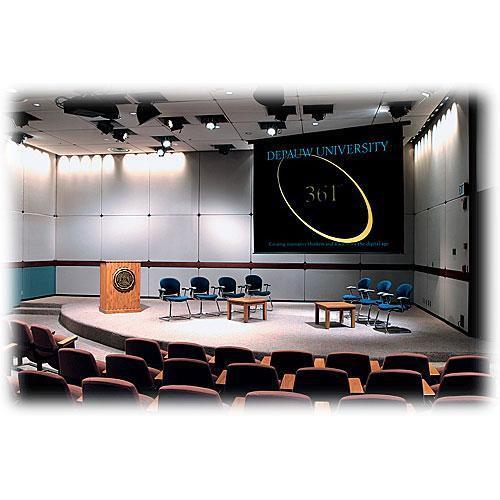

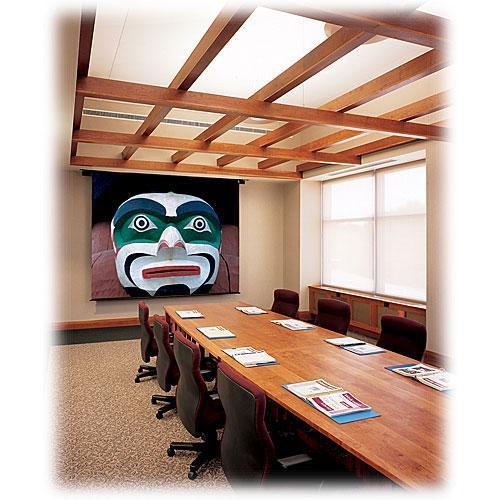

Product description The Draper 12 x 12' Envoy Motorized Front Projection Screen with Quiet Motor - Ceiling Recessed - Non-Tensioned Square/Audio-Visual Format (1:1 Aspect Ratio) (Matte White) is designed for recessed installation in conference rooms and meeting rooms, executive facilities and training centers. Draper has fashioned this screen to add a touch of class to what would be an ordinary venue. The ceiling closure can be finished by the contractor to match the ceiling. The motor is mounted inside the roller on special vibration insulators. With the flip of a switch, the screen is lowered and raised with ease. The smooth and silent motor is complimented by the sleek and stylish design of the unit. This screen is available in a choice of surface finishes to suit your projection needs.
Screen Surface - Front projection screen, hidden when not in use
- Motor-in-roller operation
- Automatic ceiling closure can easily be finished to match ceiling
- Easy installation above most ceilings
- Operates smoothly and silently, even after years of service
- With control options, this projection screen can be operated from any remote location
- NTSC, HDTV and WideScreen format screens have black borders on all four sides. Depending on surface, available in sizes through 12 x 12' and 15' NTSC
In the Box Draper 112012Q Envoy Motorized Front Projection Screen (12 x 12' ) with Quiet Motor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 112012Q Envoy Motorized Front Projection Screen with Quiet Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 112012Q Specs | | | Style | Envoy with Quiet Motor | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | Matte White; fire and mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 12 x 12' (3.7 x 3.7m) | | Image Size | 12 x 12' (3.7 x 3.7m) | | Diagonal | Not Applicable | | Format | Square/Audio-Visual | | Aspect Ratio | 1:1 | | Masking Options | Black masking borders are optional for Square/A/V format Standard for all other formats | | | | Voltage | 110-120VAC, 60 Hz, 3-wire motor mounted inside screen roller, 1.1 amp
Lifetime lubricated, with internal thermal overload protector and electric brake
Preset, accessible limit switches
Left side motor location only | | Integrated Control | Three-position control switch, complete with cover plate
Preset, accessible limit switches | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | Flat black primer | | Material | Case of .75" warp-resistant composition wood
Wiring compartment metal lined | | Length | 159" (404cm) | | | | Shipping Weight | Net: 130 lbs (59 kg) |
