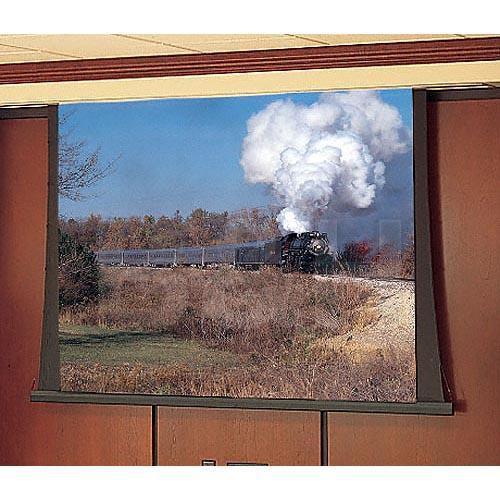

Product description Choose the Draper 146 x 260" Paragon Motorized Projection Screen - Wall/Ceiling Mounted - Non-Tensioned - Front Projection - 300" Diagonal - HDTV Format (16:9 Aspect Ratio) (Matte White) for auditoriums, lecture halls and any setting for even the largest audiences. Designed for large venues, the Paragon comes with a sound absorbing fixture. This large screen rises and falls with the flip of a switch. The redesigned case of white extruded aluminum can be suspended anywhere, with controls wherever they're needed. Your choice of a conventional viewing surface: fiberglass matte white or glass beaded. Screen Surfaces - Ideal for auditoriums and lecture halls
- Motor is installed on special vibration insulators inside a 6" diameter steel roller
- Case is made of aluminum and fire-retardant hardboard
- Can be suspended almost anywhere
- Surface has unobtrusive horizontal seams
- Depending on surface, available in sizes through 21 x 28', or 24 x 24' and 35' NTSC
- With control options, it can be operated from any remote location
- NTSC format screens have black borders on all four sides
- Optionally available in HDTV and WideScreen format
In the Box Draper 114210 Paragon Motorized Projection Screen (146 x 260") Limited 1-Year Warranty Brochure PDF 869.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 114210 Paragon Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 114210 Specs | | | Style | Paragon | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | Matte White; flame and mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 151 x 264" (383.5 x 670.6cm) | | Image Size | 146 x 260" (371 x 660.4cm) | | Diagonal | 300" (762cm) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | NTSC (video) format screens have black borders on all four sides | | | | Voltage | 110-120VAC, 60 Hz, 3-wire motor mounted inside screen roller, 2.5 amp draw | | Integrated Control | Three-position control switch stops or reverses screen at any point
Instantly reversible, lifetime lubricated, with internal thermal overload protector and mechanical brake
Left hand motor location only | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum; fire-retardant hardboard | | Length | Not Specified by Manufacturer | | | | Shipping Weight | 850 lbs (385.6 kg) | | | | Package Weight | 950.0 lb | | Box Dimensions (LxWxH) | 288.0 x 24.0 x 19.0" |
