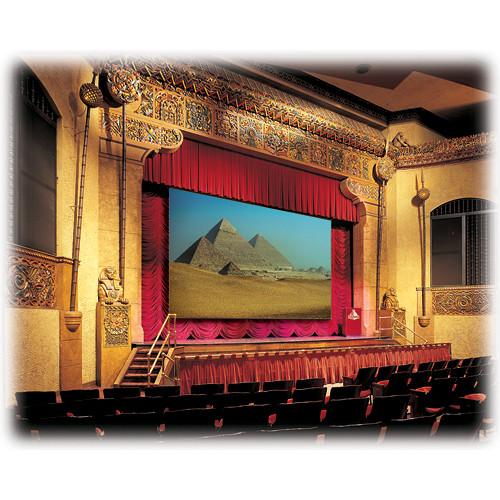

User Manual for Draper 114232 Paragon Series E Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 114232 Paragon Series E Motorized
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
|
User manual for the Draper 114232 Paragon Series E Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The Draper 207.5 x 332" Paragon/Series E Motorized Projection Screen is designed for auditoriums, lecture halls or any setting. It can handle even the largest audiences. The Paragon features a special insulation system that facilitates quiet operation. The motor inside the 6" steel roller minimizes vibrations. The aluminum case is durable and manufactured for heavy usage. This large screen rises and falls with the flip of a switch. The redesigned case of white extruded aluminum can be suspended anywhere with controls wherever they're needed. Your choice of a conventional viewing surface: fiberglass matte white or glass beaded. Screen Surfaces - Ideal for auditoriums and lecture halls
- Motor is installed on special vibration insulators inside a 6" diameter steel roller
- Case is made of aluminum and fire-retardant hardboard
- Can be suspended almost anywhere
- Surface has unobtrusive horizontal seams
- Depending on surface, available in sizes through 21 x 28', or 24 x 24' and 35' NTSC
- With control options, it can be operated from any remote location
- NTSC format screens have black borders on all four sides
- Optionally available in HDTV and WideScreen format
In the Box Draper 114232 Paragon/Series E Motorized Projection Screen (207.5 x 332") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 114232 Paragon Series E Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 114232 Specs | | | Style | Paragon/Series E | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | Matte White; flame and mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 212.5 x 336" (5.4 x 8.5 m) | | Image Size | 207.5 x 332" (5.3 x 8.4 m) | | Diagonal | 381" (9.7 m) | | Format | 16:10 | | Aspect Ratio | 16:10 | | Masking Options | NTSC (video) format screens have black borders on all four sides | | | | Voltage | 110-120VAC, 60Hz, 3-wire motor mounted inside screen roller, 2.5 amp draw | | Integrated Control | Three-position control switch stops or reverses screen at any point
Instantly reversible, lifetime lubricated, with internal thermal overload protector and mechanical brake
Left hand motor location only | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum; fire-retardant hardboard | | Length | 346" (8.8 m) | | | | Shipping Weight | 1220 lbs (553.4kg) | | | | Package Weight | 1220.0 lb | | Box Dimensions (LxWxH) | 360.0 x 25.0 x 19.0" |
