User Manual for Draper 114602 Paragon Series V Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 114602 Paragon Series V Motorized
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
|
User manual for the Draper 114602 Paragon Series V Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

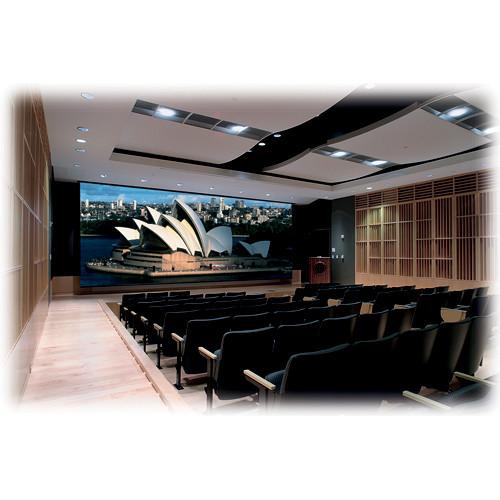

Product description Choose the Draper 180 x 240" Paragon/Series V Motorized Projection Screen for auditoriums, lecture halls and any setting for even the largest audiences. It is designed for large venues and comes with a sound absorbing fixture. The motor is quite strong and manufactured for heavy usage. This large and stylish screen rises and falls with the flip of a 3-position switch (included). The case of white extruded aluminum can be suspended anywhere, with controls wherever they're needed. You also have a choice of conventional viewing surfaces: M1300, M2500, HiDef Grey, Cineflex, Low Gain Cineflex, and Uniflex.Screen Surfaces - Plenum rated case (UL approved - "Suitable for Use in Environmental Air Space")
- Ideal for auditoriums and lecture halls
- Motor is installed on special vibration insulators inside a 6" diameter steel roller
- Case is made of aluminum and fire-retardant hardboard
- Can be suspended almost anywhere
- Surface has unobtrusive horizontal seams
- Depending on surface, available in sizes through 21 x 28', or 24 x 24' and 35' NTSC
- With control options, it can be operated from any remote location
- NTSC format screens have black borders on all four sides
In the Box Draper 114602 Paragon/Series V Motorized Projection Screen (180 x 240") 3-Position Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 114602 Paragon Series V Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 114602 Specs | | | Style | Paragon/Series V | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | M1300; flame and mildew resistant | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 180 x 240" (4.6 x 6.1 m) | | Diagonal | 300" (7.6 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | Black Borders: Image area framed with black on all four sides. 12" black drop at top of viewing surface (standard) | | | | Voltage | 110-120VAC, 60Hz, 3-wire motor mounted inside screen roller, 2.5 amp draw | | Integrated Control | Three-position control switch stops or reverses screen at any point
Instantly reversible, lifetime lubricated, with internal thermal overload protector and mechanical brake
Left hand motor location only | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum; fire-retardant hardboard | | Length | Not Specified by Manufacturer | | | | Shipping Weight | 820 lbs (372kg) | | | | Package Weight | 820.0 lb | | Box Dimensions (LxWxH) | 280.0 x 24.0 x 18.0" |
