User Manual for Draper 115244 Rolleramic Electric Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 115244 Rolleramic Electric Projection Screen
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 115244 Rolleramic Electric Projection Screen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

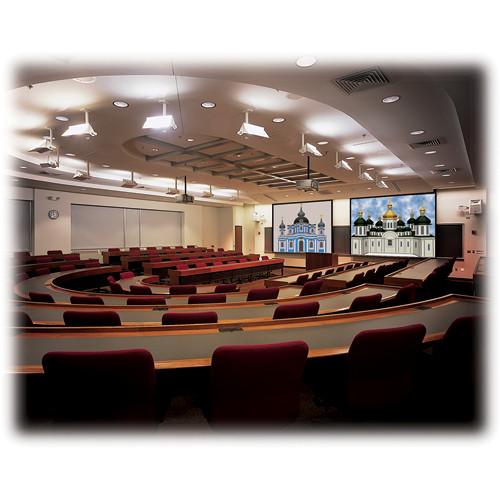

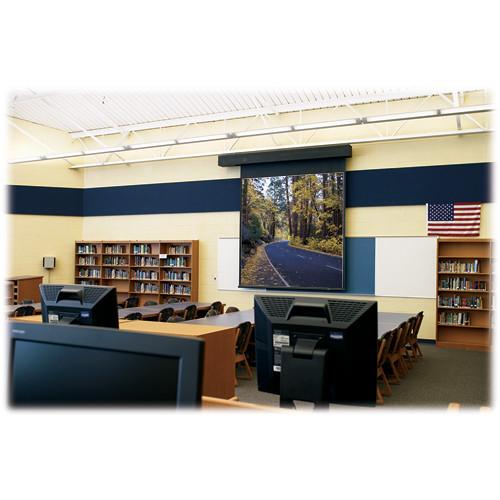

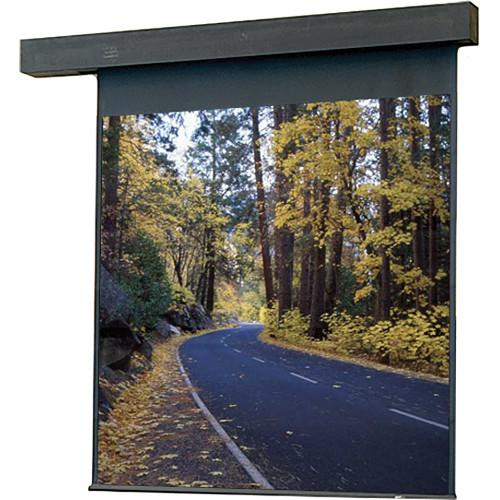

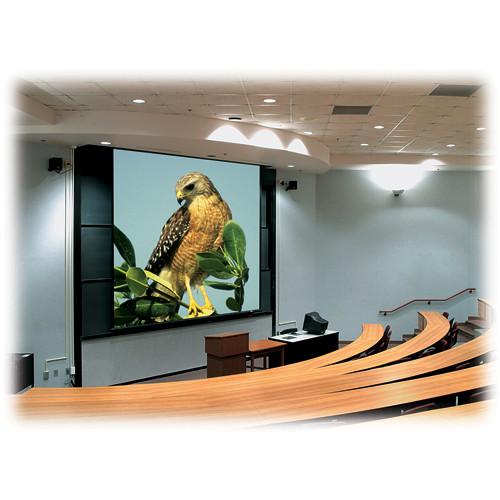

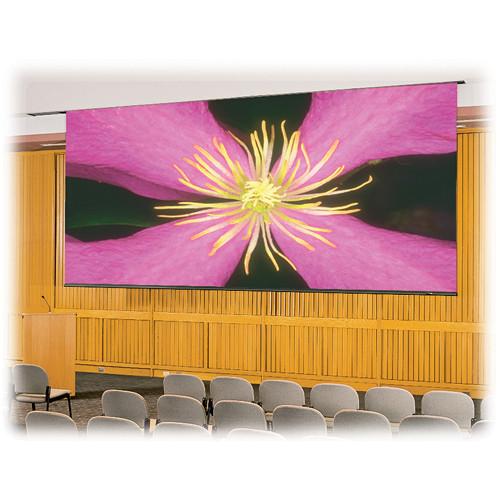

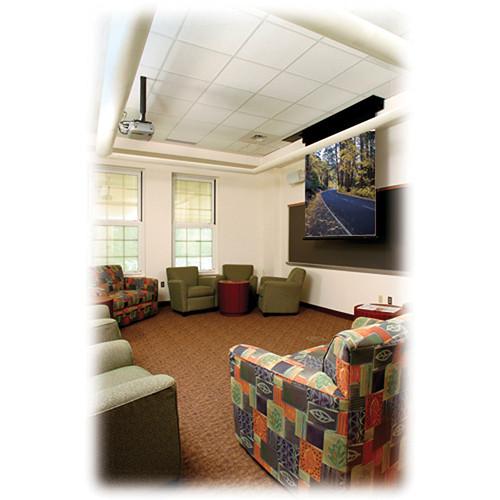

Product description The Draper Rolleramic Electric Projection Screen is an excellent choice when you need a reliable and motorized screen for an auditorium or other such large venue. Whether you run a hospital, school church or learning center, the Rolleramic will serve you well. The stylish wood case can be painted to match its surroundings. In addition, the internal motor is designed with "dampers" so that any noise is kept to an absolute minimum. This is a large screen that is suitable for heavy duty use. A wide variety of remote options are available ranging from key operation to Infrared and RF controls.Draper products include rear projection display systems, video projector mounts and lifts, plasma display mounts, presentation easels and communication support furniture. Draper products are shipped to dealers throughout the United States and more than 75 foreign countries. Note: The Rolleramic is not available with the TorkStar Utility Line Set - All-wood case may be recessed in the ceiling or painted to match its surroundings
- The viewing surface is concealed when not in use; Lower it to any position at the touch of a switch
- With control options, it can be operated from any remote location
- The direct drive module is mounted on rubber vibration insulators
- Your choice of a conventional viewing surface: Matte White, Glass Beaded or HighContrast Gray
- NTSC format screens have black borders on all four sides
- Depending on surface, available in sizes through 20' x 20' and 25' NTSC
- Optionally available in HDTV and WideScreen format
In the Box Draper 115244 Rolleramic Electric Projection Screen (45 x 80") Universal Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 115244 Rolleramic Electric Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 115244 Specs | | | Style | Rolleramic | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | Matte White | | Tension Control | Non-Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 57 x 83.5" (1.5 x 2.1 m) | | Image Size | 45 x 80" (1.1 x 2.0 m) | | Diagonal | 92" (2.3 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Borders are optional for AV format screens and standard for all other format screens | | | | Voltage | 120V, 60Hz | | Integrated Control | Wall switch | | Control Options | Low Voltage Control Module LVC-III
LVC-III & LVC-S
Low Voltage Control with 2 Switches LVC-III, 2 LVC-S
Low Voltage Control Station LVC-S
RF transmitter
Wireless Transmitter, RF type, WRT
3-Position Key Control Switch KS-3
KS-1 Key operation
SP-KPS-I Locking Switch Cover Plate
MS-3R/MS-4R (Triple throw switch)
Infrared control
LVC-S with Locking Cover (Low Voltage)
MC1 Multiple Input Control
MC1 & IRT/R
MC1 & LS100 Control Board and Ethernet to Serial Bridge | | | | Color | The case can be painted to match your environment/ceiling | | Material | Wood | | Length | 108" (2.7 m) | | | | Shipping Weight | 138 lbs (62.6kg) | | | | Package Weight | 146.0 lb | | Box Dimensions (LxWxH) | 127.0 x 12.0 x 11.0" |
