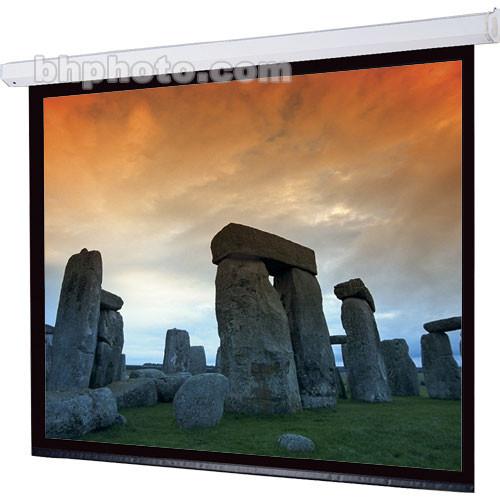

User Manual for Draper 116003 Targa 70 x 70" Motorized Screen Click to enlarge the picture
Contents of the user manual for the Draper 116003 Targa 70 x 70"
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
 |
User manual for the Draper 116003 Targa 70 x 70" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The 120V 116003 Targa 70 x 70" Motorized Screen from Draper supports both ceiling and wall mounting. It is suitable for auditoriums and lecture halls, hospitals, hotels, churches, boardrooms, and conference rooms. The motor is mounted inside the roller, for a trim and balanced appearance. Its pentagonal steel case is scratch-resistant, featuring a white polyester finish with matching endcaps. - Matt White XT1000E Screen Surface
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally, it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
- Motor-in-Roller Design
- The motor is mounted inside the roller on special vibration insulators
- One-Press Operation
- The screen operates at the touch of a button and stops automatically in the "up" and "down" positions
- Ceiling-Recessed Option
- A ceiling trim kit (available separately) can be used to fully conceal the casing for ceiling-recessed installation
UPC: 641092119708 In the Box Draper 116003 Targa 70 x 70" Motorized Screen (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 116003 Targa 70 x 70" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 116003 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 1:1 | | Style | Wall and ceiling | | | | Viewing Area | 70 x 70" / 177.8 x 177.8 cm | | Diagonal | 98.1" / 249.2 cm | | | | Gain | 1.0 | | Viewing Angle | 180° | | Screen Surface | Matt White XT1000E | | | | Motor | Standard | | Included Controls | None | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 91.0 x 11.0 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
