User Manual for Draper 116009QLP Targa Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 116009QLP Targa Motorized Projection Screen
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
 |
User manual for the Draper 116009QLP Targa Motorized Projection Screen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

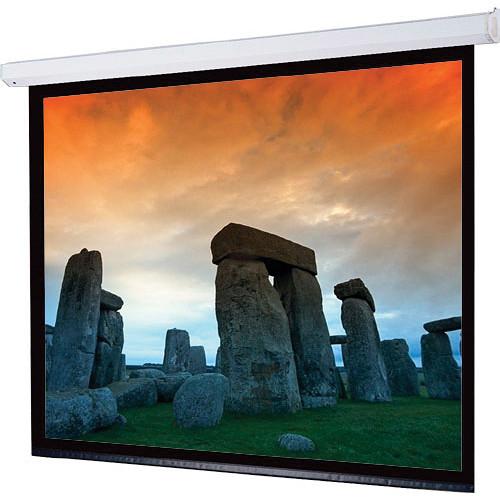

Product description The Draper 8 x 10' Targa Motorized Front Projection Screen is ideal for any large venue such as a corporate boardroom, hospital, lecture hall, or hotel media facility. The beauty of the Targa is that it can be centered within its case for a neater, finished appearance. The motor is mounted inside the roller on special vibration insulators so operating noise is dramatically reduced. It has a trim, balanced look to it. The pentagonal steel case has a scratch-resistant white polyester finish with matching endcaps. The screen operates instantly at the touch of a button, and stops automatically in the "up" and "down" positions. To operate projection screens from one or more locations, a control system is required. The Low Voltage Control System was designed specifically for that purpose. It features ease of installation and operates at the touch of a button from a switch or transmitter. Generally, the screen can be controlled in four different ways: Low Voltage Switch Control, 2.Radio Frequency Remote Control, 3.Infrared Remote Control, Auxiliary Control. Screen Surface Note: This screen is also available with a Plug & Play option. - Available in 16:10 and 15:9 laptop presentation formats
- Ideal for lecture rooms and conference rooms, classrooms, and churches

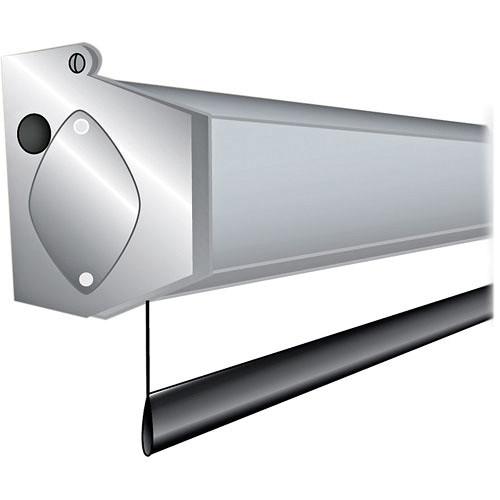

- Case has a scratch-resistant, white polyester finish with matching endcaps
- Available with an optional white ceiling trim kit, for ceiling recessed installation
- Viewing surface can be lowered to any position at the touch of a switch
- NTSC, HDTV and Widescreen format screens have black borders on all four sides
- With control options, it can be operated from any remote location
- Depending on surface, available in sizes through 12 x 12' and 15' NTSC
In the Box Draper 116009QLP Targa Motorized Projection Screen (8 x 10') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 116009QLP Targa Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 116009QLP Specs | | | Style | Targa With Low Voltage Controller | | Front/Rear Projection | Front | | Mount | Wall or Ceiling | | Finish | Matte White; mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 96 x 120" (2.4 x 3.0 m) | | Image Size | 8 x 10' (2.4 x 3 m) | | Diagonal | 154" (3.9 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | Only NTSC, HDTV and Widescreen format screens have black borders on all four sides
Available with optional white ceiling trim kit for ceiling recessed installation | | | | Voltage | 110-120VAC, 60Hz, with 1.1 amp draw
Motor mounted inside screen roller, 3-wire, instantly reversible, lifetime lubricated | | Integrated Control | 3-position control switch to stop or reverse screen at any point
Equipped with internal thermal overload protector and electric brake
Motor mounted on rubber vibration insulators
Pre-set, accessible limit switch
Switch furnished complete with cover-plate | | Control Options | Single Station Control (SS-1R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Video Interface Control | | | | Color | Flat back design and scratch-resistant white polyester finish | | Material | 22-gauge steel | | Length | 127" (3.2 m) | | | | Shipping Weight | Net: 72 lb (32.7kg) | | | | Package Weight | 74.0 lb | | Box Dimensions (LxWxH) | 138.0 x 11.0 x 11.0" |
