User Manual for Draper 116015EGU Targa 60 x 80" Motorized Screen with LVC-IV Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 116015EGU Targa 60 x 80"
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
 |
User manual for the Draper 116015EGU Targa 60 x 80" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

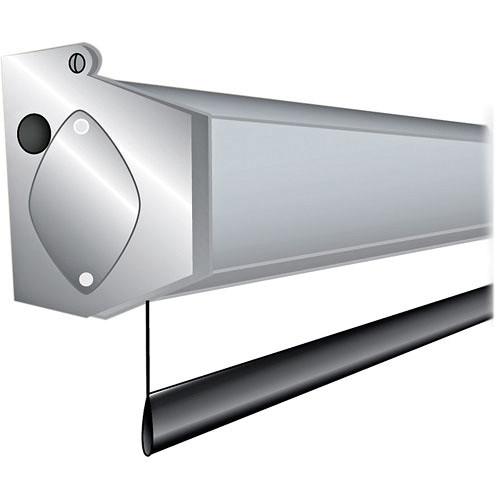

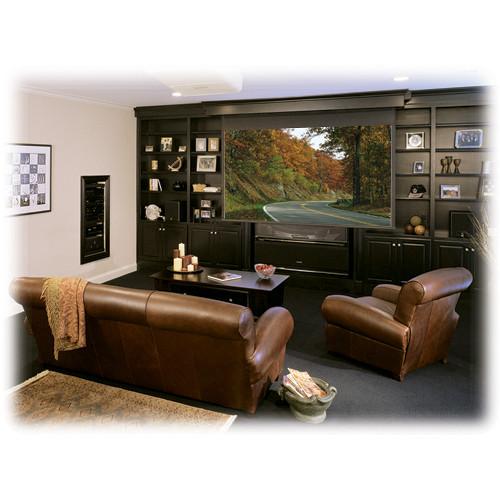

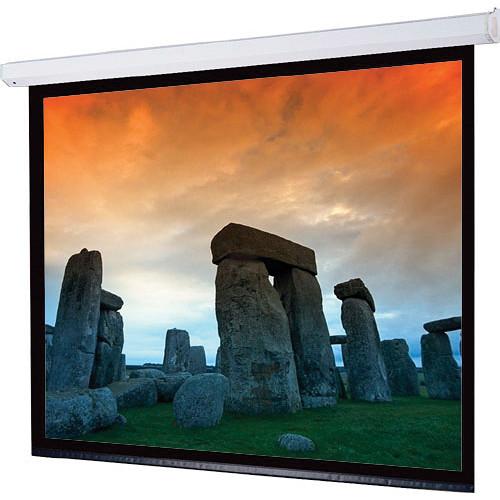

Product description The 120V 116015EGU Targa 60 x 80" Motorized Screen with LVC-IV Low Voltage Controller from Draper supports both ceiling and wall mounting. It is suitable for auditoriums and lecture halls, hospitals, hotels, churches, boardrooms, and conference rooms. The motor is mounted inside the roller, for a trim and balanced appearance. Its pentagonal steel case is scratch-resistant, featuring a white polyester finish with matching endcaps. - Contrast White XH1100E Screen Surface
- Provides a diffuse white coating over a grey base material, designed to yield a surface with the best qualities of both matt white and contrast grey screen fabrics. Recommended for use with low to moderate light output digital projectors, where some provision for light control exists. Improves the quality of blacks without affecting whites. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. Flame and mildew resistant
- Motor-in-Roller Design
- The motor is mounted inside the roller on special vibration insulators
- One-Press Operation
- The screen operates at the touch of a button and stops automatically in the "up" and "down" positions
- Ceiling-Recessed Option
- A ceiling trim kit (available separately) can be used to fully conceal the casing for ceiling-recessed installation
Included Options - LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 116015EGU Targa 60 x 80" Motorized Screen with LVC-IV Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 116015EGU Targa 60 x 80" Motorized Screen with LVC-IV Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 116015EGU Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 4:3 | | Style | Wall and ceiling | | | | Viewing Area | 60 x 80" / 152.4 x 203.2 cm | | Diagonal | 100" / 254 cm | | | | Gain | 1.1 | | Viewing Angle | 180° | | Screen Surface | Contrast White XH1100E | | | | Motor | Standard | | Included Controls | Low voltage control |
