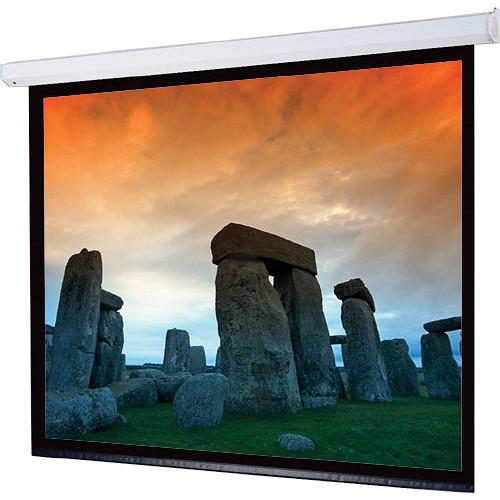

Product description The 120V 116278EJQU Targa 31.75 x 56.5" Motorized Screen with LVC-IV Low Voltage Controller and Quiet Motor from Draper supports both ceiling and wall mounting. It is suitable in a wide range of environments, including auditoriums, lecture halls, hospitals, hotels, churches, boardrooms, and conference rooms. The motor is mounted inside the roller, for a trim and balanced appearance. Its pentagonal steel case is scratch-resistant, featuring a white polyester finish with matching endcaps. - Pearl White CH1900E Screen Surface
- Matt white surface with pearlescent surface coating providing a gain of 1.9. Offers high resolution, color balance and uniformity. Tolerates a higher ambient light level than many front projection screen surfaces. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. Moderate viewing cone. Flame and mildew resistant
- Motor-in-Roller Design
- The motor is mounted inside the roller on special vibration insulators
- One-Press Operation
- The screen operates at the touch of a button and stops automatically in the "up" and "down" positions
- Ceiling-Recessed Option
- A ceiling trim kit (available separately) can be used to fully conceal the casing for ceiling recessed installation
Included Options - LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
- Quiet Motor
- Produces less noise when the screen is lowered or raised. Ideal for boardrooms, lecture halls, or other settings where the screen may need to raised or lowered during the event
In the Box Draper 116278EJQU Targa 31.75 x 56.5" Motorized Screen with LVC-IV Low Voltage Controller and Quiet Motor (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 116278EJQU Targa 31.75 x 56.5" Motorized Screen with LVC-IV Low Voltage Controller and Quiet Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 116278EJQU Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Wall and ceiling | | | | Viewing Area | 31.8 x 56.5" / 80.8 x 143.5 cm | | Diagonal | 65" / 165.1 cm | | | | Gain | 1.9 | | Viewing Angle | 46° | | Screen Surface | Pearl White CH1900E | | | | Motor | Quiet | | Included Controls | Low voltage control | | | | Finish | Scratch-resistant white polyester on steel | | Length | 66.5" / 168.9 cm |
