Draper 116280 Targa 40.5 x 72"

Search your instruction manual in PDF to download

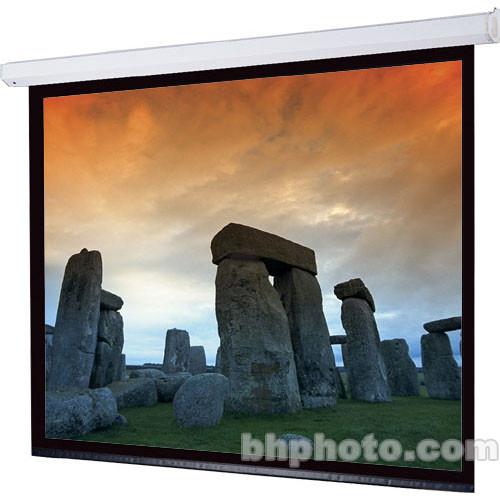

User Manual for Draper 116280 Targa 40.5 x 72" Motorized Screen

Click to enlarge the picture
Draper 116280 Targa 40.5 x 72" Motorized Screen Contents of the user manual for the Draper 116280 Targa 40.5 x 72"
  • Product category: Electric Screens (Wide Formats) Draper
  • Brand: Draper
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Draper Electric Screens (Wide Formats)

Draper 116280 Targa 40.5 x 72" Motorized Screen Draper 116280 Targa 40.5 x 72" Motorized Screen
User manual for the Draper 116280 Targa 40.5 x 72" contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Draper product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!



Product description

The 120V 116280 Targa 40.5 x 72" Motorized Screen from Draper supports both ceiling and wall mounting. It is suitable in a wide range of environments, including auditoriums, lecture halls, hospitals, hotels, churches, boardrooms, and conference rooms. The motor is mounted inside the roller, for a trim and balanced appearance. Its pentagonal steel case is scratch-resistant, featuring a white polyester finish with matching endcaps.
    Matt White XT1000E Screen Surface
  • Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally, it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
    Motor-in-Roller Design
  • The motor is mounted inside the roller on special vibration insulators
    One-Press Operation
  • The screen operates at the touch of a button and stops automatically in the "up" and "down" positions
    Ceiling-Recessed Option
  • A ceiling trim kit (available separately) can be used to fully conceal the casing for ceiling recessed installation
In the Box Draper 116280 Targa 40.5 x 72" Motorized Screen (120V)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Draper 116280 Targa 40.5 x 72" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Draper 116280 Specs

    Front/Rear Projection Front
    Aspect Ratio 16:9
    Style Wall and ceiling
    Viewing Area 40.5 x 72" / 102.9 x 182.9 cm
    Diagonal 82" / 208.3 cm
    Gain 1.0
    Viewing Angle 180°
    Screen Surface Matt White XT1000E
    Motor Standard
    Included Controls None
    Finish Scratch-resistant white polyester on steel
    Length 81" / 205.7 cm
    Voltage 120 VAC/60 Hz
    Package Weight 53.0 lb
    Box Dimensions (LxWxH) 92.0 x 11.0 x 11.0"

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 78 owners. Add your rating and experience with the product.
