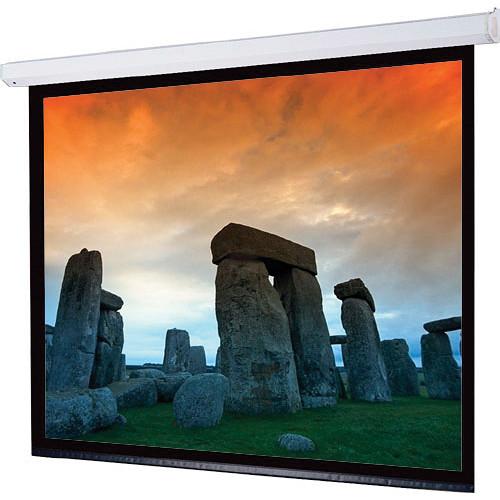

User Manual for Draper 116300EHLP Targa 45 x 80" Motorized Screen with Plug & Play Motor and Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 116300EHLP Targa 45 x 80"
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 116300EHLP Targa 45 x 80" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The 120V 116300EHLP Targa 45 x 80" Motorized Screen with Plug & Play Motor and Low Voltage Controller from Draper supports both ceiling and wall mounting. It is suitable in a wide range of environments, including auditoriums, lecture halls, hospitals, hotels, churches, boardrooms, and conference rooms. The motor is mounted inside the roller, for a trim and balanced appearance. Its pentagonal steel case is scratch-resistant, featuring a white polyester finish with matching endcaps. - Argent White XH1500E Screen Surface
- Matte white base material with luminous coating providing a gain of 1.5. Offers high reflectivity, while maintaining a broad viewing cone. Provides clear resolution and color balance. Consider for use with moderate light output projectors in situations where ambient light cannot be adequately controlled. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. Flame and mildew resistant
- Motor-in-Roller Design
- The motor is mounted inside the roller on special vibration insulators
- One-Press Operation
- The screen operates at the touch of a button and stops automatically in the "up" and "down" positions
- Ceiling-Recessed Option
- A ceiling trim kit (available separately) can be used to fully conceal the casing for ceiling recessed installation
Included Options - Plug and Play Motor with Low Voltage Controller
- Plug and Play eliminates the need for an external low voltage control module. The controller includes 10' power cord instead of pigtails
In the Box Draper 116300EHLP Targa 45 x 80" Motorized Screen with Plug & Play Motor and Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 116300EHLP Targa 45 x 80" Motorized Screen with Plug & Play Motor and Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 116300EHLP Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Wall and ceiling | | | | Viewing Area | 45.0 x 80.0" / 114.3 x 203.2 cm | | Diagonal | 92.0" / 233.7 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.5 | | Viewing Angle | 180 degrees | | Masking | All four sides | | Black Backing | Yes | | | | Finish | Steel | | Length | 90.5" / 229.9 cm | | | | Voltage | 120 VAC/60 Hz | | Weight | 40.0 lb / 18.1 kg, approximate |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
