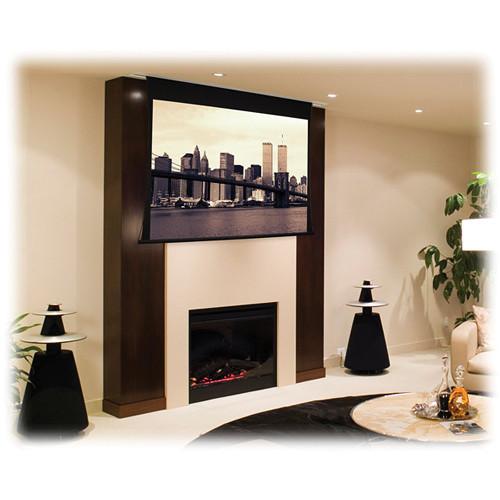

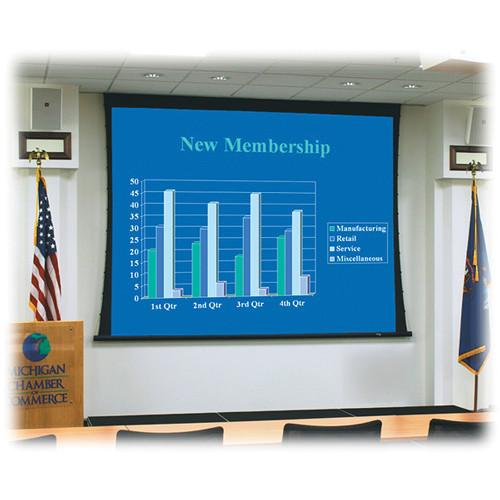

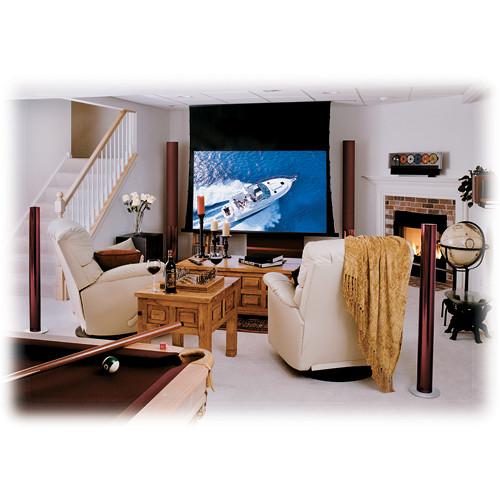

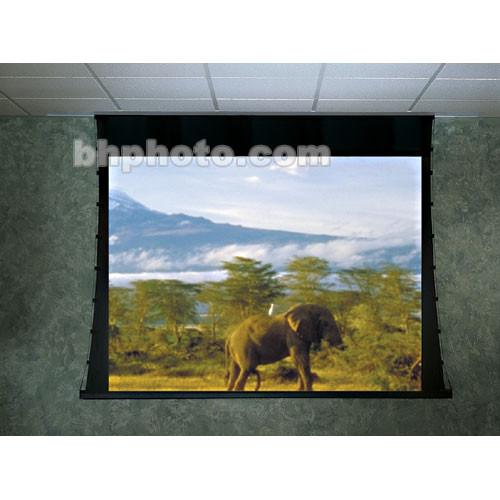

Product description The Draper 45 x 80" Ultimate Access/Series V Motorized Projection Screen gives you the freedom to design a media room, lecture hall, library or corporate boardroom without having to purchase a complete screen system at the outset. The beauty of the Ultimate Access is that you can install the screen "box" during initial construction but reserve the choice of a screen surface until your room is finished. This ceiling recessed screen has a big advantage over other types of screens since it does not commit you to the expense of a screen surface that you may decide is unnecessary down the road. However, once installed, should you choose to change the screen surface at some point, it is a relatively inexpensive endeavor. The flexibility of being able to switch screen surfaces is a time and money-saver. It eliminates the need to buy another complete screen system. The Ultimate Access/V has several remote control options which make it a great choice for schools, lecture halls, libraries and corporate environments. When not needed, the screen retracts neatly into its case, closes up inside the independently controlled closure and disappears into the ceiling.Screen Surfaceswxyevsdu - At the touch of a switch or wireless transmitter, the door of the Ultimate Access opens into the case before the viewing surface descends into the room. Your audience will be impressed by its precision timing and quiet, fluid movement.
- You can install the case first and the screen later
- Motor-in-roller operation
- Draper's Tab-Tensioning System keeps the screen flat, providing the best possible picture
- 12" extra drop is standard
- An independently motorized ceiling closure
- In its closed position the motorized closure forms a solid bottom panel, giving the ceiling a clean appearance
- With control options, it can be operated from any remote location
In the Box Draper 118196 Ultimate Access/Series V Motorized Projection Screen (45 x 80") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 118196 Ultimate Access Series V Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 143018 Specs | | | Style | Ultimate Access/Series V | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | M1300; flame and mildew resistant | | Tension Control | Tab-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 45 x 80" (1.1 x 2.0 m) | | Diagonal | 92" (2.3 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | 12" extra drop is standard | | | | Voltage | 110-120VAC, 60Hz. 5-wire motor mounted inside screen roller, 1.1 amp | | Integrated Control | 3-position control switch
Instantly reversible
Lifetime lubricated, with internal thermal overload protector and electric brake
Left side only
Preset, accessible limit switches | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum | | Length | 106" (2.7 m) | | | | Shipping Weight | Net: 103 lb (46.7kg) | | | | Package Weight | 122.0 lb | | Box Dimensions (LxWxH) | 124.0 x 13.0 x 12.0" |
