User Manual for Draper 118197FNQ 52 x 92" Ultimate Access Series V Ceiling-Recessed Screen with Quiet Motor Click to enlarge the picture
Contents of the user manual for the Draper 118197FNQ 52 x 92" Ultimate
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 118197FNQ 52 x 92" Ultimate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

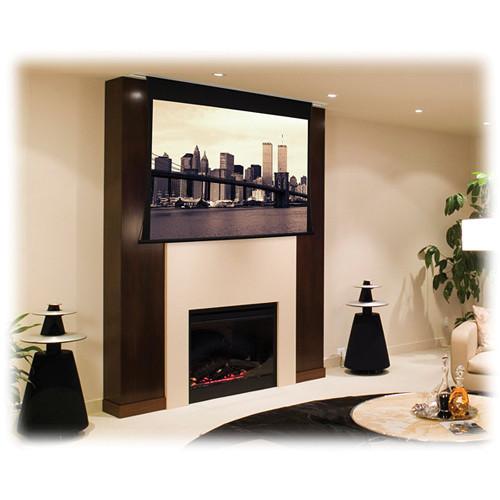

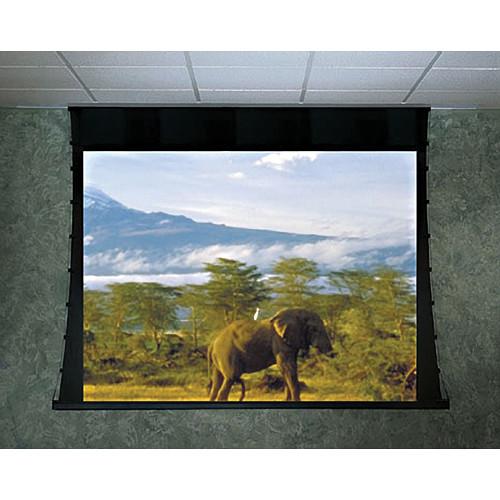

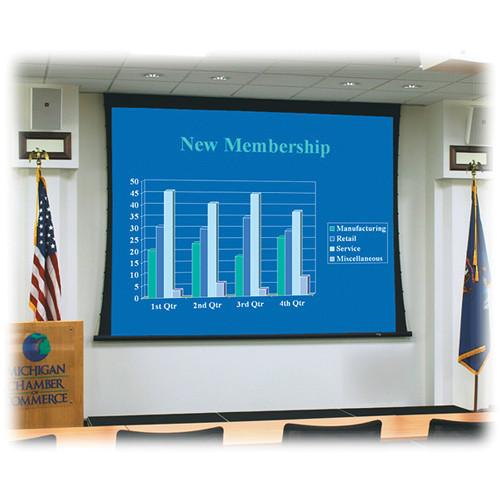

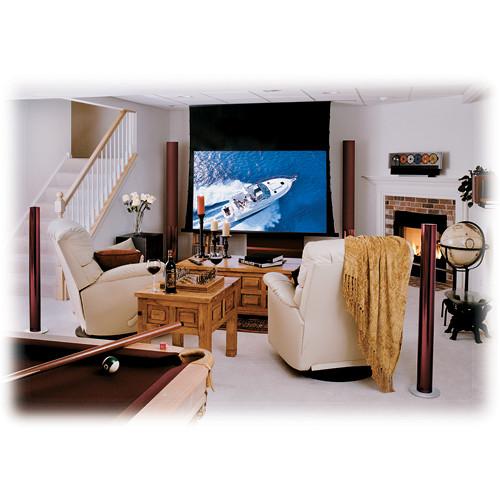

Product description The 118197FNQ 52 x 92” Ultimate Access/Series V Ceiling-Recessed Screen from Draper is tab-tensioned to ensure a flat surface for clear and undistorted projection. The Ultimate Access/Series V has an independently motorized ceiling closure; when the screen is retracted, the motorized closure forms a solid bottom panel, giving the ceiling a clean appearance. The quiet motor on this screen operates at a reduced noise level of 44 dB, which is approximately 30% less than the standard motor. Quiet motors are ideal in settings where noise reduction is important, such as in a library or house of worship.Pure White XT1300V's 1.3 gain rating is designed to offer a brighter picture while still maintaining a wide 180° viewing cone, with the surface reaching half gain around 90°. Colors do not shift, even at wide angles, and white field uniformity is maintained. The surface is a part of Draper's OptiFlex family, which makes Pure White XT1300V suitable for tensioning for a flat front viewing surface. This flexible PVC surface can be cleaned with mild soap and water. - Includes a three-position wall switch with up, down, and stop controls for operating the screen

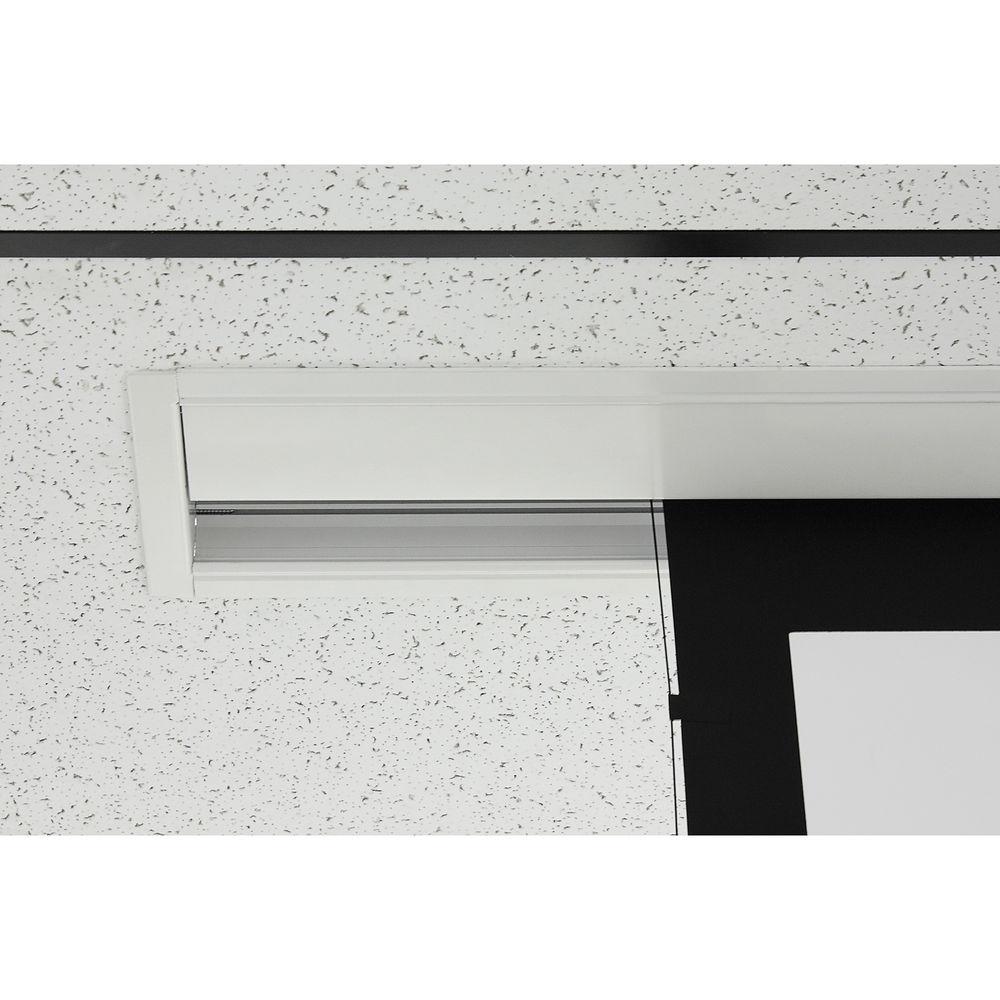

- At the touch of a switch, the door of the Ultimate Access opens into the case before the viewing surface descends
- Included sliding brackets on top of the case allow unlimited adjustment along the bracket channels for mounting the case
- Sliding brackets inside the case accommodate different sizes of screen in the same case
- Case dimensions are 10.0 H x 9.0" D (25.4 x 22.9 cm)
- Fasteners and supporting hardware are not included
In the Box Draper 118197FNQ 52 x 92" Ultimate Access/Series V Ceiling-Recessed Screen with Quiet Motor (110-120 VAC) 3-Position Wall Switch Adjustable Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 118197FNQ 52 x 92" Ultimate Access Series V Ceiling-Recessed Screen with Quiet Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 143020FNQ Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 52.0 x 92.0" / 132.1 x 233.7 cm | | Diagonal | 106.0" / 269.2 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 180 degrees | | Tensioned | Yes | | Black Backing | No | | | | Voltage | 120 VAC/60 Hz | | Weight | 130.0 lb / 59.0 kg, approximate |
