User Manual for Draper 118283Q Ultimate Access Series V Motorized Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 118283Q Ultimate Access Series V
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
 |
User manual for the Draper 118283Q Ultimate Access Series V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

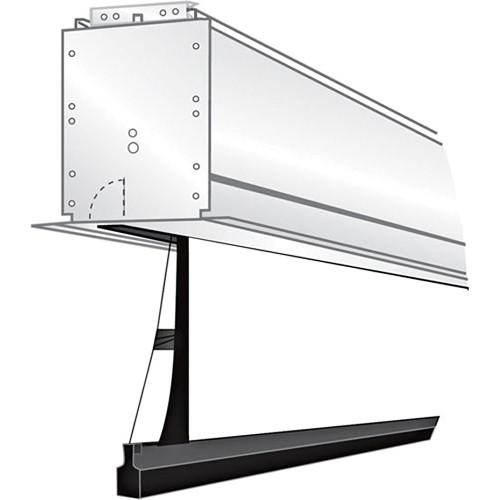

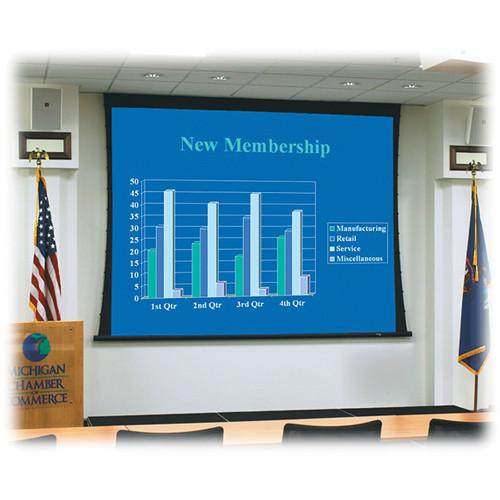

Product description The Draper 70 x 70" Ultimate Access/Series V Motorized Front Projection Screen with Quiet Motor - Ceiling Recessed - Tab-Tensioned - Wall or Ceiling Mountable - Square/Audio-Visual Format (1:1 Aspect Ratio) (Hi Def Grey) features Draper's Tab-Tensioning System, with choice of M1300, M2500 or HiDef Grey viewing surface. The beauty of this screen is that the door of the case retracts into the case before the screen descends. In this way, a touch of total professionalism and "slickness" is achieved. This is an excellent screen for boardroom or lecture hall. Draper products include rear projection display systems, video projector mounts and lifts, plasma display mounts, presentation easels and communication support furniture. Draper products are shipped to dealers throughout the United States, and more than 75 foreign countries. Screen Surfacesbytvbrubtvdq - At the touch of a switch or wireless transmitter, the door of the Ultimate Access opens into the case before the viewing surface descends into the room
- You can install the case first, the screen later
- Your audience will be impressed by its precision timing and quiet, fluid movement
- Motor-in-roller operation
- Draper's Tab-Tensioning System keeps screen flat, providing the best possible picture
- 12" extra drop is standard
- An independently motorized ceiling closure
- In its closed position, the motorized closure forms a solid bottom panel giving the ceiling a clean appearance
- Cineflex screen surface finish is available for rear projection
- With control options, it can be operated from any remote location
In the Box Draper 118283Q Ultimate Access/Series V Motorized Front Projection Screen (70 x 70") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 118283Q Ultimate Access Series V Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 143003FBQ Specs | | | Style | Ultimate Access/Series V with Quiet Motor | | Front/Rear Projection | Front | | Mount | Wall or Ceiling | | Finish | Hi Def Grey; flame and mildew resistant | | Tension Control | Tab-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 70 x 70" (177.8 x 177.8cm) | | Diagonal | Not Applicable | | Format | Square/Audio-Visual | | Aspect Ratio | 1:1 | | Masking Options | Standard black masking borders | | | | Voltage | 110-120VAC, 60 Hz, 5-wire motor mounted inside screen roller; 1.1 amp draw | | Integrated Control | 3-position control switch to stop or reverse screen at any point
Switch furnished with cover plate
Instantly reversible, lifetime lubricated, with internal thermal overload protector and electric brake
Motor mounted on left side only | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3/SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency
IR
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum | | Length | 96-7/8" (246.3cm) | | | | Shipping Weight | Net: 100 lbs (45.4 kg) | | | | Package Weight | 124.0 lb | | Box Dimensions (LxWxH) | 109.0 x 15.0 x 15.0" |
