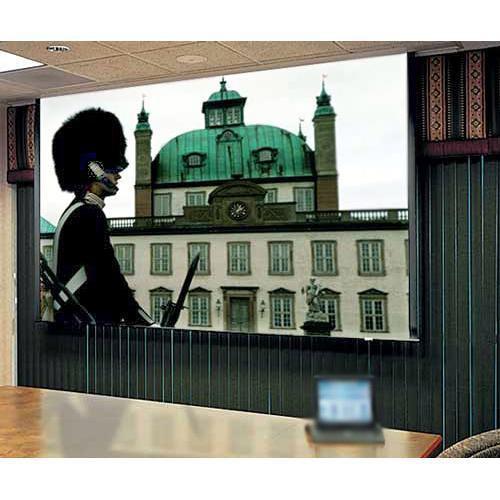

User Manual for Draper 119001 Ultimate Access Series E Motorized Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 119001 Ultimate Access Series E
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
|
User manual for the Draper 119001 Ultimate Access Series E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The Draper 50 x 50" Ultimate Access/Series E Motorized Front Projection Screen - What if you know that you want a ceiling-recessed screen, but you don't know what projector (or projectors) will be used - and therefore, you don't know the optimum size or aspect ratio of the screen, the optimum screen surface, or whether tab tensioning is required? With the Ultimate Access, that's not a problem; order the case now - just make sure it's large enough to accept the largest screen you think you may need. Order the screen later, after the projector decision is made. Or, let the occupant make the decision at a later date. What if technology changes? What if a new projection format is introduced, or Draper introduces a superior new screen surface? With the Ultimate Access, that's not a problem; it's quick, easy and comparatively inexpensive to replace the screen in an Ultimate Access, with no extra electrical or ceiling work.What if you're planning a facility and the room design is flexible, or the presentation rooms have not yet been determined? With the Ultimate Access, that's not a problem; install an Ultimate Access case in each room during construction, and think about screen selection later. It adds great value to your facility.Screen Surfacedccstwxvzcvaezwvcxsbztuzasurbq - Motor-in-roller assures quiet and smooth operation
- Ceiling-recessed screen with automatic closure
- An independently motorized ceiling closure - In its closed position, the motorized closure forms a solid bottom panel, giving the ceiling a clean appearance
- At the touch of a switch or wireless transmitter, the door of the Ultimate Access opens into the case before the viewing surface descends into the room
- Your audience will be impressed by its precision timing and quiet, fluid movement
- With control options, it can be operated from any remote location
- Depending on surface, available in sizes through 12 x 12' and 15' NTSC
In the Box Draper 119001 Ultimate Access/Series E Motorized Front Projection Screen (50 x 50") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 119001 Ultimate Access Series E Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 142001Q Specs | | | Style | Ultimate Access/Series E /Quiet Motor | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | Matte White; flame and mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 50 x 50" (127 x 127c m) | | Image Size | 50 x 50" (127 x 127c m) | | Diagonal | Not Applicable | | Format | Square/Audio-Visual | | Aspect Ratio | 1:1 | | Masking Options | Borders are optional for Series E in Audio-Visual format | | | | Voltage | 110-120VAC, 60Hz
5-wire motor mounted inside screen roller
1.1 amp | | Integrated Control | 3-position control switch
Switch(es) furnished with cover plate
Lifetime lubricated, with internal thermal overload protector and electric brake
Left hand motor location only
Preset, accessible limit switches | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3/SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board | | | | Color | White | | Material | Extruded aluminum | | Length | 66-3/8" (168.9cm) | | | | Shipping Weight | Net: 82 lbs (37.2 kg) | | | | Package Weight | 87.0 lb | | Box Dimensions (LxWxH) | 78.0 x 13.0 x 12.0" |
