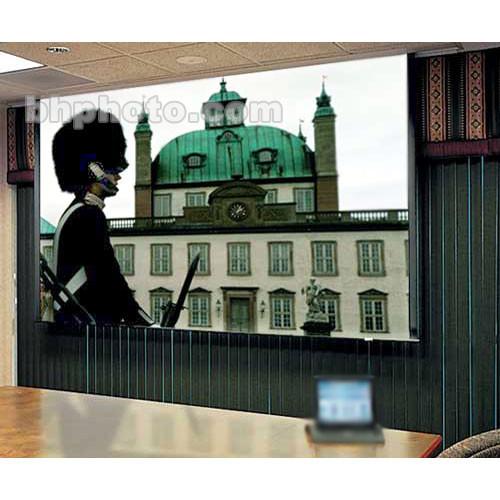

Product description With the 120V 119023 Ultimate Access/Series E 79 x 140" Motorized Screen with LVC-IV Low Voltage Controller from Draper, you can install the case first, and the screen surface later. A motor-in-roller system helps ensure this screen provides quiet and smooth operation. Its ceiling-recessed design incorporates an independently motorized ceiling closure for a seamless appearance with the screen retracted. Matt White XT1000E Screen Surface - Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally, it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
Independently Motorized Closure - At the touch of a switch or wireless transmitter, the door of the Ultimate Access opens into the case before the viewing surface descends into the room
Included Options - LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 119023 Ultimate Access/Series E 79 x 140" Motorized Screen with LVC-IV Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 119023 Ultimate Access Series E 79 x 140" Motorized Screen with LVC-IV Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 142026 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 79 x 140" / 200.7 x 355.6 cm | | Diagonal | 161" / 408.9 cm | | | | Gain | 1.0 | | Viewing Angle | 180° | | Screen Surface | Matt White XT1000E | | | | Motor | Standard | | Included Controls | None | | | | Package Weight | 172.0 lb | | Box Dimensions (LxWxH) | 160.0 x 13.0 x 12.0" |
