User Manual for Draper 119333Q Ultimate Access Series E Motorized Screen Click to enlarge the picture
Contents of the user manual for the Draper 119333Q Ultimate Access Series E
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
|
User manual for the Draper 119333Q Ultimate Access Series E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

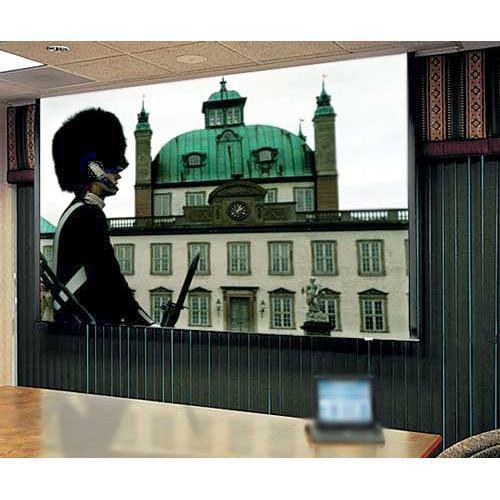

Product description The Draper 49 x 87" Ultimate Access/Series E Motorized Projection Screen provides you with a wonderful ceiling recessed screen that offers you many options. Let us supposed you are building a media room, lecture hall or boardroom and you are not exactly sure what projector you will be purchasing. And, let's also assume you don't know what screen surface you'll want or need - Matte White, Glass Beaded, AT1200, etc. With Draper's Ultimate Access E, screen, it's not a problem. You can install the box within the ceiling and choose your screen surface down the road when you know what your requirements are. And, should you ever decide to change your screen surface, it's relatively inexpensive to do - with no extra electrical or ceiling work. In addition, the Ultimate Access adds value to your venue because if you ever decide to move, the next tenant will have a high-quality screen installation already in place - a huge financial savings over having to hire electricians and contractors to re-install a system.When not using the Ultimate Access, it retracts completely into the ceiling and closes up giving your ceiling a neat, finished appearance. The ceiling closure is an independently operated system.The motor-in-roller design produces a quiet, fluid operation and can be operated via a switch or optional wireless transmitter. With control options, it can be operated from any remote location. Screen Surface - Ceiling-recessed screen with independently operated automatic closure - in its closed position, the motorized closure forms a solid bottom panel, giving the ceiling a clean appearance
- Motor-in-roller assures quiet and smooth operation
- At the touch of a switch or optional wireless transmitter, the door of the Ultimate Access opens into the case before the viewing surface descends into the room
- Your audience will be impressed by its precision timing and quiet, fluid movement
- With control options, it can be operated from any remote location
- Depending on surface, available in sizes through 12 x 12' and 15' NTSC
In the Box Draper 119333Q Ultimate Access/Series E Motorized Screen (49 x 87") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 119333Q Ultimate Access Series E Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 142021Q Specs | | | Style | Ultimate Access/Series E | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | Matte White; flame and mildew resistant | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 61 x 91" (1.5 x 2.3 m) | | Image Size | 49 x 87" (1.2 x 2.2 m) | | Diagonal | 100" (2.5 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Borders are optional for Series E in A/V format | | | | Voltage | 110-120VAC, 60Hz, 5-wire motor mounted inside screen roller, 1.1 amp | | Integrated Control | 3-position control switch
Switch(es) furnished with cover plate
Lifetime lubricated, with internal thermal overload protector and electric brake
Left hand motor location only
Preset, accessible limit switches | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board | | | | Color | White | | Material | Extruded aluminum | | Length | 107.5" (2.7 m) | | | | Shipping Weight | 122 lb (55.3kg) | | | | Package Weight | 122.0 lb | | Box Dimensions (LxWxH) | 120.0 x 15.0 x 15.0" |
