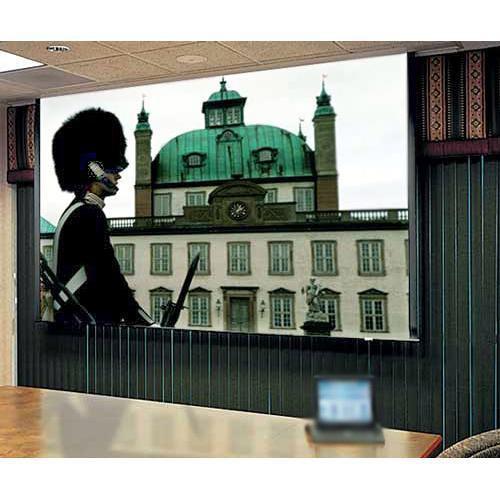

User Manual for Draper 119342Q Ultimate Access Series E 54 x 96" Motorized Screen with LVC-IV Low Voltage Controller Quiet Motor Click to enlarge the picture
Contents of the user manual for the Draper 119342Q Ultimate Access Series E
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
|
User manual for the Draper 119342Q Ultimate Access Series E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description With the 120V 119342Q Ultimate Access/Series E 54 x 96" Motorized Screen with LVC-IV Low Voltage Controller Quiet Motor from Draper, you can install the case first, and the screen surface later. A motor-in-roller system helps ensure this screen provides quiet and smooth operation. Its ceiling-recessed design incorporates an independently motorized ceiling closure for a seamless appearance with the screen retracted. ClearSound White Weave XT900E Screen Surface - Reflects uniform image over full 180° field while maintaining full acoustical transparency. Some control of ambient light is recommended. Flame and mildew resistant. Not recommended for use in sizes less than 80" wide
Independently Motorized Closure - At the touch of a switch or wireless transmitter, the door of the Ultimate Access opens into the case before the viewing surface descends into the room
Included Options - LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 119342Q Ultimate Access/Series E 54 x 96" Motorized Screen with LVC-IV Low Voltage Controller Quiet Motor (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 119342Q Ultimate Access Series E 54 x 96" Motorized Screen with LVC-IV Low Voltage Controller Quiet Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 142023SAQ Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 54 x 96" / 137.2 x 243.8 cm | | Diagonal | 110" / 279.4 cm | | | | Gain | 0.9 | | Viewing Angle | 180° | | Screen Surface | ClearSound White Weave XT900E | | | | Motor | Quiet | | Included Controls | None | | | | Package Weight | 122.0 lb | | Box Dimensions (LxWxH) | 129.0 x 15.0 x 15.0" |
