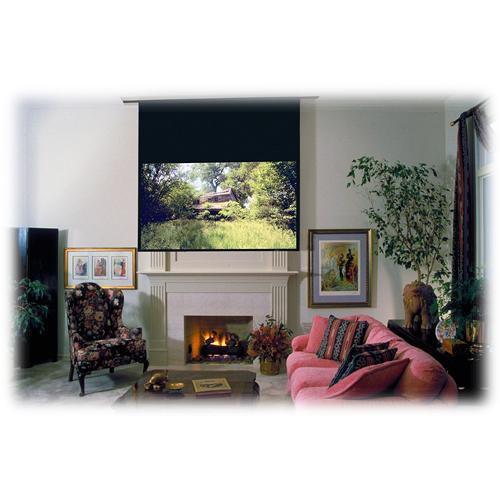

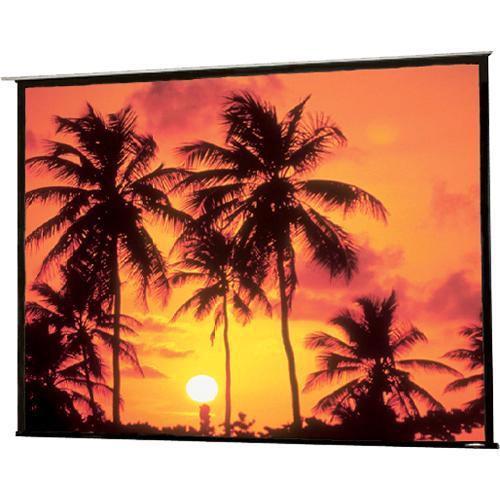

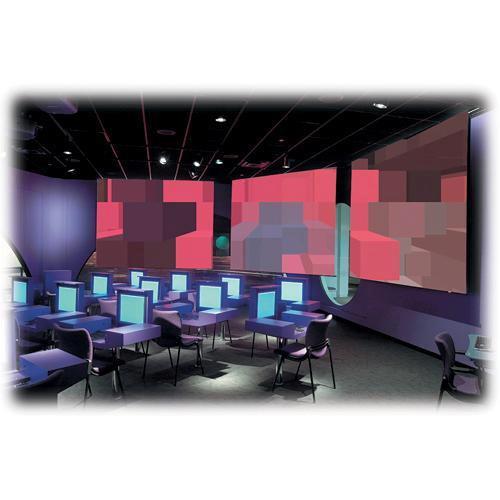

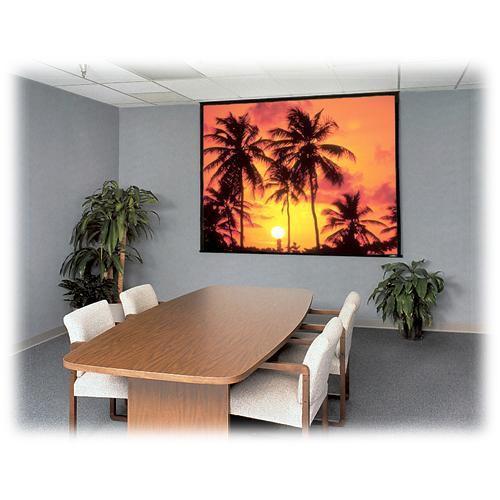

Product description The white 120V 139013EC Access/Series E 126 x 168" Motorized Screen with from Draper is for ceiling-recessed applications and features a UL-approved case for use in environmental air space. Additional features include ceiling trim flanges, a pre-wired junction box, and movable brackets for easy installation. The viewing surface and roller can be installed at the same time or can be added toollessly at a later date. - Contrast Grey XH800E Screen Surface
- A smooth grey surface designed to accommodate high resolution images and enhance contrast and black levels in the projected image. It is recommended for use with moderate and high output digital projectors, and is suitable for use where ambient light is present. It provides a 180° viewing cone. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
- Removable Bottom Closure
- The screen features a redesigned bottom closure panel with a hinge system that allows the closure panel to hang in place when opened, or it can be easily removed.
- Easier Installation
- Adjustable or removable hoisting brackets are included to allow for easy lifting during installation

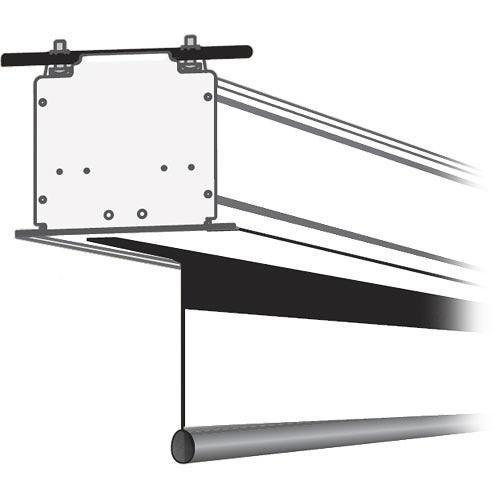

- Case Dimensions
- Features a case size of 8.1" wide by 7.2" high--plus a length of 182"--including flange and mounting brackets. Mounting brackets are adjustable to facilitate installation
- Quick Connect Wiring
- Quick connect wiring connections allows for installation of the case early and addition of the screen later
- Certifications and Rating
- Plenum rated case that is UL approved "Suitable for Use in Environmental Air Space"
In the Box Draper 139013EC Access/Series E 126 x 168" Ceiling-Recessed Motorized Screen (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 139013EC Access Series E 126 x 168" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 139013EC Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 4:3 | | Style | Ceiling-recessed | | | | Viewing Area | 126.0 x 168.0" / 320.0 x 426.7 cm | | Diagonal | 210.0" / 533.4 cm | | | | Gain | 0.8 | | Viewing Angle | 180 degrees |
