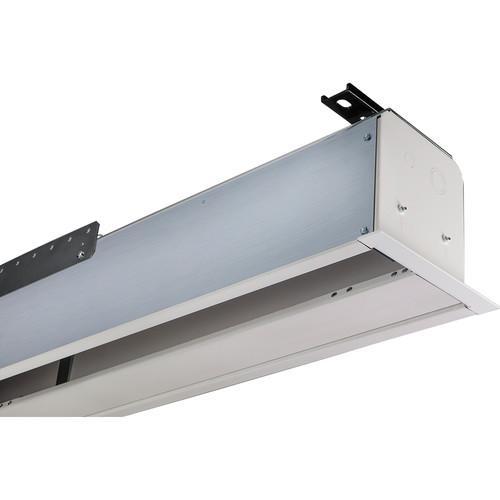

User Manual for Draper 139032QU Access FIT Series E 65 x 116" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller and Quiet Motor Click to enlarge the picture
Contents of the user manual for the Draper 139032QU Access FIT Series E
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
User manual for the Draper 139032QU Access FIT Series E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
Product description The white 120V 139032QU Access FIT/Series E 65 x 116" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller and Quiet Motor from Draper is a motorized screen for ceiling-recessed installation. With a height less than 6" and a uniform housing size that can fit a number of different screen sizes, the Access FIT/Series E is optimal for installation in tight openings above the ceiling. It is designed so that you can install the case during the "dirty" phase of the construction process and keep the screen surface safe until you install the projector. The screen (motor-in-roller and attached viewing surface) is designed to be easy to install thanks to preset latching roller brackets and electrical pin connectors. Waiting to install the screen until after construction is completed eliminates the risk of job site damage.
- Matt White XT1000E
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally, it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
- Bottom Closure Panel
- The redesigned bottom closure panel and hinge system allows the closure panel to hang in place when opened, or it can be removed. Adjustable or removable hoisting brackets are included to allow for easy lifting during installation
- Ease of Installation
- Mounting brackets are adjustable to facilitate installation
- Quick connect wiring connections allows for installation of the case early and addition of the screen later
- Case dimensions are 7.75 W x 5.69" H, including flange and mounting brackets
- The motor-in-roller design helps assure quiet and smooth operation
- Plenum rated
- UL approved as "Suitable for use in environmental air space"
- LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 139032QU Access FIT/Series E 65 x 116" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller and Quiet Motor (120V) Limited 1-Year Warranty Table of Contents
- Quiet Motor
- Produces less noise when the screen is lowered or raised. Ideal for boardrooms, lecture halls, or other settings where the screen may need to raised or lowered during the event
Upload User Manual
Have you got an user manual for the Draper 139032QU Access FIT Series E 65 x 116" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller and Quiet Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Draper 139032QU Specs
| Front/Rear Projection || Front |
| Aspect Ratio || 16:9 |
| Style || Ceiling-recessed |
| Viewing Area || 65.0 x 116.0" / 165.1 x 294.6 cm |
| Diagonal || 133.0" / 337.8 cm |
| Gain || 1.0 |
| Viewing Angle || 180 degrees |
| Motor || Quiet |
| Included Controls || Low voltage control |
