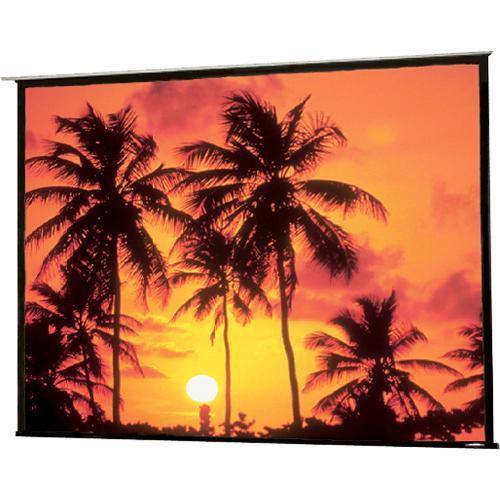

User Manual for Draper 139036ECU Access Series E 106 x 188" Ceiling-Recessed Motorized Screen with LVC-IV Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 139036ECU Access Series E 106
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 139036ECU Access Series E 106 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The white 120V 139036ECU Access/Series E 106 x 188" Motorized Screen with LVC-IV Low Voltage Controller from Draper is for ceiling-recessed applications and features a UL-approved case for use in environmental air space. Additional features include ceiling trim flanges, a pre-wired junction box, and movable brackets for easy installation. The viewing surface and roller can be installed at the same time or can be added toollessly at a later date. - Contrast Grey XH800E Screen Surface
- A smooth grey surface designed to accommodate high resolution images and enhance contrast and black levels in the projected image. It is recommended for use with moderate and high output digital projectors, and is suitable for use where ambient light is present. It provides a 180° viewing cone. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
- Removable Bottom Closure
- The screen features a redesigned bottom closure panel with a hinge system that allows the closure panel to hang in place when opened, or it can be easily removed
- Easier Installation
- Adjustable or removable hoisting brackets are included to allow for easy lifting during installation

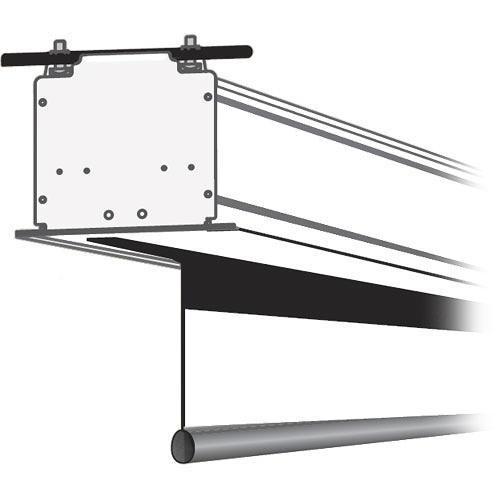

- Case Dimensions
- Features a case size of 8.1" wide by 7.2" high--plus a length of 206"--including flange and mounting brackets. Mounting brackets are adjustable to facilitate installation
- Quick Connect Wiring
- Quick connect wiring connections allows for installation of the case early and addition of the screen later
- Certifications and Rating
- Plenum rated case that is UL approved "Suitable for Use in Environmental Air Space"
- LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 139036ECU Access/Series E 106 x 188" Ceiling-Recessed Motorized Screen with LVC-IV Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 139036ECU Access Series E 106 x 188" Ceiling-Recessed Motorized Screen with LVC-IV Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 139036ECU Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 106.0 x 188.0" / 269.2 x 477.5 cm | | Diagonal | 220.0" / 558.8 cm | | | | Gain | 0.8 | | Viewing Angle | 180 degrees | | | | Motor | Standard | | Included Controls | Low voltage control |
